221

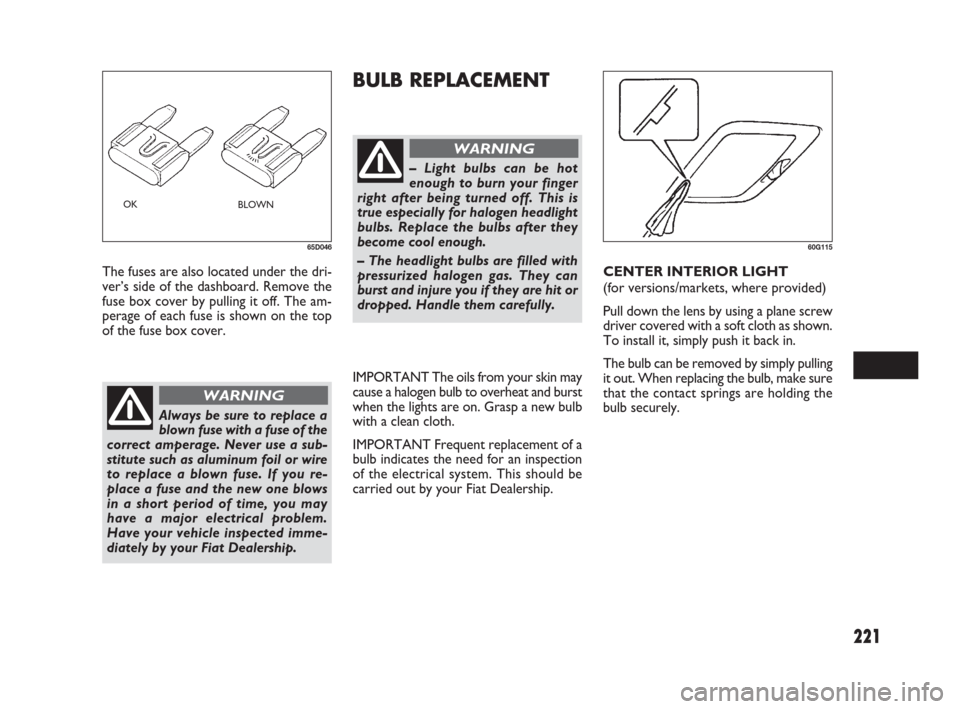

BULB REPLACEMENT
The fuses are also located under the dri-
ver’s side of the dashboard. Remove the
fuse box cover by pulling it off. The am-
perage of each fuse is shown on the top
of the fuse box cover.
Always be sure to replace a
blown fuse with a fuse of the
correct amperage. Never use a sub-
stitute such as aluminum foil or wire
to replace a blown fuse. If you re-
place a fuse and the new one blows
in a short period of time, you may
have a major electrical problem.
Have your vehicle inspected imme-
diately by your Fiat Dealership.
WARNING
65D046
OK
BLOWN
– Light bulbs can be hot
enough to burn your finger
right after being turned off. This is
true especially for halogen headlight
bulbs. Replace the bulbs after they
become cool enough.
– The headlight bulbs are filled with
pressurized halogen gas. They can
burst and injure you if they are hit or
dropped. Handle them carefully.
WARNING
IMPORTANT The oils from your skin may
cause a halogen bulb to overheat and burst
when the lights are on. Grasp a new bulb
with a clean cloth.
IMPORTANT Frequent replacement of a
bulb indicates the need for an inspection
of the electrical system. This should be
carried out by your Fiat Dealership.CENTER INTERIOR LIGHT
(for versions/markets, where provided)
Pull down the lens by using a plane screw
driver covered with a soft cloth as shown.
To install it, simply push it back in.
The bulb can be removed by simply pulling
it out. When replacing the bulb, make sure
that the contact springs are holding the
bulb securely.
60G115
