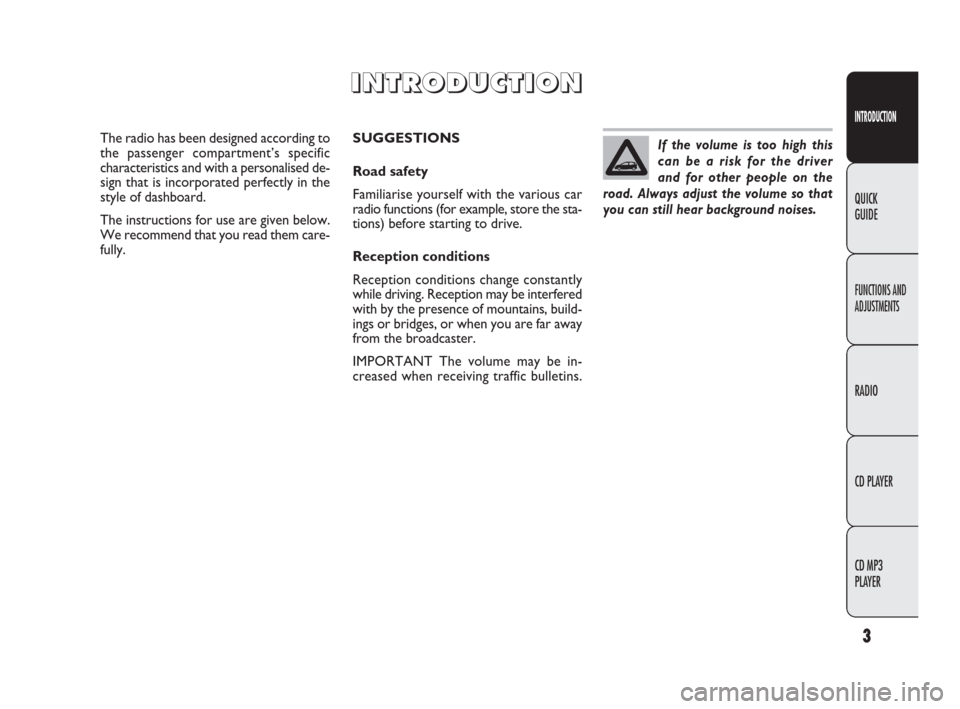

INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE
SUGGESTIONS
Road safety
Familiarise yourself with the various car
radio functions (for example, store the sta-
tions) before starting to drive.
Reception conditions
Reception conditions change constantly
while driving. Reception may be interfered
with by the presence of mountains, build-
ings or bridges, or when you are far away
from the broadcaster.
IMPORTANT The volume may be in-
creased when receiving traffic bulletins.
I I
N N
T T
R R
O O
D D
U U
C C
T T
I I
O O
N N
The radio has been designed according to
the passenger compartment’s specific
characteristics and with a personalised de-
sign that is incorporated perfectly in the
style of dashboard.
The instructions for use are given below.
We recommend that you read them care-
fully.If the volume is too high this
can be a risk for the driver
and for other people on the
road. Always adjust the volume so that
you can still hear background noises.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 3

INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
4
QUICK
GUIDE

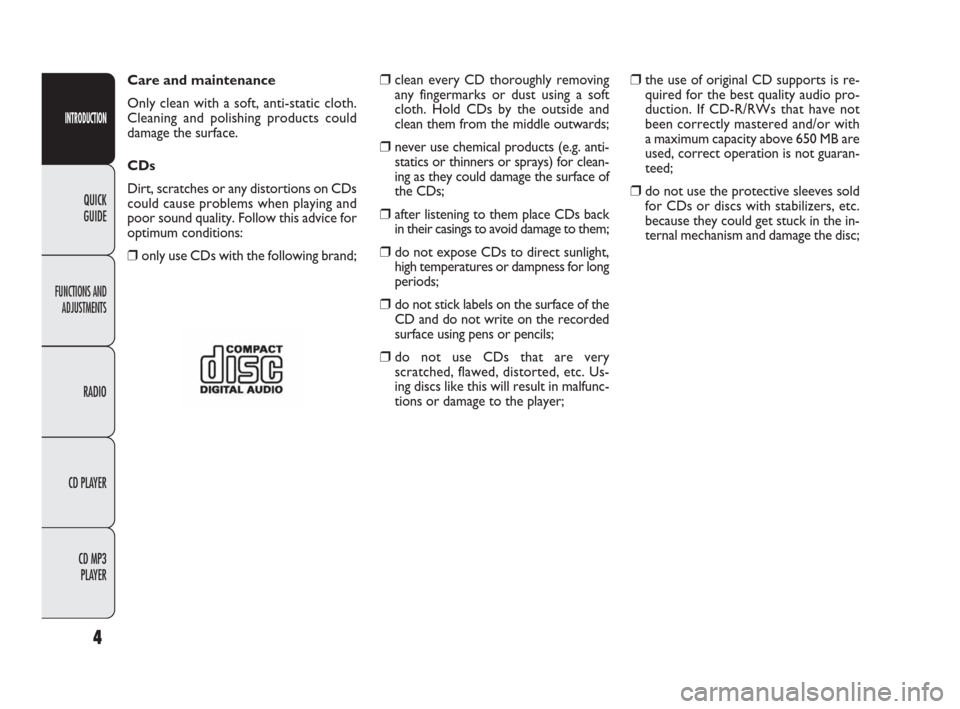

❒clean every CD thoroughly removing
any fingermarks or dust using a soft
cloth. Hold CDs by the outside and
clean them from the middle outwards;
❒never use chemical products (e.g. anti-
statics or thinners or sprays) for clean-
ing as they could damage the surface of
the CDs;
❒after listening to them place CDs back
in their casings to avoid damage to them;
❒do not expose CDs to direct sunlight,
high temperatures or dampness for long
periods;
❒do not stick labels on the surface of the
CD and do not write on the recorded
surface using pens or pencils;
❒do not use CDs that are very
scratched, flawed, distorted, etc. Us-
ing discs like this will result in malfunc-
tions or damage to the player;
❒the use of original CD supports is re-
quired for the best quality audio pro-
duction. If CD-R/RWs that have not
been correctly mastered and/or with
a maximum capacity above 650 MB are
used, correct operation is not guaran-
teed;
❒do not use the protective sleeves sold
for CDs or discs with stabilizers, etc.
because they could get stuck in the in-
ternal mechanism and damage the disc; Care and maintenance
Only clean with a soft, anti-static cloth.
Cleaning and polishing products could
damage the surface.
CDs
Dirt, scratches or any distortions on CDs
could cause problems when playing and
poor sound quality. Follow this advice for
optimum conditions:
❒only use CDs with the following brand;
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 4

5
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE

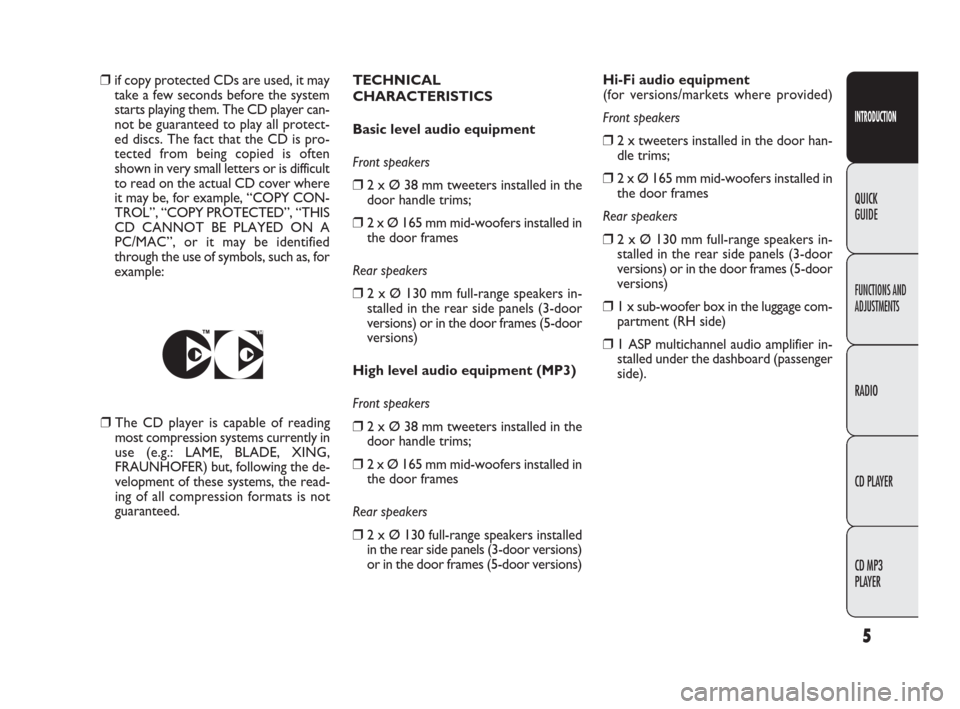

❒ The CD player is capable of reading
most compression systems currently in
use (e.g.: LAME, BLADE, XING,
FRAUNHOFER) but, following the de-
velopment of these systems, the read-
ing of all compression formats is not
guaranteed. ❒ if copy protected CDs are used, it may
take a few seconds before the system
starts playing them. The CD player can-
not be guaranteed to play all protect-
ed discs. The fact that the CD is pro-
tected from being copied is often
shown in very small letters or is difficult
to read on the actual CD cover where
it may be, for example, “COPY CON-
TROL”, “COPY PROTECTED”, “THIS
CD CANNOT BE PLAYED ON A
PC/MAC”, or it may be identified
through the use of symbols, such as, for
example:TECHNICAL
CHARACTERISTICS
Basic level audio equipment
Front speakers
❒ 2 x Ø 38 mm tweeters installed in the
door handle trims;
❒ 2 x Ø 165 mm mid-woofers installed in
the door frames
Rear speakers
❒ 2 x Ø 130 mm full-range speakers in-
stalled in the rear side panels (3-door
versions) or in the door frames (5-door
versions)
High level audio equipment (MP3)
Front speakers
❒ 2 x Ø 38 mm tweeters installed in the
door handle trims;
❒ 2 x Ø 165 mm mid-woofers installed in
the door frames
Rear speakers
❒ 2 x Ø 130 full-range speakers installed
in the rear side panels (3-door versions)
or in the door frames (5-door versions)
Hi-Fi audio equipment
(for versions/markets where provided)
Front speakers
❒ 2 x tweeters installed in the door han-
dle trims;
❒ 2 x Ø 165 mm mid-woofers installed in
the door frames
Rear speakers
❒ 2 x Ø 130 mm full-range speakers in-
stalled in the rear side panels (3-door
versions) or in the door frames (5-door
versions)
❒ 1 x sub-woofer box in the luggage com-
partment (RH side)
❒ 1 ASP multichannel audio amplifier in-
stalled under the dashboard (passenger
side).
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 5

INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
6
QUICK
GUIDE
Q Q
U U
I I
C C
K K
G G
U U
I I
D D
E E

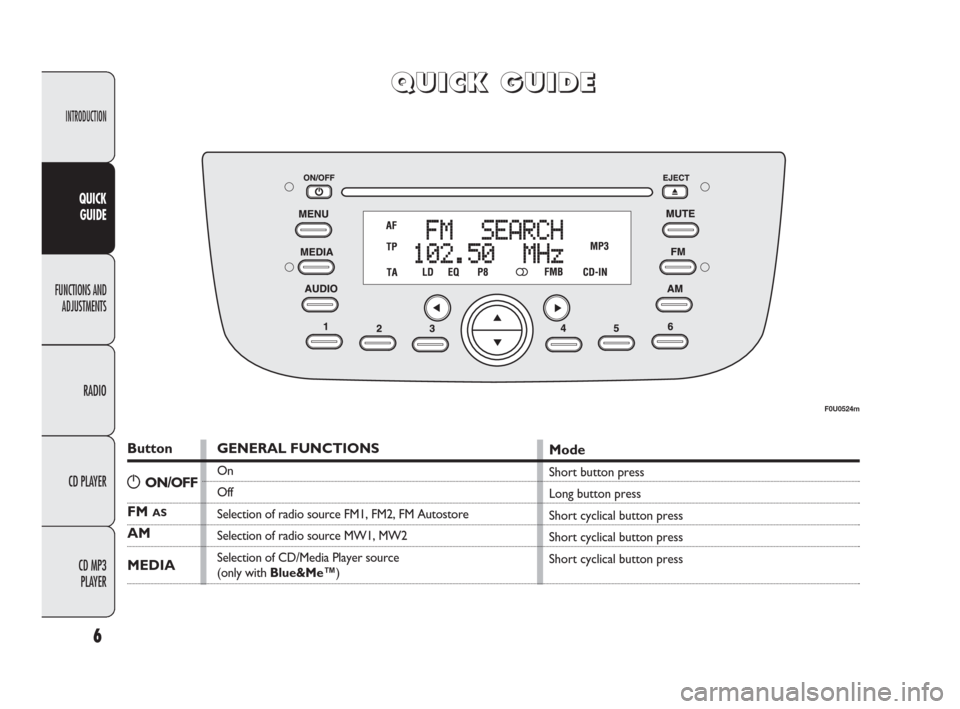

Button
FM AS
AM
MEDIA
GENERAL FUNCTIONS
On
Off
Selection of radio source FM1, FM2, FM Autostore
Selection of radio source MW1, MW2
Selection of CD/Media Player source
(only with Blue&Me™)
Mode
Short button press
Long button press
Short cyclical button press
Short cyclical button press
Short cyclical button press
F0U0524m
gON/OFF
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 6

7
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
QUICK
GUIDE
Button
▲
¯˙▼
1 2 3 4 5 6
RADIO FUNCTIONS
Radio station search:
– Automatic search
– Manual search
Programming current radio station
Stored station recall
Mode
Automatic search: pressing buttons ¯or ˙
(long press for fast forward)
Manual search: pressing buttons ▲or ▼
(long press for fast forward)
Long button press for memory preset
1 to 6
Short button press for
memory preset 1 to 6

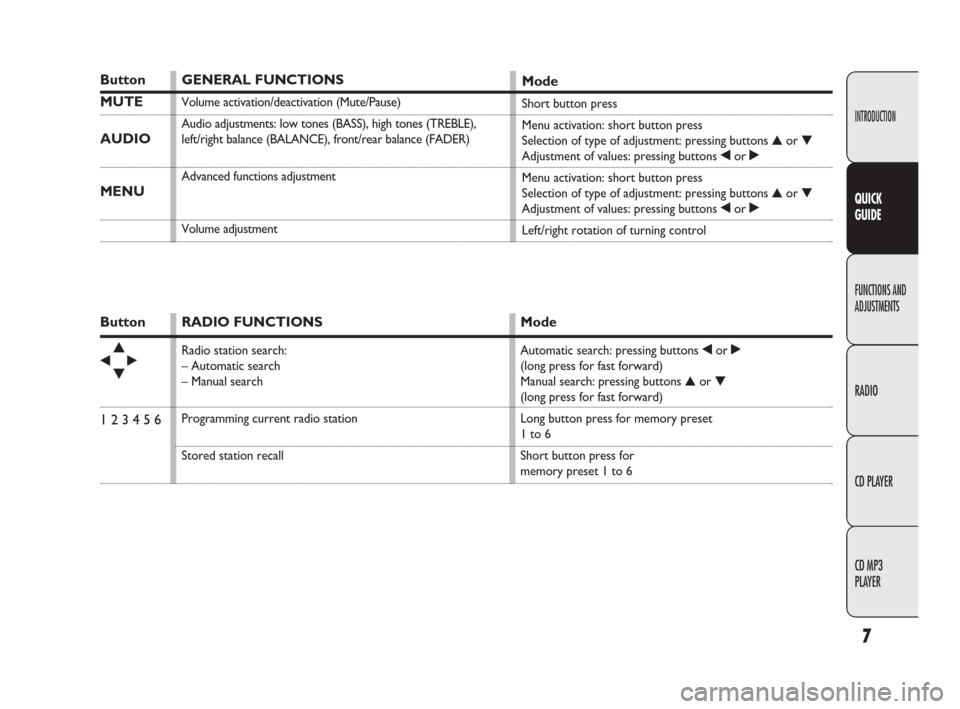

Button
MUTE
AUDIO
MENU
GENERAL FUNCTIONS
Volume activation/deactivation (Mute/Pause)
Audio adjustments: low tones (BASS), high tones (TREBLE),
left/right balance (BALANCE), front/rear balance (FADER)
Advanced functions adjustment
Volume adjustment
Mode
Short button press
Menu activation: short button press
Selection of type of adjustment: pressing buttons ▲or ▼
Adjustment of values: pressing buttons ¯or ˙
Menu activation: short button press
Selection of type of adjustment: pressing buttons ▲or ▼
Adjustment of values: pressing buttons ¯or ˙
Left/right rotation of turning control
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 7
