2009 FIAT PUNTO EVO Radio CD MP3 Manual

INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
8
QUICK
GUIDE
Button
˚EJECT
¯˙
▲▼
CD FUNCTIONS
CD ejection
Play previous/next track
CD track fast forward/rewind
Play previous/next folder (for CD-MP3)
Mode
Short button press
Short button press ¯or ˙
Long button press ¯or ˙
Short button press ▲or ▼
Button
▲▼
¯˙
Media Player FUNCTIONS
(only with BlueMe™)
Selecting folder/artist/genre/previous/
next album according to the selection method activated
Play previous/next track
Mode
Short button press
Short button press
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 8

9
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
QUICK
GUIDE

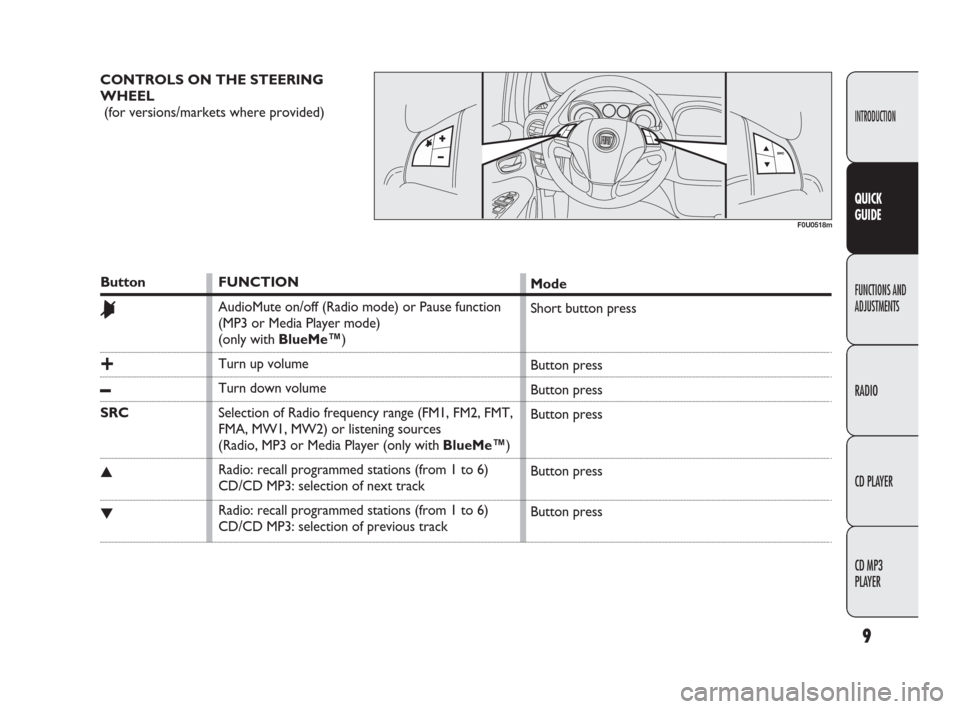

CONTROLS ON THE STEERING
WHEEL
(for versions/markets where provided)
F0U0518m
Button
&
+
–
SRC
▲
▼
FUNCTION
AudioMute on/off (Radio mode) or Pause function
(MP3 or Media Player mode)
(only with BlueMe™)
Turn up volume
Turn down volume
Selection of Radio frequency range (FM1, FM2, FMT,
FMA, MW1, MW2) or listening sources
(Radio, MP3 or Media Player (only with BlueMe™)
Radio: recall programmed stations (from 1 to 6)
CD/CD MP3: selection of next track
Radio: recall programmed stations (from 1 to 6)
CD/CD MP3: selection of previous trackMode
Short button press
Button press
Button press
Button press
Button press
Button press
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 9

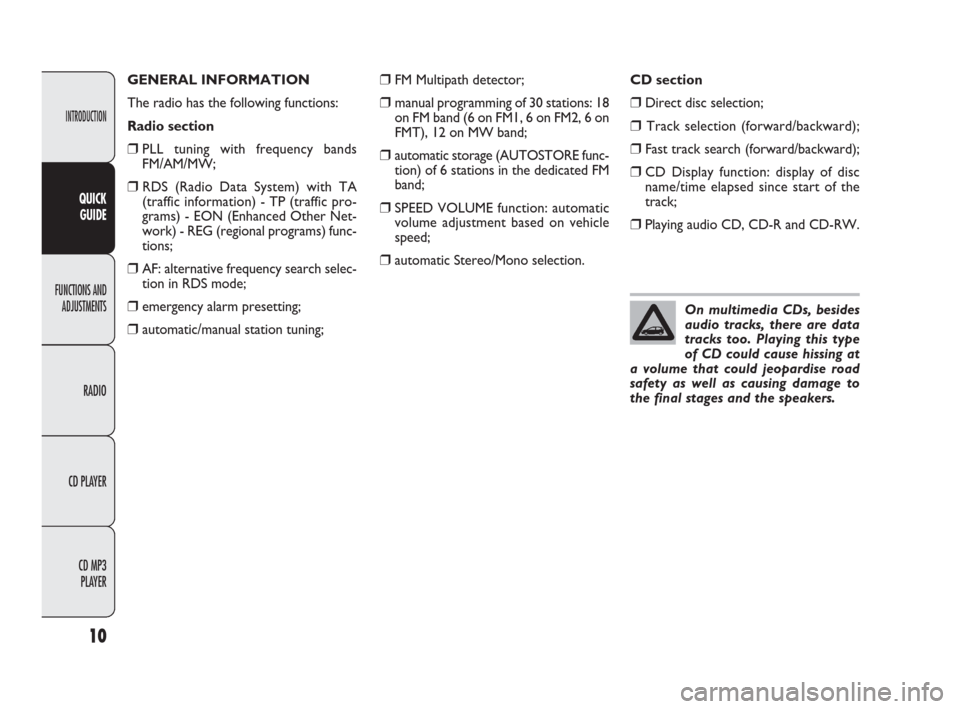

INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
10
QUICK
GUIDE
❒FM Multipath detector;
❒manual programming of 30 stations: 18
on FM band (6 on FM1, 6 on FM2, 6 on
FMT), 12 on MW band;
❒automatic storage (AUTOSTORE func-
tion) of 6 stations in the dedicated FM
band;
❒SPEED VOLUME function: automatic
volume adjustment based on vehicle
speed;
❒automatic Stereo/Mono selection.CD section
❒Direct disc selection;
❒Track selection (forward/backward);
❒Fast track search (forward/backward);
❒CD Display function: display of disc
name/time elapsed since start of the
track;
❒Playing audio CD, CD-R and CD-RW. GENERAL INFORMATION
The radio has the following functions:
Radio section
❒PLL tuning with frequency bands
FM/AM/MW;
❒RDS (Radio Data System) with TA
(traffic information) - TP (traffic pro-
grams) - EON (Enhanced Other Net-
work) - REG (regional programs) func-
tions;
❒AF: alternative frequency search selec-
tion in RDS mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
On multimedia CDs, besides
audio tracks, there are data
tracks too. Playing this type
of CD could cause hissing at
a volume that could jeopardise road
safety as well as causing damage to
the final stages and the speakers.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 10

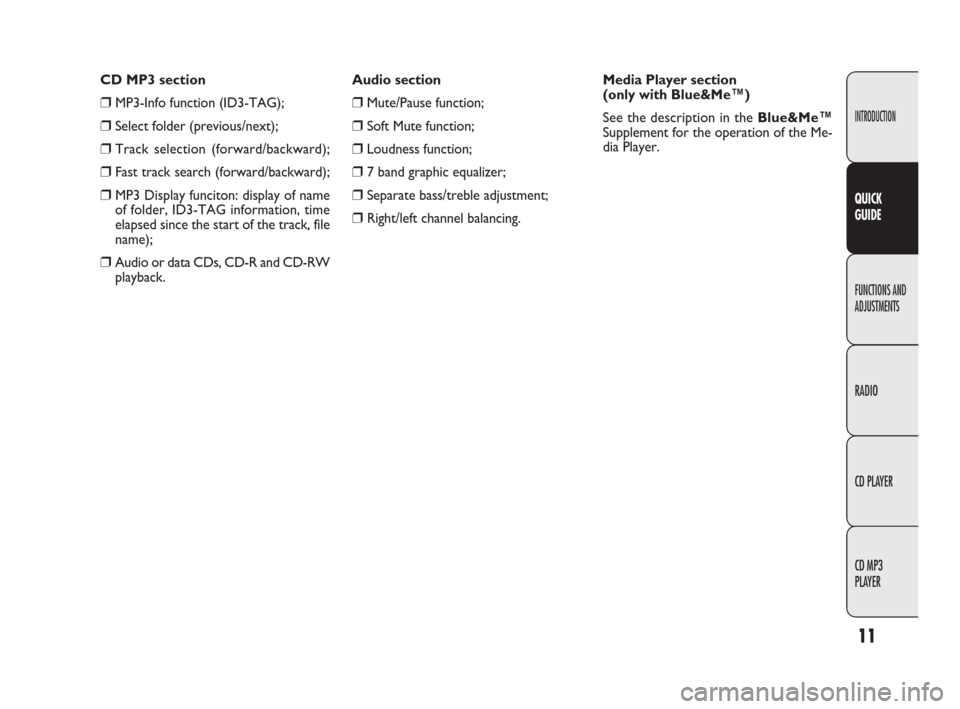

11
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
QUICK
GUIDE
Audio section
❒Mute/Pause function;
❒Soft Mute function;
❒Loudness function;
❒7 band graphic equalizer;
❒Separate bass/treble adjustment;
❒Right/left channel balancing. CD MP3 section
❒MP3-Info function (ID3-TAG);
❒Select folder (previous/next);
❒Track selection (forward/backward);
❒Fast track search (forward/backward);
❒MP3 Display funciton: display of name
of folder, ID3-TAG information, time
elapsed since the start of the track, file
name);
❒Audio or data CDs, CD-R and CD-RW
playback.Media Player section
(only with Blue&Me™)
See the description in the Blue&Me™
Supplement for the operation of the Me-
dia Player.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 11

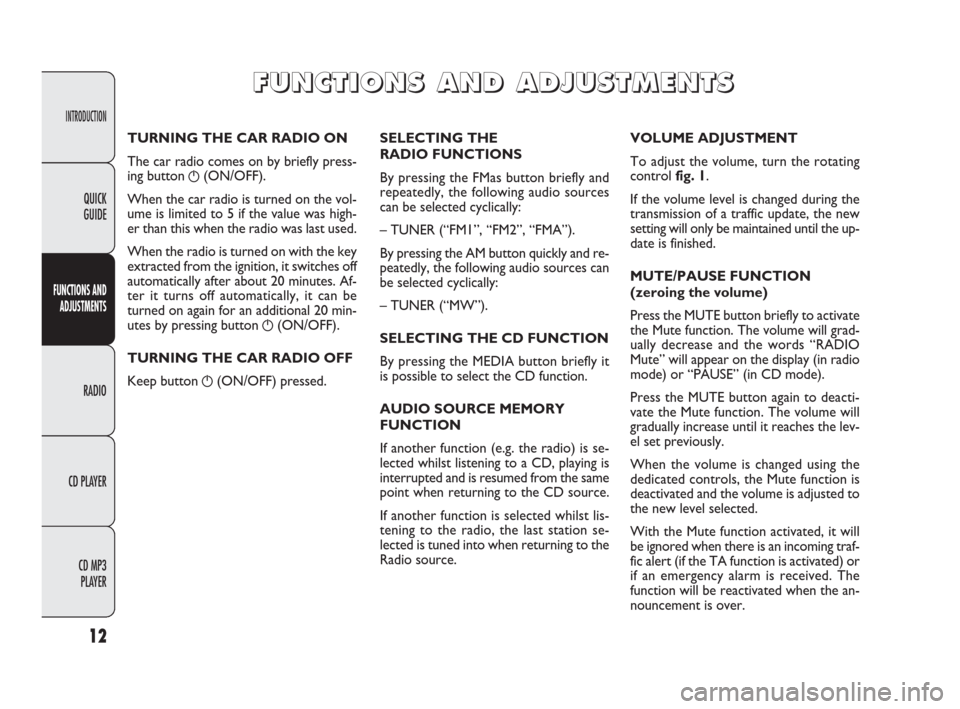

INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
12
QUICK
GUIDE
SELECTING THE
RADIO FUNCTIONS
By pressing the FMas button briefly and
repeatedly, the following audio sources
can be selected cyclically:
– TUNER (“FM1”, “FM2”, “FMA”).
By pressing the AM button quickly and re-
peatedly, the following audio sources can
be selected cyclically:
– TUNER (“MW”).
SELECTING THE CD FUNCTION
By pressing the MEDIA button briefly it
is possible to select the CD function.
AUDIO SOURCE MEMORY
FUNCTION
If another function (e.g. the radio) is se-
lected whilst listening to a CD, playing is
interrupted and is resumed from the same
point when returning to the CD source.
If another function is selected whilst lis-
tening to the radio, the last station se-
lected is tuned into when returning to the
Radio source.VOLUME ADJUSTMENT
To adjust the volume, turn the rotating
control fig. 1.
If the volume level is changed during the
transmission of a traffic update, the new
setting will only be maintained until the up-
date is finished.
MUTE/PAUSE FUNCTION
(zeroing the volume)
Press the MUTE button briefly to activate
the Mute function. The volume will grad-
ually decrease and the words “RADIO
Mute” will appear on the display (in radio
mode) or “PAUSE” (in CD mode).
Press the MUTE button again to deacti-
vate the Mute function. The volume will
gradually increase until it reaches the lev-
el set previously.
When the volume is changed using the
dedicated controls, the Mute function is
deactivated and the volume is adjusted to
the new level selected.
With the Mute function activated, it will
be ignored when there is an incoming traf-
fic alert (if the TA function is activated) or
if an emergency alarm is received. The
function will be reactivated when the an-
nouncement is over. TURNING THE CAR RADIO ON
The car radio comes on by briefly press-
ing button
g(ON/OFF).
When the car radio is turned on the vol-
ume is limited to 5 if the value was high-
er than this when the radio was last used.
When the radio is turned on with the key
extracted from the ignition, it switches off
automatically after about 20 minutes. Af-
ter it turns off automatically, it can be
turned on again for an additional 20 min-
utes by pressing button
g(ON/OFF).
TURNING THE CAR RADIO OFF
Keep button
g(ON/OFF) pressed.
F F
U U
N N
C C
T T
I I
O O
N N
S S
A A
N N
D D
A A
D D
J J
U U
S S
T T
M M
E E
N N
T T
S S
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 12

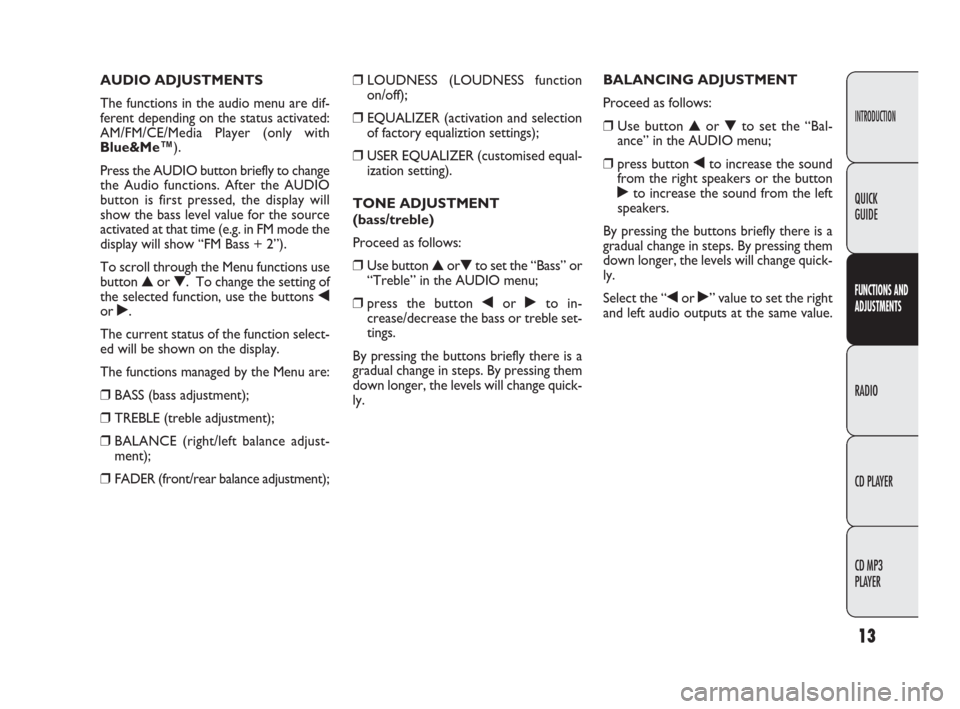

13
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE
❒LOUDNESS (LOUDNESS function
on/off);
❒EQUALIZER (activation and selection
of factory equaliztion settings);
❒USER EQUALIZER (customised equal-
ization setting).
TONE ADJUSTMENT
(bass/treble)
Proceed as follows:
❒Use button ▲or▼to set the “Bass” or
“Treble” in the AUDIO menu;
❒press the button ¯or ˙to in-
crease/decrease the bass or treble set-
tings.
By pressing the buttons briefly there is a
gradual change in steps. By pressing them
down longer, the levels will change quick-
ly.BALANCING ADJUSTMENT
Proceed as follows:
❒Use button ▲or ▼to set the “Bal-
ance” in the AUDIO menu;
❒press button ¯to increase the sound
from the right speakers or the button
˙to increase the sound from the left
speakers.
By pressing the buttons briefly there is a
gradual change in steps. By pressing them
down longer, the levels will change quick-
ly.
Select the “¯or ˙” value to set the right
and left audio outputs at the same value. AUDIO ADJUSTMENTS
The functions in the audio menu are dif-
ferent depending on the status activated:
AM/FM/CE/Media Player (only with
Blue&Me™).
Press the AUDIO button briefly to change
the Audio functions. After the AUDIO
button is first pressed, the display will
show the bass level value for the source
activated at that time (e.g. in FM mode the
display will show “FM Bass + 2”).
To scroll through the Menu functions use
button ▲or ▼. To change the setting of
the selected function, use the buttons ¯
or ˙.
The current status of the function select-
ed will be shown on the display.
The functions managed by the Menu are:
❒BASS (bass adjustment);
❒TREBLE (treble adjustment);
❒BALANCE (right/left balance adjust-
ment);
❒FADER (front/rear balance adjustment);
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 13

INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
14
QUICK
GUIDE
LOUDNESS FUNCTION
The Loudness function improves the vol-
ume of the sound whilst listening at low
volumes, increasing the bass and treble.
To activate/deactivate the function, select
the Loudness setting of the AUDIO menu
using the ¯or ˙button. The function sta-
tus (on or off) is shown on the display for
a few seconds by the words Loudness On
or Loudness Off. PRESET/USER*/
CLASSIC/ROCK/JAZZ
functions (
equalizer on/off)
The built-in equalizer can be activat-
ed/deactivated. When the equalizer func-
tion is off, the audio settings can only be
changed by adjusting the bass and treble
settings, whereas when the function is on,
the acoustic curves can be adjusted. To
turn off the equalizer, select the “EQ Pre-
set” function using the ¯or ˙buttons.
To turn on the equalizer, use the ¯or ˙
buttons to select one of the adjustments:
❒“FM/AM/CD...EQ User” (adjustment of
7 equalizer bands that can be changed by
the user);
❒“Classic” (optimum predefined adjust-
ment of equalizer for listening to classi-
cal music);
❒“Rock” (optimum predefined adjust-
ment of equalizer for listening to rock
and pop music);
❒“Jazz” (optimum predefined adjustment
of equalizer for listening to jazz music);
When one of the equalizer adjustments is
activated the letters “EQ” light up. FADER ADJUSTMENT
Proceed as follows:
❒Use button ▲or ▼to set the “Fader”
in the AUDIO menu;
❒press button ¯to increase the sound
coming from the rear speakers or but-
ton ˙to increase the sound coming
from the front speakers.
By pressing the buttons briefly there is a
gradual change in steps. By pressing them
down longer, the levels will change quick-
ly.
Select “¯or ˙” to set the same level for
the front and rear audio outputs.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 14

15
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE
*USER EQ SETTINGS function
(equalizer settings only if the USER
setting has been
selected)
To set a customized equalizer adjustment,
set either the ▲or ▼button to User and
press the MENU button.
A graph with 7 bars will appear on the dis-
play, where each bar represents a fre-
quency. Select the bar to adjust using but-
tons¯or ˙; the bar selected will start to
flash and can be adjusted using buttons ▲
or ▼.
Press the AUDIO button again to mem-
orize the setting. The display will show the
source activated at the time followed by
the word User. If the mode is, for exam-
ple, FM, then the display will show “FM EQ
User”.MENU
MENU button functions
Press the MENU button briefly to activate
the Menu function. The display will show
the first menu item that can be adjusted
(AF) (AF Switching On on the display).
To scroll through the Menu functions use
button ▲or ▼. To change the setting of
the selected function, use the buttons ¯
or ˙.
The current status of the function select-
ed will be shown on the display.
The functions managed by the Menu are:
❒AF SWITCHING (ON/OFF);
❒TRAFFIC INFORMATION (ON/OFF);
❒REGIONAL MODE regional programs
(ON/OFF);❒MP3 DISPLAY (CD MP3 display set-
ting);
❒SPEED VOLUME (automatic volume
control based on speed);
❒EXTERNAL AUDIO (telephone vol-
ume adjustment);
❒RADIO OFF (off mode);
❒SYSTEM RESET.
Press the MENU button again to exit the
Menu function.
IMPORTANT The AF SWITCHING,
TRAFFIC INFORMATION and REGION-
AL MODE adjustments are only possible
on FM.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 15
