2009 DODGE DAKOTA battery replacement

mRemote Keyless Entry.................... 21
NTo Unlock The Doors................... 22
NTo Lock The Doors.................... 22
NUsing The Panic Alarm................. 24
NGeneral Information.................... 24
NProgramming Additional Transmitters....... 25
NBattery Replacement................... 26
mRemote Starting System Ð If Equipped....... 27
mDoor Locks........................... 29
NManual Door Locks.................... 29
NPower Door Locks..................... 29
NChild Protection Door Lock.............. 32
mWindows............................. 34NPower Windows...................... 34
NAuto Down (Driver's Side Only)........... 35
NWindow Lockout Switch................ 35
NWind Buffeting....................... 35
mOccupant Restraints..................... 36
NLap/Shoulder Belts.................... 37
NAdjustable Upper Shoulder Belt Anchorage . . . 42
NAutomatic Locking Retractors (ALR) Mode ±
If Equipped.......................... 43
NCenter Lap Belts...................... 43
NSeat Belt Pretensioners.................. 44
NEnhanced Driver Seat Belt Reminder System
(BeltAlertt).......................... 44
NSeat Belts And Pregnant Women........... 45
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

6. After holding the UNLOCK button for four seconds,
also press the PANIC button within six seconds.
7. When a single chime is heard, release both buttons.
The chime is an indication that you have successfully
entered program mode. All RKE transmitters that are to
be programmed must be done so within 60 seconds of
when the chime was heard.
8. Using the RKE transmitter to be programmed, press
and hold both the LOCK and UNLOCK buttons, simul-
taneously for two seconds, and then release.
9. Press and release the UNLOCK button. A single chime
will be heard.
10. Repeat steps 8 and 9 to program up to six additional
RKE transmitters.
11. Turn the ignition to the OFF position.12. Your vehicle will remain in program mode up to
60 seconds from when the original chime was heard.
After 60 seconds, all programmed RKE transmitters
function normally.
NOTE:If you do not have a programmed RKE trans-
mitter, contact your authorized dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:Perchlorate Material ± special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate
1. If the RKE transmitter is equipped with a screw,
remove the screw. With the RKE transmitter buttons
facing down, use a flat blade to pry the two halves of the
RKE transmitter apart. Make sure not to damage the
elastomer seal during removal.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

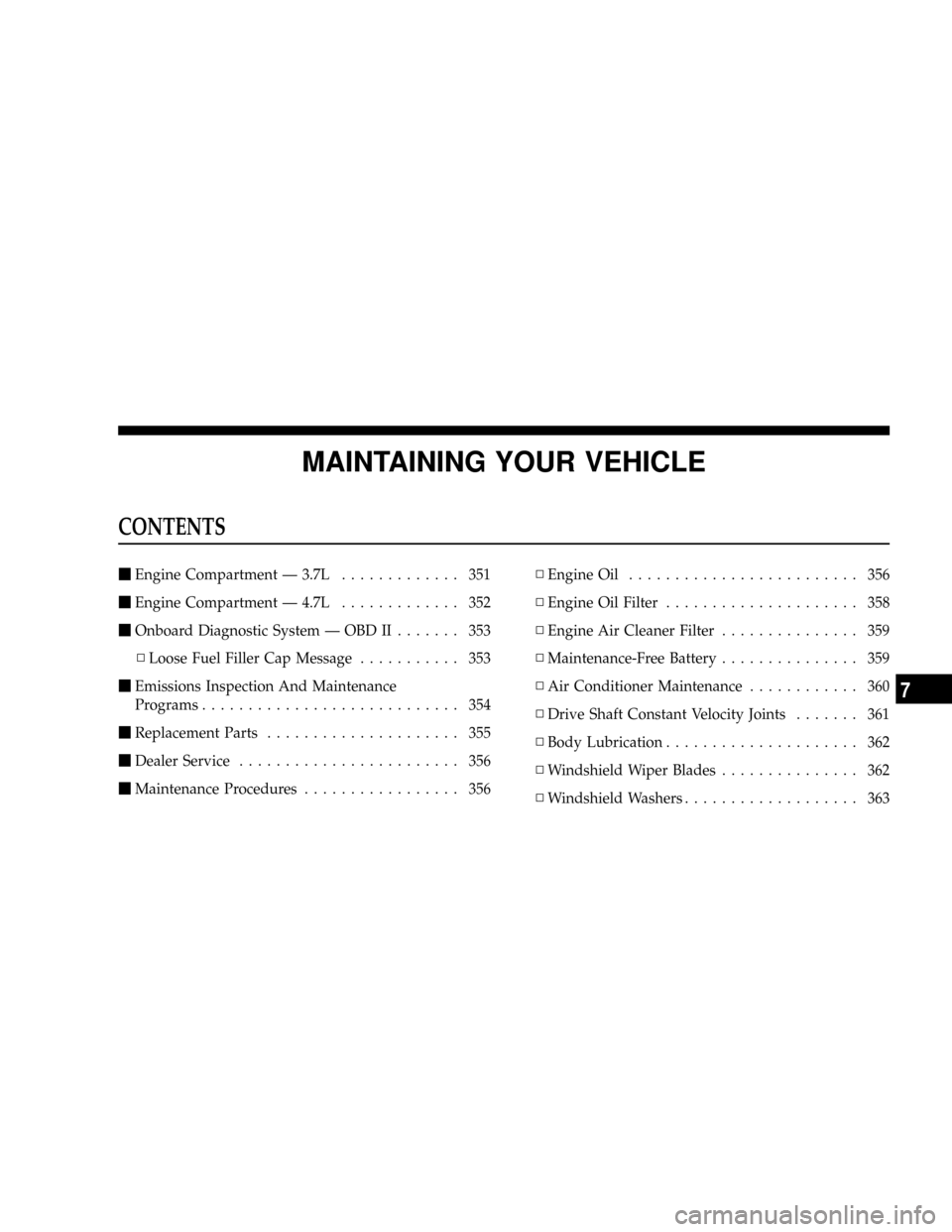

MAINTAINING YOUR VEHICLE
CONTENTS
mEngine Compartment Ð 3.7L............. 351
mEngine Compartment Ð 4.7L............. 352
mOnboard Diagnostic System Ð OBD II....... 353
NLoose Fuel Filler Cap Message........... 353
mEmissions Inspection And Maintenance
Programs............................ 354
mReplacement Parts..................... 355
mDealer Service........................ 356
mMaintenance Procedures................. 356NEngine Oil......................... 356
NEngine Oil Filter..................... 358
NEngine Air Cleaner Filter............... 359
NMaintenance-Free Battery............... 359
NAir Conditioner Maintenance............ 360
NDrive Shaft Constant Velocity Joints....... 361
NBody Lubrication..................... 362
NWindshield Wiper Blades............... 362
NWindshield Washers................... 363
7

5. Approximately 15 seconds later, one of two things will
happen:
a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle's OBD II system isnot readyand you should
notproceed to the I/M station.
b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle's OBD II system
isready, and you can proceed to the I/M station.
If your OBD II system isnot ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready.Regardless of whether your vehicle's OBD II system is
ready or not ready, if the MIL is illuminated during
normal vehicle operation, you should have your vehicle
serviced before going to the I/M station. The I/M station
can fail your vehicle because the MIL is on with the
engine running.
REPLACEMENT PARTS
Use of genuine MOPARtparts for normal/scheduled
maintenance and repairs is highly recommended to en-
sure the designed performance. Damage or failures
caused by the use of non-MOPARtparts for maintenance
and repairs will not be covered by the manufacturer's
warranty.
MAINTAINING YOUR VEHICLE 355
7

Engine Air Cleaner Filter
Refer to the ªMaintenance Scheduleº in Section 8 for
proper maintenance intervals.
WARNING!
The air cleaner can provide a measure of protection
in the case of engine backfire. Do not remove the air
cleaner unless such removal is necessary for repair or
maintenance. Make sure that no one is near the
engine compartment before starting the vehicle with
the air cleaner removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should beused to assure most efficient service. MOPARtengine air
cleaner filters are a high quality filter and are
recommended.
Maintenance-Free Battery
The top of the maintenance-free battery is permanently
sealed. You will never have to add water, nor is periodic
maintenance required.
WARNING!
²Battery fluid is a corrosive acid solution and can
burn or even blind you. Do not allow battery fluid
to contact your eyes, skin or clothing. Do not lean
over a battery when attaching clamps. If acid
splashes in eyes or on skin, flush the area imme-
diately with large amounts of water.
(Continued)
MAINTAINING YOUR VEHICLE 359
7

Battery............................... 359
Charging............................ 343
Emergency Starting..................... 343
Gas Caution.......................... 343
Keyless Transmitter Replacement (RKE)....... 26
Saving Feature (Protection)............... 124
Belts, Seat.............................. 37
Body Mechanism Lubrication............... 362
Box, Sound............................ 220
B-Pillar Location........................ 276
Brake Fluid............................ 398
Brake System........................269,371
Anti-Lock (ABS)....................269,270
Fluid Check.......................... 371
Master Cylinder....................... 371
Parking............................. 267
Warning Light.....................170,174
Brake/Transmission Interlock............... 246
Break-In Recommendations, New Vehicle........ 70Bulb Replacement....................... 387
Bulbs, Light............................ 387
Calibration, Compass..................... 140
Camper............................... 157
Capacities, Fluid........................ 396
Caps, Filler
Oil (Engine).......................... 357
Power Steering........................ 266
Radiator (Coolant Pressure)............... 368
Car Washes............................ 377
Carbon Monoxide Warning..............158,302
Cargo Light............................ 126
Cargo (Vehicle Loading)................... 308
Cellular Phone........................82,228
Center High Mounted Stop Light............ 391
Certification Label....................... 308
Changing A Flat Tire..................... 332
Charging.............................. 343
INDEX 429
