Cavity Car-
tridge
FuseMini-
FuseDescription
39 — 10 Amp
RedHeated Mirrors - if
equipped
40 — 5 Amp
OrangeAuto Inside Rearview
Mirror/Heated Seats - if
equipped/Switch Bank
41———
42 30 Amp
Pink— Front Blower Motor
43 30 Amp
Pink— Rear Window Defroster
44 20 Amp
Blue— Amplifier/Sunroof - if
equipped
*Cavities 11, 12, and 13 contain self-resetting fuses
(circuit breakers) that are only serviceable by an autho-
rized dealer. The cluster and the driver seat switch are
fused by the 25 Amp circuit breaker in cavity 11. Thepassenger seat switch is fused by the 25 Amp circuit
breaker in cavity 12. The door modules, the driver power
window switch, and the passenger power window
switch are fused by the 25 Amp circuit breaker in cavity
13. If you experience temporary or permanent loss of
these systems, see your authorized dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.7
MAINTAINING YOUR VEHICLE 407

REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb Number
Rear Courtesy/Reading Lamps............. W5W
Rear Compartment (Trunk) Lamp............. 562
Overhead Console Reading Lamps............ 578
Visor Vanity Lamps.....................A6220
Glove Box Lamp......................... 194
Door Courtesy.......................... 562
Shift Indicator Lamp.................JKLE14140
Optional Door Map Pocket / Cupholder
Lighting.............................. LED
(Serviced at Authorized Dealer)
NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.LIGHT BULBS — Exterior Bulb Number
Low Beam Headlamp – High Intensity
Discharge (HID)......................... D1S
(Serviced at Authorized Dealer)
High Beam Headlamp....................9005
Front Park/Turn Lamp...................3157A
Front Fog Lamp.....................9145/H10
(Serviced at Authorized Dealer)
Front Side Marker........................ 168
Tail Lamp............................3057K
Tail/Stop/Turn Lamp...................3057K
Rear Side Marker........................ 168
Backup Lamp........................... 921
Center High-Mount Stop Lamp
(CHMSL)............................. LED
(Serviced at Authorized Dealer)
License................................ 168
408 MAINTAINING YOUR VEHICLE

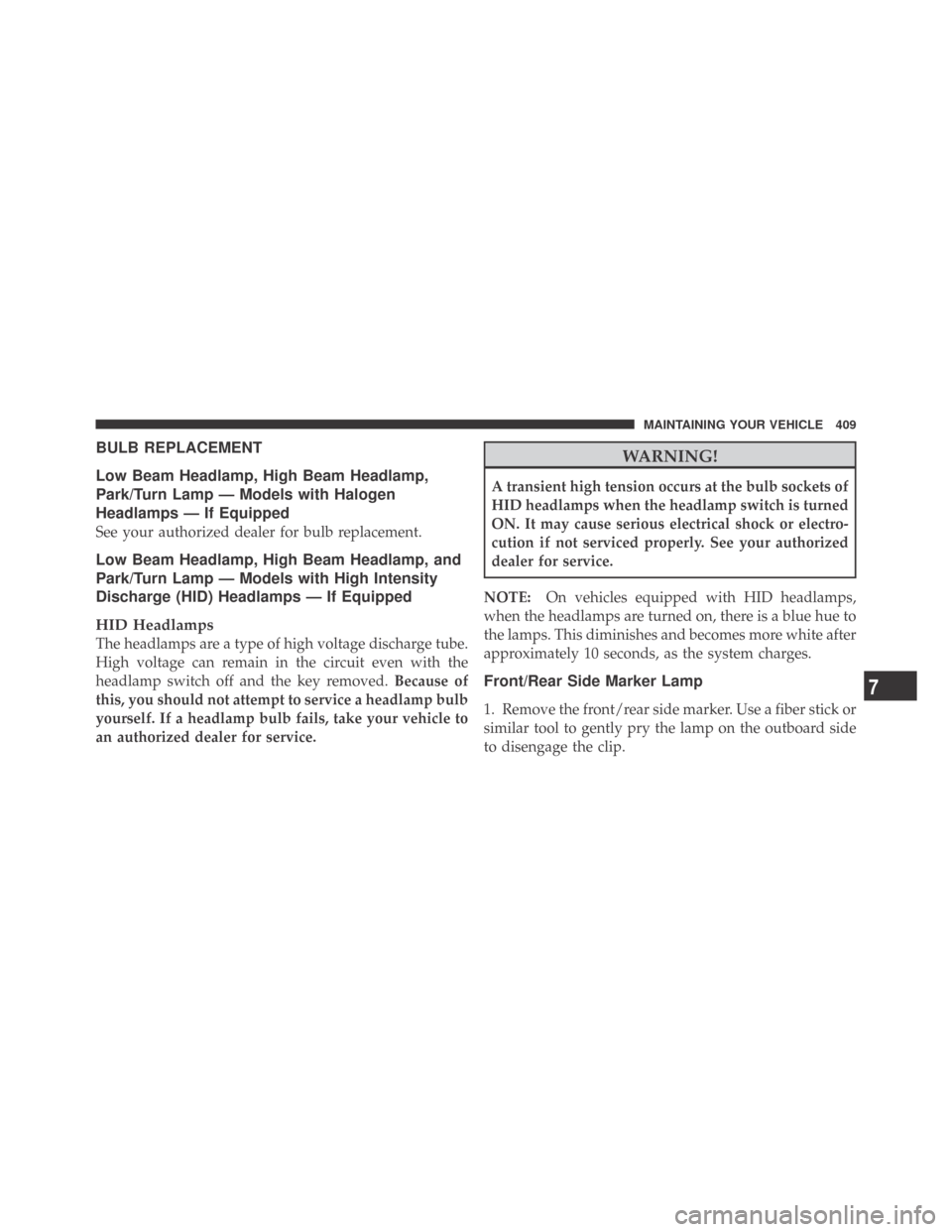

BULB REPLACEMENT
Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp — Models with Halogen
Headlamps — If Equipped
See your authorized dealer for bulb replacement.
Low Beam Headlamp, High Beam Headlamp, and
Park/Turn Lamp — Models with High Intensity
Discharge (HID) Headlamps — If Equipped
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high tension occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE:On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lamps. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
Front/Rear Side Marker Lamp
1. Remove the front/rear side marker. Use a fiber stick or
similar tool to gently pry the lamp on the outboard side
to disengage the clip.
7
MAINTAINING YOUR VEHICLE 409

NOTE:
•If a screwdriver is used, make sure a soft material is
placed between the vehicle body and tool so not to
scratch the paint.

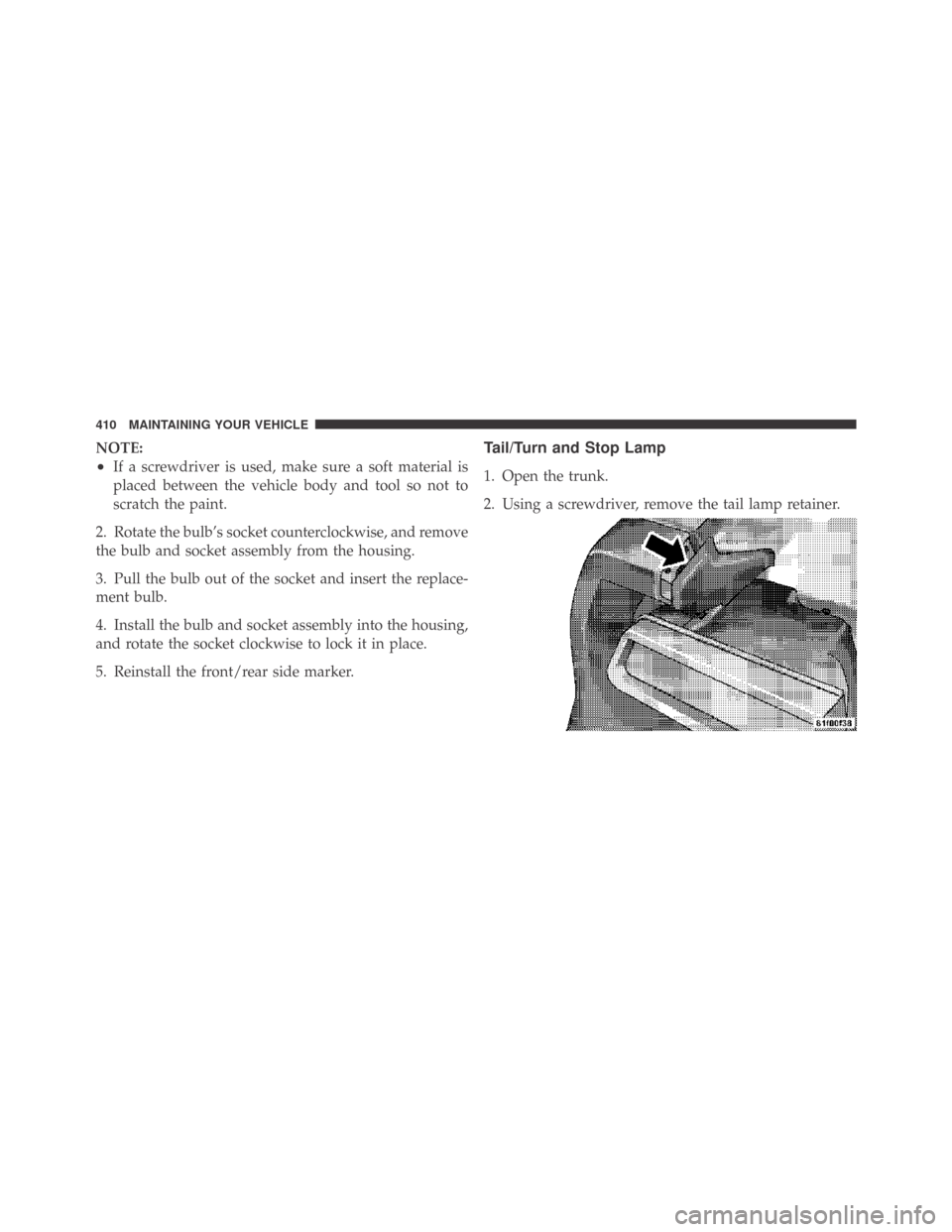

2. Rotate the bulb’s socket counterclockwise, and remove
the bulb and socket assembly from the housing.
3. Pull the bulb out of the socket and insert the replace-
ment bulb.
4. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.
5. Reinstall the front/rear side marker.
Tail/Turn and Stop Lamp
1. Open the trunk.
2. Using a screwdriver, remove the tail lamp retainer.
410 MAINTAINING YOUR VEHICLE

3. Remove the fasteners from the back of the tail lamp
assembly.
4. Pull back the trunk liner.
5. Remove the remaining fasteners from the back of the
tail lamp assembly.6. Pull the tail lamp assembly clear from the vehicle to
access the bulbs.
7. Push the electrical connector locking tab to the side.
8. Disconnect the electrical connector.
9. Turn the appropriate bulb and socket assembly coun-
terclockwise to remove it from the tail lamp assembly.
7
MAINTAINING YOUR VEHICLE 411

10. Disconnect the bulb from the socket assembly and
install the replacement bulb.
11. Reinstall the bulb and socket assembly into the tail
lamp assembly, and then turn it clockwise.
12. Reinstall the tail lamp assembly, fasteners, electrical
connector, and trunk liner.
13. Reinstall tail lamp retainer.
14. Close the trunk.
Center Tail/Backup Lamp
See your authorized dealer for bulb replacement.
412 MAINTAINING YOUR VEHICLE

Center High-Mounted Stop Lamp (CHMSL)
The CHMSL uses LED lamps that are not serviceable
separately. The CHMSL must be replaced as an assembly,
see your authorized dealer.
License Lamp
1. Remove the screws securing the lamp to the rear
fascia.
2. Remove the bulb and socket assembly.
3. Disconnect the bulb from the socket assembly and
install the replacement bulb.
4. Reinstall the bulb and socket assembly.
5. Reattach the lamp to the rear fascia, and then install
the screws.
1 — License Lamp Bulb
2 — Socket
7
MAINTAINING YOUR VEHICLE 413

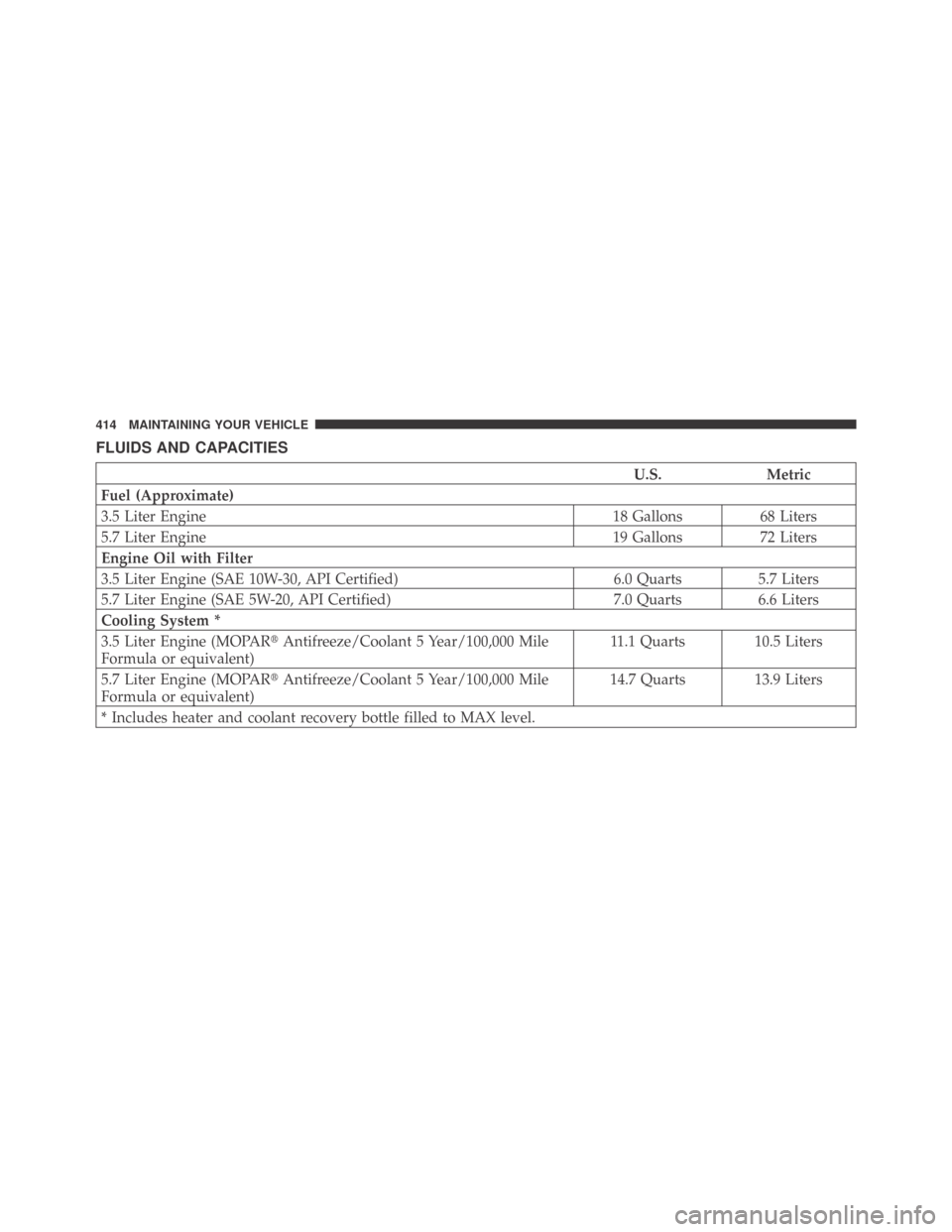

FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)
3.5 Liter Engine 18 Gallons 68 Liters
5.7 Liter Engine 19 Gallons 72 Liters
Engine Oil with Filter
3.5 Liter Engine (SAE 10W-30, API Certified) 6.0 Quarts 5.7 Liters
5.7 Liter Engine (SAE 5W-20, API Certified) 7.0 Quarts 6.6 Liters
Cooling System *
3.5 Liter Engine (MOPARAntifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent)11.1 Quarts 10.5 Liters
5.7 Liter Engine (MOPARAntifreeze/Coolant 5 Year/100,000 Mile
Formula or equivalent)14.7 Quarts 13.9 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
