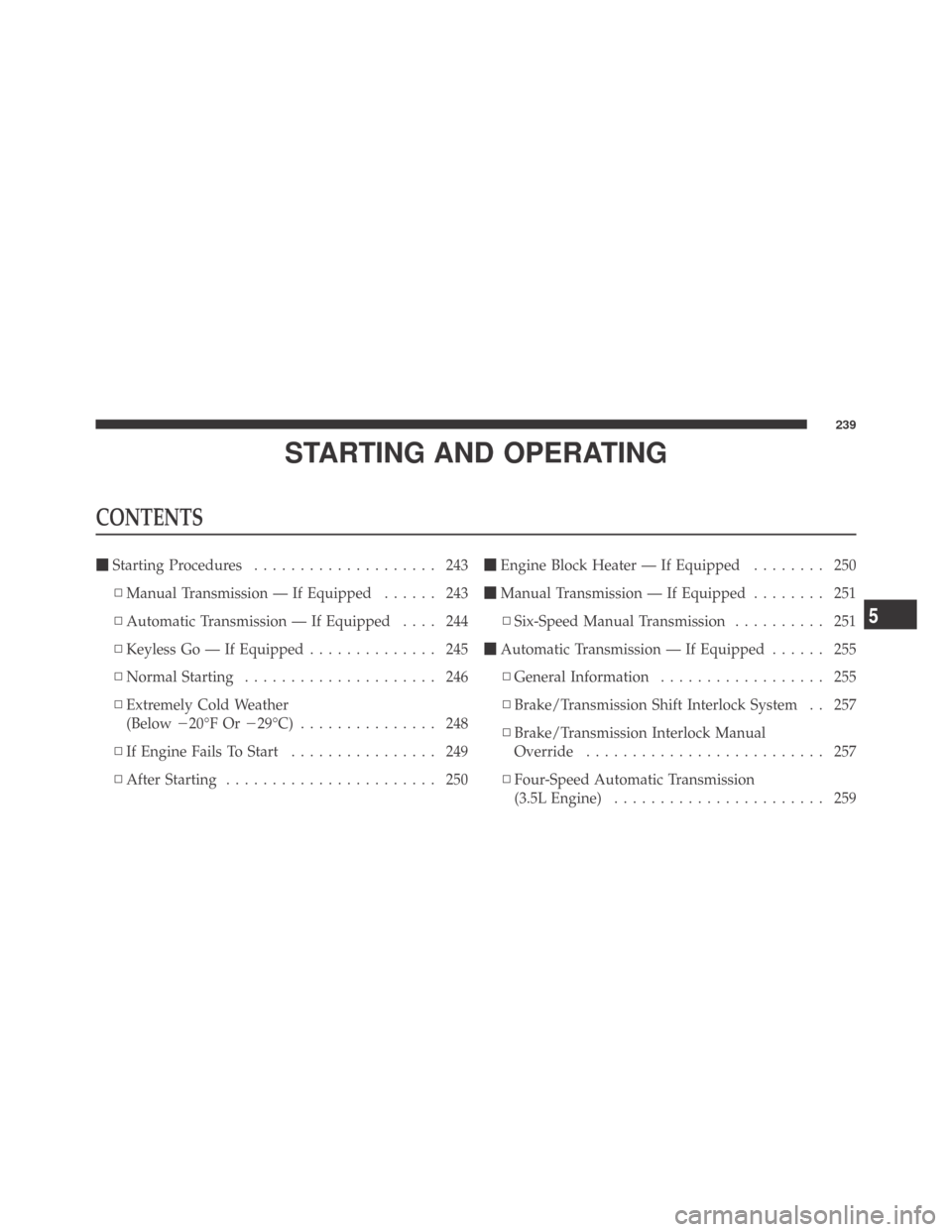

2009 DODGE CHALLENGER Owners Manual

STARTING AND OPERATING
CONTENTS
Starting Procedures.................... 243
▫Manual Transmission — If Equipped...... 243
▫Automatic Transmission — If Equipped.... 244
▫Keyless Go — If Equipped.............. 245
▫Normal Starting..................... 246
▫Extremely Cold Weather
(Below20°F Or29°C)............... 248
▫If Engine Fails To Start................ 249
▫After Starting....................... 250Engine Block Heater — If Equipped........ 250
Manual Transmission — If Equipped........ 251
▫Six-Speed Manual Transmission.......... 251
Automatic Transmission — If Equipped...... 255
▫General Information.................. 255
▫Brake/Transmission Shift Interlock System . . 257
▫Brake/Transmission Interlock Manual
Override.......................... 257
▫Four-Speed Automatic Transmission
(3.5L Engine)....................... 259
5
239

▫Five-Speed Automatic Transmission (5.7L
Engine)........................... 264
▫Gear Ranges........................ 264
AutoStick— If Equipped............... 268
▫AutoStickOperation................. 268
Driving On Slippery Surfaces............. 269
▫Acceleration........................ 269
▫Traction........................... 270
Driving Through Water................. 270
▫Flowing/Rising Water................. 271
Power Steering....................... 273
▫Power Steering Fluid Check............. 273
Parking Brake........................ 274▫Manual Transmission — If Equipped...... 275
▫Automatic Transmission — If Equipped.... 276
Brake System........................ 277
▫Anti-Lock Brake System (ABS) — If
Equipped.......................... 277
Multi-Displacement System (MDS) (If
Equipped) – 5.7L Engine Only............. 280
Electronic Brake Control System........... 280
▫ABS (Anti-Lock Brake System) — If
Equipped.......................... 280
▫TCS (Traction Control System) — If
Equipped.......................... 281
▫BAS (Brake Assist System) — If Equipped . . . 281
▫HSA (Hill Start Assist) — Manual
Transmission Only................... 283
240 STARTING AND OPERATING

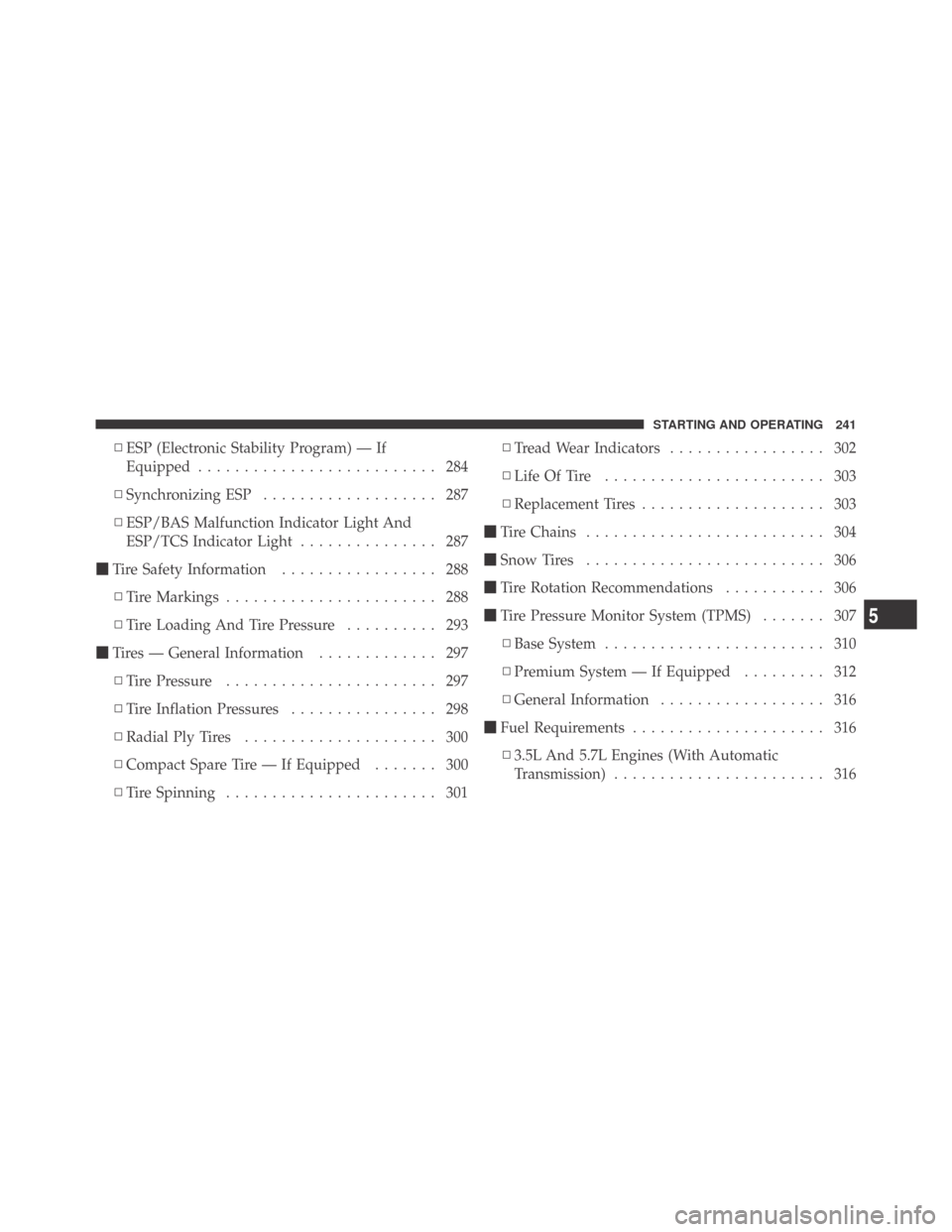

▫ESP (Electronic Stability Program) — If
Equipped.......................... 284
▫Synchronizing ESP................... 287
▫ESP/BAS Malfunction Indicator Light And
ESP/TCS Indicator Light............... 287
Tire Safety Information................. 288
▫Tire Markings....................... 288
▫Tire Loading And Tire Pressure.......... 293
Tires — General Information............. 297
▫Tire Pressure....................... 297
▫Tire Inflation Pressures................ 298
▫Radial Ply Tires..................... 300
▫Compact Spare Tire — If Equipped....... 300
▫TireSpinning ....................... 301▫Tread Wear Indicators................. 302
▫LifeOfTire ........................ 303
▫Replacement Tires.................... 303
Tire Chains.......................... 304
Snow Tires.......................... 306
Tire Rotation Recommendations........... 306
Tire Pressure Monitor System (TPMS)....... 307
▫Base System........................ 310
▫Premium System — If Equipped......... 312
▫General Information.................. 316
Fuel Requirements..................... 316
▫3.5L And 5.7L Engines (With Automatic
Transmission)....................... 316
5
STARTING AND OPERATING 241

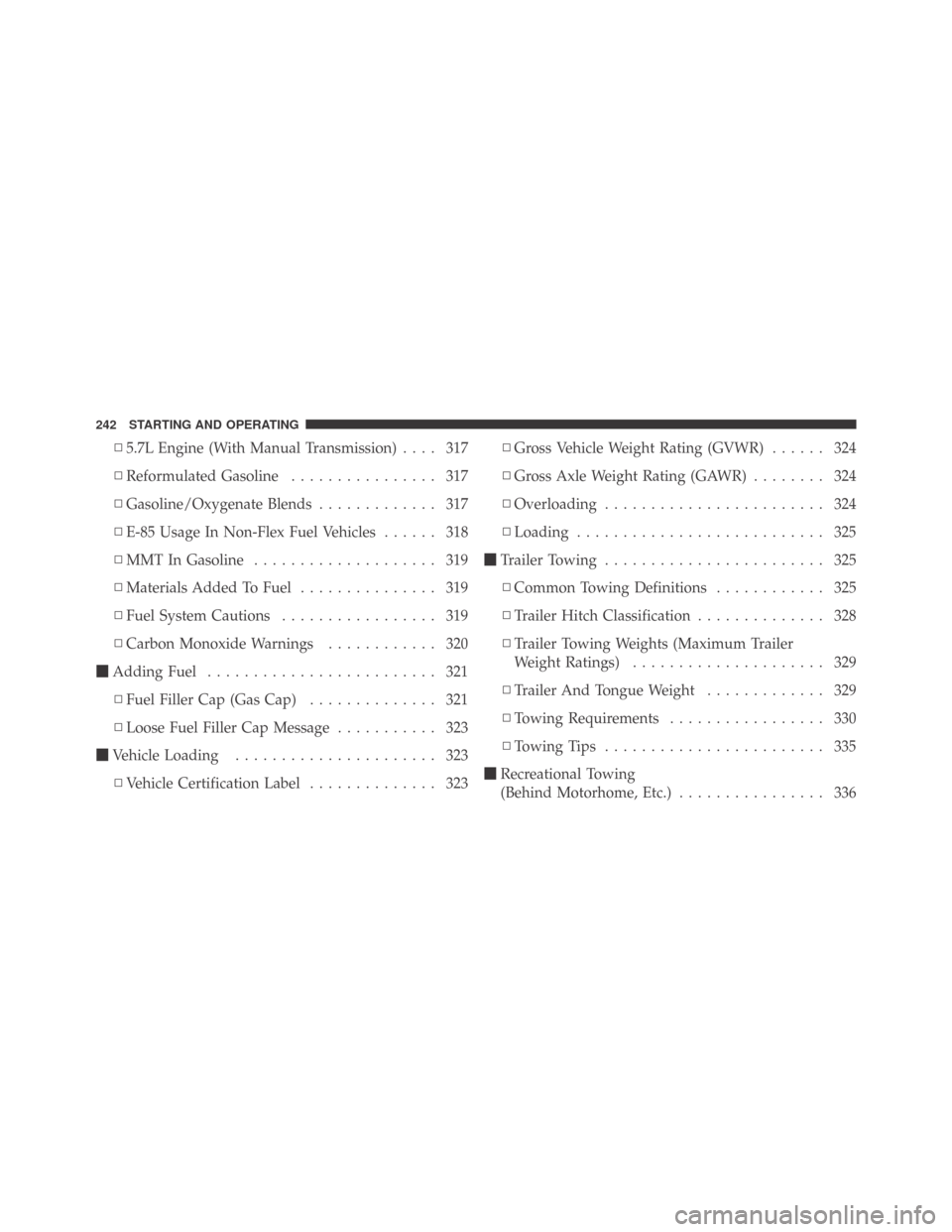

▫5.7L Engine (With Manual Transmission).... 317
▫Reformulated Gasoline................ 317
▫Gasoline/Oxygenate Blends............. 317
▫E-85 Usage In Non-Flex Fuel Vehicles...... 318
▫MMT In Gasoline.................... 319
▫Materials Added To Fuel............... 319
▫Fuel System Cautions................. 319
▫Carbon Monoxide Warnings............ 320
Adding Fuel......................... 321
▫Fuel Filler Cap (Gas Cap).............. 321
▫Loose Fuel Filler Cap Message........... 323
Vehicle Loading...................... 323
▫Vehicle Certification Label.............. 323▫Gross Vehicle Weight Rating (GVWR)...... 324
▫Gross Axle Weight Rating (GAWR)........ 324
▫Overloading........................ 324
▫Loading........................... 325
Trailer Towing........................ 325
▫Common Towing Definitions............ 325
▫Trailer Hitch Classification.............. 328
▫Trailer Towing Weights (Maximum Trailer
Weight Ratings)..................... 329
▫Trailer And Tongue Weight............. 329
▫Towing Requirements................. 330
▫TowingTips ........................ 335
Recreational Towing
(Behind Motorhome, Etc.)................ 336
242 STARTING AND OPERATING

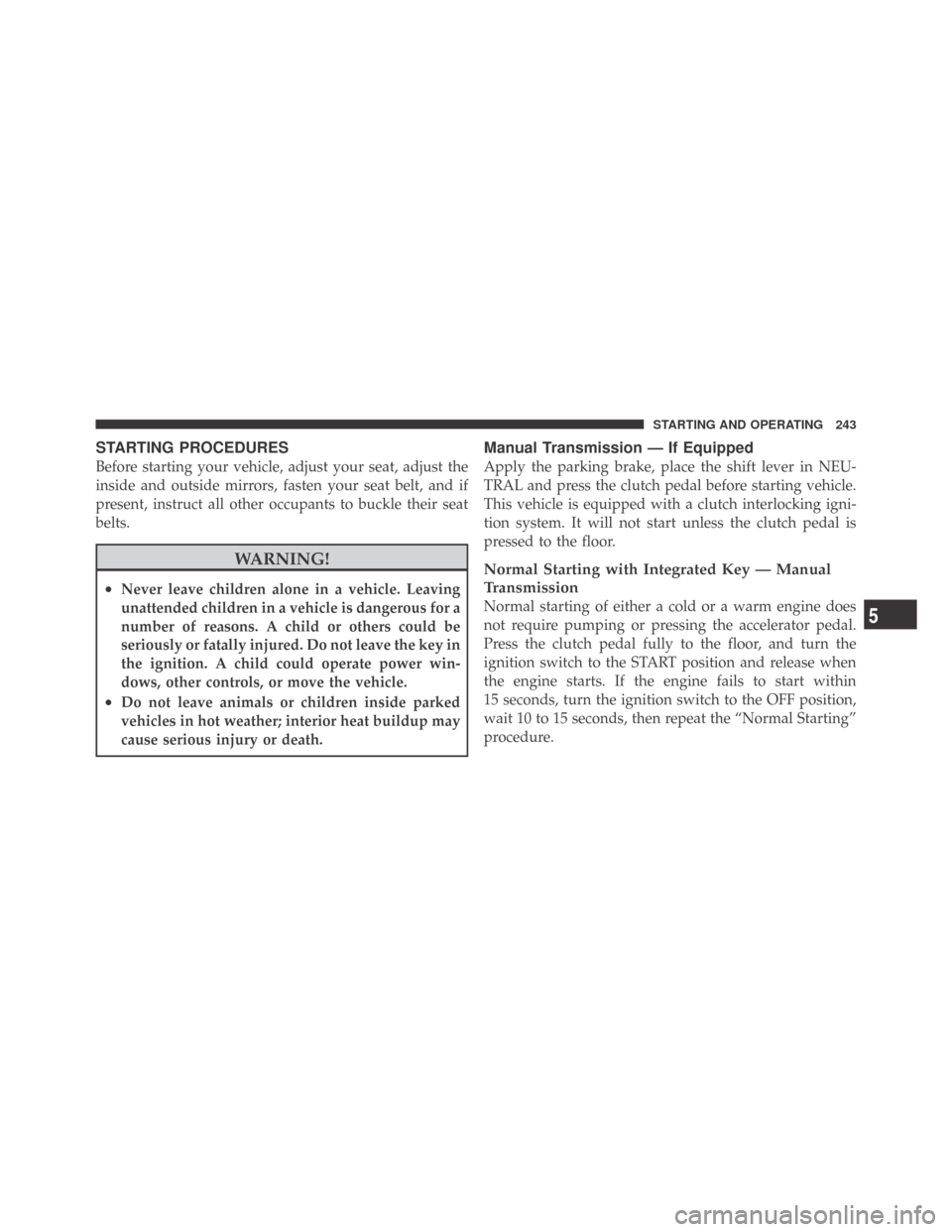

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Do not leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
•Do not leave animals or children inside parked
vehicles in hot weather; interior heat buildup may
cause serious injury or death.
Manual Transmission — If Equipped
Apply the parking brake, place the shift lever in NEU-
TRAL and press the clutch pedal before starting vehicle.
This vehicle is equipped with a clutch interlocking igni-
tion system. It will not start unless the clutch pedal is
pressed to the floor.
Normal Starting with Integrated Key — Manual
Transmission
Normal starting of either a cold or a warm engine does
not require pumping or pressing the accelerator pedal.
Press the clutch pedal fully to the floor, and turn the
ignition switch to the START position and release when
the engine starts. If the engine fails to start within
15 seconds, turn the ignition switch to the OFF position,
wait 10 to 15 seconds, then repeat the “Normal Starting”
procedure.5
STARTING AND OPERATING 243

WARNING!
Do not attempt to push or tow your vehicle to get it
started. Unburned fuel could enter the catalytic con-
verter and once the engine has started, ignite and
damage the converter and vehicle. If the vehicle has
a discharged battery, booster cables may be used to
obtain a start from another vehicle. This type of start
can be dangerous if done improperly, so follow the
procedure carefully. See Section 6 of this manual for
jump-starting instructions.
Automatic Transmission — If Equipped
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.
CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Shift into PARK only after the vehicle has come to
a complete stop.
•Shift into or out of REVERSE only after the
vehicle has come to a complete stop and the engine
is at idle speed.
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above
idle speed.
•Before shifting into any gear, make sure your foot
is firmly on the brake pedal.
Using Fob With Integrated Key (Tip Start)
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
244 STARTING AND OPERATING

Do notpress the accelerator. Use the Fob with Integrated
Key to briefly turn the ignition switch to the START
position and release it as soon as the starter engages. The
starter motor will continue to run, and it will disengage
automatically when the engine is running. If the engine
fails to start, the starter will disengage automatically in
10 seconds. If this occurs, turn the ignition switch to the
LOCK position, wait 10 to 15 seconds, then repeat the
“Normal Starting” procedure.
Keyless Go — If Equipped
This feature allows the driver to oper-
ate the ignition switch with the push
of a button, as long as the ENGINE
START/STOP button is installed and
the Remote Keyless Entry transmitter
is in the passenger compartment.
Installing and Removing the ENGINE
START/STOP Button
Installing the Button
1. Remove the ignition key.
2. Insert the ENGINE START/STOP button into the
ignition switch with the lettering facing up and readable.
3. Press firmly on the center of the button to secure it into
position.
Removing the Button
1. The ENGINE START/STOP button can be removed
from the ignition switch for regular ignition key use.
2. Insert the metal part of the valet key under the chrome
bezel at the 6 o’clock position and gently pry the button
loose.
5
STARTING AND OPERATING 245

NOTE:The ENGINE START/STOP button should only
be removed or inserted with the ignition in the OFF
position.
Normal Starting
Using the ENGINE START/STOP Button —
Automatic Transmission Only
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
To start the engine, the transmission must be in PARK or
NEUTRAL. Press and hold the brake pedal while press-
ing the ENGINE START/STOP button once. The system
takes over and attempts to start the vehicle. If the vehicle
fails to start, the starter will disengage automatically after
10 seconds. If you wish to stop the cranking of the engine
prior to the engine starting, press the button again.
Using the ENGINE START/STOP Button —
Manual Transmission Only
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
To start the engine, press and hold the clutch pedal while
pressing and holding the ENGINE START/STOP button.
Release the button when the engine starts. If the vehicle
fails to start within 15 seconds, release the button, wait 10
to 15 seconds, then repeat the “Normal Starting” proce-
dure. If you wish to stop the cranking of the engine prior
to the engine starting, release the button.
To Turn Off the Engine Using ENGINE
START/STOP Button — Automatic Transmission
Only
1. Place the shift lever in PARK, then press and release
the ENGINE START/STOP button.
246 STARTING AND OPERATING
