is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Remote Keyless Entry
(RKE) transmitter with integrated key and Wireless Igni-
tion Node (WIN) to prevent unauthorized vehicle opera-
tion. Therefore, only RKE transmitters that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will not allow the engine to crank
if an invalid RKE transmitter is used to operate the
ignition switch.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. This
condition will result in the engine being shut off after two
seconds.If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.
•Exxon/Mobil Speedpass™, additional RKE transmit-
ters, or any other transponder-equipped components
on the same key chainwill notcause a fault unless the
additional part isphysically held against the trans-
mitterbeing used to start the vehicle. Cell phones,
pagers, or other RF electronics will not cause interfer-
ence with this system.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

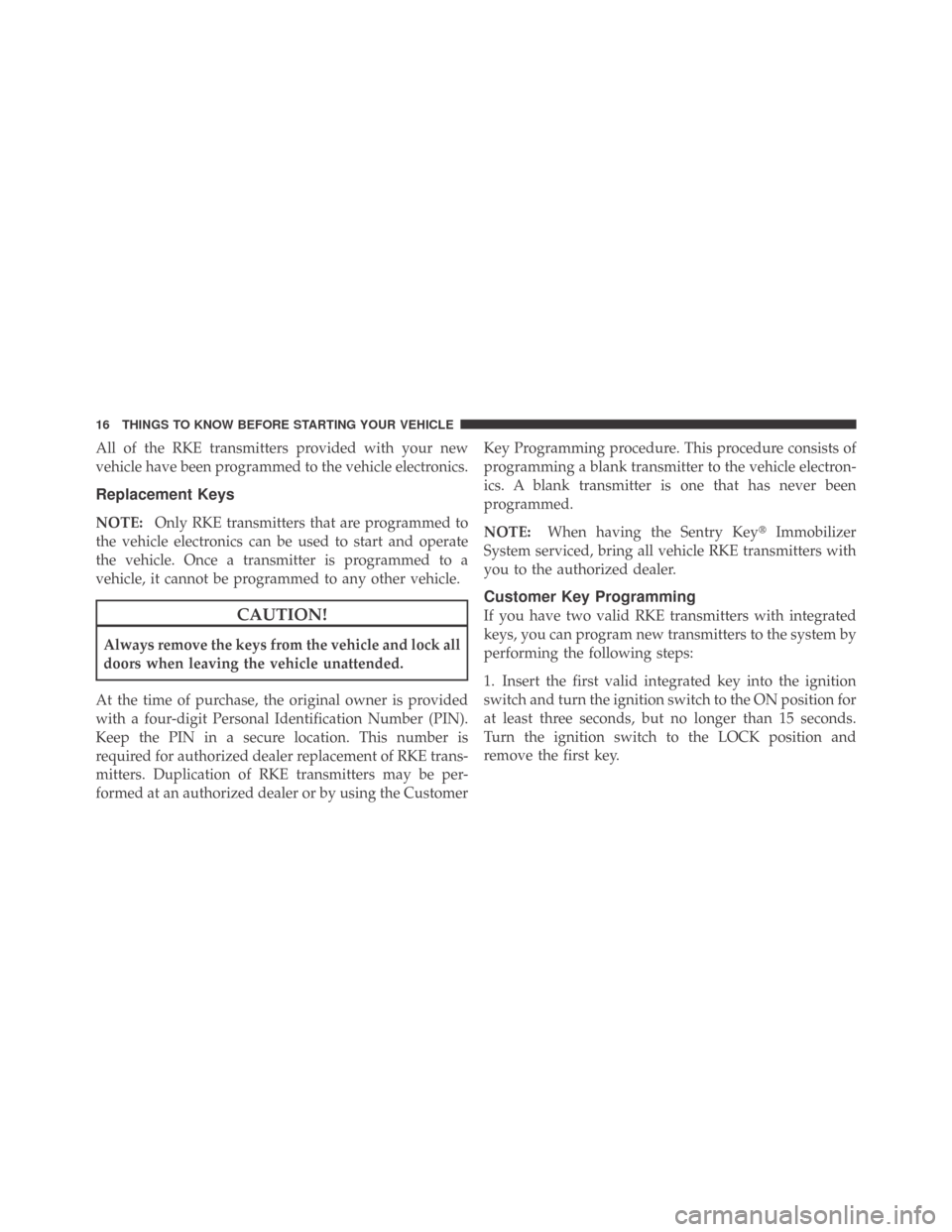

All of the RKE transmitters provided with your new
vehicle have been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only RKE transmitters that are programmed to
the vehicle electronics can be used to start and operate
the vehicle. Once a transmitter is programmed to a
vehicle, it cannot be programmed to any other vehicle.
CAUTION!
Always remove the keys from the vehicle and lock all
doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of RKE trans-
mitters. Duplication of RKE transmitters may be per-
formed at an authorized dealer or by using the CustomerKey Programming procedure. This procedure consists of
programming a blank transmitter to the vehicle electron-
ics. A blank transmitter is one that has never been
programmed.
NOTE:When having the Sentry KeyImmobilizer
System serviced, bring all vehicle RKE transmitters with
you to the authorized dealer.
Customer Key Programming
If you have two valid RKE transmitters with integrated
keys, you can program new transmitters to the system by
performing the following steps:
1. Insert the first valid integrated key into the ignition
switch and turn the ignition switch to the ON position for
at least three seconds, but no longer than 15 seconds.
Turn the ignition switch to the LOCK position and
remove the first key.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Insert the second valid integrated key and turn the
ignition switch to the ON position within 15 seconds.
After 10 seconds, a chime will sound and the Vehicle
Security Light will begin to flash. Turn the ignition switch
to the LOCK position and remove the second key.
3. Insert a blank integrated key into the ignition switch
and turn the ignition switch to the ON position within
60 seconds. After 10 seconds, a single chime will sound
and the Vehicle Security Light will stop flashing, turn on
again for three seconds, and then turn off.
The new integrated key is programmed.The RKE trans-
mitter will also be programmed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed RKE transmitter with inte-
grated key, contact your authorized dealer for details.NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

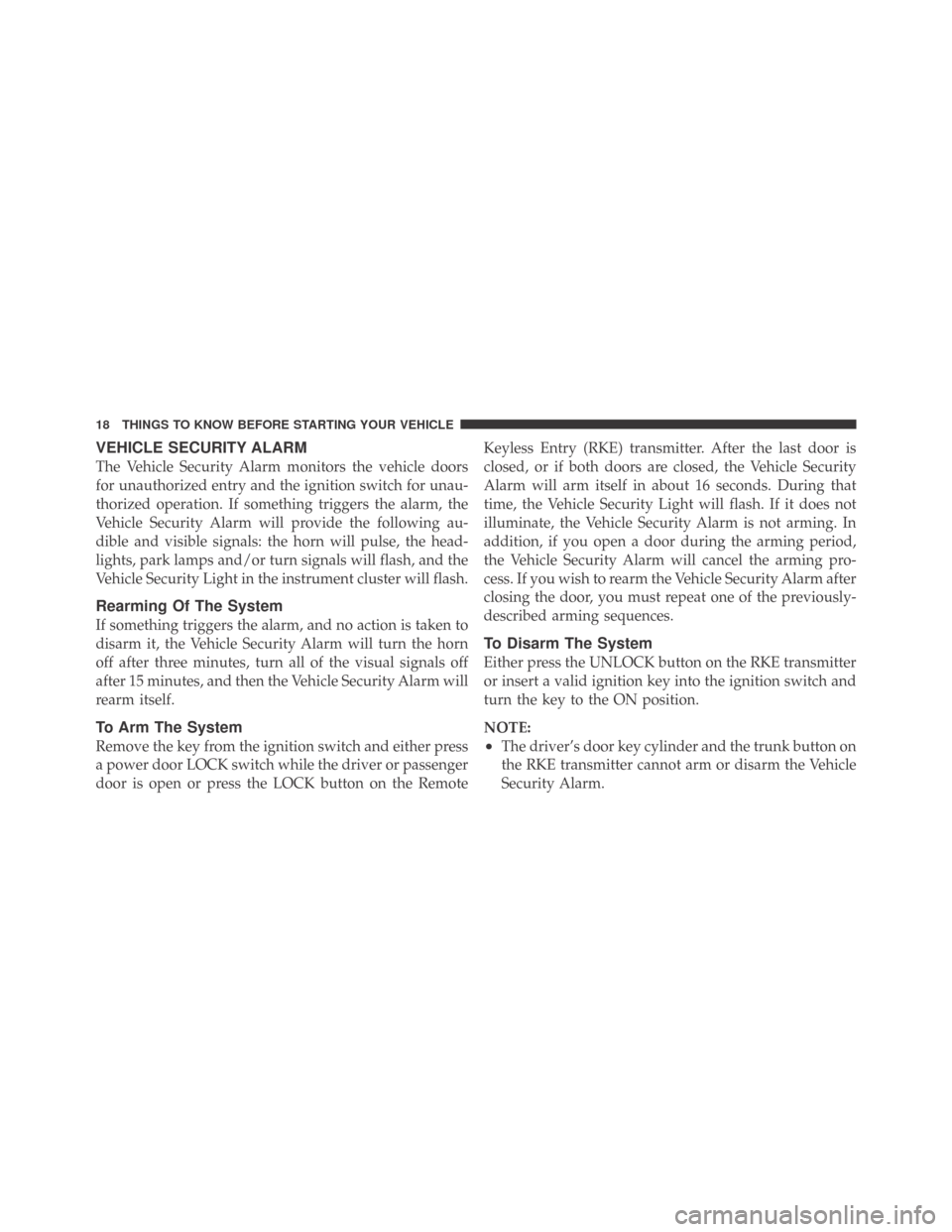

VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the ignition switch for unau-
thorized operation. If something triggers the alarm, the
Vehicle Security Alarm will provide the following au-
dible and visible signals: the horn will pulse, the head-
lights, park lamps and/or turn signals will flash, and the
Vehicle Security Light in the instrument cluster will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after three minutes, turn all of the visual signals off
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
Remove the key from the ignition switch and either press
a power door LOCK switch while the driver or passenger
door is open or press the LOCK button on the RemoteKeyless Entry (RKE) transmitter. After the last door is
closed, or if both doors are closed, the Vehicle Security
Alarm will arm itself in about 16 seconds. During that
time, the Vehicle Security Light will flash. If it does not
illuminate, the Vehicle Security Alarm is not arming. In
addition, if you open a door during the arming period,
the Vehicle Security Alarm will cancel the arming pro-
cess. If you wish to rearm the Vehicle Security Alarm after
closing the door, you must repeat one of the previously-
described arming sequences.
To Disarm The System
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.
NOTE:
•The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the Vehicle
Security Alarm.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

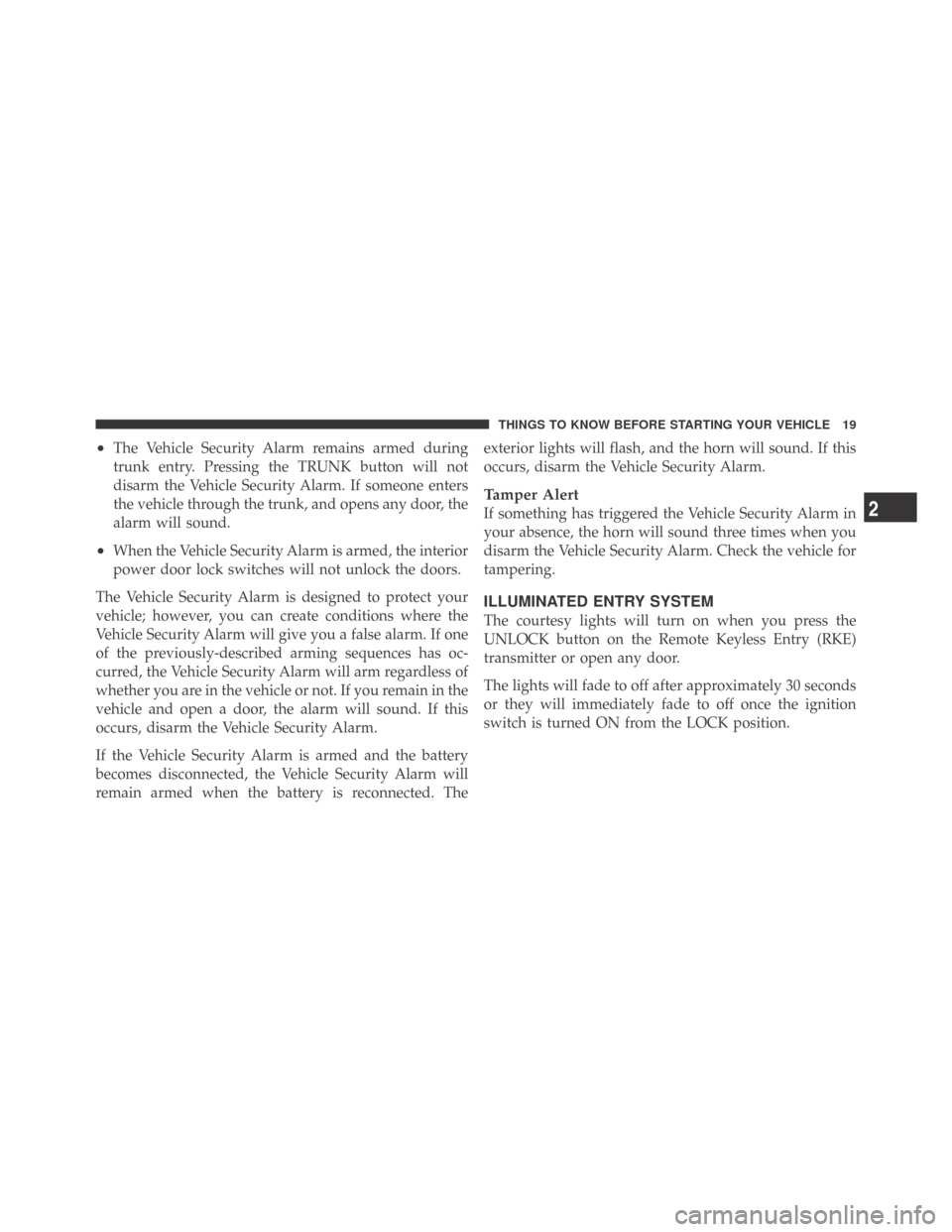

•The Vehicle Security Alarm remains armed during
trunk entry. Pressing the TRUNK button will not
disarm the Vehicle Security Alarm. If someone enters
the vehicle through the trunk, and opens any door, the
alarm will sound.
•When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If one
of the previously-described arming sequences has oc-
curred, the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected. Theexterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times when you
disarm the Vehicle Security Alarm. Check the vehicle for
tampering.
ILLUMINATED ENTRY SYSTEM
The courtesy lights will turn on when you press the
UNLOCK button on the Remote Keyless Entry (RKE)
transmitter or open any door.
The lights will fade to off after approximately 30 seconds
or they will immediately fade to off once the ignition
switch is turned ON from the LOCK position.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

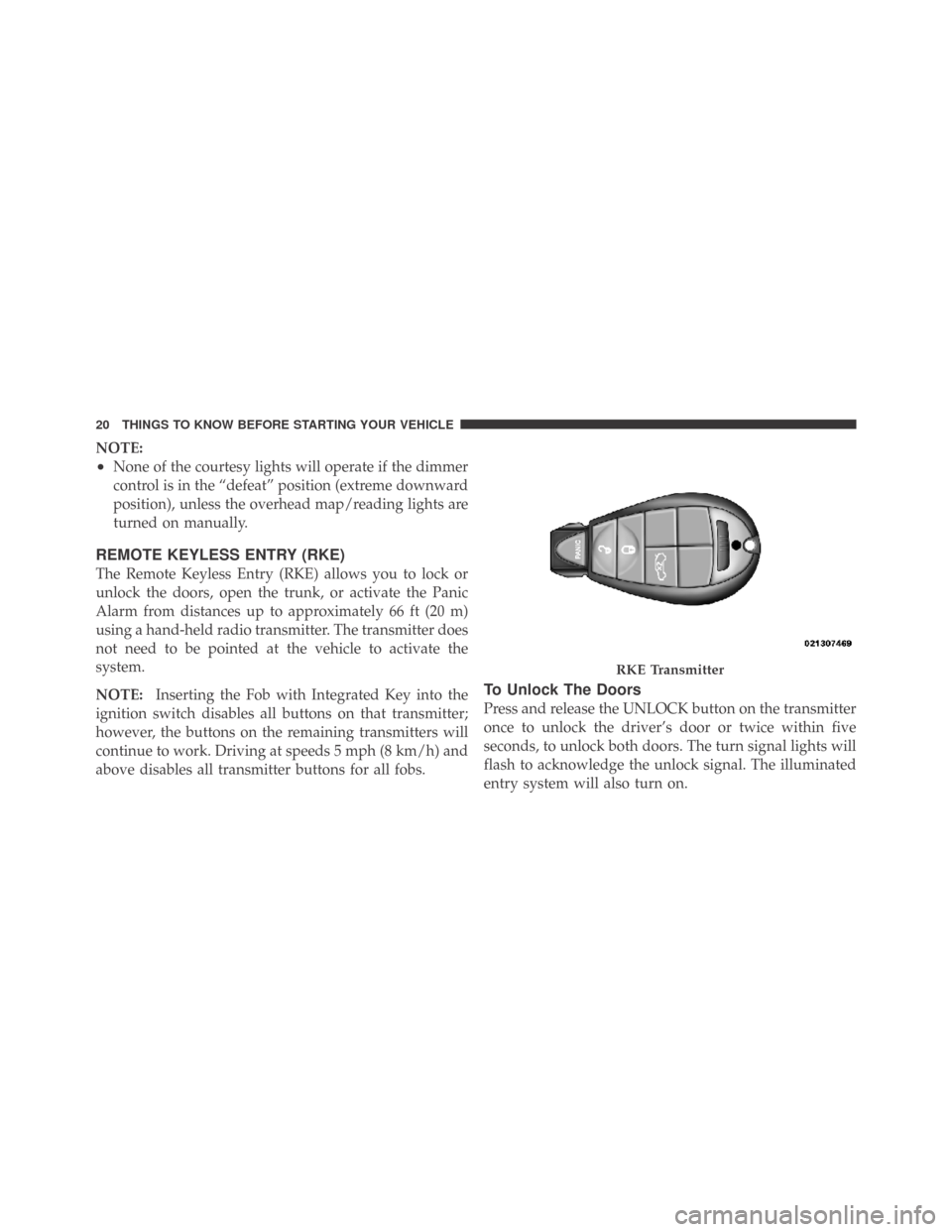

NOTE:
•None of the courtesy lights will operate if the dimmer
control is in the “defeat” position (extreme downward
position), unless the overhead map/reading lights are
turned on manually.
REMOTE KEYLESS ENTRY (RKE)
The Remote Keyless Entry (RKE) allows you to lock or
unlock the doors, open the trunk, or activate the Panic
Alarm from distances up to approximately 66 ft (20 m)
using a hand-held radio transmitter. The transmitter does
not need to be pointed at the vehicle to activate the
system.
NOTE:Inserting the Fob with Integrated Key into the
ignition switch disables all buttons on that transmitter;
however, the buttons on the remaining transmitters will
continue to work. Driving at speeds 5 mph (8 km/h) and
above disables all transmitter buttons for all fobs.
To Unlock The Doors
Press and release the UNLOCK button on the transmitter
once to unlock the driver’s door or twice within five
seconds, to unlock both doors. The turn signal lights will
flash to acknowledge the unlock signal. The illuminated
entry system will also turn on.
RKE Transmitter
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

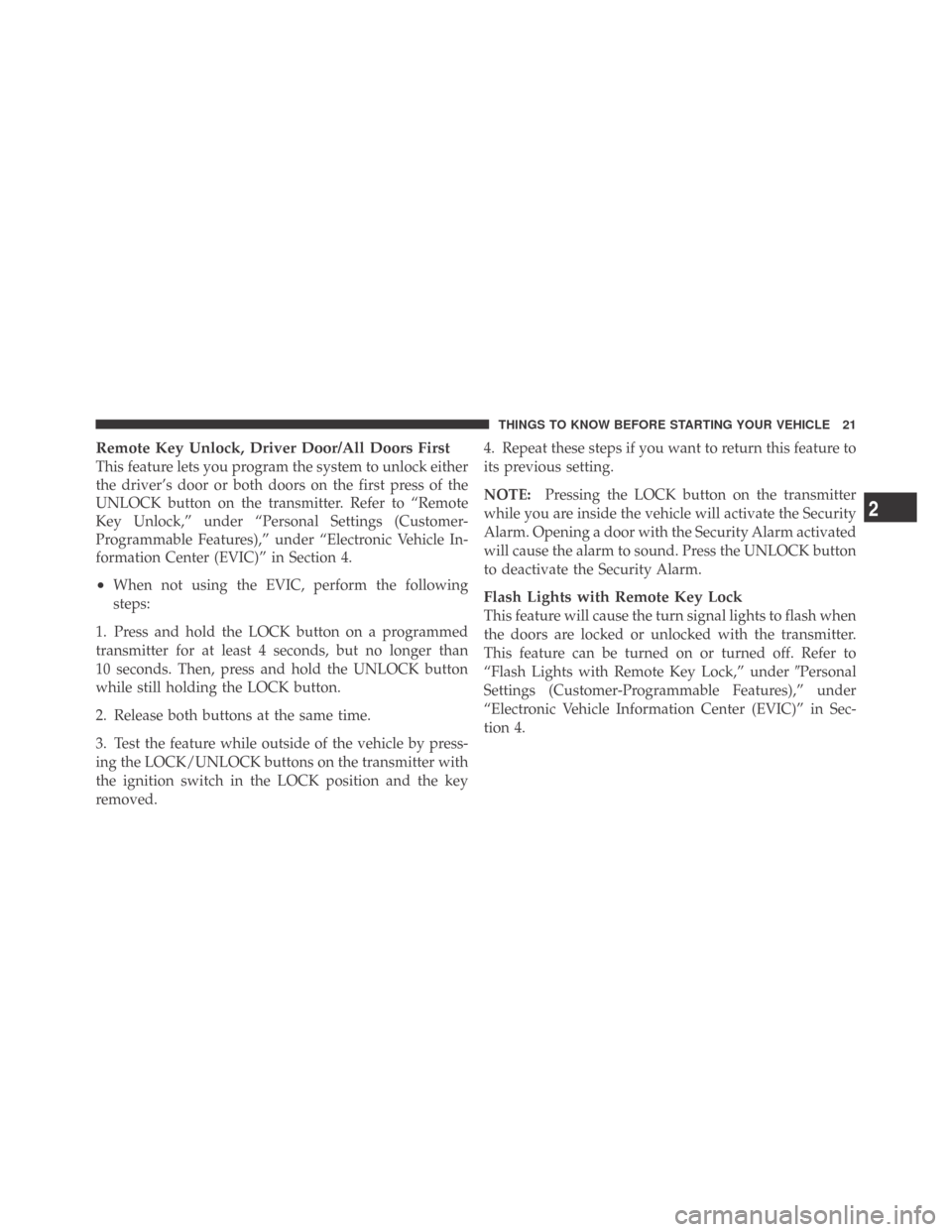

Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or both doors on the first press of the
UNLOCK button on the transmitter. Refer to “Remote
Key Unlock,” under “Personal Settings (Customer-
Programmable Features),” under “Electronic Vehicle In-
formation Center (EVIC)” in Section 4.
•When not using the EVIC, perform the following
steps:
1. Press and hold the LOCK button on a programmed
transmitter for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the UNLOCK button
while still holding the LOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the transmitter with
the ignition switch in the LOCK position and the key
removed.4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the transmitter
while you are inside the vehicle will activate the Security
Alarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.Flash Lights with Remote Key Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the transmitter.
This feature can be turned on or turned off. Refer to
“Flash Lights with Remote Key Lock,” underPersonal
Settings (Customer-Programmable Features),” under
“Electronic Vehicle Information Center (EVIC)” in Sec-
tion 4.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

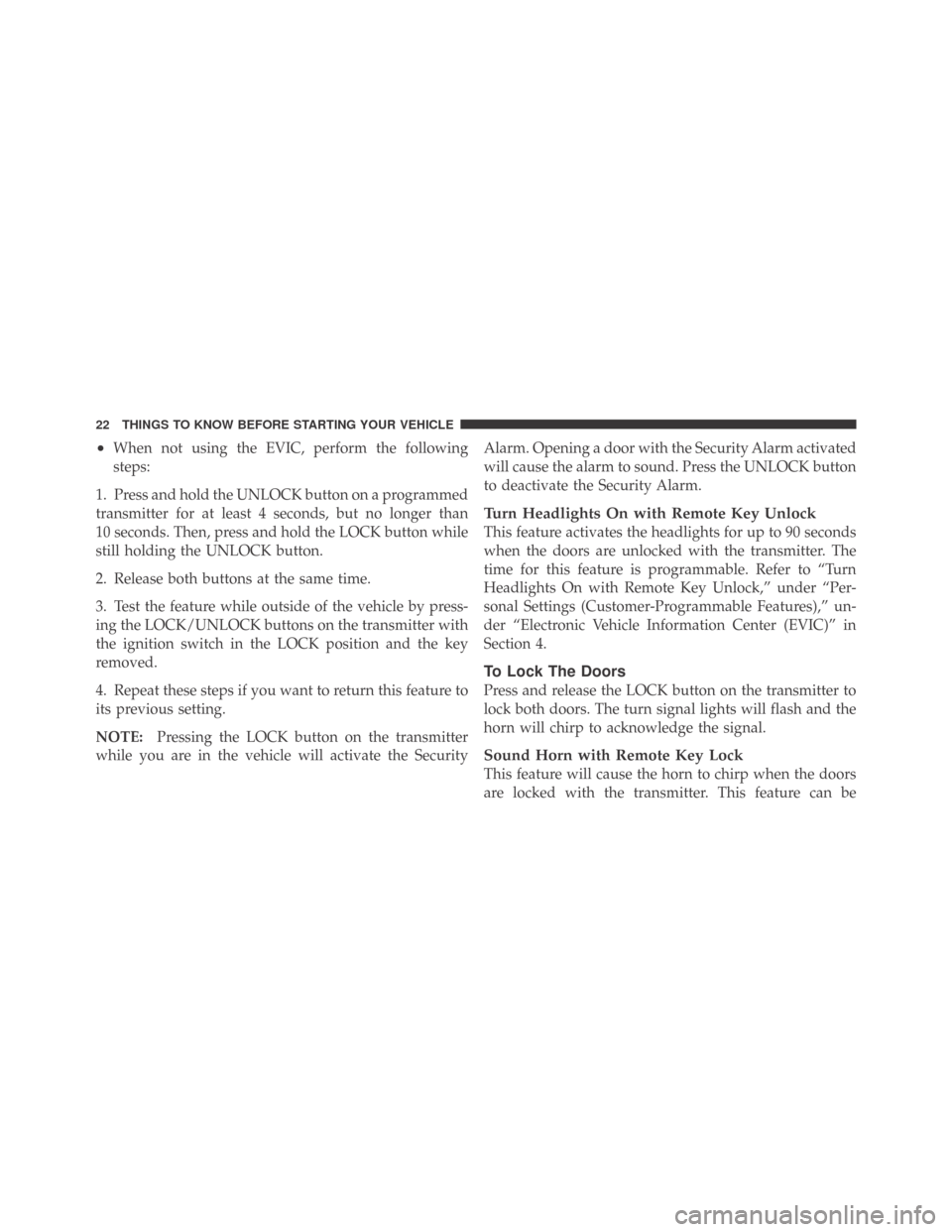

•When not using the EVIC, perform the following
steps:
1. Press and hold the UNLOCK button on a programmed
transmitter for at least 4 seconds, but no longer than
10 seconds. Then, press and hold the LOCK button while
still holding the UNLOCK button.
2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the transmitter with
the ignition switch in the LOCK position and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the transmitter
while you are in the vehicle will activate the SecurityAlarm. Opening a door with the Security Alarm activated
will cause the alarm to sound. Press the UNLOCK button
to deactivate the Security Alarm.
Turn Headlights On with Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the transmitter. The
time for this feature is programmable. Refer to “Turn
Headlights On with Remote Key Unlock,” under “Per-
sonal Settings (Customer-Programmable Features),” un-
der “Electronic Vehicle Information Center (EVIC)” in
Section 4.
To Lock The Doors
Press and release the LOCK button on the transmitter to
lock both doors. The turn signal lights will flash and the
horn will chirp to acknowledge the signal.
Sound Horn with Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the transmitter. This feature can be
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
