2009 CHEVROLET UPLANDER Owners Manual

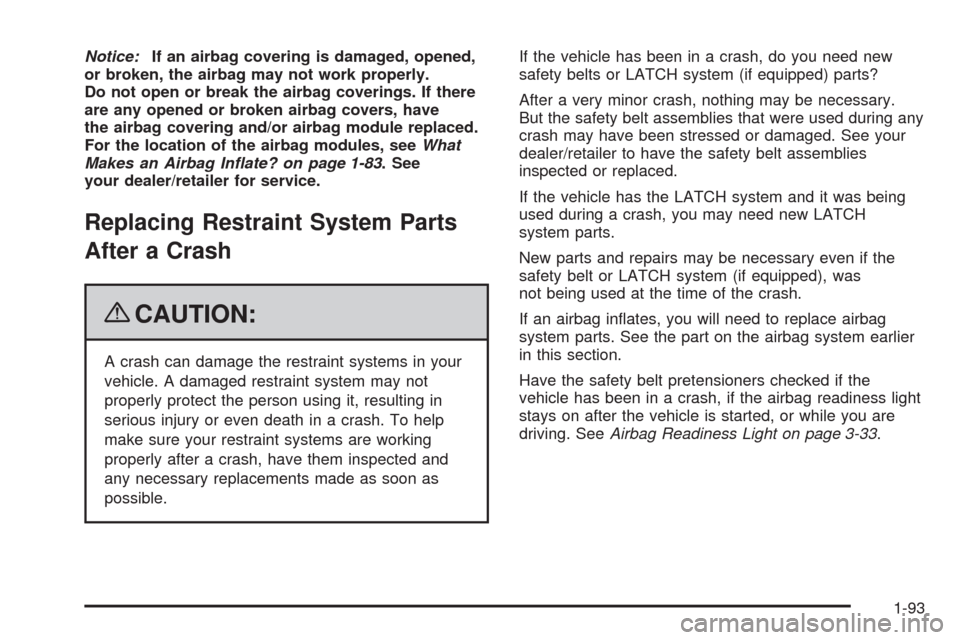

Notice:If an airbag covering is damaged, opened,
or broken, the airbag may not work properly.
Do not open or break the airbag coverings. If there
are any opened or broken airbag covers, have
the airbag covering and/or airbag module replaced.
For the location of the airbag modules, seeWhat
Makes an Airbag Inflate? on page 1-83. See
your dealer/retailer for service.
Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in your
vehicle. A damaged restraint system may not
properly protect the person using it, resulting in
serious injury or even death in a crash. To help
make sure your restraint systems are working
properly after a crash, have them inspected and
any necessary replacements made as soon as
possible.If the vehicle has been in a crash, do you need new
safety belts or LATCH system (if equipped) parts?
After a very minor crash, nothing may be necessary.
But the safety belt assemblies that were used during any
crash may have been stressed or damaged. See your
dealer/retailer to have the safety belt assemblies
inspected or replaced.
If the vehicle has the LATCH system and it was being
used during a crash, you may need new LATCH
system parts.
New parts and repairs may be necessary even if the
safety belt or LATCH system (if equipped), was
not being used at the time of the crash.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
Have the safety belt pretensioners checked if the
vehicle has been in a crash, if the airbag readiness light
stays on after the vehicle is started, or while you are
driving. SeeAirbag Readiness Light on page 3-33.
1-93

✍NOTES
1-94

Keys...............................................................2-3
Remote Keyless Entry (RKE) System................2-4
Remote Keyless Entry (RKE) System
Operation...................................................2-5
Remote Vehicle Start......................................2-7
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-11
Delayed Locking...........................................2-12
Automatic Door Lock.....................................2-12
Programmable Automatic Door Unlock.............2-13
Lockout Protection........................................2-13
Dual Sliding Doors........................................2-13
Power Sliding Door (PSD)..............................2-16
Liftgate........................................................2-22
Windows........................................................2-24
Power Windows............................................2-25
Manual Rear Quarter Windows.......................2-26
Power Rear Quarter Windows........................2-26
Sun Visors...................................................2-27Theft-Deterrent Systems..................................2-27
Content Theft-Deterrent.................................2-27
PASS-Key
®III Electronic Immobilizer...............2-29
PASS-Key®III Electronic Immobilizer
Operation.................................................2-29
Starting and Operating Your Vehicle................2-31
New Vehicle Break-In....................................2-31
Ignition Positions..........................................2-31
Retained Accessory Power (RAP)...................2-32
Starting the Engine.......................................2-32
Engine Coolant Heater..................................2-34
Automatic Transmission Operation...................2-35
Parking Brake..............................................2-38
Shifting Into Park..........................................2-38
Shifting Out of Park......................................2-40
Parking Over Things That Burn.......................2-40
Engine Exhaust............................................2-41
Running the Vehicle While Parked..................2-42
Section 2 Features and Controls
2-1

Mirrors...........................................................2-43
Manual Rearview Mirror.................................2-43
Outside Power Mirrors...................................2-43
Outside Convex Mirror...................................2-43
Outside Heated Mirrors..................................2-44
Object Detection Systems...............................2-44
Ultrasonic Rear Parking Assist (URPA)............2-44
OnStar
®System.............................................2-47
Universal Home Remote System......................2-50
Universal Home Remote System Operation
(With One Triangular LED)...........................2-51Storage Areas................................................2-55
Glove Box...................................................2-55
Cupholders..................................................2-55
Overhead Console (Without Rail)....................2-55
Overhead Console (With Rail)........................2-56
Floor Console Storage Area...........................2-58
Folding Tray................................................2-58
Second Row Center Console..........................2-58
Luggage Carrier...........................................2-59
Convenience Net (With Rear
Convenience Center).................................2-60
Convenience Net (Without Rear
Convenience Center).................................2-60
Convenience Center......................................2-61
Section 2 Features and Controls
2-2

Keys
{CAUTION:
Leaving children in a vehicle with the ignition key
is dangerous for many reasons, children or others
could be badly injured or even killed. They could
operate the power windows or other controls or
even make the vehicle move. The windows will
function with the keys in the ignition and children
could be seriously injured or killed if caught in the
path of a closing window. Do not leave the keys in
a vehicle with children.
The key can be used for the ignition and the driver’s
door lock.
Your vehicle has the PASS-Key
®III vehicle theft
system. The key has a transponder in the key head that
matches a decoder in the vehicle’s steering column.
If a replacement key or any additional key is needed,
you must purchase this key from your dealer/retailer.
The key will have PK3 stamped on it. Keep the bar code
tag that came with the original keys. Give this tag to
your dealer/retailer if you need a new key made.
2-3

Any new PASS-Key®III key must be programmed
before it will start your vehicle. SeePASS-Key®III
Electronic Immobilizer on page 2-29for more information
on programming your new key.
Notice:If you ever lock your keys in the vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If you are locked out of your vehicle, contact Roadside
Assistance. SeeRoadside Assistance Program on
page 7-7for more information.
Remote Keyless Entry (RKE)
System
The Remote Keyless Entry (RKE) system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
If there is a decrease in the RKE operating range,
try this:
Check the distance. The transmitter may be too far
from the vehicle. Stand closer during rainy or
snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check the transmitter’s battery. See “Battery
Replacement” later in this section.
If the transmitter is still not working correctly, see
your dealer/retailer or a qualied technician for
service.
2-4

Remote Keyless Entry (RKE)
System Operation
The Remote Keyless Entry (RKE) transmitter works up
to 195 feet (60 m) away from the vehicle.
There are other conditions which can affect the
performance of the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-4.The following functions may be available if the vehicle
has the RKE system:/(Remote Vehicle Start):For vehicles with this
feature, press to start the engine from outside the
vehicle using the RKE transmitter. SeeRemote Vehicle
Start on page 2-7for additional information.
Q(Lock):Press to lock all doors and the liftgate. See
Power Door Locks on page 2-11for more details on
the power door lock features. The turn signal lamps may
ash to indicate locking has occurred. If
Qis pressed
again, within ve seconds, the horn sounds and the turn
signal lamps may ash to let you know the vehicle is
already locked. See “FOB LOCK FEEDBACK”
underDIC Vehicle Personalization (Uplevel Only) on
page 3-68for additional information.
Pressing
Qmay also arm the content theft-deterrent
system if the vehicle has one. SeeContent
Theft-Deterrent on page 2-27.
"(Unlock):Press once to unlock the driver door.
Press
"again, within ve seconds, to unlock all
the doors and the liftgate. The turn signal lamps ash. With Remote Start and
Dual Power Sliding
Doors Shown, Without
Similar
2-5

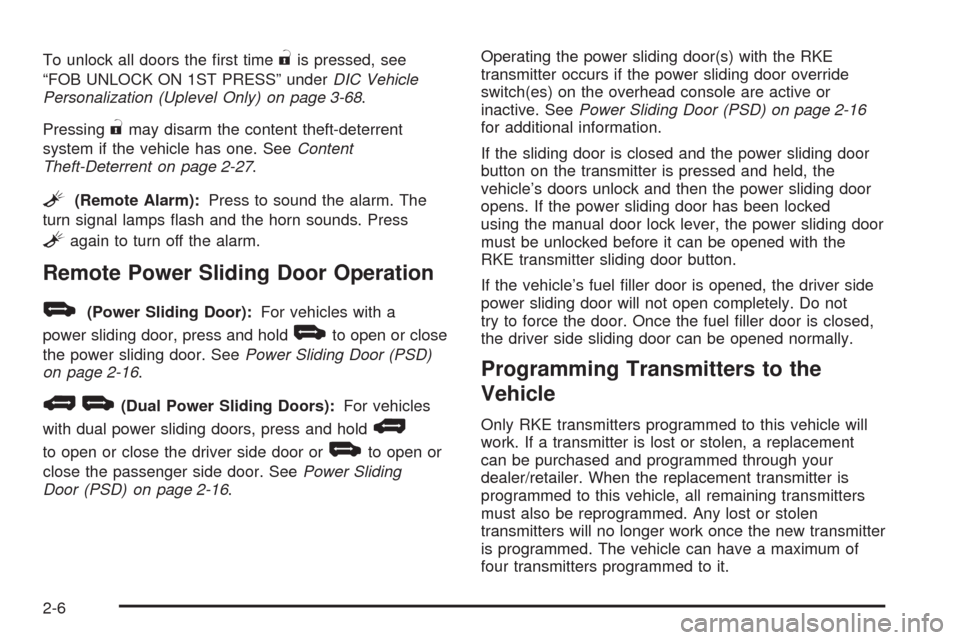

To unlock all doors the rst time"is pressed, see
“FOB UNLOCK ON 1ST PRESS” underDIC Vehicle
Personalization (Uplevel Only) on page 3-68.
Pressing
"may disarm the content theft-deterrent
system if the vehicle has one. SeeContent
Theft-Deterrent on page 2-27.
L(Remote Alarm):Press to sound the alarm. The
turn signal lamps ash and the horn sounds. Press
Lagain to turn off the alarm.
Remote Power Sliding Door Operation
+
(Power Sliding Door):For vehicles with a
power sliding door, press and hold
+to open or close
the power sliding door. SeePower Sliding Door (PSD)
on page 2-16.
*+(Dual Power Sliding Doors):For vehicles
with dual power sliding doors, press and hold
*
to open or close the driver side door or+to open or
close the passenger side door. SeePower Sliding
Door (PSD) on page 2-16.Operating the power sliding door(s) with the RKE
transmitter occurs if the power sliding door override
switch(es) on the overhead console are active or
inactive. SeePower Sliding Door (PSD) on page 2-16
for additional information.
If the sliding door is closed and the power sliding door
button on the transmitter is pressed and held, the
vehicle’s doors unlock and then the power sliding door
opens. If the power sliding door has been locked
using the manual door lock lever, the power sliding door
must be unlocked before it can be opened with the
RKE transmitter sliding door button.
If the vehicle’s fuel ller door is opened, the driver side
power sliding door will not open completely. Do not
try to force the door. Once the fuel ller door is closed,
the driver side sliding door can be opened normally.
Programming Transmitters to the
Vehicle
Only RKE transmitters programmed to this vehicle will
work. If a transmitter is lost or stolen, a replacement
can be purchased and programmed through your
dealer/retailer. When the replacement transmitter is
programmed to this vehicle, all remaining transmitters
must also be reprogrammed. Any lost or stolen
transmitters will no longer work once the new transmitter
is programmed. The vehicle can have a maximum of
four transmitters programmed to it.
2-6
