2009 CHEVROLET UPLANDER Owners Manual

Make sure the seat is in the full rear position before
beginning this procedure.
To reinstall the bucket seats:
1. With the seat folded, squeeze the angled bar
beneath the seat toward the straight crossbar, while
placing the front hooks of the seat into the front
two oor pins.
2. Make sure the seat is
angled so that the front
seat hooks clear the
oor pins. If the front
hooks are not attached
correctly, the seat’s rear
hooks will not attach
to the rear set of
oor pins.
If the front hooks are not attaching correctly, check
that the seat is in the full rear position.3. Firmly push the rear seat hooks into the rear oor
pins by pushing down the rear of the seat.
{CAUTION:
A seat that is not locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock the
seat into place properly when installing it.
4. Check that the seat is locked by trying to raise
the seat.
1-13

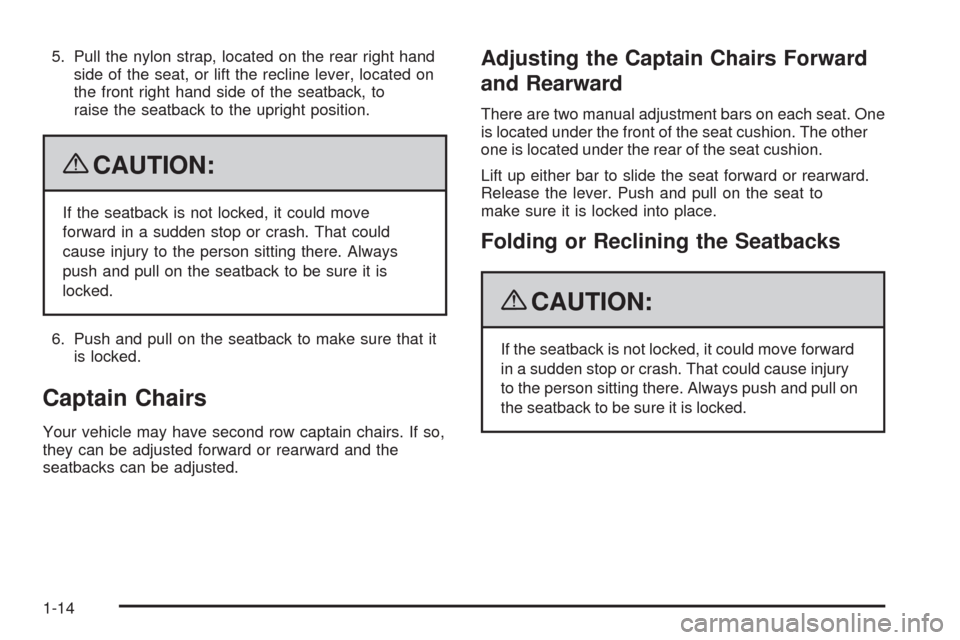

5. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located on
the front right hand side of the seatback, to
raise the seatback to the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
6. Push and pull on the seatback to make sure that it
is locked.
Captain Chairs
Your vehicle may have second row captain chairs. If so,
they can be adjusted forward or rearward and the
seatbacks can be adjusted.
Adjusting the Captain Chairs Forward
and Rearward
There are two manual adjustment bars on each seat. One
is located under the front of the seat cushion. The other
one is located under the rear of the seat cushion.
Lift up either bar to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to
make sure it is locked into place.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always push and pull on
the seatback to be sure it is locked.
1-14

To recline the seatback, lift up on the recliner lever
located on the outboard side of the seat, then move the
seatback to the desired position.
To raise the seatback, lift up on the recliner lever
without applying pressure to the seatback. Push and
pull on the seatback to make sure it is locked in place.Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
To fold the seatback forward, lift up fully on the recliner
lever. Push the seatback forward until it is at.
The armrests can be lowered or raised for easier entry
or exit of the vehicle. If your vehicle has captain
chairs with side impact airbags, they will have one
armrest on the inboard side.
Captain Chair (with a Side Impact
Airbag)
If your vehicle has captain chairs with side impact
airbags, the seats cannot be removed. SeeWhere Are
the Airbags? on page 1-80for more information.
1-15

Removing a Captain Chair
(without a Side Impact Airbag)
To remove a captain chair, do the following:
1. Pull the nylon strap behind the seat to release the
rear hooks from the oor pins.2. The seat can then be lifted off the front oor pins
and removed from the vehicle.
1-16

Installing a Captain Chair
(without a Side Impact Airbag)
{CAUTION:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After installing the seat,
always check to be sure that the safety belts are
properly routed and attached, and are not twisted.
Do not put the seats in so they face rearward because
they will not latch that way. For the second row, if
you want more storage room behind the seat, adjust the
seat by sliding it forward.
Make sure the seatbacks are in the upright position,
the seat belts are on the correct side of the seats and
the seats are in the full rear position before beginning
this procedure.To install a captain chair, do the following:
1. Hook the front latches over the front oor pins.
1-17

2. Push the rear of the seat down to lock the rear
latches onto the rear set of oor pins.
{CAUTION:
A seat that is not locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock the
seat into place properly when installing it.
3. Push and pull on the seat to be sure it is properly
attached.
Third Row Seat
Your vehicle may have a third row seat. It is a full
bench seat and may come with the convenience center.
SeeConvenience Center on page 2-61for more
information. The third row seat can be removed and
replaced, or with the seatback folded, it will lie at with
the convenience center.
1-18

Folding the Seatback(s)
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
To fold down either side of the 50/50 split bench seat,
lift the lever located on the back of the seat you want to
fold, and push the seatback down.
Returning the Seatback to an Upright
Position
{CAUTION:
If the seatback is not locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always push and pull on
the seatback to be sure it is locked.
To raise the seatback, do the following:
1. Move the second row seat completely forward by
using the manual adjustment bar under either the
front or rear of the seat cushion.
2. Open the liftgate.
1-19

3. From the rear of the vehicle, locate the pullstrap
attached to the lever on the back of the seat and
pull it to raise the seat.
4. Push and pull on the seatback to make sure that it
is locked into place.
Removing the Third Row Seat
1. Remove the convenience center, if equipped.
SeeConvenience Center on page 2-61for more
information.
2. Make sure all items are off the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
3. Put the seatback in its folded position before
removing the seat. See “Folding the Seatback(s)”
earlier in this section.
1-20
