2009 CHEVROLET MALIBU Owners Manual

Heated Seats
On vehicles with heated
front seats, the buttons are
located on the outboard
side of the driver’s and front
passenger seats.
Press the top of the switch to turn the feature on.
The seat will heat to the high setting. The indicator light
above the switch will be lit next to the number 2.Press the top of the switch again to go to the low heat
setting. The indicator light will be lit next to the number 1.
Press the bottom of the switch to turn the feature off.
The heated seat feature will turn off when the ignition is
turned off.
1-5

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
do not want to. Adjust the driver’s seat only when
the vehicle is not moving.
{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.On seats with manual reclining seatbacks, the lever
used to operate them is located on the outboard side
of the seat.
To recline the seatback:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked.
1-6

To return the seatback to an upright position:
1. Lift the lever fully without applying pressure to the
seatback and the seatback returns to the upright
position.
2. Release the lever to lock the seatback.
3. Push and pull on the seatback to make sure it is
locked.
{CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts cannot do their job when you
are reclined like this.
The shoulder belt cannot do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
CAUTION: (Continued)
CAUTION: (Continued)
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if the vehicle is
moving.
1-7

Seatback Latches
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
do not want to. Adjust the driver’s seat only when
the vehicle is not moving.
If your vehicle is a coupe or retractable hardtop model,
it has a seatback latch as part of the manual recline
lever. This feature provides easy access to the
rear seats. To operate the seatback latch, pull up on the
manual recline lever. The seatback will automatically
spring forward. To operate the latch from the rear seat,
pull back on the top of the manual recline lever.
1-8

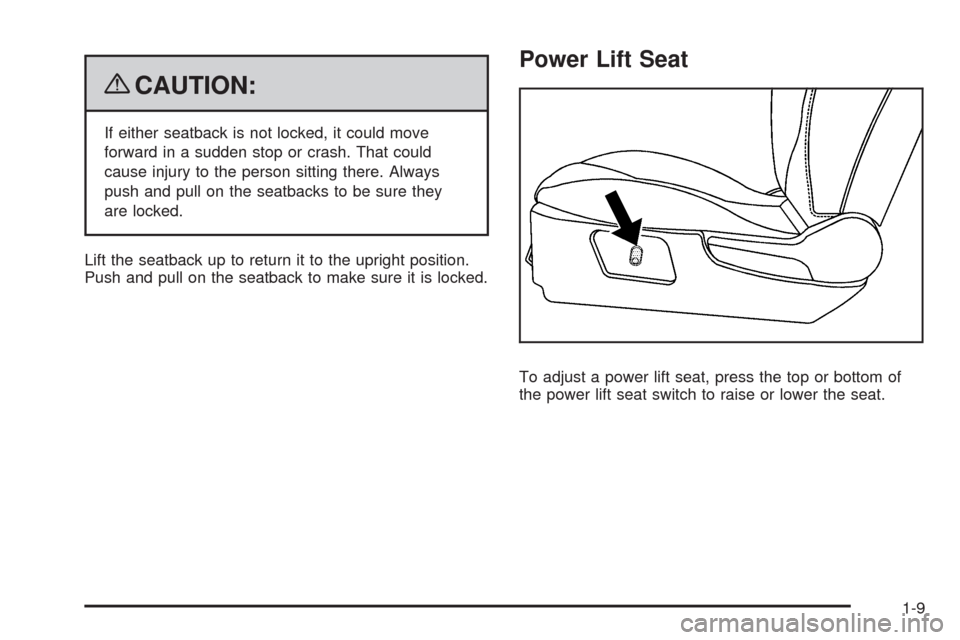

{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
Lift the seatback up to return it to the upright position.
Push and pull on the seatback to make sure it is locked.
Power Lift Seat
To adjust a power lift seat, press the top or bottom of
the power lift seat switch to raise or lower the seat.
1-9

Rear Seats
Split Folding Rear Seat
With this feature, either side of the seatback can be
folded down for more cargo space.
Before folding a seatback, make sure the front seat is
not reclined. If it is, the rear seatback will not fold down
all the way.
Notice:Folding a rear seat with the safety belts still
fastened may cause damage to the seat or the safety
belts. Always unbuckle the safety belts and return
them to their normal stowed position before folding
a rear seat.
To lower the rear seatback, pull up on the seatback
strap while folding the seatback down. This allows
access to the trunk.
To raise the rear seatback pull the seatback up and
make sure it latches. Push and pull on the seatback to
be sure it is locked in position. Make sure that the
safety belts are properly stowed over the seatback in
all three positions.
1-10

{CAUTION:
A safety belt that is improperly routed, not properly
attached, or twisted will not provide the protection
needed in a crash. The person wearing the belt
could be seriously injured. After raising the rear
seatback, always check to be sure that the safety
belts are properly routed and attached, and are
not twisted.
{CAUTION:
If either seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatbacks to be sure they
are locked.
When the seat is not in use, it should be kept in the
upright locked position.
1-11

Safety Belts
Safety Belts: They Are for Everyone
This section of the manual describes how to use
safety belts properly. It also describes some things not
to do with safety belts.
{CAUTION:
Do not let anyone ride where a safety belt
cannot be worn properly. In a crash, if you or your
passenger(s) are not wearing safety belts, the
injuries can be much worse. You can hit things
inside the vehicle harder or be ejected from the
vehicle. You and your passenger(s) can be
seriously injured or killed. In the same crash, you
might not be, if you are buckled up. Always fasten
your safety belt, and check that your passenger(s)
are restrained properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
This vehicle has indicators as a reminder to buckle the
safety belts. SeeSafety Belt Reminders on page 3-30
for additional information.
