2009 CHERY TIGGO check engine

Downloaded from www.Manualslib.com manuals search engine MEASURE STATUSSTANDARD FLUID PRESSURE KPA (PSI)
GEAR LEVER POSITION GEAR
POSITION ENGINE
SPEED (RPM) DECELERATION
CLUTCH
PRESSURE REVERSE
GEAR
CLUTCH
PRESSURE OVERDRIVE
CLUTCH
PRESSURE LOW/
REVERSE GEAR
CLUTCH
PRESSURE SECONDARY
BRAKE
PRESSURE TORQUE
CONVERTER PRESSURE
P -2,500 - --310 - 390
(45-56) -250 - 390 (36
- 56)
R Reverse Gear 2,500 -1,270 - 1,770 - 1,270 - 1,770 - 500 - 700 (73
- 101)
N Neutral Gear 2,500 ---310 - 390 (45
- 56) -250 - 390 (36
- 56)
D Gear 1 2,500
1,010 - 1,050
(146 - 152) -- 1,010 - 1,050
(146 - 152) -500 - 700 (73
- 101)
Gear 2 2,500 ----1,010 - 1,050
(146 - 152) 500 - 700 (73
- 101)
Gear 3 2,500 590 - 690 (85 -
100) -590 - 690
(85 - 100) -- 450 - 650 (65
- 94)
Gear 4 2,500 --590 - 690
(85 - 100) -590 - 690 (85
- 100) 450 - 650 (65
- 94)
•In accordance with the shown status of standard fluid pressure measurement table, measure the fluid pressure
of each measurement port. The measurement of each port should be within the standard range.
• If some measurement values is beyond the standard range, please refer to the fluid pressure measurement and
diagnosis table for causes.
Is the check result normal?
Ye s>>Go to step 5 for disc or plate abrasion.
No
>>Go to the next step.
3.CHECK VALVE BODY ASSEMBLY AND FLUID PUMP AND PIPELINE
• Turn the ignition switch off.
• Disassemble and repair F4A4 automatic transaxle assembly (See Automatic Transaxle Removal & Installation in
Section 08 Transaxle & Transfer Case).
• Check valve body and fluid pump and pipeline.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace damaged components and low speed clutch and overdrive clutch for low pressure burned.
4.COMPRESSED AIR TEST
• Check low speed clutch system: Low speed clutch piston should be active and maintain pressure when com-
pressed air is applied to the fluid hole.
• Check overdrive clutch system: Overdrive clutch piston should be active and maintain pressure when com-
pressed air is applied to the fluid hole.
Is the check result normal?
Ye s>>Go to the next step for disc or plate abrasion.
No
>>Replace damaged components and low speed clutch and overdrive clutch for low pressure burned.
DIAGNOSIS & TESTING
08–222Chery Automobile Co., Ltd.

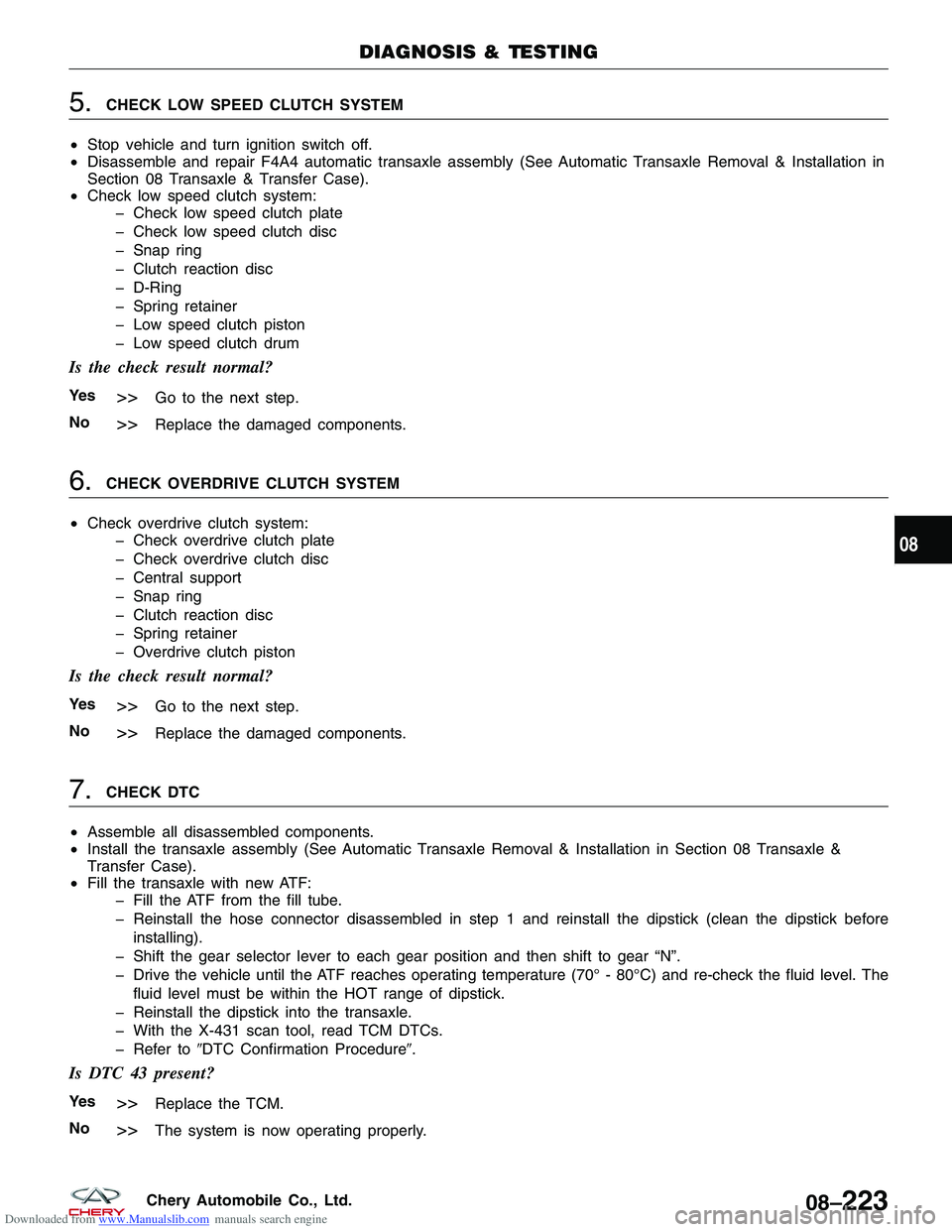

Downloaded from www.Manualslib.com manuals search engine 5.CHECK LOW SPEED CLUTCH SYSTEM
• Stop vehicle and turn ignition switch off.
• Disassemble and repair F4A4 automatic transaxle assembly (See Automatic Transaxle Removal & Installation in
Section 08 Transaxle & Transfer Case).
• Check low speed clutch system:
Check low speed clutch plate
Check low speed clutch disc
Snap ring
Clutch reaction disc
D-Ring
Spring retainer
Low speed clutch piston
Low speed clutch drum
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace the damaged components.
6.CHECK OVERDRIVE CLUTCH SYSTEM
• Check overdrive clutch system:
Check overdrive clutch plate
Check overdrive clutch disc
Central support
Snap ring
Clutch reaction disc
Spring retainer
Overdrive clutch piston
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace the damaged components.
7.CHECK DTC
• Assemble all disassembled components.
• Install the transaxle assembly (See Automatic Transaxle Removal & Installation in Section 08 Transaxle &
Transfer Case).
• Fill the transaxle with new ATF:
Fill the ATF from the fill tube.
Reinstall the hose connector disassembled in step 1 and reinstall the dipstick (clean the dipstick before
installing).
Shift the gear selector lever to each gear position and then shift to gear “N”.
Drive the vehicle until the ATF reaches operating temperature (70° - 80°C) and re-check the fluid level. The fluid level must be within the HOT range of dipstick.
Reinstall the dipstick into the transaxle.
With the X-431 scan tool, read TCM DTCs.
Refer to DTC Confirmation Procedure.
Is DTC 43 present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
DIAGNOSIS & TESTING
08
08–223Chery Automobile Co., Ltd.

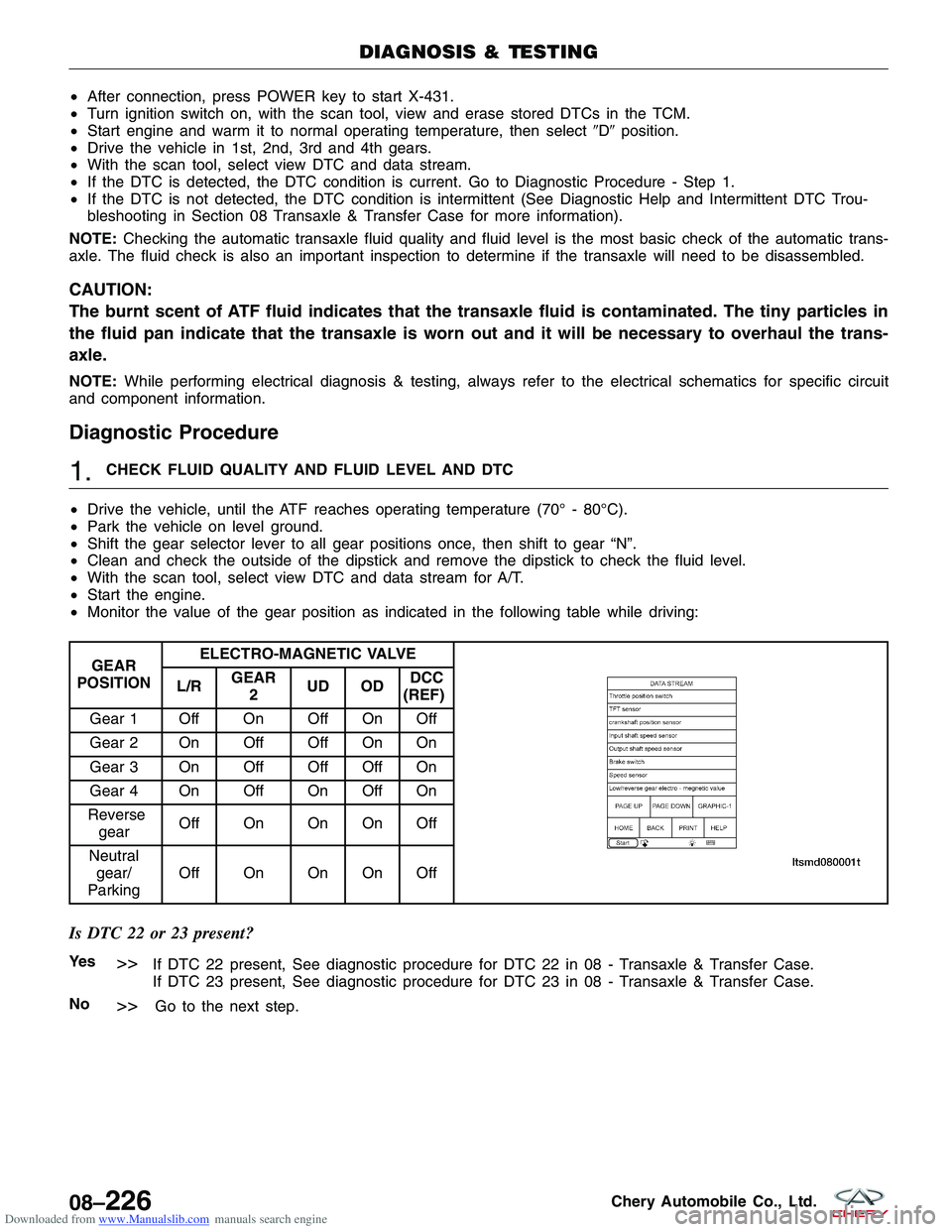

Downloaded from www.Manualslib.com manuals search engine •After connection, press POWER key to start X-431.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature, then select Dposition.
• Drive the vehicle in 1st, 2nd, 3rd and 4th gears.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE: Checking the automatic transaxle fluid quality and fluid level is the most basic check of the automatic trans-
axle. The fluid check is also an important inspection to determine if the transaxle will need to be disassembled.
CAUTION:
The burnt scent of ATF fluid indicates that the transaxle fluid is contaminated. The tiny particles in
the fluid pan indicate that the transaxle is worn out and it will be necessary to overhaul the trans-
axle.
NOTE: While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK FLUID QUALITY AND FLUID LEVEL AND DTC
• Drive the vehicle, until the ATF reaches operating temperature (70° - 80°C).
• Park the vehicle on level ground.
• Shift the gear selector lever to all gear positions once, then shift to gear “N”.
• Clean and check the outside of the dipstick and remove the dipstick to check the fluid level.
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
GEAR
POSITION ELECTRO-MAGNETIC VALVE
L/R
GEAR
2 UD OD DCC
(REF)
Gear 1 Off On Off On Off
Gear 2 On Off Off On On
Gear 3 On Off Off Off On
Gear 4 On Off On Off On
Reverse gear Off On On On Off
Neutral gear/
Parking Off On On On Off
Is DTC 22 or 23 present?
Ye s>>If DTC 22 present, See diagnostic procedure for DTC 22 in 08 - Transaxle & Transfer Case.
If DTC 23 present, See diagnostic procedure for DTC 23 in 08 - Transaxle & Transfer Case.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–226Chery Automobile Co., Ltd.

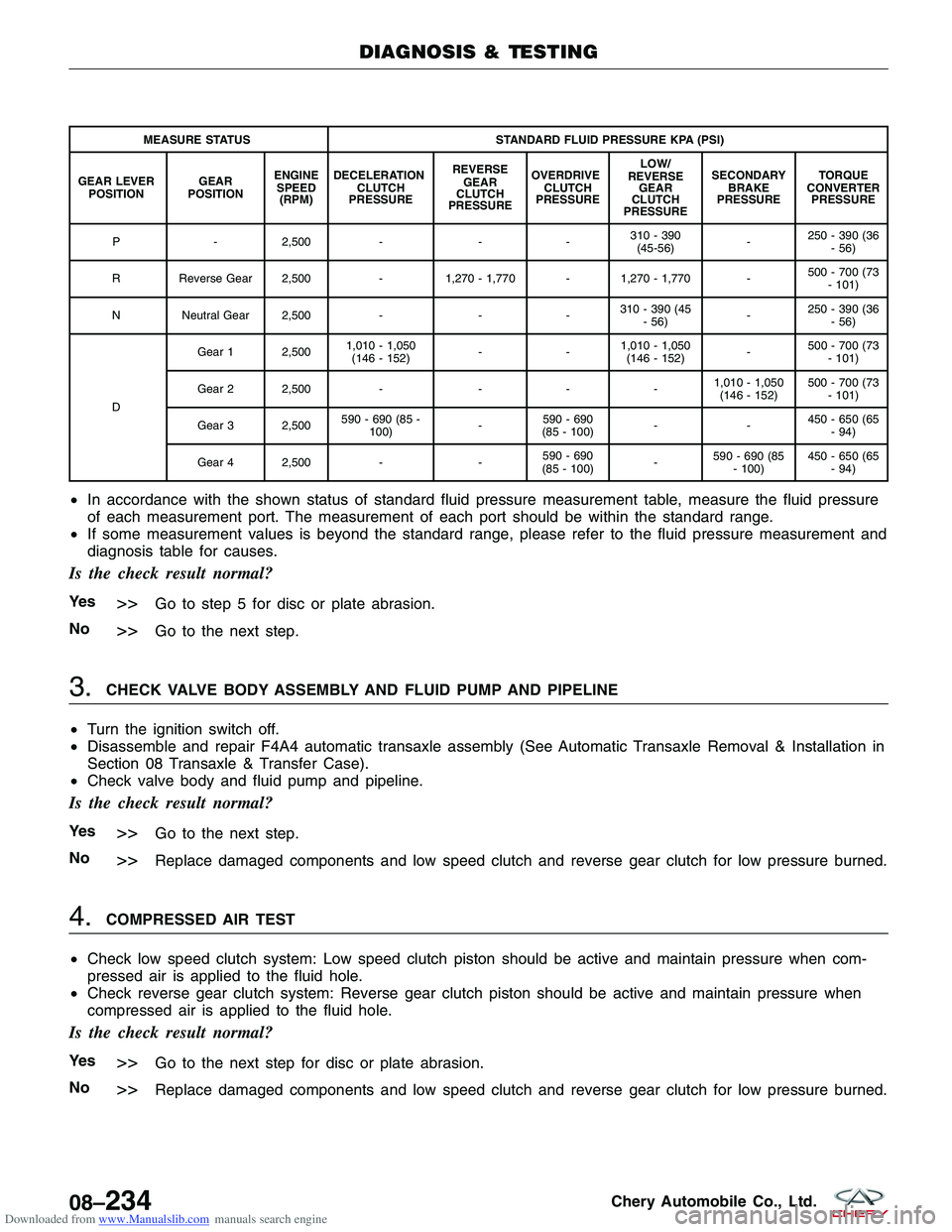

Downloaded from www.Manualslib.com manuals search engine MEASURE STATUSSTANDARD FLUID PRESSURE KPA (PSI)
GEAR LEVER POSITION GEAR
POSITION ENGINE
SPEED (RPM) DECELERATION
CLUTCH
PRESSURE REVERSE
GEAR
CLUTCH
PRESSURE OVERDRIVE
CLUTCH
PRESSURE LOW/
REVERSE GEAR
CLUTCH
PRESSURE SECONDARY
BRAKE
PRESSURE TORQUE
CONVERTER PRESSURE
P -2,500 - --310 - 390
(45-56) -250 - 390 (36
- 56)
R Reverse Gear 2,500 -1,270 - 1,770 - 1,270 - 1,770 - 500 - 700 (73
- 101)
N Neutral Gear 2,500 ---310 - 390 (45
- 56) -250 - 390 (36
- 56)
D Gear 1 2,500
1,010 - 1,050
(146 - 152) -- 1,010 - 1,050
(146 - 152) -500 - 700 (73
- 101)
Gear 2 2,500 ----1,010 - 1,050
(146 - 152) 500 - 700 (73
- 101)
Gear 3 2,500 590 - 690 (85 -
100) -590 - 690
(85 - 100) -- 450 - 650 (65
- 94)
Gear 4 2,500 --590 - 690
(85 - 100) -590 - 690 (85
- 100) 450 - 650 (65
- 94)
•In accordance with the shown status of standard fluid pressure measurement table, measure the fluid pressure
of each measurement port. The measurement of each port should be within the standard range.
• If some measurement values is beyond the standard range, please refer to the fluid pressure measurement and
diagnosis table for causes.
Is the check result normal?
Ye s>>Go to step 5 for disc or plate abrasion.
No
>>Go to the next step.
3.CHECK VALVE BODY ASSEMBLY AND FLUID PUMP AND PIPELINE
• Turn the ignition switch off.
• Disassemble and repair F4A4 automatic transaxle assembly (See Automatic Transaxle Removal & Installation in
Section 08 Transaxle & Transfer Case).
• Check valve body and fluid pump and pipeline.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace damaged components and 2nd gear brake clutch and overdrive clutch for low pressure
burned.
4.COMPRESSED AIR TEST
• Check 2nd gear brake clutch system: 2nd gear brake clutch piston should be active and maintain pressure
when compressed air is applied to the fluid hole.
• Check overdrive clutch system: overdrive clutch piston should be active and maintain pressure when com-
pressed air is applied to the fluid hole.
Is the check result normal?
Ye s>>Go to the next step for disc or plate abrasion.
No
>>Replace damaged components and 2nd gear brake clutch and overdrive clutch for low pressure
burned.
DIAGNOSIS & TESTING
08–228Chery Automobile Co., Ltd.

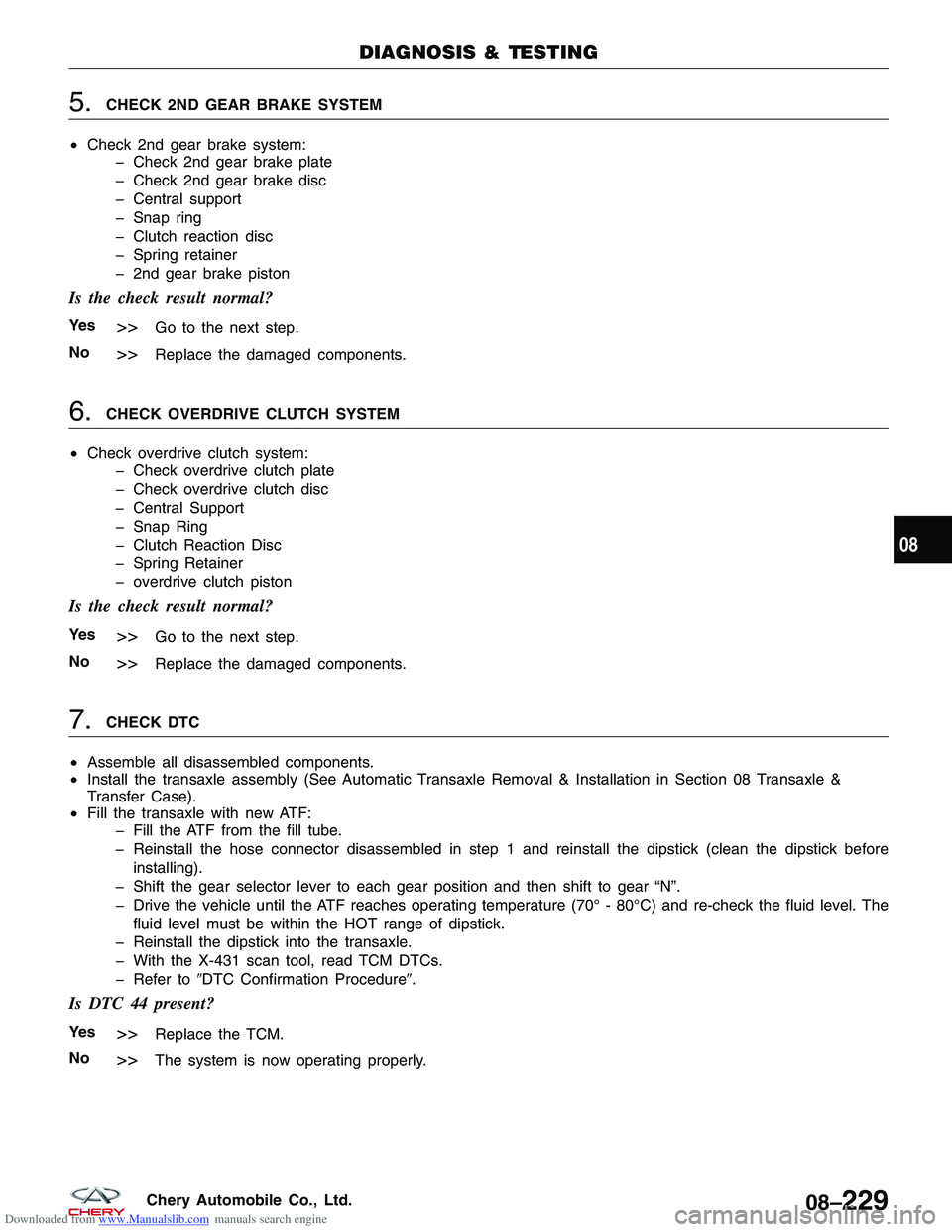

Downloaded from www.Manualslib.com manuals search engine 5.CHECK 2ND GEAR BRAKE SYSTEM
• Check 2nd gear brake system:
Check 2nd gear brake plate
Check 2nd gear brake disc
Central support
Snap ring
Clutch reaction disc
Spring retainer
2nd gear brake piston
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace the damaged components.
6.CHECK OVERDRIVE CLUTCH SYSTEM
• Check overdrive clutch system:
Check overdrive clutch plate
Check overdrive clutch disc
Central Support
Snap Ring
Clutch Reaction Disc
Spring Retainer
overdrive clutch piston
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace the damaged components.
7.CHECK DTC
• Assemble all disassembled components.
• Install the transaxle assembly (See Automatic Transaxle Removal & Installation in Section 08 Transaxle &
Transfer Case).
• Fill the transaxle with new ATF:
Fill the ATF from the fill tube.
Reinstall the hose connector disassembled in step 1 and reinstall the dipstick (clean the dipstick before
installing).
Shift the gear selector lever to each gear position and then shift to gear “N”.
Drive the vehicle until the ATF reaches operating temperature (70° - 80°C) and re-check the fluid level. The fluid level must be within the HOT range of dipstick.
Reinstall the dipstick into the transaxle.
With the X-431 scan tool, read TCM DTCs.
Refer to DTC Confirmation Procedure.
Is DTC 44 present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
DIAGNOSIS & TESTING
08
08–229Chery Automobile Co., Ltd.

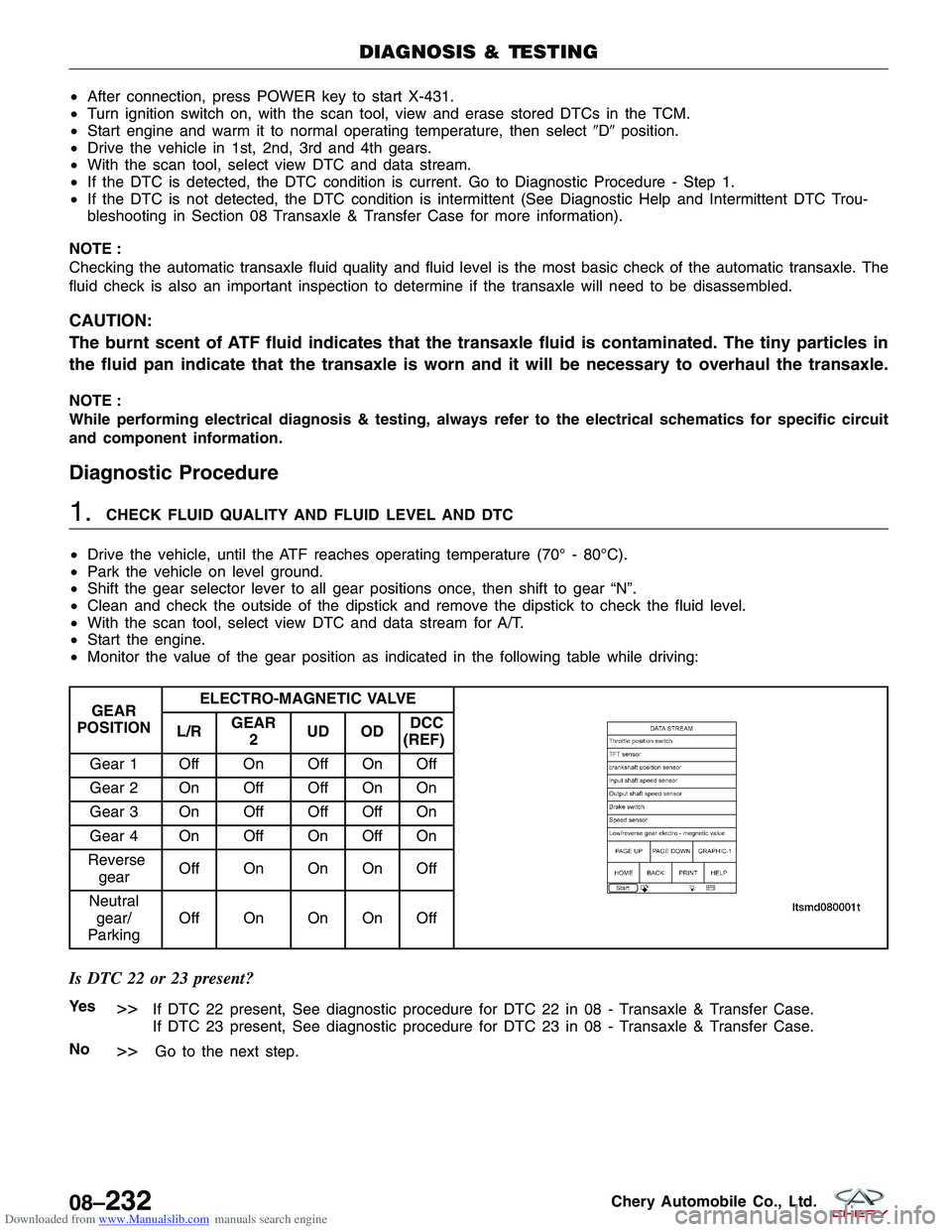

Downloaded from www.Manualslib.com manuals search engine •After connection, press POWER key to start X-431.
• Turn ignition switch on, with the scan tool, view and erase stored DTCs in the TCM.
• Start engine and warm it to normal operating temperature, then select Dposition.
• Drive the vehicle in 1st, 2nd, 3rd and 4th gears.
• With the scan tool, select view DTC and data stream.
• If the DTC is detected, the DTC condition is current. Go to Diagnostic Procedure - Step 1.
• If the DTC is not detected, the DTC condition is intermittent (See Diagnostic Help and Intermittent DTC Trou-
bleshooting in Section 08 Transaxle & Transfer Case for more information).
NOTE :
Checking the automatic transaxle fluid quality and fluid level is the most basic check of the automatic transaxle. The
fluid check is also an important inspection to determine if the transaxle will need to be disassembled.
CAUTION:
The burnt scent of ATF fluid indicates that the transaxle fluid is contaminated. The tiny particles in
the fluid pan indicate that the transaxle is worn and it will be necessary to overhaul the transaxle.
NOTE :
While performing electrical diagnosis & testing, always refer to the electrical schematics for specific circuit
and component information.
Diagnostic Procedure
1.CHECK FLUID QUALITY AND FLUID LEVEL AND DTC
• Drive the vehicle, until the ATF reaches operating temperature (70° - 80°C).
• Park the vehicle on level ground.
• Shift the gear selector lever to all gear positions once, then shift to gear “N”.
• Clean and check the outside of the dipstick and remove the dipstick to check the fluid level.
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
GEAR
POSITION ELECTRO-MAGNETIC VALVE
L/R
GEAR
2 UD OD DCC
(REF)
Gear 1 Off On Off On Off
Gear 2 On Off Off On On
Gear 3 On Off Off Off On
Gear 4 On Off On Off On
Reverse gear Off On On On Off
Neutral gear/
Parking Off On On On Off
Is DTC 22 or 23 present?
Ye s>>If DTC 22 present, See diagnostic procedure for DTC 22 in 08 - Transaxle & Transfer Case.
If DTC 23 present, See diagnostic procedure for DTC 23 in 08 - Transaxle & Transfer Case.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–232Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine MEASURE STATUSSTANDARD FLUID PRESSURE KPA (PSI)
GEAR LEVER POSITION GEAR
POSITION ENGINE
SPEED (RPM) DECELERATION
CLUTCH
PRESSURE REVERSE
GEAR
CLUTCH
PRESSURE OVERDRIVE
CLUTCH
PRESSURE LOW/
REVERSE GEAR
CLUTCH
PRESSURE SECONDARY
BRAKE
PRESSURE TORQUE
CONVERTER PRESSURE
P -2,500 - --310 - 390
(45-56) -250 - 390 (36
- 56)
R Reverse Gear 2,500 -1,270 - 1,770 - 1,270 - 1,770 - 500 - 700 (73
- 101)
N Neutral Gear 2,500 ---310 - 390 (45
- 56) -250 - 390 (36
- 56)
D Gear 1 2,500
1,010 - 1,050
(146 - 152) -- 1,010 - 1,050
(146 - 152) -500 - 700 (73
- 101)
Gear 2 2,500 ----1,010 - 1,050
(146 - 152) 500 - 700 (73
- 101)
Gear 3 2,500 590 - 690 (85 -
100) -590 - 690
(85 - 100) -- 450 - 650 (65
- 94)
Gear 4 2,500 --590 - 690
(85 - 100) -590 - 690 (85
- 100) 450 - 650 (65
- 94)
•In accordance with the shown status of standard fluid pressure measurement table, measure the fluid pressure
of each measurement port. The measurement of each port should be within the standard range.
• If some measurement values is beyond the standard range, please refer to the fluid pressure measurement and
diagnosis table for causes.
Is the check result normal?
Ye s>>Go to step 5 for disc or plate abrasion.
No
>>Go to the next step.
3.CHECK VALVE BODY ASSEMBLY AND FLUID PUMP AND PIPELINE
• Turn the ignition switch off.
• Disassemble and repair F4A4 automatic transaxle assembly (See Automatic Transaxle Removal & Installation in
Section 08 Transaxle & Transfer Case).
• Check valve body and fluid pump and pipeline.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace damaged components and low speed clutch and reverse gear clutch for low pressure burned.
4.COMPRESSED AIR TEST
• Check low speed clutch system: Low speed clutch piston should be active and maintain pressure when com-
pressed air is applied to the fluid hole.
• Check reverse gear clutch system: Reverse gear clutch piston should be active and maintain pressure when
compressed air is applied to the fluid hole.
Is the check result normal?
Ye s>>Go to the next step for disc or plate abrasion.
No
>>Replace damaged components and low speed clutch and reverse gear clutch for low pressure burned.
DIAGNOSIS & TESTING
08–234Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 5.CHECK LOW SPEED CLUTCH SYSTEM
• Stop vehicle and turn ignition switch off.
• Disassemble and repair F4A4 automatic transaxle assembly (See Automatic Transaxle Removal & Installation in
Section 08 Transaxle & Transfer Case).
• Check low speed clutch system:
Check low speed clutch plate
Check low speed clutch disc
Snap ring
Clutch reaction disc
D-Ring
Spring retainer
Low speed clutch drum
Low speed clutch piston
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace the damaged components.
6.CHECK REVERSE GEAR CLUTCH SYSTEM
• Check reverse gear clutch system:
Reverse gear clutch plate
Reverse gear clutch disc
Central support
Snap ring
Clutch reaction disc
Spring retainer
Reverse gear clutch piston
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace the damaged components.
7.CHECK DTC
• Assemble all disassembled components.
• Install the transaxle assembly (See Automatic Transaxle Removal & Installation in Section 08 Transaxle &
Transfer Case).
• Fill the transaxle with new ATF:
Fill the ATF from the fill tube.
Reinstall the hose connector disassembled in step 1 and reinstall the dipstick (clean the dipstick before
installing).
Shift the gear selector lever to each gear position and then shift to gear “N”.
Drive the vehicle until the ATF reaches operating temperature (70° - 80°C) and re-check the fluid level. The fluid level must be within the HOT range of dipstick.
Reinstall the dipstick into the transaxle.
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC 46 present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
DIAGNOSIS & TESTING
08
08–235Chery Automobile Co., Ltd.
