Downloaded from www.Manualslib.com manuals search engine 5.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105
Body fuse and relay box H9, H8, G15
Fuse 10 (30A)
Harness open or short between A/T assembly connector and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power in harness or connectors.
6.CHECK R/L SOLENOID CONTROL CIRCUIT
• Turn the ignition switch off.
• Disconnect TCM connector.
• Check for harness continuity between the following terminals:
A/T ASSEMBLY
TERMINAL TCM
CONNECTOR TERMINAL CONTINUITY
71
5Yes
• Check the harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to power or short to ground.
7.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is the check result normal?
Ye s>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
No
>>Replace the TCM.
DIAGNOSIS & TESTING
08
08–181Chery Automobile Co., Ltd.

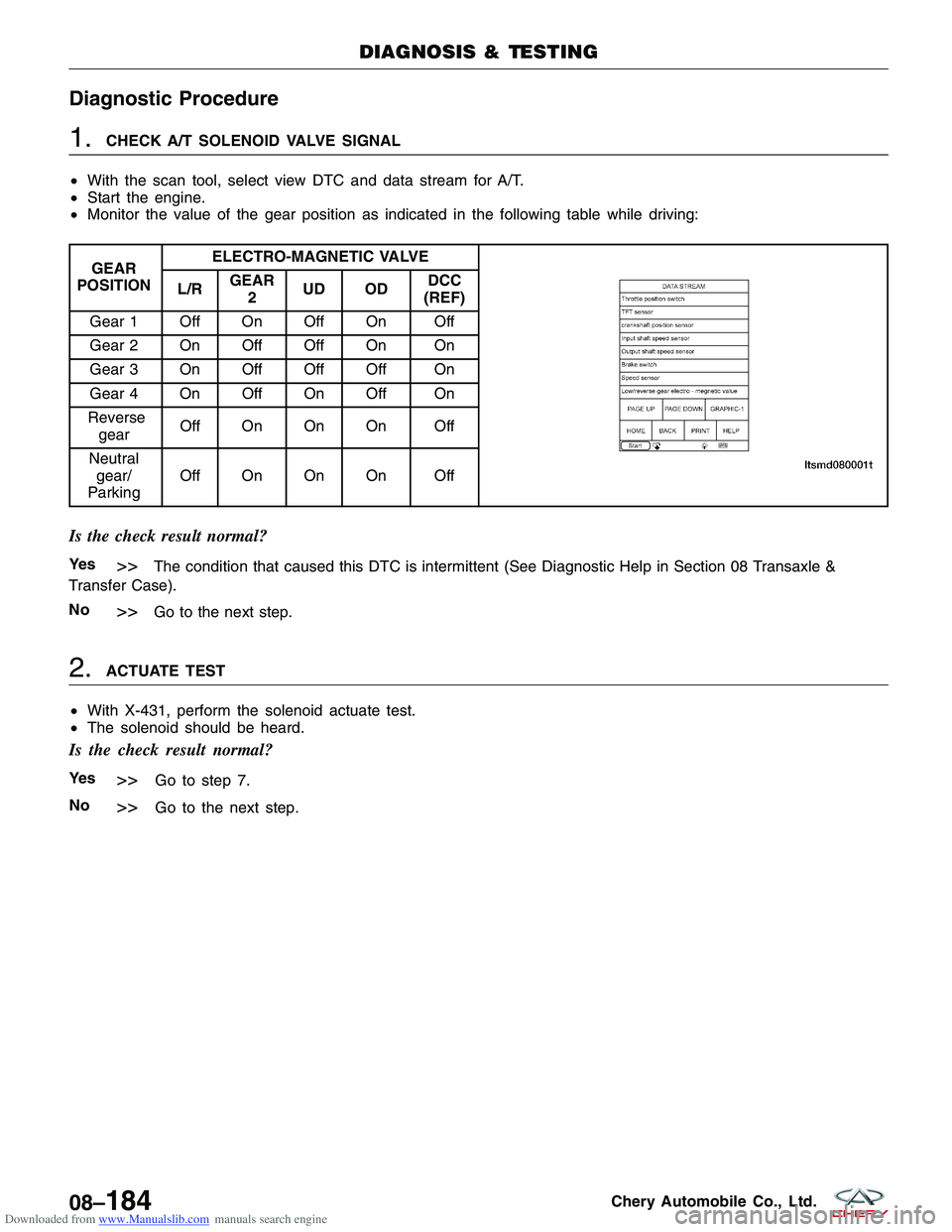

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID VALVE SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
GEAR
POSITION ELECTRO-MAGNETIC VALVE
L/R
GEAR
2 UD OD DCC
(REF)
Gear 1 Off On Off On Off
Gear 2 On Off Off On On
Gear 3 On Off Off Off On
Gear 4 On Off On Off On
Reverse gear OffOnOnOn Off
Neutral gear/
Parking OffOnOnOn Off
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.ACTUATE TEST
• With X-431, perform the solenoid actuate test.
• The solenoid should be heard.
Is the check result normal?
Ye s>>Go to step 7.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–184Chery Automobile Co., Ltd.

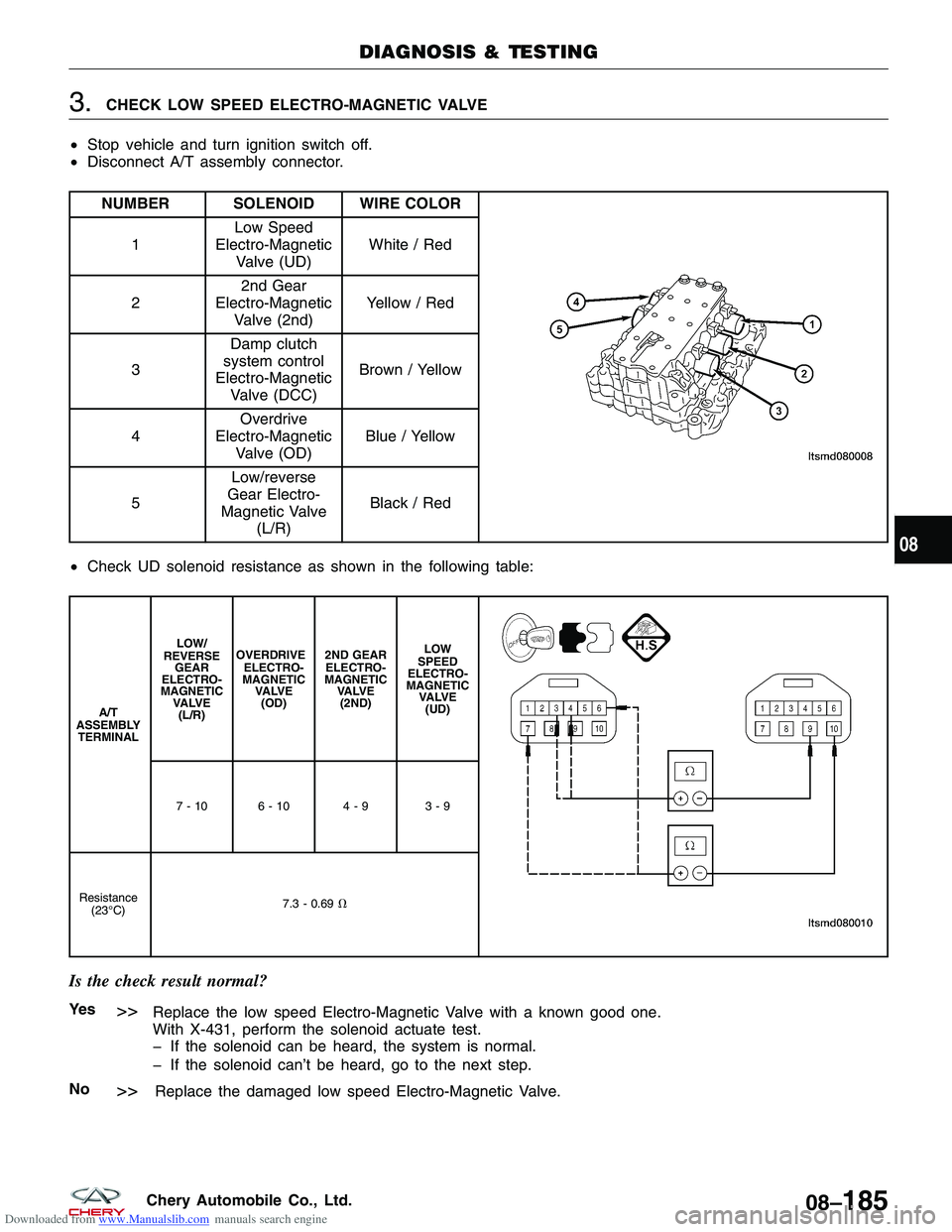

Downloaded from www.Manualslib.com manuals search engine 3.CHECK LOW SPEED ELECTRO-MAGNETIC VALVE
• Stop vehicle and turn ignition switch off.
• Disconnect A/T assembly connector.
NUMBER SOLENOID WIRE COLOR
1 Low Speed
Electro-Magnetic Valve (UD) White / Red
2 2nd Gear
Electro-Magnetic Valve (2nd) Yellow / Red
3 Damp clutch
system control
Electro-Magnetic Valve (DCC) Brown / Yellow
4 Overdrive
Electro-Magnetic Valve (OD) Blue / Yellow
5 Low/reverse
Gear Electro-
Magnetic Valve (L/R) Black / Red
• Check UD solenoid resistance as shown in the following table:
A/T
ASSEMBLY TERMINAL LOW/
REVERSE GEAR
ELECTRO-
MAGNETIC VA LV E(L/R) OVERDRIVE
ELECTRO-
MAGNETIC VA LV E(OD) 2ND GEAR
ELECTRO-
MAGNETIC VA LV E(2ND) LOW
SPEED
ELECTRO-
MAGNETIC VA LV E(UD)
7-10 6-10 4-9 3-9
Resistance (23°C) 7.3 - 0.69

Is the check result normal?
Ye s>>Replace the low speed Electro-Magnetic Valve with a known good one.
With X-431, perform the solenoid actuate test.
If the solenoid can be heard, the system is normal.
If the solenoid can’t be heard, go to the next step.
No
>>Replace the damaged low speed Electro-Magnetic Valve.
DIAGNOSIS & TESTING
08
08–185Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4.CHECK UD SOLENOID POWER SUPPLY
• Turn ignition switch on.
• Check UD solenoid power supply between E-086
terminal 9 and ground in the A/T assembly connec-
tor E-086.
• Voltage should be more than 12 V.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
5.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105.
Body fuse and relay box H9, H8, G15.
Fuse 10 (30A).
Harness for an open or short between A/T assembly connector and fuse.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power in harness or connectors.
6.CHECK UD SOLENOID CONTROL CIRCUIT
• Turn ignition switch off.
• Disconnect TCM connector.
• Check for harness continuity between the following terminals:
A/T ASSEMBLY
TERMINAL TCM
CONNECTOR TERMINAL CONTINUITY
31Y
es
• Check the harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short to power or short to ground.
DIAGNOSIS & TESTING
LTSMD080012
08–186Chery Automobile Co., Ltd.

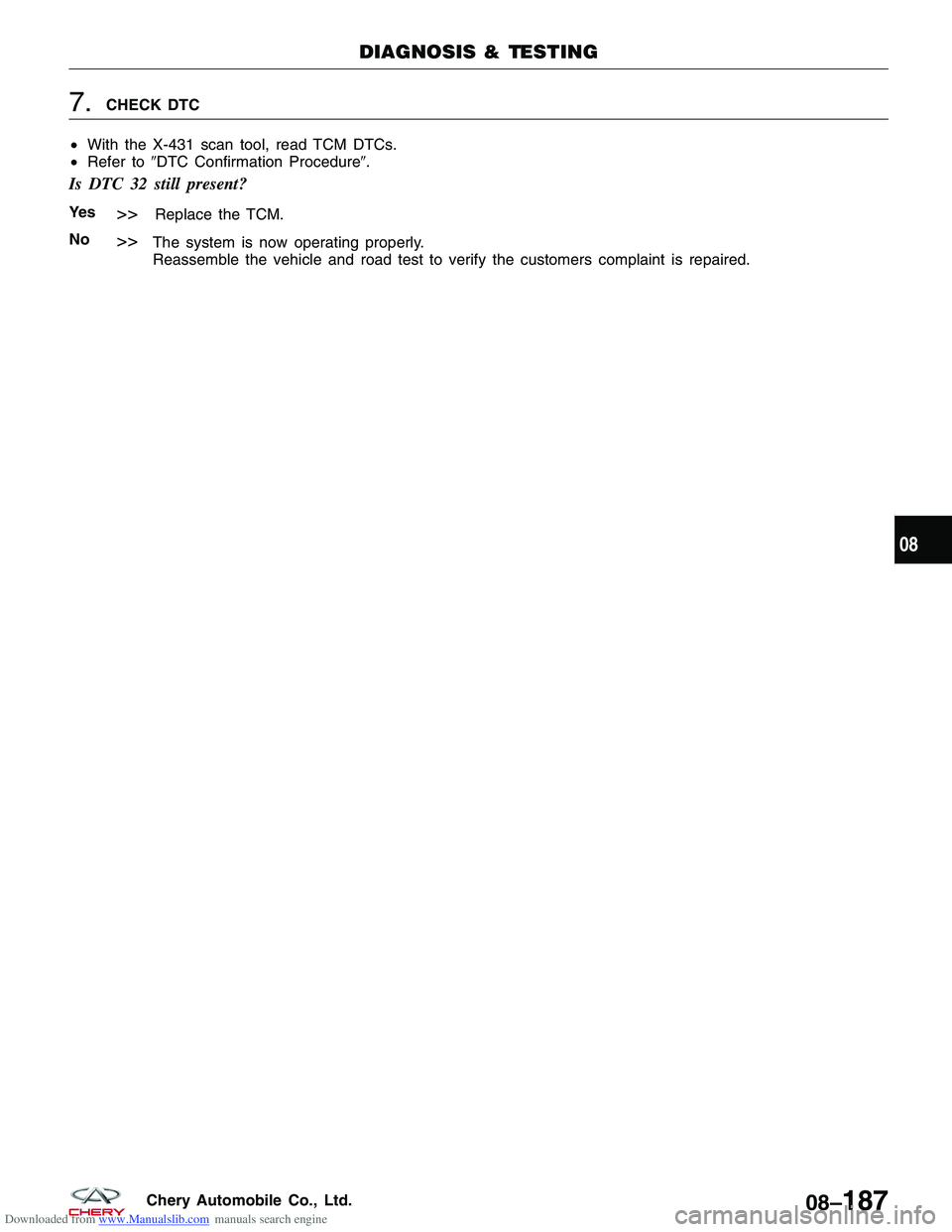

Downloaded from www.Manualslib.com manuals search engine 7.CHECK DTC
• With the X-431 scan tool, read TCM DTCs.
• Refer to DTC Confirmation Procedure.
Is DTC 32 still present?
Ye s>>Replace the TCM.
No
>>The system is now operating properly.
Reassemble the vehicle and road test to verify the customers complaint is repaired.
DIAGNOSIS & TESTING
08
08–187Chery Automobile Co., Ltd.

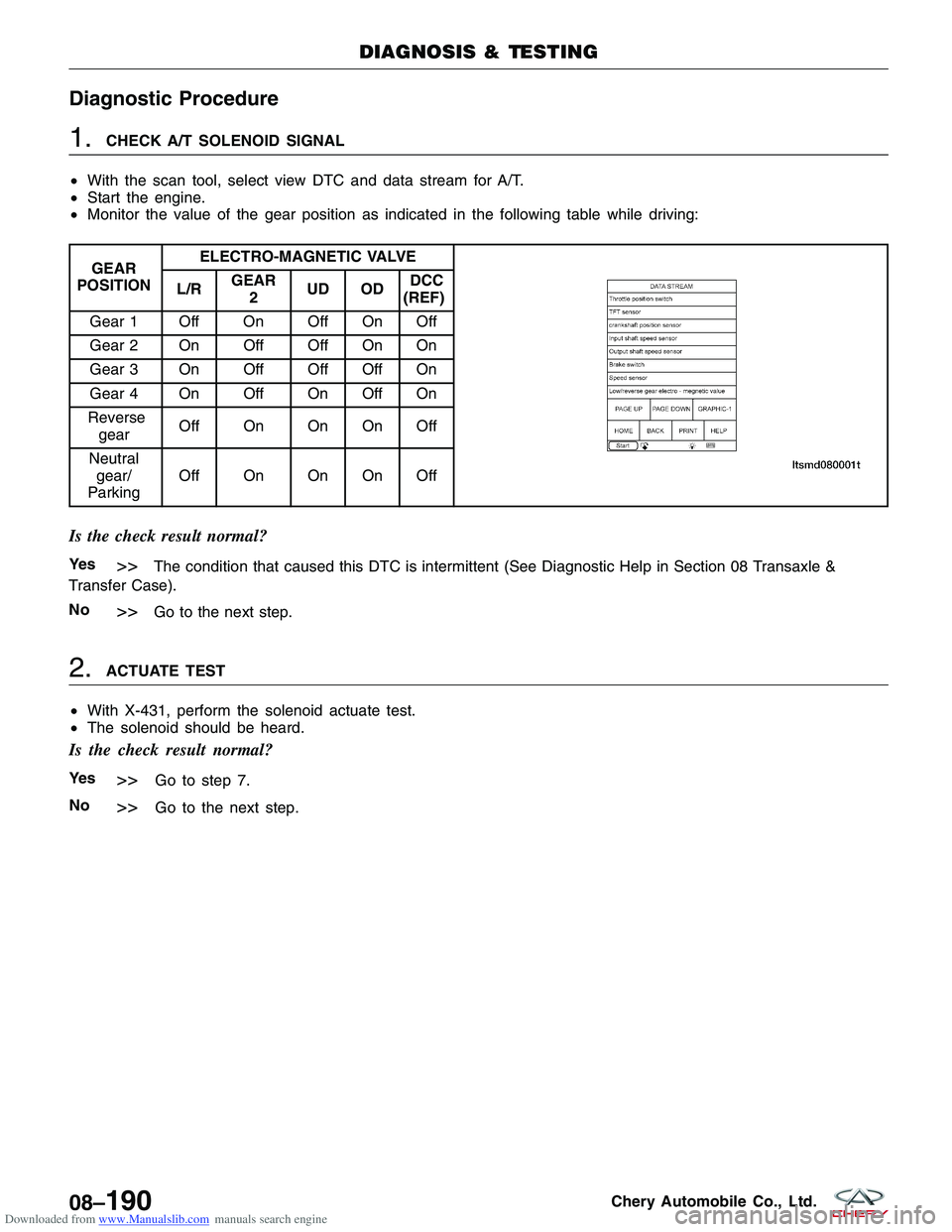

Downloaded from www.Manualslib.com manuals search engine Diagnostic Procedure
1.CHECK A/T SOLENOID SIGNAL
• With the scan tool, select view DTC and data stream for A/T.
• Start the engine.
• Monitor the value of the gear position as indicated in the following table while driving:
GEAR
POSITION ELECTRO-MAGNETIC VALVE
L/R
GEAR
2 UD OD DCC
(REF)
Gear 1 Off On Off On Off
Gear 2 On Off Off On On
Gear 3 On Off Off Off On
Gear 4 On Off On Off On
Reverse gear Off On On On Off
Neutral gear/
Parking Off On On On Off
Is the check result normal?
Ye s>>The condition that caused this DTC is intermittent (See Diagnostic Help in Section 08 Transaxle &
Transfer Case).
No
>>Go to the next step.
2.ACTUATE TEST
• With X-431, perform the solenoid actuate test.
• The solenoid should be heard.
Is the check result normal?
Ye s>>Go to step 7.
No
>>Go to the next step.
DIAGNOSIS & TESTING
08–190Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 3.CHECK 2ND GEAR ELECTRO-MAGNETIC VALVE
• Stop vehicle and turn ignition switch off.
• Disconnect A/T assembly connector.
NUMBER SOLENOID WIRE COLOR
1 Low Speed
Electro-Magnetic Valve (UD) White / Red
2 2nd Gear
Electro-Magnetic Valve (2nd) Yellow / Red
3 Damp clutch
system control
Electro-Magnetic Valve (DCC) Brown / Yellow
4 Overdrive
Electro-Magnetic Valve (OD) Blue / Yellow
5 Low/reverse
Gear Electro-
Magnetic Valve (L/R) Black / Red
• Check 2nd solenoid resistance as shown in the following table:
A/T
ASSEMBLY TERMINAL LOW/
REVERSE GEAR
ELECTRO-
MAGNETIC VA LV E(L/R) OVERDRIVE
ELECTRO-
MAGNETIC VA LV E(OD) 2ND GEAR
ELECTRO-
MAGNETIC VA LV E(2ND) LOW
SPEED
ELECTRO-
MAGNETIC VA LV E(UD)
7-10 6-10 4-9 3-9
Resistance (23°C) 7.3 - 0.69

Is the check result normal?
Ye s>>Replace the 2nd gear Electro-Magnetic Valve with a known good one.
With X-431, perform the solenoid actuate test.
If the solenoid can be heard, the system is normal.
If the solenoid can’t be heard, go to the next step.
No
>>Replace the damaged 2nd gear Electro-Magnetic Valve.
DIAGNOSIS & TESTING
08
08–191Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4.CHECK 2ND GEAR SOLENOID POWER SUPPLY
• Turn ignition switch on.
• Check 2nd gear solenoid power supply between
E-086 terminal 9 and ground in the A/T assembly
connector E-086.
• Voltage should be more than 12 V.
Is the check result normal?
Ye s>>Go to step 6.
No
>>Go to the next step.
5.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105.
Body fuse and relay box H9, H8, G15.
Fuse 10 (30A).
Harness for an open or short between A/T assembly connector and fuse.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to ground or short to power in harness or connectors.
6.CHECK 2ND GEAR SOLENOID CONTROL CIRCUIT
• Turn ignition switch off.
• Disconnect TCM connector.
• Check for harness continuity between the following terminals:
A/T ASSEMBLY
TERMINAL TCM
CONNECTOR TERMINAL CONTINUITY
41
6Yes
• Check the harness for short to power and short to ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the open circuit or short to power or short to ground.
DIAGNOSIS & TESTING
LTSMD080012
