2009 CHERY TIGGO stop start

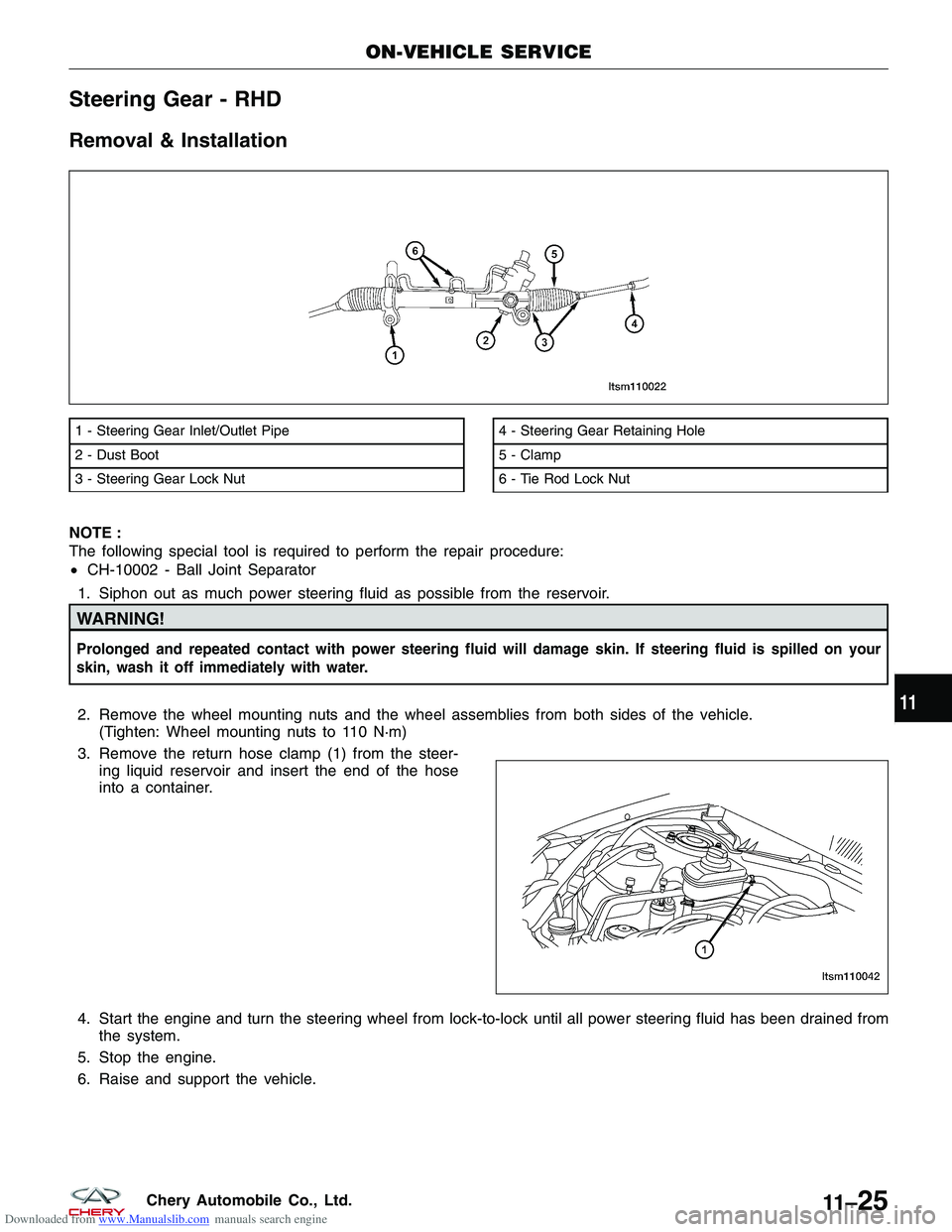

Downloaded from www.Manualslib.com manuals search engine Steering Gear - RHD
Removal & Installation
NOTE :
The following special tool is required to perform the repair procedure:
•CH-10002 - Ball Joint Separator
1. Siphon out as much power steering fluid as possible from the reservoir.
WARNING!
Prolonged and repeated contact with power steering fluid will damage skin. If steering fluid is spilled on your
skin, wash it off immediately with water.
2. Remove the wheel mounting nuts and the wheel assemblies from both sides of the vehicle. (Tighten: Wheel mounting nuts to 110 N·m)
3. Remove the return hose clamp (1) from the steer- ing liquid reservoir and insert the end of the hose
into a container.
4. Start the engine and turn the steering wheel from lock-to-lock until all power steering fluid has been drained from the system.
5. Stop the engine.
6. Raise and support the vehicle.
1 - Steering Gear Inlet/Outlet Pipe
2 - Dust Boot
3 - Steering Gear Lock Nut4 - Steering Gear Retaining Hole
5 - Clamp
6 - Tie Rod Lock Nut
ON-VEHICLE SERVICE
LTSM110022
LTSM110042
11
11 –25Chery Automobile Co., Ltd.

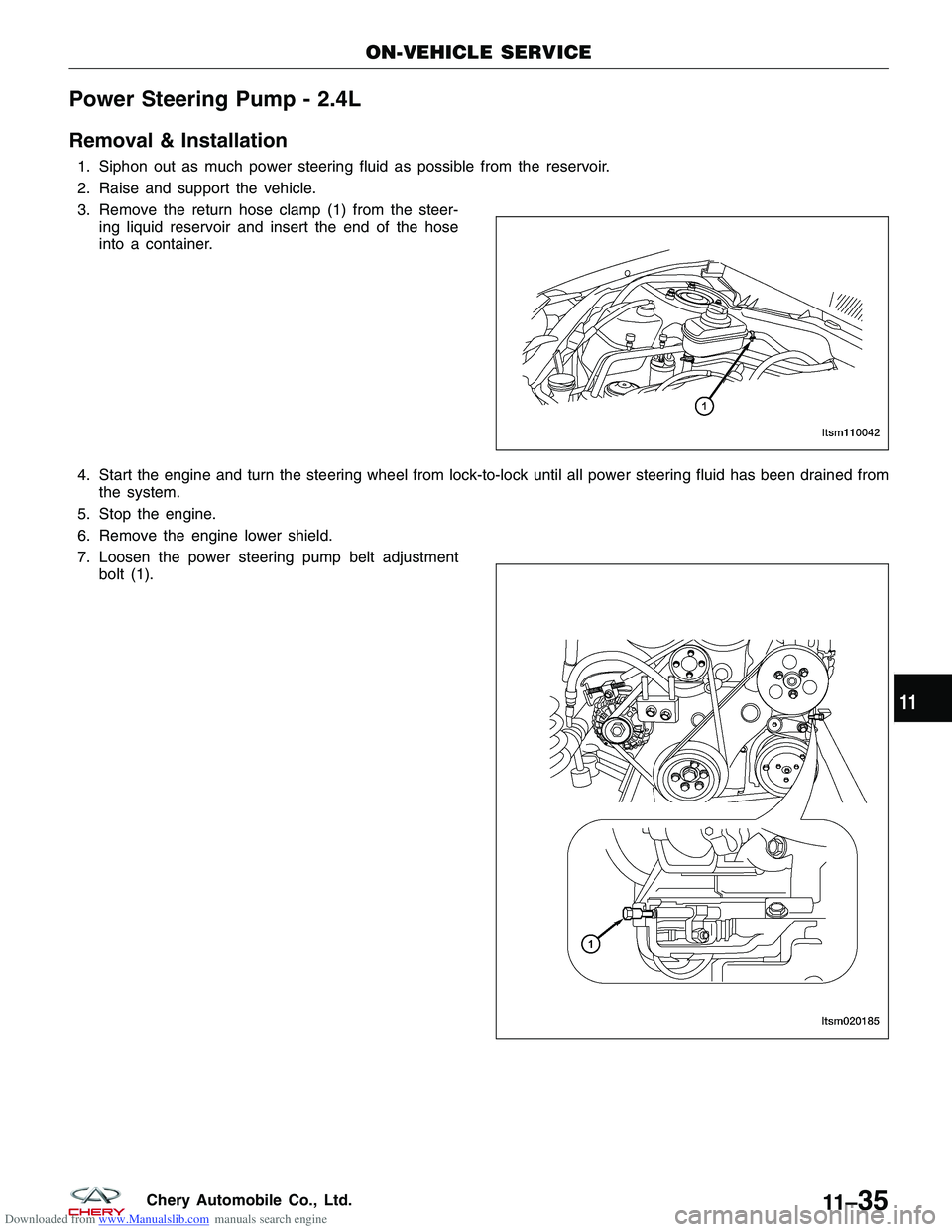

Downloaded from www.Manualslib.com manuals search engine Power Steering Pump - 2.4L
Removal & Installation
1. Siphon out as much power steering fluid as possible from the reservoir.
2. Raise and support the vehicle.
3. Remove the return hose clamp (1) from the steer-ing liquid reservoir and insert the end of the hose
into a container.
4. Start the engine and turn the steering wheel from lock-to-lock until all power steering fluid has been drained from the system.
5. Stop the engine.
6. Remove the engine lower shield.
7. Loosen the power steering pump belt adjustment bolt (1).
ON-VEHICLE SERVICE
LTSM110042
LTSM020185
11
11 –35Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Front Strut, Front Suspension..................10-21
Front Sub-Frame Assembly, Front Suspension .......10-17
Front Suspension ........................... 10-1
Front Wheel Alignment, Alignment ...............10-44
Front Wheel Speed Sensor, Antilock Brakes .........12-77
Front Windshield, Body Exterior ................15-219
Front Wiper Arm, Body Exterior ................15-240
Front Wiper Link, Body Exterior ................15-241
Front Wiper Motor, Body Exterior ...............15-238
Fuel Delivery System ..........................4-1
Fuel Door, Body Exterior ..................... 15-200
Fuel Door, Body Exterior ........................200
Fuel Filter, Fuel Delivery System .................4-18
Fuel Injector Rail, Fuel Delivery System ............4-19
Fuel Injector, Fuel Delivery System ................4-20
Fuel Pressure Regulator - With Mitsubishi 2.4L Engine, Fuel Delivery System ..................4-23
Fuel Pressure Relief Procedure, Fuel Delivery System . . . 4-15
Fuel Pump, Fuel Delivery System .................4-15
G
Gear Selector & Shifter Assembly, 5-Speed Manual
Transaxle ............................... 8-264
General Information, 1.6L & 1.8L Engine Controls ......3-3
General Information, 1.6L & 1.8L Engine Mechanical ....2-3
General Information, 2.0L Engine Controls ..........3-229
General Information, 2.0L Engine Mechanical .........2-77
General Information, 2.4L Engine Controls ..........3-442
General Information, 2.4L Engine Mechanical ........2-151
General Information, 5-Speed Manual Transaxle ......8-247
General Information, Air Distribution ..............13-26
General Information, Airbag System ...............14-2
General Information, Alignment .................10-39
General Information, Antilock Brakes .............12-35
General Information, Base Brakes ................12-2
General Information, Body Interior ..............15-104
General Information, Charging System .............5-12
General Information, Clutch System ..............8-317
General Information, Cooling System ...............6-2
General Information, DP0 Automatic Transaxle .........8-3
General Information, Drive Shaft (4x4) .............9-25
General Information, Evaporative Emissions .........3-577
General Information, Exhaust System ...............7-2
General Information, F4A4 Automatic Transaxle ......8-144
General Information, Front Axle ...................9-2
General Information, Front Differential .............8-308General Information, Front Suspension
.............10-2
General Information, Fuel Delivery System ...........4-2
General Information, Ignition Control .............3-566
General Information, Interactive Torque Management (ITM) System (4x4) ...............9-17
General Information, Manual Temperature Control .....13-2
General Information, Parking Brake ..............12-80
General Information, Power Steering Pump .........11-32
General Information, Rear Axle ...................9-9
General Information, Rear Suspension ............10-26
General Information, Seat Belt System ............14-51
General Information, Starting System ...............5-2
General Information, Steering Column .............11-9
General Information, Steering Gear ...............11-19
General Information, Steering System ..............11-2
General Information, System Controls .............13-19
General Information, System Plumbing ............13-33
General Information, T

ransfer Case (4x4)..........8-327
General Information, Vehicle Fuse Box Information ....16-38
General Information, Vehicle Ground Distribution .....16-28
General Information, Vehicle Power Distribution ......16-13
General Information, Vehicle Wiring Harness Layout . . . 16-45
General Information, Wheels and Tires ............10-48
General Information, Wiring Information ............16-2
Generator, Charging System ....................5-17
Grille, Body Exterior ........................ 15-201
Grille, Body Exterior ...........................201
H
Headlamp, Body Exterior ..................... 15-191
Headliner, Body Interior ...................... 15-15
Heated Seat Element, Body Interior ..............15-109
Heated Seat Switch, Body Interior ..............15-109
Heater Core, System Plumbing .................13-47
High Mounted Stop Lamp, Body Exterior ..........15-197
Hood Release Cable, Body Exterior ..............15-203
Hood, Body Exterior ........................ 15-202
Hood, Body Exterior ...........................202
Horn, Body Exterior .................. 15-206, 15-208
How To Locate Electrical Schematics In The Service Manual, Electrical Information ............1-25
How To Read Electrical Schematics, Electrical Information .............................. 1-21
How To Use This Manual, Service Information ........1-2
HVAC Housing, Air Distribution .................13-29
INDEX
AI-4

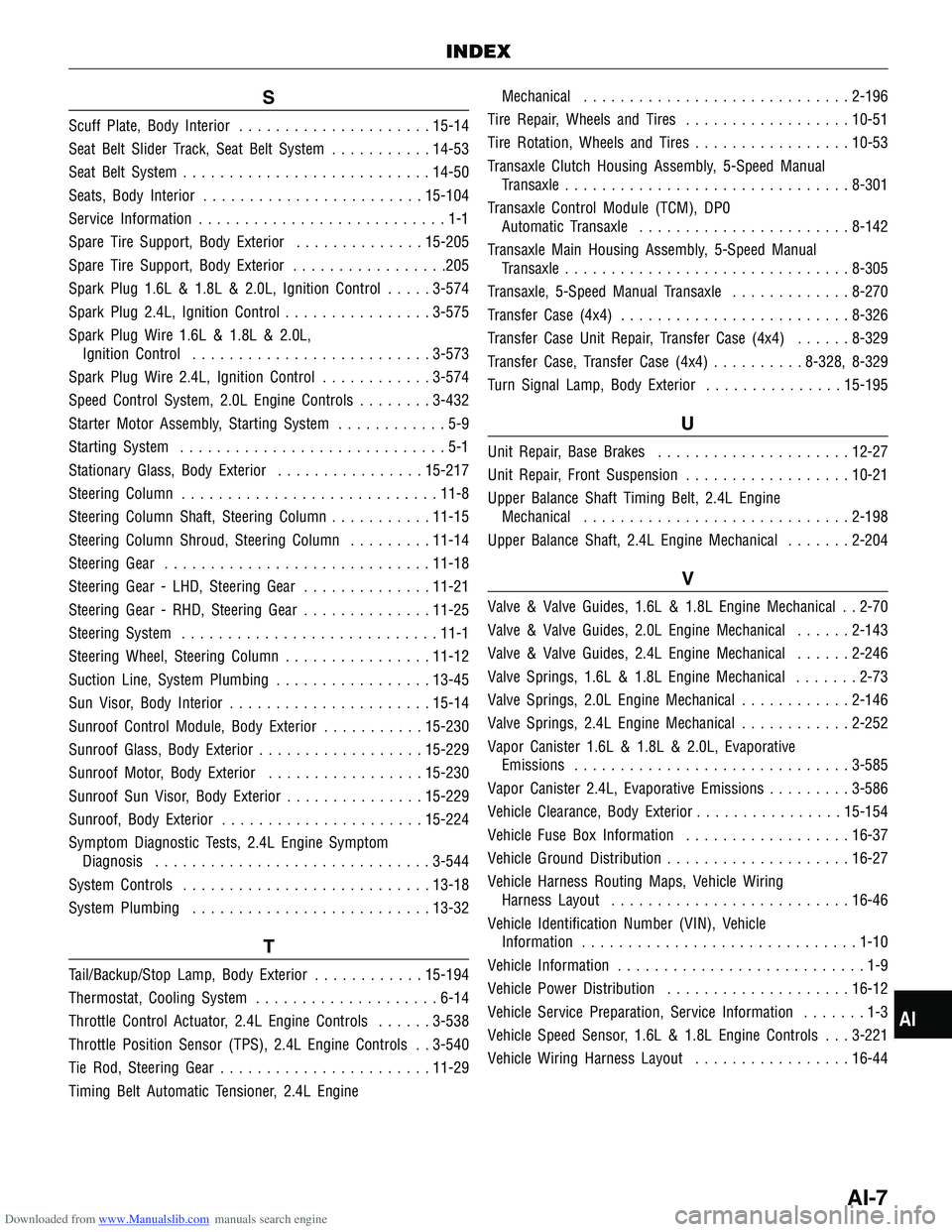

Downloaded from www.Manualslib.com manuals search engine S
Scuff Plate, Body Interior..................... 15-14
Seat Belt Slider Track, Seat Belt System ...........14-53
Seat Belt System ........................... 14-50
Seats, Body Interior ........................ 15-104
Service Information ...........................1-1
Spare Tire Support, Body Exterior ..............15-205
Spare Tire Support, Body Exterior .................205
Spark Plug 1.6L & 1.8L & 2.0L, Ignition Control .....3-574
Spark Plug 2.4L, Ignition Control ................3-575
Spark Plug Wire 1.6L & 1.8L & 2.0L, Ignition Control .......................... 3-573
Spark Plug Wire 2.4L, Ignition Control ............3-574
Speed Control System, 2.0L Engine Controls ........3-432
Starter Motor Assembly, Starting System ............5-9
Starting System .............................5-1
Stationary Glass, Body Exterior ................15-217
Steering Column ............................ 11-8
Steering Column Shaft, Steering Column ...........11-15
Steering Column Shroud, Steering Column .........11-14
Steering Gear ............................. 11-18
Steering Gear - LHD, Steering Gear ..............11-21
Steering Gear - RHD, Steering Gear ..............11-25
Steering System ............................ 11-1
Steering Wheel, Steering Column ................11-12
Suction Line, System Plumbing .................13-45
Sun Visor, Body Interior ...................... 15-14
Sunroof Control Module, Body Exterior ...........15-230
Sunroof Glass, Body Exterior ..................15-229
Sunroof Motor, Body Exterior .................15-230
Sunroof Sun Visor, Body Exterior ...............15-229
Sunroof, Body Exterior ...................... 15-224
Symptom Diagnostic Tests, 2.4L Engine Symptom Diagnosis .............................. 3-544
System Controls ........................... 13-18
System Plumbing .......................... 13-32
T
Tail/Backup/Stop Lamp, Body Exterior ............15-194
Thermostat, Cooling System ....................6-14
Throttle Control Actuator, 2.4L Engine Controls ......3-538
Throttle Position Sensor (TPS), 2.4L Engine Controls . . 3-540
Tie Rod, Steering Gear ....................... 11-29
Timing Belt Automatic Tensioner, 2.4L Engine Mechanical
............................. 2-196
Tire Repair, Wheels and Tires ..................10-51
Tire Rotation, Wheels and Tires .................10-53
Transaxle Clutch Housing Assembly, 5-Speed Manual Transaxle ............................... 8-301
Transaxle Control Module (TCM), DP0 Automatic Transaxle ....................... 8-142
Transaxle Main Housing Assembly, 5-Speed Manual Transaxle ............................... 8-305
Transaxle, 5-Speed Manual Transaxle .............8-270
Transfer Case (4x4) ......................... 8-326
Transfer Case Unit Repair, Transfer Case (4x4) ......8-329
Transfer Case, Transfer Case (4x4) ..........8-328, 8-329
Turn Signal Lamp, Body Exterior ...............15-195
U
Unit Repair, Base Brakes ..................... 12-27
Unit Repair, Front Suspension ..................10-21
Upper Balance Shaft Timing Belt, 2.4L Engine Mechanical ............................. 2-198
Upper Balance Shaft, 2.4L Engine Mechanical .......2-204
V
Valve & Valve Guides, 1.6L & 1.8L Engine Mechanical . . 2-70
Valve & Valve Guides, 2.0L Engine Mechanical ......2-143
Valve & Valve Guides, 2.4L Engine Mechanical ......2-246
Valve Springs, 1.6L & 1.8L Engine Mechanical .......2-73
Valve Springs, 2.0L Engine Mechanical ............2-146
Valve Springs, 2.4L Engine Mechanical ............2-252
Vapor Canister 1.6L & 1.8L & 2.0L, Evaporative Emissions .............................. 3-585
Vapor Canister 2.4L, Evaporative Emissions .........3-586
Vehicle Clearance, Body Exterior ................15-154
Vehicle Fuse Box Information ..................16-37
Vehicle Ground Distribution .................... 16-27
Vehicle Harness Routing Maps, Vehicle Wiring Harness Layout .......................... 16-46
Vehicle Identification Number (VIN), Vehicle Information .............................. 1-10
Vehicle Information ...........................1-9
Vehicle Power Distribution .................... 16-12
Vehicle Service Preparation, Service Information .......1-3
Vehicle Speed Sensor, 1.6L & 1.8L Engine Controls . . . 3-221
Vehicle Wiring Harness Layout .................16-44
INDEX
AI
AI-7
