2009 CADILLAC CTS display

CTS-V vehicles use tracer lights around the outside of the
tachometer as a performance up-shift light. These tracers
ash to indicate when to shift to the next higher gear to
avoid the engine speed limit. SeeTachometer on
page 3-34for more information.
While using the DSC feature, the vehicle will have rmer,
quicker shifting. You can use this for sport driving or when
climbing or descending hills, to stay in gear longer, or to
down shift for more power or engine braking.
The transmission will only allow you to shift into
gears appropriate for the vehicle speed and engine
Revolutions Per Minute (RPM). The transmission will
not automatically shift to the next lower gear if the
engine RPM is too high.
If shifting is prevented for any reason, the currently
selected gear will ash multiple times, indicating that
the transmission has not shifted gears.
While in the DSC mode, the CTS automatic transmission
will automatically downshift when the vehicle comes
to a stop. This will allow for more power during take-off.
The CTS-V automatic transmission will not automatically
downshift on hard acceleration when in DSC mode.
When accelerating your vehicle from a stop in snowy and
icy conditions, you may want to shift into second gear.
A higher gear ratio allows you to gain more traction on
slippery surfaces.Tap Shift
To use Tap Shift, the shift lever must be in Manual
Mode. Vehicles with this feature have switches on the
back of the steering wheel. Tap the left switch to
downshift, and the right switch to upshift.
The tachometer display on the instrument panel cluster
will show which gear the vehicle is in and a number
indicating the requested gear range when moving the
shift lever forward or rearward. SeeSpeedometer and
Odometer on page 3-33for more information on the
odometer.
2-39

EPB Apply
The EPB can be applied any time the vehicle is stopped.
The EPB is applied by momentarily lifting up on the EPB
switch. Once fully applied, the BRAKE light will be on,
and the DIC message “Park Brake Set” will be displayed.
If the light does not come on, or is ashing, you need to
have the vehicle serviced. Do not drive the vehicle if
the BRAKE light is ashing. See your dealer/retailer.
SeeBrake System Warning Light on page 3-39for more
information.
If the EPB is applied while the vehicle is in motion,
a chime will sound, and the DIC message “Release
Park Brake Switch” will be displayed. The vehicle
will decelerate as long as the switch is held in the
up position. Releasing the EPB switch during the
deceleration will release the parking brake. If the
switch is held in the up position until the vehicle
comes to a stop, the EPB will remain applied.
If the BRAKE light is on, either the EPB is applied, or
there is a failure in the hydraulic brake system.If this light is ashing, the EPB is only partially applied
or released, or there is a problem with the EPB.
The DIC message “Service Park Brake” will be
displayed. If this light is ashing, release the EPB, and
attempt to apply it again. If this light continues to
ash, do not drive the vehicle. See your dealer/retailer.
If the
Ylight is on, the EPB has detected an error
in another system and is operating with reduced
functionality. To apply the EPB when this light is on, lift up
on the EPB switch and hold it in the up position. Full
application of the parking brake by the EPB system may
take a longer period of time than normal when this light is
on. Continue to hold the switch until the BRAKE light
remains on. If the
Ylight is on, see your dealer/retailer.
If the EPB fails to apply, the rear wheels should be
blocked to prevent vehicle movement.
2-45

EPB Release
To release the EPB, turn the ignition switch to the
ON/RUN position, apply and hold the brake pedal, and
push down momentarily on the EPB switch. If you attempt
to release the EPB without the brake pedal applied, a
chime will sound, and the DIC message “Press Brake
Pedal to Release Park Brake” will be displayed. The EPB
is released when the BRAKE light is off and the DIC
message “Park Brake Released” is displayed.
If the
Ylight is on, the EPB has detected an error
in another system and is operating with reduced
functionality. To release the EPB when this light is on,
push down on the EPB switch and hold it in the down
position. EPB release may take a longer period of time
than normal when this light is on. Continue to hold the
switch until the BRAKE light is off. If the
Ylight is on,
see your dealer/retailer.
Notice:Driving with the parking brake on can
overheat the brake system and cause premature
wear or damage to brake system parts. Make sure
that the parking brake is fully released and the brake
warning light is off before driving.
Automatic EPB Release
The EPB will automatically release if the vehicle is
running, placed into gear and an attempt is made to
drive away. Avoid rapid acceleration when the EPB
is applied, to preserve park brake lining life.
The EPB can also be used to prevent roll back for
vehicles with a manual transmission taking off on a hill.
In a situation where no roll back is desired, an applied
EPB will allow both feet to be used for the clutch
and accelerator pedals in preparation for starting the
vehicle moving in the intended direction.
In this situation, perform the normal clutch and
accelerator actions required to begin moving the vehicle.
There is no need to push the switch to release the EPB.
If you are towing a trailer and parking on a hill, see
Towing a Trailer (CTS-V) on page 4-27orTowing
a Trailer (CTS) on page 4-28for more information.
2-46

Object Detection Systems
Ultrasonic Rear Parking
Assist (URPA)
For vehicles with the URPA system, it operates at speeds
less than 5mph (8 km/h), and assists the driver with
parking and avoiding objects while in R (Reverse).
The sensors on the rear bumper are used to detect the
distance to an object up to 8 feet (2.5 m) behind the
vehicle, and at least 10 inches (25.4 cm) off the ground.
{CAUTION:
The Ultrasonic Rear Parking Assist (URPA) system
does not replace driver vision. It cannot detect:
objects that are below the bumper, underneath
the vehicle, or if they are too close or far from
the vehicle
children, pedestrians, bicyclists, or pets.
CAUTION: (Continued)
CAUTION: (Continued)
If you do not use proper care before and while
backing; vehicle damage, injury, or death could
occur. Even with URPA, always check behind the
vehicle before backing up. While backing, be sure
to look for objects and check the vehicle’s mirrors.
The display is located
above the rear window and
can be seen by looking
over your right shoulder.
URPA uses three color-coded lights to provide distance
and system information.
2-54

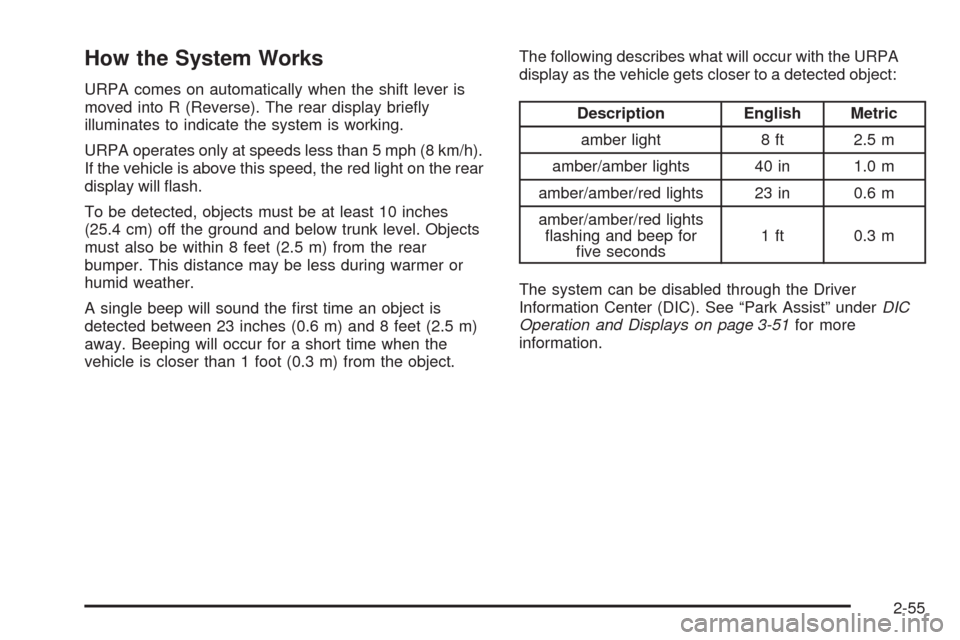

How the System Works
URPA comes on automatically when the shift lever is
moved into R (Reverse). The rear display briey
illuminates to indicate the system is working.
URPA operates only at speeds less than 5 mph (8 km/h).
If the vehicle is above this speed, the red light on the rear
display will ash.
To be detected, objects must be at least 10 inches
(25.4 cm) off the ground and below trunk level. Objects
must also be within 8 feet (2.5 m) from the rear
bumper. This distance may be less during warmer or
humid weather.
A single beep will sound the rst time an object is
detected between 23 inches (0.6 m) and 8 feet (2.5 m)
away. Beeping will occur for a short time when the
vehicle is closer than 1 foot (0.3 m) from the object.The following describes what will occur with the URPA
display as the vehicle gets closer to a detected object:
Description English Metric
amber light 8 ft 2.5 m
amber/amber lights 40 in 1.0 m
amber/amber/red lights 23 in 0.6 m
amber/amber/red lights
ashing and beep for
ve seconds1 ft 0.3 m
The system can be disabled through the Driver
Information Center (DIC). See “Park Assist” underDIC
Operation and Displays on page 3-51for more
information.
2-55

When the System Does Not Seem to
Work Properly
If the URPA system will not activate due to a temporary
condition, the message PARK ASSIST OFF will be
displayed on the DIC and a red light will be shown on
the rear URPA display when the shift lever is moved into
R (Reverse). This occurs under the following conditions:
The driver disables the system.
The ultrasonic sensors are not clean. Keep the
vehicle’s rear bumper free of mud, dirt, snow,
ice and slush. For cleaning instructions, see
Washing Your Vehicle on page 5-110.
A trailer was attached to the vehicle, or a bicycle or
an object was hanging out of the trunk during the
last drive cycle, the red light may illuminate in
the rear display. Once the attached object is
removed, URPA will return to normal operation.
A tow bar is attached to the vehicle.
The vehicle’s bumper is damaged. Take the vehicle
to your dealer/retailer to repair the system.
Other conditions may affect system performance,
such as vibrations from a jackhammer or the
compression of air brakes on a very large truck.
If the system is still disabled after driving forward at least
15 mph (25 km/h), take the vehicle to your dealer/retailer.
OnStar®System
OnStar uses several innovative technologies and live
advisors to provide a wide range of safety, security,
information, and convenience services. If the airbags
deploy, the system is designed to make an automatic
call to OnStar Emergency advisors who can request
emergency services be sent to your location. If the keys
are locked in the vehicle, call OnStar at 1-888-4-ONSTAR
to have a signal sent to unlock the doors. OnStar
Hands-Free Calling, including 30 trial minutes good
for 60 days, is available on most vehicles. OnStar
Turn-by-Turn Navigation service, with one trial route, is
available on most vehicles. Press the OnStar button to
have an OnStar advisor contact Roadside Service.
OnStar service is provided subject to the OnStar Terms
and Conditions included in the OnStar Subscriber glove
box literature.
2-56

Malfunction Indicator Lamp.............................3-43
Oil Pressure Light.........................................3-46
Engine Oil Pressure Gage.............................3-47
Security Light...............................................3-48
Fog Lamp Light............................................3-48
Lights On Reminder......................................3-48
Cruise Control Light......................................3-48
Highbeam On Light.......................................3-49
Fuel Gage...................................................3-49
Boost Gage.................................................3-50
Driver Information Center (DIC).......................3-50
DIC Operation and Displays...........................3-51
DIC Compass..............................................3-56DIC Warnings and Messages.........................3-58
DIC Vehicle Customization.............................3-72
Audio System(s).............................................3-85
Radio(s)......................................................3-86
Using an MP3............................................3-108
XM Radio Messages...................................3-112
Navigation/Radio System..............................3-113
Bluetooth
®.................................................3-113
Theft-Deterrent Feature................................3-126
Audio Steering Wheel Controls......................3-126
Radio Reception.........................................3-127
Backglass Antenna......................................3-128
XM™ Satellite Radio Antenna System..............3-128
Section 3 Instrument Panel
3-2

The main components of the instrument panel are the following:
A.Outlet Adjustment on page 3-29.
B.Driver Information Center (DIC) on page 3-50.
C.Instrument Panel Brightness on page 3-20.
D.Turn Signal/Multifunction Lever on page 3-7.
E.Instrument Panel Cluster on page 3-31.
F.Windshield Wipers on page 3-9.
G. Navigation Button (If Equipped). See Navigation
System Manual.
H.Traction Control System (TCS) on page 4-6.
Magnetic Ride Control™ on page 4-8
(CTS-V Model Only).
I.Analog Clock on page 3-23.
J.Passenger Sensing System on page 1-67.
K.Hazard Warning Flashers on page 3-6.
L. Navigation Display Brightness Control (If Equipped).
See Navigation System Manual.
M.Audio System(s) on page 3-85(Base Audio System)
orNavigation/Radio System on page 3-113
(If Equipped).
N.Parking Brake on page 2-42.O.Hood Release on page 5-12.
P.Cruise Control on page 3-14. Traction Control
System (TCS) Disable Button (CTS-V Model Only).
SeeTraction Control System (TCS) on page 4-6.
Q. Tap Shift Controls (CTS-V Model Only). See
Automatic Transmission Operation on page 2-36.
R.Tilt and Telescopic Steering Wheel on page 3-6or
Power Tilt Wheel and Telescopic Steering Column
on page 3-7.
S.Horn on page 3-6.
T.Audio Steering Wheel Controls on page 3-126.
U.Heated and Ventilated Seats on page 1-7.
V.Dual Climate Control System on page 3-24.
W.Electric Parking Brake on page 2-44.
X. Shift Lever. SeeAutomatic Transmission Operation
on page 2-36orManual Transmission Operation
on page 2-40.
Y.Instrument Panel Storage on page 2-65.Accessory
Power Outlet(s) on page 3-22.
Z.Glove Box on page 2-64.
3-5
