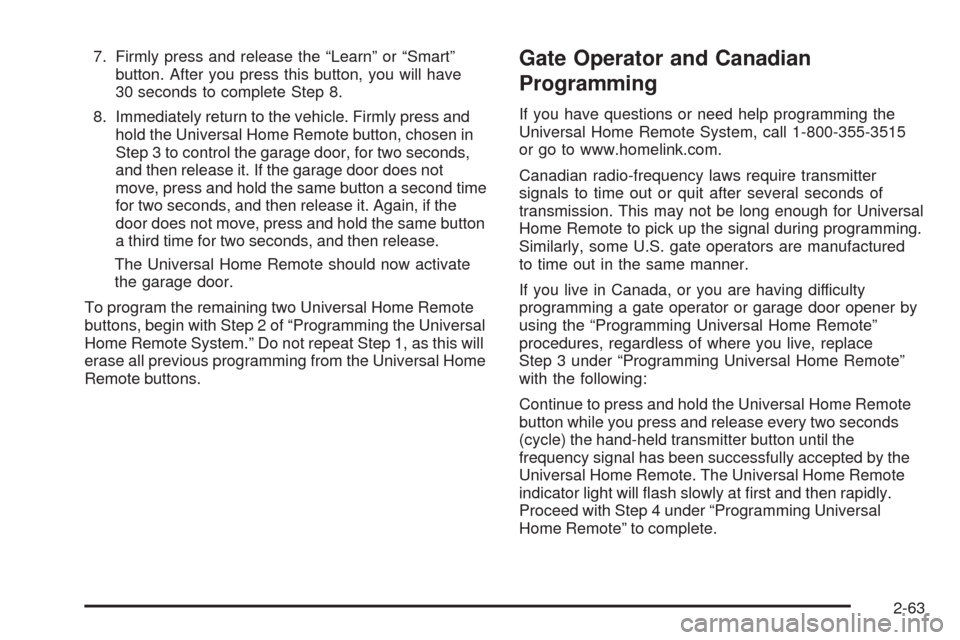

7. Firmly press and release the “Learn” or “Smart”
button. After you press this button, you will have
30 seconds to complete Step 8.
8. Immediately return to the vehicle. Firmly press and
hold the Universal Home Remote button, chosen in
Step 3 to control the garage door, for two seconds,
and then release it. If the garage door does not
move, press and hold the same button a second time
for two seconds, and then release it. Again, if the
door does not move, press and hold the same button
a third time for two seconds, and then release.
The Universal Home Remote should now activate
the garage door.
To program the remaining two Universal Home Remote
buttons, begin with Step 2 of “Programming the Universal
Home Remote System.” Do not repeat Step 1, as this will
erase all previous programming from the Universal Home
Remote buttons.Gate Operator and Canadian
Programming
If you have questions or need help programming the
Universal Home Remote System, call 1-800-355-3515
or go to www.homelink.com.
Canadian radio-frequency laws require transmitter
signals to time out or quit after several seconds of
transmission. This may not be long enough for Universal
Home Remote to pick up the signal during programming.
Similarly, some U.S. gate operators are manufactured
to time out in the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator or garage door opener by
using the “Programming Universal Home Remote”
procedures, regardless of where you live, replace
Step 3 under “Programming Universal Home Remote”
with the following:
Continue to press and hold the Universal Home Remote
button while you press and release every two seconds
(cycle) the hand-held transmitter button until the
frequency signal has been successfully accepted by the
Universal Home Remote. The Universal Home Remote
indicator light will ash slowly at rst and then rapidly.
Proceed with Step 4 under “Programming Universal
Home Remote” to complete.
2-63

Using Universal Home Remote
Press and hold the appropriate Universal Home Remote
button for at least half of a second. The indicator light
will come on while the signal is being transmitted.
Erasing Universal Home Remote
Buttons
The programmed buttons should be erased when the
vehicle is sold or the lease ends.
To erase all programmed buttons on the Universal
Home Remote device:
1. Press and hold down the two outside buttons until
the indicator light begins to ash, after 20 seconds.
2. Release both buttons.
Reprogramming a Single Universal
Home Remote Button
To reprogram any of the three Universal Home Remote
buttons, repeat the programming instructions earlier
in this section, beginning with Step 2.
For help or information on the Universal Home Remote
System, call the customer assistance phone number
underCustomer Assistance Offices on page 7-6.
Storage Areas
Glove Box
To open, press the button. Use the key to lock and
unlock. The glove box has a shelf that can be removed
by pulling it out.
Cupholders
The vehicle has cupholders located in front of the center
console. Push down on the cover to open. There are also
cupholders in the rear center armrest. Pull the armrest
down to use.
2-64

Instrument Panel Storage
Your vehicle has a storage area located below the
climate control systems. To access, push on the lid.
Center Console Storage
Your vehicle has a center console with an upper and
lower storage area. To access the upper storage area,
lift the driver side lever on the front of the console and
lift the cover. To access the lower storage area, lift the
passenger side lever on the center console. There is an
additional storage area behind the center console.
To access, push the cover.
Convenience Net
Your vehicle may have a convenience net in the rear of
the vehicle. Put small loads behind the net. It can also be
positioned into an envelope style to hold smaller items.
The net is not for heavier loads. Store items as far
forward as you can.
Sunroof
If the vehicle has a power sunroof it will only operate
when the ignition is turned on, or in ACC/ACCESSORY,
or when Retained Accessory Power (RAP) is active.
SeeRetained Accessory Power (RAP) on page 2-33.
The sunroof switches are located on the overhead
console.
The driver side switch
operates the sunshade.
Press and hold the rear of the switch to open the
sunshade. Press and hold the front of the switch to
close the sunshade.
Express-Open:To open the sunshade, fully press and
release the rear of the driver side switch. The sunshade
will automatically open. To stop the sunshade partway,
press the switch a second time.
2-65

Express-Close:To close the sunshade, fully press and
release the front of the driver side switch. The sunshade
will automatically close. To stop the sunshade partway,
press the switch a second time.
The sunshade will open automatically with the sunroof,
but can also be opened manually.
The passenger side switch
operates the sunroof.
Express-Open:To open the sunroof, fully press
and release the rear of the passenger side switch.
The sunroof will automatically open. To stop the
sunroof partway, press the switch a second time.
Express-Close:To close the sunroof, fully press and
release the front of the driver’s side switch. The sunroof
will automatically close. To stop the sunroof partway,
press the switch a second time.Comfort Stop Feature:The sunroof has a comfort
stop feature which stops the sunroof from opening to the
full-open position. From the comfort stop position,
press the rear of the passenger side switch a second
time to open the sunroof to the full-open position.
When the sunroof is opened, an air deector, if equipped,
will automatically raise. The air deector will retract when
the sunroof is closed.
Vent Feature:Press and hold the front of the passenger
side switch to vent the sunroof. The sunshade will
automatically open approximately one and a half inches.
Press and hold the rear of the passenger side switch to
close the sunroof vent.
Anti-Pinch Feature
If an object is in the path of the sunroof/sunshade when it
is closing, the anti-pinch feature will detect the object and
stop the sunroof/sunshade from closing at the point of the
obstruction. The sunroof/sunshade will then return to the
full-open position. To close the sunroof/sunshade, see
“Express-Close” earlier in this section.
2-66

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Horn .............................................................3-6
Tilt and Telescopic Steering Wheel...................3-6
Power Tilt Wheel and Telescopic Steering
Column......................................................3-7
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-8
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-9
Windshield Wipers..........................................3-9
Rainsense™ Wipers......................................3-10
Windshield Washer.......................................3-12
Headlamp Washer........................................3-13
Cruise Control..............................................3-14
Headlamps..................................................3-17
Wiper Activated Headlamps............................3-17
Headlamps on Reminder................................3-17
Daytime Running Lamps (DRL).......................3-18
Adaptive Forward Lighting System...................3-19
Fog Lamps ..................................................3-19
Exterior Lighting Battery Saver........................3-20
Instrument Panel Brightness...........................3-20
Entry Lighting...............................................3-20
Parade Dimming...........................................3-20
Reading Lamps............................................3-21
Electric Power Management...........................3-21Battery Run-Down Protection..........................3-22
Accessory Power Outlet(s).............................3-22
Ashtray(s) and Cigarette Lighter......................3-23
Analog Clock...............................................3-23
Climate Controls............................................3-24
Dual Climate Control System..........................3-24
Outlet Adjustment.........................................3-29
Passenger Compartment Air Filter...................3-29
Warning Lights, Gages, and Indicators............3-30
Instrument Panel Cluster................................3-31
Speedometer and Odometer...........................3-33
Trip Odometers............................................3-33
Tachometer.................................................3-34
Engine Speed Limiter....................................3-34
Safety Belt Reminders...................................3-35
Airbag Readiness Light..................................3-36
Passenger Airbag Status Indicator...................3-37
Charging System Light..................................3-38
Up-Shift Light...............................................3-38
Brake System Warning Light..........................3-39
Antilock Brake System (ABS) Warning Light.....3-40
StabiliTrak
®/Traction Control System (TCS)
Warning Light...........................................3-41
Engine Coolant Temperature Warning Light......3-41
Engine Coolant Temperature Gage..................3-42
Tire Pressure Light.......................................3-42
Section 3 Instrument Panel
3-1

Malfunction Indicator Lamp.............................3-43
Oil Pressure Light.........................................3-46
Engine Oil Pressure Gage.............................3-47
Security Light...............................................3-48
Fog Lamp Light............................................3-48
Lights On Reminder......................................3-48
Cruise Control Light......................................3-48
Highbeam On Light.......................................3-49
Fuel Gage...................................................3-49
Boost Gage.................................................3-50
Driver Information Center (DIC).......................3-50
DIC Operation and Displays...........................3-51
DIC Compass..............................................3-56DIC Warnings and Messages.........................3-58
DIC Vehicle Customization.............................3-72
Audio System(s).............................................3-85
Radio(s)......................................................3-86
Using an MP3............................................3-108
XM Radio Messages...................................3-112
Navigation/Radio System..............................3-113
Bluetooth
®.................................................3-113
Theft-Deterrent Feature................................3-126
Audio Steering Wheel Controls......................3-126
Radio Reception.........................................3-127
Backglass Antenna......................................3-128
XM™ Satellite Radio Antenna System..............3-128
Section 3 Instrument Panel
3-2

✍NOTES
3-3

Instrument Panel Overview
CTS Shown, CTS-V Similar
3-4
