-Air
bag sy ste m ---=---=-----------------
enough. If this rate is below the reference value programmed into
t he control unit, the side airbags will not be triggered, even though
the car may be badly damaged as a result of the collision . It is not
possible to define an airbag triggering range that wi ll cover every
possible angle of impact, since the circumstances will vary consid­
erably between one collision and another . Important factors
include, for example, the nature (hard or soft) of the impacting
object, the angle of impact, vehicle speed, etc.=>
page 233, "Impor ­
tant safety instructions on the side airbag system".
Aside from their normal safety function, safety belts work to help keep the driver or front passenger in position in the event of a side
collision so that the side airbags can provide protection .
The airbag system is
not a substitute for your safety belt . Rather, it
is part of the overa ll occupant restraint system in your vehicle .
Always remember that the side airbag system can on ly help to
protect you if you are wearing your safety be lt and wearing it prop­
erly . This is another reason why you should always wear your safety
belts, not just because the law requires you to do so=>
page 205,
"General notes" .
It is important to remember that while the supplemental side airbag
system is designed to reduce the likelihood of serious injuries, other
injuries, for example, swel ling, bruising, and minor abrasions can
a lso be associated with deployed s ide airbags. Remember too, side
airbags wil l deploy only once and only in certain kinds of accidents
- your safety belts are always there to offer protection.
Vehicle damage, repair costs or even the lack of vehicle damage are not necessari ly an indication of over -sensitive or failed airbag acti ­
vation. In some collisions , both front and side airbags may inflate.
Remember too, that airbags will deploy only once and only in
certain kinds of collis ions - your safety belts are always there to
offer protection in those accidents in which airbags are not
supposed to deploy or when they have already dep loyed.
The sid e a irba g sy stem w ill not deploy :
• when the ignition is turned off •
in side collisions when the acceleration measured by the sensor
is too low
• in front -end collisions
• in rear-end co llisions
• in ro llovers .
In some types of accidents the front airbags, side curtain airbags
and side airbags may be triggered together .
& WARNING
• Safety b elt s and the airbag sy stem will only prov id e prot ection
whe n occ upant s are in the prop er se ating po sit io n
=> page 233 .
• If the airb ag indic ator light come s on w hen the v ehicl e is bei ng
u sed , h av e the syste m inspe cte d immedi ate ly by y our authoriz ed
Audi de aler . Th e ai rbag m ay not w ork properly when the vehicle
a ccel erat ion in a side collision is high e nough to ac tivate th e
a ir bag .•
Hovv supplemental side airbags vvork
Side airbags deploy instantly and can help reduce the risk
of upper torso injuries for occupants who are properly
restrained.
F ig . 2 15 Inf late d sid e
a ir bags o n left side of
v ehi cle, rea r sid e
a ir bag opti on al eq uip-
m ent .,

___ A_ ir_b _a_ g;:::;_ s--:.. y_s _t _e _m _________________________________________________ _
& WARNING (continued)
-Never carry any objects or pets in the deployment space
between them and the airbags or allow children or other
passengers to travel in this position .
• Always use the built-in coat hooks only for lightweight
clothing. Never leave any heavy or sharp-edged objects in the
pockets that may interfere with side airbag deployment and can
cause personal injury in an accident .
• Always prevent the side airbags from being damaged by heavy
objects knocking against or hitting the sides of the seatbacks.
• The airbag system can only be triggered once . If the airbag has
been triggered, the system must be replaced by an authorized
Audi dealership .
• Damage (cracks, deep scratches etc.) to the original seat covers
or to the seam in the area of the side airbag module must always
be repaired immediately by an authorized Audi dealer.
• If chi ldren are seated improperly, their risk of injury increases
in the case of an accident:::::,
page 238, "Child Safety".
• Never attempt to modify any components of the airbag system
in any way.
• In a side collision , side airbags will not function properly if
sensors cannot correctly measure increasing air pressure inside
the doors when air escapes through larger, unclosed openings in
the door panel.
-Never drive with interior door trim panels removed.
- Never drive when parts have been removed from the inside
door panel and the openings they leave have not been properly
closed.
- Never drive when loudspeakers in the doors have been
removed unless the speaker holes have been properly closed .
- Always make certain that openings are covered or filled if
additional speakers or other equipment is installed in the
inside door panels .
& WARNING (continued)
-Always have work on the doors done by an authorized Audi
dealer or qualified workshop . •
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide supplemental
protection to properly restrained occupants.
B
Fig. 216 Side curtain
airbags , driver 's side:
location
The side curtain airbags are located on both sides of the interior
above the front and rear side windows:::::, fig. 216. They are identi­
fied by the word "AIRBAG" on the windshield frame and the center
roof pillar.
The side curtain airbag system supplements the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck in a side collision. The
side curtain airbag inflates only in side impacts and only when the
vehicle acceleration registered by the control unit is high enough. If
this rate is below the reference value programmed into the control
unit, the side airbags will not be triggered, even though the car may
be badly damaged as a result of the collision. It is not possible to
define an airbag triggering range that will cover every possible ..,

angle of impact, s inc e the ci rcumstanc es w ill vary considerably
bet ween one collisi on and another. Important factors include, for
example, the na ture (hard or soft) of the impacting object, the ang le
of impact, vehicle speed, etc.~
page 235, "How side curtain ai rbags
work".
Aside from their norma l safety function, safety be lts work to help
keep the driver or front passenger in position in the event of a col li­
sion so tha t the side curtain airbags can provide protection .
The airbag system is not a substitute for your safety belt. Rather, it
is part of the overa ll occupant restraint system in your vehicle .
Always remembe r that the airbag sy stem can only help to protect
you if you are wea ring your safety belt and wearing it proper ly. This
is another reason why you should a lways wear your safety belts, not
just because the law requires you to do so~
page 205, "General
notes".
I t is important to remember tha t while the side curtain airbag
system is designed to help reduce the likelihood of serious injuries,
other in jur ies, for examp le, swelling, bruising, and minor abrasions
can a lso be associated with these airbags upon dep loyment.
Remember too, these airbags will dep loy only once and only in
certa in kinds o f accidents -your safety belts are always there to
offer protection.
T he side curtain airbag s ystem basi cally consists of :
• T he electronic control module and external side impac t sensors
• T he side curtain airbags above the front and rear side windows
• The airbag indicator light in the instrument panel
T he airbag system is monitored electronically to make certain i t is
functioning prope rly at a ll times. Each time you turn on the ignition,
the airbag system indicator light will come on for a few seconds
(self diagnos tics).
The side curtain airbag is not a cti vated :
• if the ignition is tur ned off,
Safety first
Airb ag sy ste m
• in side collisions when the acceleration measured by the sensor
is too low,
• in front -end collisions,
• in rear -end co llisions,
• in ro llovers .
& WARNING
• Safety belt s and the airbag system will only provide protection
when o ccupant s are in the proper seating position
~ page 80 ,
"General r ecommendation s".
• If the airbag indicator light comes on when the vehic le is being
used , have the sy stem inspected immediately by your authori zed
Audi deale r. The side curtain airbag may not work properly even
when the vehicle a cceleration in a side colli sion i s high enough to
a c tivate the a irbag . •
How side curtain airbags work
S ide cu rtain airbags can work together with si de airb ags
to hel p redu ce the risk of he ad and upper t ors o injuries for
occupants who are properly restrained.
Vehicle care I I
F ig. 217 Illustra tio n of
prin cipl e: Infla ted side
c urta in a irbag s on the
lef t si de ..
irechnical data

___ A_ ir_ b_ a-g _ s_y _s_ t_ e_ m _________________________________________________ _
The side curtain airbags inflate between the occupant and the
windows on the side of the vehic le that is struck in a side co llis ion
=> fig. 2 17.
When the system is triggered, the side curtain airbag is filled with propellant gas and brea ks through a seam above the fron t and rear
side windows identified by the A IRBAG label. In order to help
provide th is additiona l protection, the side curtain a irbag must
inflate within the b link of an eye at very high speed and with great
f orce . The side curtai n airbag could i njure you i f your seating pos i­
tion is not proper or upright or if items are located in the area where
t he supplementa l side cu rtai n airbag inflates . This applies espe ­
cia lly to children=>
page 238.
Although they a re not a soft pi llow, side curta in airbags can
"cus hion" the impact and in this way they can help to reduce the risk
of injury to the head and the upper part of the body .
A fine dust may develop wh en the airbag depl oys. Thi s is qu ite
normal and does not mean there is a fire in the veh ic le. •
Important safety instructions on the side
curtain airbag system
A irbags are on ly s upp le men ta l r estraints . Alwa ys prop ­
erly wea r saf ety belt s and ride in a proper seating po si­
ti on.
T here is a lo t tha t you and y our pa ssengers mus t kn ow and d o to
help the safety belts and airbags do their job to provide supple ­
men tal pro tection .
& WARNING
Improperly wearing safety belts and improper seating positions
increase the risk of serious personal injury and death whenever a
vehicle is being used.
& WARNING (continued )
• Never let occupants pla ce any parts of their bodies in the area
from wh ich the side curtain airbags inflate .
• Always make sure that the side curtain airbags can inflate
without interference . Unsuitable accessories fitted inside the
expansion range of a side curtain airbag can dangerously interfere
with it s function. A deploying head airbag develops enough for ce
to catapult any p ie ce of add-on component out of its path of infla­
tion and into the pas senger compartment. An occupant hit by
such a projectile can suffer serious injury or death =>
page 375,
"Techni cal Modifications" .
• Do not swivel the sun visors to the side if you have any objects
clipped onto them (for example pens) . If the airbag should deploy ,
you could be in jured by these objects .
• Use the built -in coat hooks only for lightweight clothing . Never
leave any heavy or sharp-edged ob je cts in the pocket s that may
interfere with airbag deployment and can cause personal injury in
an accident .
• Never use hanger s to hang c lothing from the hook s.
• Only use fa ctory -installed sun shades or , in the case of shades
installed after the vehicle leaves the factory , only Audi roll-up
s unscreens may be used =>
page 374, "Additional acce ssories and
part s replacement ".
• Always sit in proper seating position and wear safety belts
while traveling so that the side cu rtain airbags can help provide
protection .
• The ai rbag system can only be triggered on ce . If the airbag has
been triggered, the system must be replaced by an authori zed
Audi de aler or qualified workshop.
• Always have work involving the side curtain airbag system ,
removal and installation of the airbag components , or other
repairs performed by a qualified dealership. Otherwise the airbag
system may not work correctly.
ti,

-------------------------------------------~C:::.'. h~ i~ ld :::.....:: S~ a~ f~e ~t .!.y __ l!ftlll
& WA RNIN G (continu ed )
• Always install rear-facing child safety seat s on the rear seat.
• If you mu st in stall a re arw ard fa cing child safety sea t on the
front pa ssenger seat in exceptional cir cum stances and the
PASSENGER AIR BAG OFF light doe s not come on and stay on,
immediate ly in sta ll the re ar-facing child safety seat in a rear
s eating po sition and h ave the airbag sy stem inspected immedi ­
atel y by your Audi dea ler .
& WARNING
If, in exceptional circum stance s, you mu st install a forward -facing
c hild re st raint on the fro nt p ass enger's seat :
• Alway s make sure the forward -facing seat has been de signed
and cert ified by it s manufa cturer f or use on a front se at with a
p assenger front and side airbag .
• Always follow the manufacturer's instructions provided with
the child safety seat or carrier.
• Always mov e the passenger sea t into it s rea rmo st p osition in
the seat' s fore and aft adju stment r ange , as far away from the
airb ag as possible before in stalling the ch ild r estr aint . The b ack­
r es t must be adju sted to an upr ight po sition.
• Alway s ma ke sure th at the PASSENGER AIR BAG OFF l ight
c ome s on and stay s on all the time whenever the ignition is
s witched on. •
Advanced front airbag system and children
Your vehicle is equipped with an "Advanced Airbag System" in
compliance with United States Federal Motor Veh icle Sa fety Stan ­
dard ( FMVSS) 208 as applicable at the time your vehicle was manu ­
f actured .
Controls and equip­ ment Safety first Vehicle operation The Advanced Airbag system in your vehicle has been certified to
meet the " low -risk" requirements for 3 and 6 year -old children on
the passenger side and small adu lts on the driver side. The low risk
deployment crite ria are intended to reduce the risk of injury th rough
interaction with the airbag that can occur, for example, by being too
close to the steering wheel and instrument panel when the airbag
inf lates . In addit ion, the system has been cert ified to comply with
the "suppression" requirements of the Safety Standard, to turn off
the front airbag for infants up to 12 months who are restrained on
the front passenger seat in child restraints that are listed in the
Standard.
Even though your vehic le is equipped with an Advanced Airbag
system, all children, especially those 12 years and younger, should
a lways ride in the back seat properly restrained for their age and
s ize . The airbag on the passenger side makes the front seat a poten­
tia lly dangerous p lace for a chi ld to ride. The front seat is not the
safest p lace for a child in a forward -facing child safety seat. It can be
a very dangerous place for an infant or a larger child in a rearward­
facing seat. •
Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced Airbag System in your vehicle detects the presence
of an infant or child in a chi ld restraint on the front passenger seat
using the weight -sensing mat in the seat cushion and the sensor
below the safety belt latch on the front passenger seat that
measures the tension on the safety be lt .
The weight -sensing mat measures t otal weight of the child and the
child safety seat and a chi ld blanket on the front passenger seat. The
we ight o n the front passenger seat is related to the design of the
child restraint and its "footprint" , the size and shape of the bottom
of the child restraint as it sits on the seat. The weight of a child
restraint and its "footprint" vary for different kinds of child
~
Vehicle care Do-it-yourself service Technical data

-Child Safety -----<------------------------------
restraints and for the different models of the same kind of child
restraint offered by child restraint manufacturers.
The weight ranges for the individual types, makes and models of
child restraints that the NHTSA has specified in the Safety Standard
together with the weight ranges of typical infants and typical 1 year­ old child have been stored in the control unit of the Advanced
Airbag System. When a child restraint is being used on the front passenger seat with a typical 1 year-old child, the Advanced Airbag
System compares the weight measured by the weight sensing mat
with the information stored in the electronic control unit.
The electronic control unit also registers the tension on the front
passenger safety belt. The tension on the safety belt for the front
passenger seat will be different for an adult who is properly using
the safety belt as compared to the tension on the belt when it is
used to attach a child restraint to the seat. The sensor below the
latch for the safety belt for the front seat passenger measures the
tension on the belt . Th e input from this sensor is then used with the
weight to "decide" , whether there is a chi ld restraint with a typica l 1
year-old child on the front passenger seat and whether or not the
airbag must be turned off.•
Child restraints and Advanced Airbags
Regard less of the child restraint that you use, make sure that it has
been certified to meet United States Federal Motor Vehicle Safety
Standards and has been certified by its manufacturer for use with
an airbag. Always be sure that the child restraint is properly
installed at one of the rear seating positions. If in exceptional
circumstances you must use it on the front passenger seat, carefully read all of the information on child safety and Advanced Airbags
and heed all of the applicable WARNINGS. Make certain that the
child restraint is correctly recognized by the weight -sensing mat
inside the front passenger seat, that the front passenger airbag is
turned off and that the airbag status is always correctly signaled by
the
PASSENGER AIR BAG OFF light . Many
types and models of child restraints have been available over
the years, new mode ls are introduced regularly incorporating new
and improved designs and older models are taken out of produc­
tion. Child restraints are not standardized. Child restraints of the
same type typically have different weights and sizes and different
'footprints,' the size and shape of the bottom of the child restraint
that sits on the seat, when they are installed on a vehicle seat. These
differences make it virtually impossible to certify compliance with
the requirements for advanced airbags with each and every child
restraint that has ever been sold in the past or will be sold over the
course of the usefu l life of your vehicle.
For this reason, the United States National Highway Traffic Safety
Administration has pub lished a list of specific type, makes and
models of child restraints that must be used to certify compliance
of the Advanced Airbag System in your vehicle with the suppression
requirements of Federal Motor Vehicle Safety Standard 208. These
child restraints are:
A. Car beds, manufactured on or after September 1,
2004:
• Cosco Dream Ride 02-719
B. Rear facing child restraint systems, manufactured
on or after September 1, 2004:
(When the restraint system comes equipped with a removable base,
compliance has to be certified with or without the basel.
• Britax Handle with Care 191
• Century Assura 4553
• Century Smart Fit 4543
• Cosco Arriva 02727
• Evenflo Discovery Adjust Right 212
• Evenflo First Choice 204
• Graco Infant 8457

_______________________________________________ C_h _ i_ld _ S_ a_ f_ e_ t..,:c y __ __
C. Forward-facing convertible child restraint systems,
manufactured on or after September 1, 2004:
• Britax Roundabout 161
• Britax Expressway
• Century Encore 4612
• Century STE 1000 4416
• Cosco Olympian 02803
• Cosco Touriva 02519
• Evenflo Horizon V 425
• Evenflo Medallion 254
• Safety First Comfort Ride 22-400
& WARNING
To reduce the risk of serious injury, make sure that the PASSENGER
AIR BAG OFF light comes on and stays on whenever a child
restraint is installed on the front passenger seat and the ignition
is switched on.
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on.
• Have the airbag system inspected by your authorized Audi
dealer immediately.
[ i] Tips
The child seats listed in categories A to C have been tested by Audi
only for the Advanced Airbag function. •
Controls and equip­
ment Safety first Vehicle operation
Important safety instructions for using child
safety seats
Correct use of child safety seats substantially reduces the
risk of injury in an accident!
As the driver, you are responsible for the safety of every
­
body in the vehicle, especially children:
- Always use the right child safety seat for each child and
always use it properly~
page 243.
-Always carefully follow the child safety seat manufac­
turer's instructions on how to route the safety belt prop­
erly through the child safety seat.
- When using the vehicle safety belt to install a child safety
seat , you must first activate the convertible locking
retractor on the safety belt to prevent the child safety
seat from moving~
page 248.
-Push the child safety seat down with your full weight to
get the safety belt really tight so that the seat cannot move forward or sideways more than one inch (2.5 cm).
- If a strap or tether is being used to tie the child safety
seat to the front passenger seat, make sure that it is not
so tight that it causes the weight-sensing mat to
measure more weight than is actually on the seat.
Always remember: Even though your vehicle is equipped with an
Advanced Airbag system, all children, especially those 12 years and
younger, should always ride in the back seat properly restrained for
their age and size. ..,
Vehicle care Do-it-yourself service Technical data

& WARNING !continued)
-Always move the front passenger seat into the rearmost
position of the passenger seat's fore and aft adjustment range,
and as far away from the airbag as possible before installing
the child restraint.
- Always make sure that nothing prevents the front
passenger's seat from being moved to the rearmost position in
its fore and aft adjustment range.
- Always make sure that the backrest is in the upright posi­
tion.
• Always buckle the child safety seat firmly in place even if a
child is not sitting in it. A loose child safety seat can fly around
during a sudden stop or in a collision.
• Always read and heed all WARNINGS whenever using a child
restrained in a vehicle is being used
=> page 205, "Safety belts",
~ page 215, "Airbag system" and~ page 238, "Child Safety".
& WARNING
To reduce the risk of serious injury, make sure that the PASSENGER
AIR BAG OFF light comes on and stays on whenever a child
restraint is installed on the front passenger seat and the ignition
is switched on.
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on.
• Have the airbag system inspected by your authorized Audi
dealer immediately. •
Safety first
Child Safety
Child safety seats
tnfant seats
Babies and infants up to about one year old and 22 lbs or
10 kg need special rearward-facing child restraints that
support the back, neck and head in a crash.

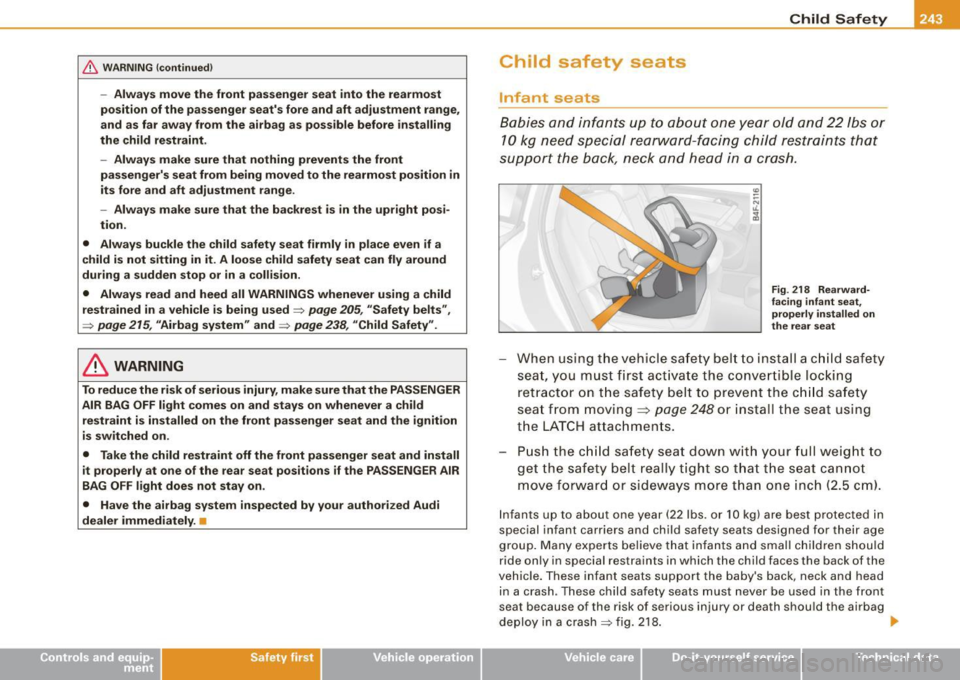

Fig . 218 Rearward­
facing infant seat,
properly installed on
the rear seat
-When using the vehicle safety belt to install a child safety
seat, you must first activate the convertible locking retractor on the safety belt to prevent the child safety
seat from moving
~ page 248 or install the seat using
the LATCH attachments.
- Push the child safety seat down with your full weight to
get the safety belt really tight so that the seat cannot
move forward or sideways more than one inch (2.5 cm).
Infants up to about one year (22 lbs. or 10 kg) are best protected in
special infant carriers and child safety sea ts designed for their age
group. Many experts believe that infants and small children should
ride only in special restraints in which the child faces the back of the
vehicle. These infant seats support the baby's back, neck and head
in a crash. These child safety seats must never be used in the front
seat because of the risk of serious injury or death should the airbag
deploy in a crash
=> fig. 218. ._
Vehicle care I I irechnical data
