2009 Acura TL Owner's Manual

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Check the inf lation pressure of the
compact spare tire every time you
check the other tires. It should be
inf lated to:Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed f or mounting a regular tire.
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road
surf aces. Use greater caution
while driving. Do not mount snow chains on the
compact spare tire.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
After the flat tire is replaced with
the spare tire, the low tire
pressure/TPMS indicator stays on.
Af ter several miles (kilometers)
driving with the spare, this
indicator begins to f lash, then
stays on again. You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display (see page ).
529
Compact Spare Tire
582
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm)
\f—\f—y


y
) \f\fy\fy
2009 TL

Take the tool case out of the spare
tire.
Unscrew the wing bolt and take
the spare tire out of its well.
If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area that is
far away from the traffic lanes.
Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake.
Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
switch. VEHICLE OFF (LOCK)
Mode is the equivalent of LOCK (0).
See page f or ignition switch and
power mode comparison. Open the trunk. Raise the trunk
f loor by lif ting up on the back edge.
5.
4.
3.
2.
1.
180
CONT INUED
Changing a Flat Tire
T aking Care of t he Unexpect ed
583
EXTENSION WHEEL NUT
WRENCH
JACK
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
\f—\f—\fy\f

\fy
) \f\fy\fy
2009 TL

Locate the jacking point nearest
thetireyouneedtochange.Itis
pointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
jacking point tab is resting in the
jack notch.Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the f lat tire is of f the
ground.
Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
6.
7.8.
Changing a Flat Tire
584
WHEEL NUT WRENCH
WHEEL NUT WRENCHEXTENSION
JACKING POINT
\f—\f—y

y
) \f\fy\fy
2009 TL

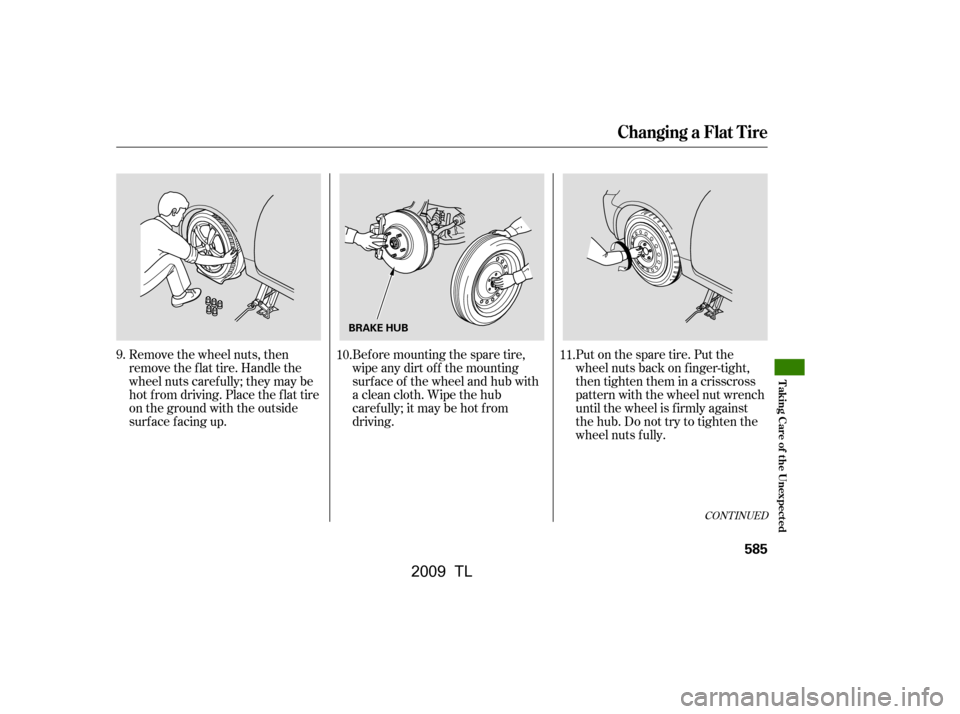

Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.
Remove the wheel nuts, then
remove the f lat tire. Handle the
wheel nuts caref ully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
9.
10. 11.
CONT INUED
Changing a Flat Tire
T aking Care of t he Unexpect ed
585
BRAKE HUB
\f—\f—y

y
) \f\fy\f\fy
2009 TL

Lower the vehicle to the ground,
and remove the jack.Remove the spacer cone f rom the
wing bolt, turn it over, and put it
back on the bolt.
Place the flat tire face down in the
spare tire well.
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:
Remove the center cap before
storing the f lat tire in the trunk
well.
14.
12.
13.
15.
16.
Changing a Flat Tire
586
WING BOLT
For normal
tire
SPACER CONE For compact
spare tire
94 lbf·ft (127 N·m , 13 kgf·m)
\f—\f—\fy\f


y
) \f\fy\f
y
2009 TL

To remove the spacer cone,
squeeze the tabs on the wing bolt
to disengage it f rom the center of
the spacer cone, then pull the bolt
downward.
To install the wing bolt to the
spacer cone, reverse this
procedure.
Securetheflattirebyscrewing
the wing bolt back into its hole.Store the jack and tools in the tool
kit case. Place the tool kit case in
the f lat tire.
Store the center cap in the trunk.
Make sure it does not get
scratched or damaged.
Unhookthehandlefromthetrunk
opening and lower the trunk f loor
lid, then close the trunk lid.
Your vehicle’s original tire has a
tire pressure monitoring system
sensor. To replace a tire, ref er to
(see
page ).
17. 18. 19.
20.530
Changing a Flat Tire
Changing a T ire with T PMS
T aking Care of t he Unexpect ed
587
SPACER CONE
TAB
Loose items can fly around the
interiorinacrashandcould
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
\f—\f—y


y
) \f\fy\fy
2009 TL

Check these things:Check the transmission interlock.
The shift lever must be in Park or
neutral.
Turn the ignition switch to the ON
(II) position or on models with
keyless access system, press the
engine start/stop button to set ON
Mode (see page ). Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. See on page .
When you turn the ignition switch to
the START (III) position or on
models with keyless access system,
press the engine start/stop button to
set START Mode (see page ),
you do not hear the normal noise of
the engine trying to start. You may
hear a clicking sound, a series of
clicks, or nothing at all.
Diagnosing why the engine won’t
start f alls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position or on models with keyless
access system, press the engine
start/stop button to set START
Mode (see page ):
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
f aster than normal, but the engine
does not start up and run. 591
180
180
180
If theEngineWon’tStart
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
588
\f—\f—y

y
) \f\fy\fy
2009 TL

In this case, the starter motor’s
speed sounds normal, or even f aster
than normal, when you turn the
ignition switch to the START (III)
position or on models with keyless
access system, press the engine
start/stop button to set START
Mode (see page ), but the engine
does not run.Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Turn the ignition switch to the
START (III) position or on models
with keyless access system, press
the engine start/stop button to set
STARTMode(seepage ).If
the headlights do not dim, check
the condition of the fuses. If the
f uses are OK, there is probably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualif ied technician to
determine the problem. See
on page .If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of
the battery and terminal connec-
tions (see page ). You can
then try jump starting the vehicle
f rom a booster battery (see page
).
65
180
180
591577
606
CONT INUED
T he Starter Operates Normally
Emergency T owing
If theEngineWon’tStart
T aking Care of t he Unexpect ed
589
\f—\f—\fy\f

y
) \f\fy\fy
2009 TL
