2009 Acura TL Owner's Manual

To protect items in the trunk, you
can disable the trunk release button
on the driver’s door by turning of f
the trunk main switch in the glove
box, locking the glove box, and
locking the trunk pass-through cover
with the master key or the built-in
key.As a saf ety f eature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened f rom inside.
To open the trunk, push the release
lever in the direction pointed by an
arrow.
Parents should decide if their
children should be shown how to use
this f eature. For more inf ormation
about child saf ety, see page .
If you need to give the key to
someone else, give them the valet
key.
To use the valet f unction, remove
thebuilt-inkeyfromtheremoteby
pressing the button, then give that
remote to someone else as a valet
key(seepage ).
Your vehicle is equipped with the
emergency f uel lid release in the
trunk. Refer to page for how to
access it.
192
598
41
On models without keyless accesssystem
On models with keyless access system
Trunk
Emergency T runk Opener
Emergency Fuel L id Release
150
TRUNK RELEASE LEVER
TRUNK MAIN SWITCH
OFF
Vehicle with keyless access system is
shown.
\f—\f—\fy
y
) \f\fy\f
y
2009 TL

µ
µ
CONT INUED
Press this button once
to unlock the driver’s door or all the
doors (depending on the keyless
memory setting). Press it twice to
unlock the other doors. Some
exterior lights will f lash twice each
time you press the button.
Press this button once to
lock all doors. Some exterior lights
will f lash. When you push LOCK
twice within 5 seconds, you will hear
a beep to verify that the doors are
locked and the security system has
set. You cannot lock the doors if any
door is not f ully closed or if the key
is in the ignition switch. If you do not open any door within 30
seconds, the doors automatically
relock and the security system sets.
The keyless lock acknowledgment
beep and f lashing of the lights can
be deactivated (see page ).
The door activated map lights come
on when you press the UNLOCK
button if the door activated position
is selected by pressing the light
control button (DOOR). If you do
not open any door within 30 seconds
(or whatever setting of the interior
light dimming time is set to), the
light(s) will f ade out. If you relock
the doors with the remote
transmitter before 30 seconds have
elapsed, the light(s) will go of f
immediately. To change the lock/unlock setting
and the relock timer setting, refer to
the customized settings on page .
You can also open all power windows
and the moonroof f rom outside the
vehicle with the remote transmitter
(see page ).
126
120
197
On models without keyless access system
Remote Transmitter
UNL OCK
LOCK
Inst rument s and Cont rols
151
LOCK
BUTTON PANIC
BUTTONTRUNK
BUTTON
LED
UNLOCK
BUTTON
\f—
—y
\f\fy
) \f\fy\f
y
2009 TL

µ
µ
Be caref ul when removing
this screw as the head of the screw
can strip out.
Separate the keypad from the
transmitter by pushing any button
f rom outside.
Pressthisbuttonfor
about 1 second to open the trunk.
Pressthisbuttonfor
about 2 seconds to attract attention:
the horn will sound, and the exterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer. If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616
On models with keyless access
system, see page f or how to
replace the battery on the keyless
access remote.
To replace the battery:
Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
1.
2.
175
Remote Transmitter
TRUNK
PA NIC
Replacing the Transmitter
Battery
Remote Transmitter Care
152
NOTE:
KEYPAD
SCREW
\f—
—y
\f\fy
) \f\fy\f
y
2009 TL

µ
Remove the old battery and note
the polarity. Make sure the
polarity of the new battery is the
same ( side f acing up), then
insert it in the keypad.
Place a cloth on the edge of the
keypad, and remove the upper half
by caref ully prying on the edge
with a small f lat-tip screwdriver or
coin. An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations f or
battery disposal.
Snap the two halves of the keypad,
then install the parts in reverse
order.
4.
5.
3.
As required by the FCC: This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Remote Transmitter
Inst rument s and Cont rols
153
BATTERY
\f—\f—y


y
) \f\fy\f
y
2009 TL

When you unlock the driver’s door
with your remote transmitter, each
remote transmitter activates the
customized settings related to that
remote.When you unlock and open the
driver’s door with the remote, the
driver’s seat (except power lumbar)
and outside mirrors move to the
positions stored in memory. An
indicator on one of the driving
position memory buttons on the
driver’s door also comes on.
You will also see the ‘‘DRIVER 1’’ or
‘‘DRIVER 2’’ message on the multi-
inf ormation display, depending on
which linked remote transmitter is
used.
Driving position memory
(see page ).
Customized settings
(see page ).
Here are the settings activated with
the remote:
The driving position memory
activated (Driver 1, Driver 2) is
shownonthebackof each
transmitter. Make sure you store
your desired driving position in the
memory that is activated by the
transmitter you normally carry.
Audio system settings
(see page ).
Climate control settings
(see page ). 96
164 224 214
Remote Transmitter
Recalling a Memorized Driving
Position
154
Driver 1 Driver 2
\f—\f—\fy
\fy
) \f\fy\f
y
2009 TL

µ
Î
Î
CONT INUED
See pages f or important saf etyinf ormation and warnings about how toproperly position the seats and seat-backs. 1513
The passenger seat has the same
adjustments as the driver’s seat but
without any lumbar adjustment. Raises or lowers the seat.
Moves the whole seat up
and f orward, or down
and backward. The front
of the seat also tilts up or
down at the same time.
Increases or decreases
the lumbar support.
(Driver’s seat only)
Adjusts the seat-back
angle f orward or
backward.
The controls f or the power
adjustable front seats are on the
outside edge of each seat bottom.
You can adjust the seats with the
ignition switch in any position.
Make all seat adjustments bef ore
you start driving.
Models equipped with the
keyless access system have an
engine start/stop button instead
of an ignition switch. VEHICLE
OFF (LOCK) Mode is the
equivalent of LOCK (0),
ACCESSORY Mode is the
equivalent of ACCESSORY (I), and ON Mode is the equivalent
of ON (II). For more
information, see pages and
.
Moves the seat forward
and backward.
Moves the f ront of the
seat up or down.
:
180
178
Seats
Front Seat Power A djustments
Inst rument s and Cont rols
155
Driver’s seat
\f—
—y
\fy
) \f\fy\f
\fy
2009 TL

See page f or important saf etyinf ormation and a warning aboutimproperly positioning head restraints. 15
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers f rom whiplash and other
injuries.
The driver’s seat includes a memory
f eature. Two seat positions can be
stored in separate memories. You
canthenselectamemorizedposition
by pushing the appropriate memory
button. Ref er to page f or how to
memorize and select the seat
positions.
164
Seats
Head Restraints
156
Passenger’s seat
\f—\f—y
y
) \f\fy\f

y
2009 TL

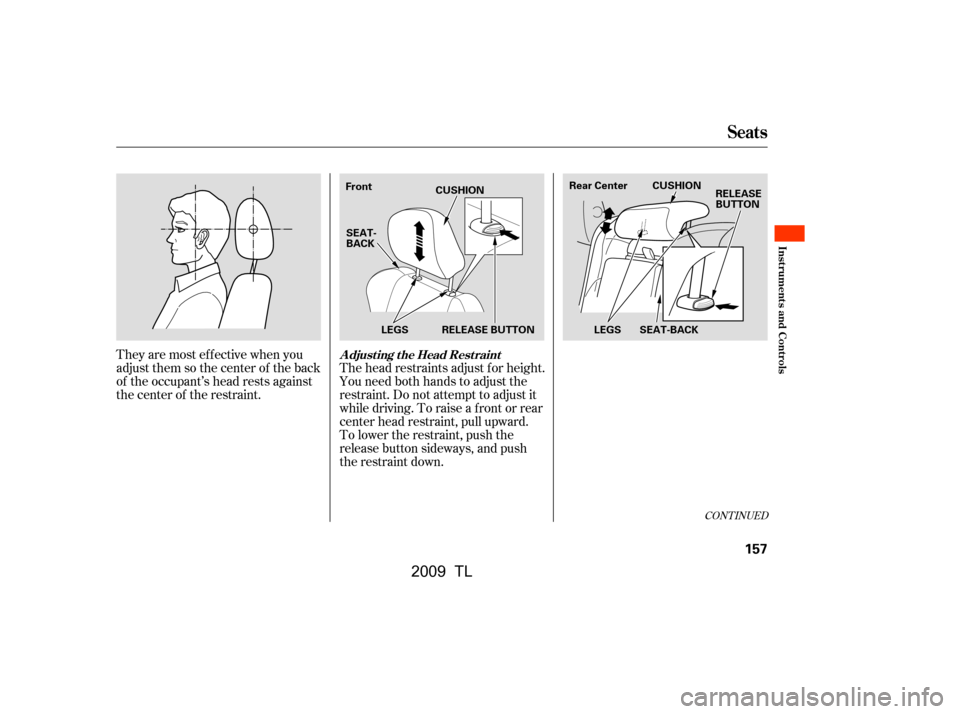

Theyaremosteffectivewhenyou
adjust them so the center of the back
of the occupant’s head rests against
the center of the restraint.The head restraints adjust f or height.
You need both hands to adjust the
restraint. Do not attempt to adjust it
while driving. To raise a f ront or rear
center head restraint, pull upward.
To lower the restraint, push the
release button sideways, and push
the restraint down.
CONT INUED
A djust ing t he Head Rest raint
Seats
Inst rument s and Cont rols
157
Front
LEGS
SEAT-
BACK
CUSHION
RELEASE BUTTON Rear Center CUSHION
SEAT-BACK RELEASE
BUTTON
LEGS
\f—\f—y
y
) \f\fy\f
y
2009 TL
