48
MULTIFUNCTION SCREENS
Press the "SETUP" button to gain
access to the "SETUP" menu.
This allows you to select from the
following functions:
- "Languages",
- "Date and time",
- "Display",
- "Vehicle parameters",
- "Units",
- "System parameters".
L a n g u a g e s
This menu allows you to select the language
used by the display: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
a n d T e l e m a t i c s " s e c t i o n o r t o t h e s p e c i fi c
user guide given to you with the other
owner's documents). F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary.
System parameters
This menu allows you to restore the fac-
t o r y c o n fi g u r a t i o n , d i s p l a y t h e s o f t w a r e
version and activate scrolling text.
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- wiper linked with reverse gear (refer
to the "Visibility" section),
- guide-me-home and welcome lighting (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Units
This menu allows you to select the
units: temperature (°C or °F) and con-
sumption (km/l, l/100 or mpg).
"SETUP" menu
* According to country.
Page 81 of 313
93
VISIBILITY

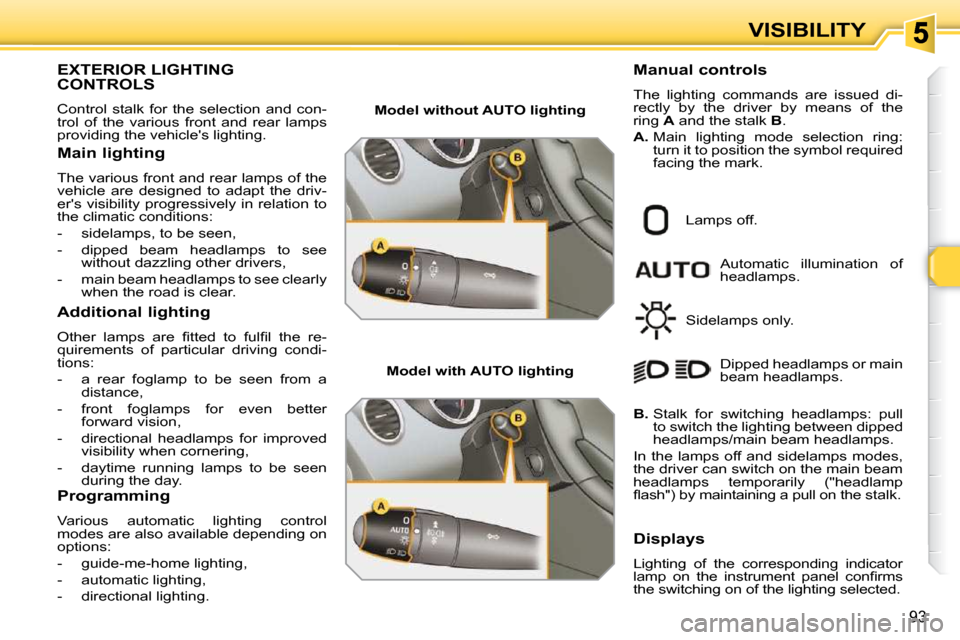

EXTERIOR LIGHTING CONTROLS
Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e fi t t e d t o f u l fi l t h e r e -
quirements of particular driving condi-
tions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better forward vision,
- directional headlamps for improved visibility when cornering,
- daytime running lamps to be seen during the day.
Programming
Various automatic lighting control
modes are also available depending on
options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting. Model without AUTO lighting
Model with AUTO lighting Automatic illumination of
headlamps.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the
ring
A and the stalk B .
A. Main lighting mode selection ring:
turn it to position the symbol required
facing the mark.
Lamps off.
Sidelamps only.
B. Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e s t a l k . Dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the switching on of the lighting selected.
Page 82 of 313
!
i
94
VISIBILITY

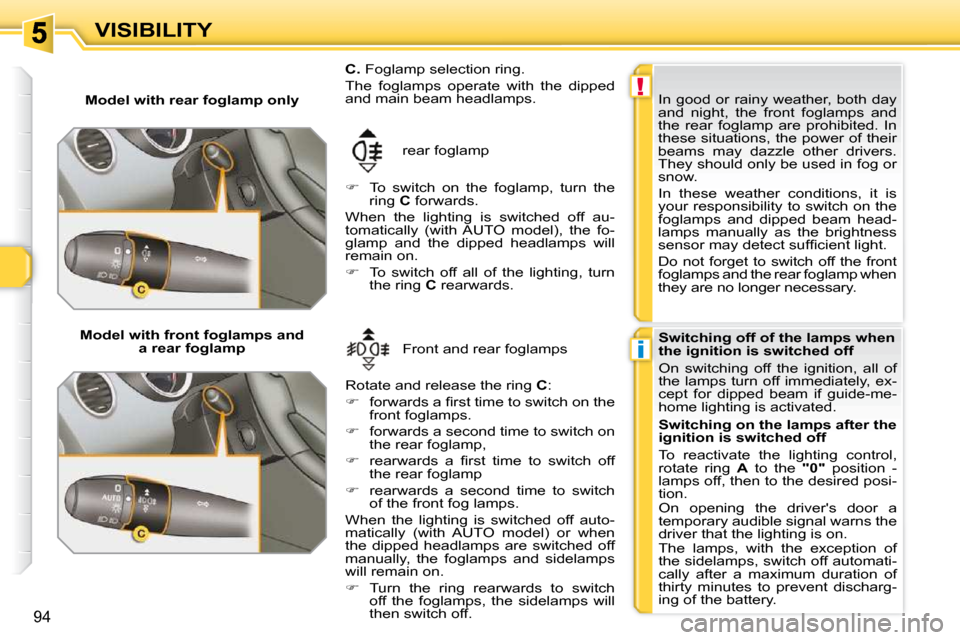

Model with rear foglamp only rear foglamp
To switch on the foglamp, turn the
ring C forwards.
When the lighting is switched off au-
t o m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e f o -
glamp and the dipped headlamps will
remain on.
To switch off all of the lighting, turn
the ring C rearwards. In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Switching off of the lamps when
the ignition is switched off
On switching off the ignition, all of
the lamps turn off immediately, ex-
cept for dipped beam if guide-me-
home lighting is activated.
Model with front foglamps and
a rear foglamp Front and rear foglamps
Rotate and release the ring C :
f o r w a r d s a fi r s t t i m e t o s w i t c h o n t h e
front foglamps.
forwards a second time to switch on
the rear foglamp,
r e a r w a r d s a fi r s t t i m e t o s w i t c h o f f
the rear foglamp
rearwards a second time to switch
of the front fog lamps.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
C. Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
Switching on the lamps after the
ignition is switched off
To reactivate the lighting control,
rotate ring A to the "0" position -
lamps off, then to the desired posi-
tion.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after a maximum duration of
thirty minutes to prevent discharg-
ing of the battery.
Page 83 of 313
i
95
VISIBILITY

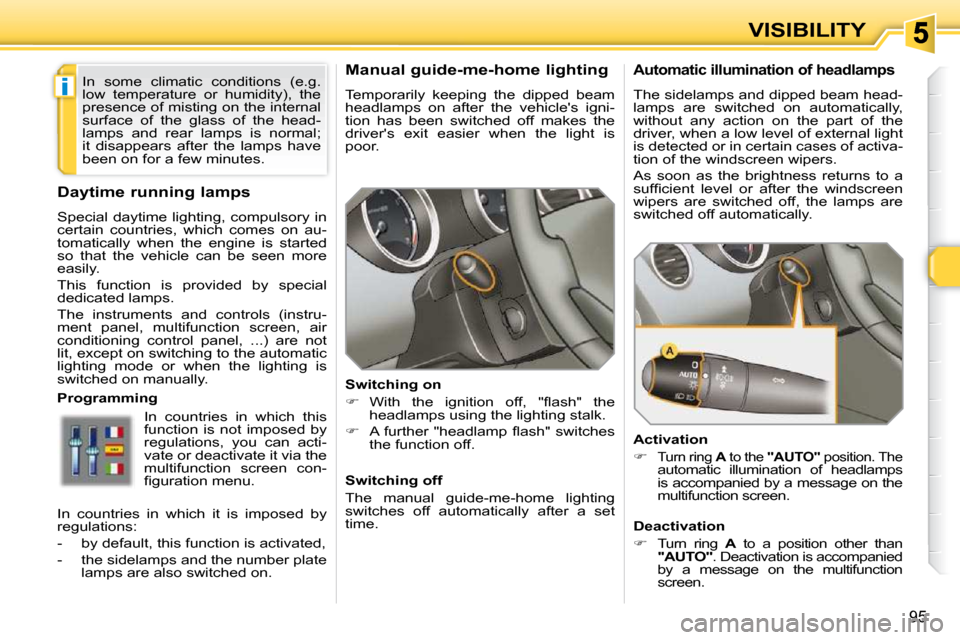

Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
Daytime running lamps
Special daytime lighting, compulsory in
certain countries, which comes on au-
tomatically when the engine is started
so that the vehicle can be seen more
easily.
This function is provided by special
dedicated lamps.
The instruments and controls (instru-
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
lit, except on switching to the automatic
lighting mode or when the lighting is
switched on manually.
Programming
In countries in which this
function is not imposed by
regulations, you can acti-
vate or deactivate it via the
multifunction screen con-
fi g u r a t i o n m e n u .
In some climatic conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) , t h e
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
In countries in which it is imposed by
regulations:
- by default, this function is activated,
- the sidelamps and the number plate lamps are also switched on.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position. The
automatic illumination of headlamps
is accompanied by a message on the
multifunction screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompanied
by a message on the multifunction
screen.
Page 84 of 313
i
95
VISIBILITY
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
Daytime running lamps
Special daytime lighting, compulsory in
certain countries, which comes on au-
tomatically when the engine is started
so that the vehicle can be seen more
easily.
This function is provided by special
dedicated lamps.
The instruments and controls (instru-
ment panel, multifunction screen, air
c o n d i t i o n i n g c o n t r o l p a n e l , . . . ) a r e n o t
lit, except on switching to the automatic
lighting mode or when the lighting is
switched on manually.
Programming
In countries in which this
function is not imposed by
regulations, you can acti-
vate or deactivate it via the
multifunction screen con-
fi g u r a t i o n m e n u .
In some climatic conditions (e.g.
l o w t e m p e r a t u r e o r h u m i d i t y ) , t h e
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
In countries in which it is imposed by
regulations:
- by default, this function is activated,
- the sidelamps and the number plate lamps are also switched on.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn ring A to the "AUTO" position. The
automatic illumination of headlamps
is accompanied by a message on the
multifunction screen.
Deactivation
Turn ring A to a position other than
"AUTO" . Deactivation is accompanied
by a message on the multifunction
screen.
Page 85 of 313
i
!
i
96
VISIBILITY
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the brightness sensor.
Switching on
Press the open padlock on the
remote control.
The dipped beam headlamps and the sidelamps come on; your vehicle
is also unlocked.
Programming The lighting duration is se-
lected via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u .
The duration of the welcome light-
ing is associated with and identical
to that of the automatic guide-me-
home lighting.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumina-
tion of headlamps provides "guide-me-
home" lighting with the following addition-
al options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in
operation.
Operating fault
In the event of a fault with the bright-
ness sensor, the lighting come on,
this warning lamp is displayed on
the instrument panel and/or a mes-
sage appears on the multifunction screen,
accompanied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised load.
-. Intermediate setting.
3. Driver + maximum authorised load.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 86 of 313
i
!
i
96
VISIBILITY
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the brightness sensor.
Switching on
Press the open padlock on the
remote control.
The dipped beam headlamps and the sidelamps come on; your vehicle
is also unlocked.
Programming The lighting duration is se-
lected via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u .
The duration of the welcome light-
ing is associated with and identical
to that of the automatic guide-me-
home lighting.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumina-
tion of headlamps provides "guide-me-
home" lighting with the following addition-
al options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in
operation.
Operating fault
In the event of a fault with the bright-
ness sensor, the lighting come on,
this warning lamp is displayed on
the instrument panel and/or a mes-
sage appears on the multifunction screen,
accompanied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised load.
-. Intermediate setting.
3. Driver + maximum authorised load.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 87 of 313
i
!
i
96
VISIBILITY
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the brightness sensor.
Switching on
Press the open padlock on the
remote control.
The dipped beam headlamps and the sidelamps come on; your vehicle
is also unlocked.
Programming The lighting duration is se-
lected via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u .
The duration of the welcome light-
ing is associated with and identical
to that of the automatic guide-me-
home lighting.
In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumina-
tion of headlamps provides "guide-me-
home" lighting with the following addition-
al options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
screen A, for which the duration is
s e t : 6 0 s e c o n d s ) ,
- automatic activation of "guide-me- home" lighting when automatic
illumination of headlamps is in
operation.
Operating fault
In the event of a fault with the bright-
ness sensor, the lighting come on,
this warning lamp is displayed on
the instrument panel and/or a mes-
sage appears on the multifunction screen,
accompanied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised load.
-. Intermediate setting.
3. Driver + maximum authorised load.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
