i
25
INSTRUMENTS and CONTROLS * According to country.
Instrument panel navigator
associated with the PC Com 3D
Controls
There are four buttons to control the in-
strument panel 16/9 large screen:
1. a c c e s s t h e m a i n m e n u , c o n fi r m t h e
selection,
2. move up through the menu,
3. move down through the menu,
4. return to the previous screen, exit
from the menu. Main menu
Press button 1 for access to the
main menu and select one of the
following functions:
- "Vehicle parameters",
- "Choice of language",
- "Choice of units".
Press button 2 or 3 to move on the
screen.
Press button 1 a g a i n t o c o n fi r m t h e
selection. The main menu and its associated
functions can only be accessed
when stationary, via buttons
1 to 4 .
A message appears on the screen
above a certain speed threshold,
indicating that the general menu
cannot be displayed.
The trip computer displays can
only be accessed while driving, via
buttons 2 and 3 (refer to the "Trip
computer" section).
This group of buttons permits:
-
when stationary , c o n fi g u r a t i o n
of the vehicle's equipment and
of the parameters of the display
(languages, units...),
- while driving , scrolling of the
active functions (trip computer,
navigation...).
Vehicle parameters
This menu allows you to activate or deacti-
vate certain driving and comfort equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),
- guide-me-home and welcome lighting (refer to the "Visibility"
section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- rear parking sensors (refer to the "Driving" section).
Choice of language
This menu allows you to select the lan-
guage used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Türkçe * .
Choice of units
This menu allows you to select the units:
temperature (°Celsius or °Fahrenheit)
and consumption (l/100 km, mpg or km/l).
Page 5 of 313
!
26
INSTRUMENTS and CONTROLS
The warning lamps may come on
c o n t i n u o u s l y o r fl a s h .
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situ-
ation is normal or whether a fault
has occurred.
Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
Associated warnings
The switching on of certain warning lamps
may be accompanied by an audible signal
and a message on the multifunction screen.
Operation indicator lamps
If one of the following indicator lamps comes
o n , t h i s c o n fi r m s t h a t t h e c o r r e s p o n d i n g
system has come into operation.
Left-hand direction indicator.
Parking brake applied.
Right-hand direction
indicator.
Main beam headlamps.
Dipped beam headlamps.
Diesel engine pre-heating
Wait until this has gone out be-
fore operating the starter.
Front foglamps.
When the ignition is switched on
The warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
When the engine is started, these warning
lamps should switch off.
If they remain on, before moving off,
consult the warning lamp concerned.
Common operation indicator lamps
Rear foglamp.
Page 6 of 313
27
INSTRUMENTS and CONTROLS
Foot on brake.
Press the brake pedal to start
the engine with the 6-speed
electronic gear control gearbox
or automatic gearbox.
S p e c i fi c o p e r a t i o n i n d i c a t o r l a m p s
The other indicator lamps appear on
the large screen, located in the centre
of the instrument panel.
Automatic locking.
If this is displayed, it indicates
that you have activated auto-
matic locking of the doors and
boot while driving.
Speed limiter.
If this is displayed, it indicates
that you have activated the
speed limiter mode.
If this is displayed, it indi-
cates that you can set the
speed limiter speed value to
be stored.
Cruise control.
If this is displayed, it indicates
that you have activated the
cruise control mode.
If this is displayed it indi-
cates that you can set the
cruise control speed value
to be stored. Automatic gearbox.
This display indicates the
position that you have selected
on the gear selection gate
(R, N, A or M).
Automatic rain sensitive wipers.
If this is displayed, it indicates
that you have activated auto-
matic rain sensitive windscreen
wipers.
Automatic illumination of headlamps.
If this is displayed, it indicates that
you have activated automatic illu-
mination of headlamps.
This display indicates the gear
engaged in automatic or manual
operating mode (1 to 6).
This display indicates the ope-
rating mode selected (auto-
matic or sport).
This display indicates the gear
engaged in the automatic or
manual operation programme.
This display indicates the ope-
rating programme selected
(automatic, sport, snow or
manual).
6-speed electronic gear control gearbox.
This display indicates the posi-
tion that you have selected on
the gear selection gate (P, R, N
or D).
Page 7 of 313
28
INSTRUMENTS and CONTROLS
Deactivation warning lamps
If one of the following warning lamps
c o m e s o n , t h i s c o n fi r m s t h a t t h e c o r r e -
sponding system has been switched off
intentionally.
Passenger's airbag system
deactivation.
The passenger's airbag system
is put into service automatically
when the vehicle is started.
A s p e c i fi c c o n t r o l s w i t c h , l o c a t e d o n t h e
passenger's side of the dashboard, per-
mits deactivation of the system. This is
c o n fi r m e d b y c o n t i n u o u s l i g h t i n g o f t h i s
warning lamp on the instrument panel
or on the seat belt and passenger's
front airbag warning lamps display. Dynamic stability control
(ESP/ASR) deactivation
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A s p e c i fi c b u t t o n , l o c a t e d o n t h e d a s h -
board, permits deactivation of the sys-
t e m . T h i s i s c o n fi r m e d b y c o n t i n u o u s
lighting of this warning lamp and of the
indicator lamp on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Common deactivation warning
lamps S p e c i fi c d e a c t i v a t i o n w a r n i n g l a m p s Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving.
Automatic rain sensitive
windscreen wipers.
If this is displayed, it indicates that
you have deactivated automatic
rain sensitive windscreen wipers.
The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.
Speed limiter.
If this is displayed, it indicates
that you have deactivated the
speed limiter.
Cruise control.
If this is displayed, it indicates
that you have deactivated the
cruise control.
Automatic illumination of
headlamps.
If this is displayed, it indicates
that you have deactivated auto-
matic illumination of headlamps.
Page 10 of 313
i
!
31
INSTRUMENTS and CONTROLS
The displaying of certain warning
lamps may be accompanied by an
audible signal and a message on
the multifunction screen.
S p e c i fi c w a r n i n g l a m p s
The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red. Certain warning lamps may be
linked with those of the instrument
panel.
If they are linked with the
STOP
warning lamp, stop the vehicle as
soon as it is safe to do so.
Directional headlamps.
I f t h i s fl a s h e s , i t i n d i c a t e s t h e
occurrence of a fault in the
directional headlamps system. Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle as soon as it is safe to do so.
Service.
If this is displayed, it indicates the occur-
rence of a fault in one of the following:
Engine autodiagnostics
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system. Engine oil level.
If this is displayed, it indicates
that the engine oil level is too
low. Stop the vehicle as soon
as it is safe to do so.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the cool-
ing system is too high. Stop the
vehicle as soon as it is safe to do so.
Coolant level.
If this is displayed, it indicates
that the coolant level is too low.
Stop the vehicle as soon as it is
safe to do so.
Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...).
- the engine management system,
- the emissions control system.
Page 12 of 313
INSTRUMENTS and CONTROLS Water in diesel * .
If this is displayed, it indicates
the presence of water in the
d i e s e l fi l t e r .
There is a risk of damage to the injec-
tion system on Diesel engines.
Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.
P a r t i c l e e m i s s i o n fi l t e r
(Diesel).
If this is displayed, linked with
the service warning lamp, it indi-
cates the start of saturation of the parti-
c l e e m i s s i o n fi l t e r o r a l o w d i e s e l a d d i t i v e
reservoir level.
A s s o o n a s t r a f fi c c o n d i t i o n s p e r m i t , r e -
g e n e r a t e t h e fi l t e r b y d r i v i n g a t a s p e e d
of at least 40 mph (60 km/h) until the
service warning lamp is switched off.
If the service warning lamp is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer without
delay.
D e fl a t e d t y r e .
If this is displayed, it indicates
low pressure in one or more
wheels.
Check the tyre pressures as soon as
possible. Punctured tyre.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle as
soon as it is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
T y r e u n d e r - i n fl a t i o n
detection.
If this is displayed, it indicates
the occurrence of a fault on one
o f t h e s e n s o r s o r i n t h e t y r e u n d e r - i n fl a -
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
d o e s n o t h a v e a s e n s o r , i s fi t t e d i n p l a c e
of a punctured wheel.
Automatic lighting.
If this comes on, it indicates the
occurrence of a fault in the auto-
matic lighting.
Use the other positions of the lighting
stalk to control the lighting manually.
Visual and/or audible
parking sensors.
If this comes on, in forward and/
or reverse gear, it indicates a
fault in the parking sensor system. 6-speed electronic gear control
gearbox or automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
6-speed electronic gear control gear-
box or automatic gearbox. The gearbox
will then operate in down-grade mode,
locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the 6-speed
electronic gear control gear-
box or automatic gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in
order to start the engine.
* According to country.
Page 23 of 313
44
MULTIFUNCTION SCREENS
MONOCHROME SCREEN C Main menu
Displays on the screen
This displays the following information:
- time,
- date,
- a m b i e n t t e m p e r a t u r e * ( t h i s fl a s h e s i f there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic switching
on of the headlamps activated") may ap-
pear temporarily. These can be cleared
by pressing the "ESC" button. "Audio functions" menu Controls
From the control panel of your PC Sound,
you can:
press the "MENU" button for access
to the main
menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip
computer, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress.
Press the "MENU" button for access
to the main
menu :
- audio functions,
- diagnosis vehicle,
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
- telephone (Bleutooth system).
Press the " " or " " buttons to select
t h e m e n u r e q u i r e d , t h e n c o n fi r m b y
pressing the "OK" button.
* With air conditioning only. With the PC Sound switched on, once
this menu has been selected you can
activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText), the CD or the CD changer
( i n t r o s c a n , s h u f fl e , C D r e p e a t ) .
For more information on the "Audio
functions" application, refer to the PC
Sound part of the "Audio and Telemat-
ics" section.
Page 25 of 313
!

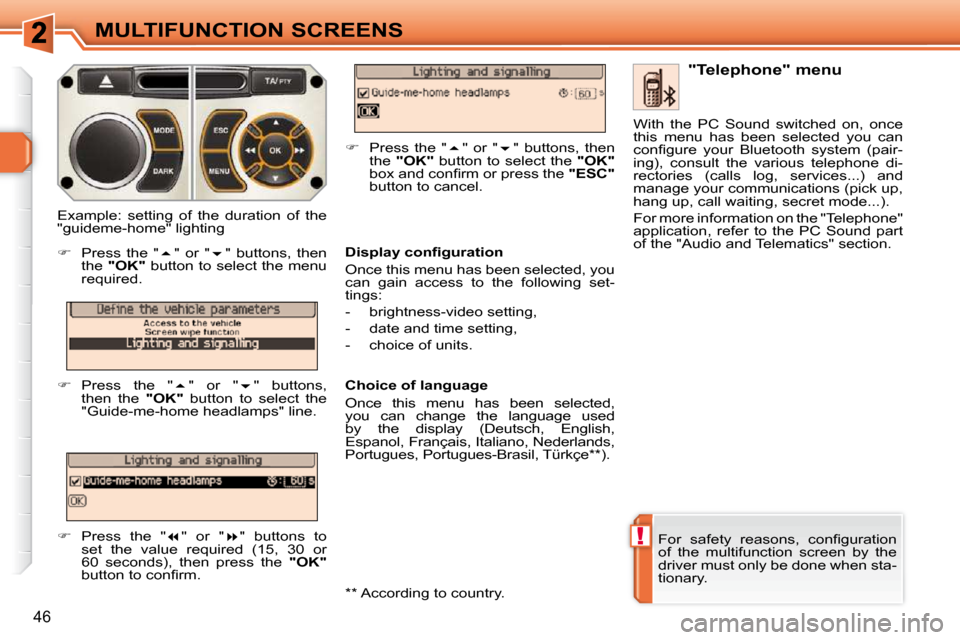

46
MULTIFUNCTION SCREENS
F o r s a f e t y r e a s o n s , c o n fi g u r a t i o n
of the multifunction screen by the
driver must only be done when sta-
tionary. "Telephone" menu
D i s p l a y c o n fi g u r a t i o n
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- choice of units.
C h o i c e o f l a n g u a g e
Once this menu has been selected,
you can change the language used
by the display (Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe ** ).
Example: setting of the duration of the
"guideme-home" lighting
Press the " " or " " buttons, then
the "OK" button to select the menu
required.
Press the " " or " " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.
Press the " " or " " buttons to
set the value required (15, 30 or
60 seconds), then press the "OK"
b u t t o n t o c o n fi r m .
Press the " " or " " buttons, then
the "OK" button to select the "OK"
b o x a n d c o n fi r m o r p r e s s t h e "ESC"
button to cancel. With the PC Sound switched on, once
this menu has been selected you can
c o n fi g u r e y o u r B l u e t o o t h s y s t e m ( p a i r -
ing), consult the various telephone di-
rectories (calls log, services...) and
manage your communications (pick up,
hang up, call waiting, secret mode...).
For more information on the "Telephone"
application, refer to the PC Sound part
of the "Audio and Telematics" section.
** According to country.
