PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see corresponding
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure sealing of
t h e f u s e b o x . Fuse table

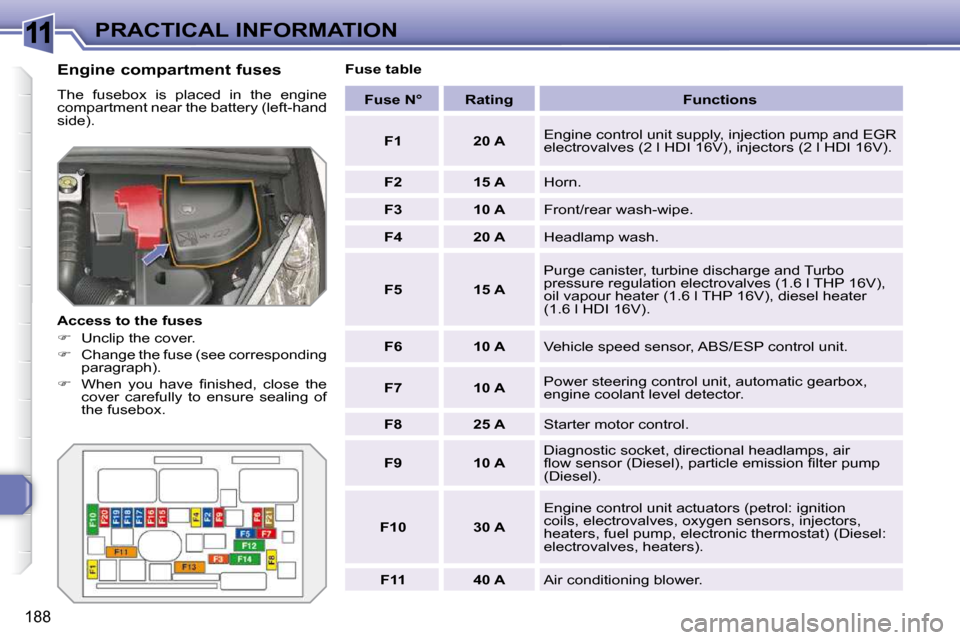

Fuse N° Rating Functions
F1 20 A Engine control unit supply, injection pump and EGR
e l e c t r o v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I 1 6 V ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Purge canister, turbine discharge and Turbo
p r e s s u r e r e g u l a t i o n e l e c t r o v a l v e s ( 1 . 6 l T H P 1 6 V ) ,
o i l v a p o u r h e a t e r ( 1 . 6 l T H P 1 6 V ) , d i e s e l h e a t e r
( 1 . 6 l H D I 1 6 V ) .
F6 10 A V e h i c l e s p e e d s e n s o r , A B S / E S P c o n t r o l u n i t .
F7 10 A P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
engine coolant level detector.
F8 25 A Starter motor control.
F9 10 A Diagnostic socket, directional headlamps, air
fl o w s e n s o r ( D i e s e l ) , p a r t i c l e e m i s s i o n fi l t e r p u m p
( D i e s e l ) .
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n
c o i l s , e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s ,
h e a t e r s , f u e l p u m p , e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l :
e l e c t r o v a l v e s , h e a t e r s ) .
F11 40 A Air conditioning blower.
Page 185 of 313
11
189
PRACTICAL INFORMATION
Fuse N° Rating Functions

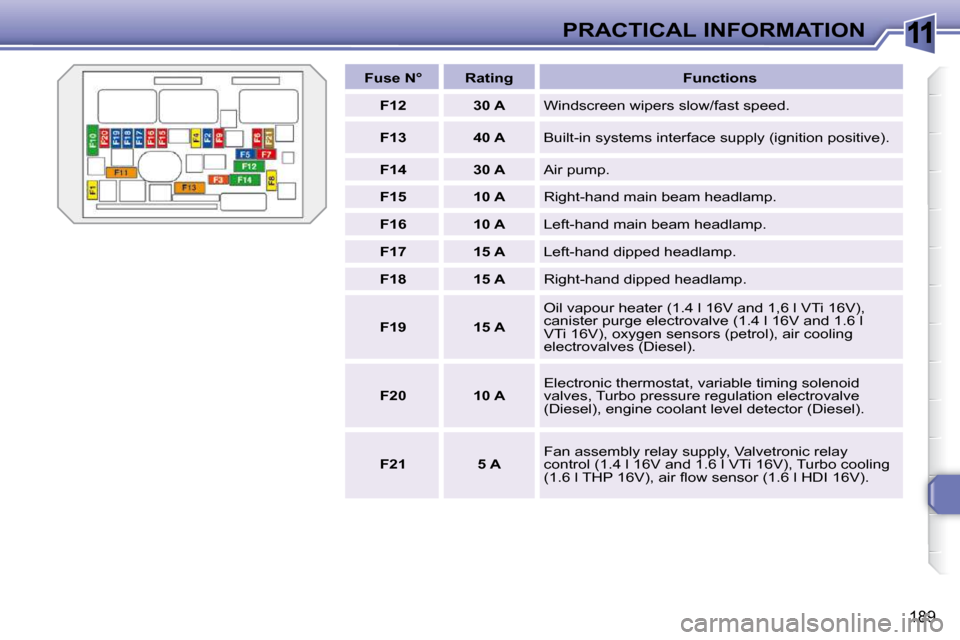

F12 30 A Windscreen wipers slow/fast speed.
F13 40 A B u i l t - i n s y s t e m s i n t e r f a c e s u p p l y ( i g n i t i o n p o s i t i v e ) .
F14 30 A Air pump.
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped headlamp.
F18 15 A Right-hand dipped headlamp.
F19 15 A O i l v a p o u r h e a t e r ( 1 . 4 l 1 6 V a n d 1 , 6 l V T i 1 6 V ) ,
canister purge electrovalve (1.4 l 16V and 1.6 l
V T i 1 6 V ) , o x y g e n s e n s o r s ( p e t r o l ) , a i r c o o l i n g
e l e c t r o v a l v e s ( D i e s e l ) .
F20 10 A Electronic thermostat, variable timing solenoid
valves, Turbo pressure regulation electrovalve
( D i e s e l ) , e n g i n e c o o l a n t l e v e l d e t e c t o r ( D i e s e l ) .
F21 5 A Fan assembly relay supply, Valvetronic relay
c o n t r o l ( 1 . 4 l 1 6 V a n d 1 . 6 l V T i 1 6 V ) , T u r b o c o o l i n g
( 1 . 6 l T H P 1 6 V ) , a i r fl o w s e n s o r ( 1 . 6 l H D I 1 6 V ) .
Page 187 of 313
11
191
PRACTICAL INFORMATION
Table of maxi-fuses **
Table of mini and midi-fuses above the battery **
* T h e m i d i - f u s e s a n d m a x i - f u s e s p r o v i d e additional protection for the electrical sys-
tems. All work on these types of fuse must
be carried out by a PEUGEOT dealer.
* * D u r i n g t h e y e a r .

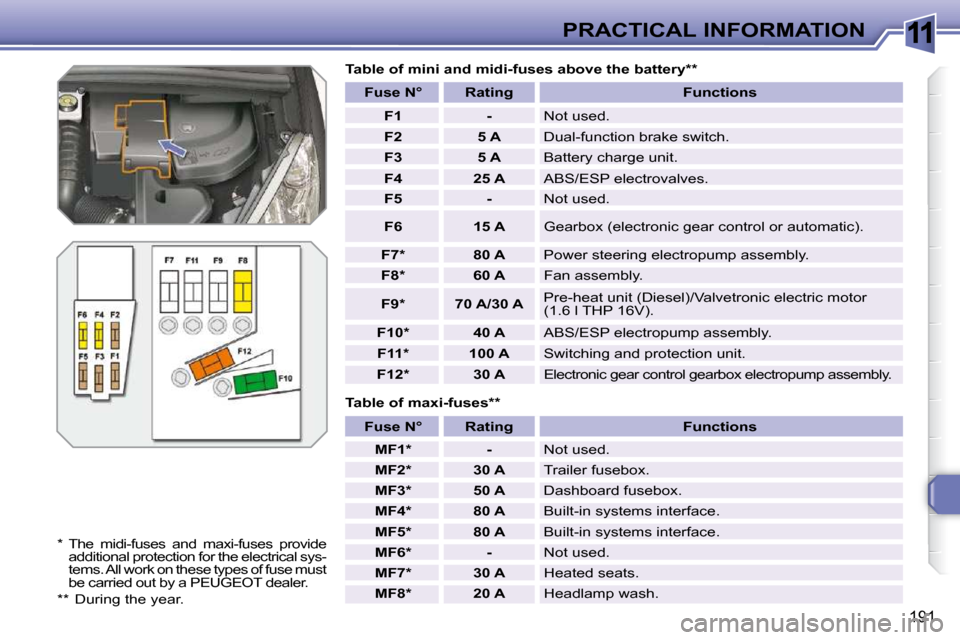

Fuse N° Rating Functions
F1 - Not used.
F2 5 A Dual-function brake switch.
F3 5 A B a t t e r y c h a r g e u n i t .
F4 25 A A B S / E S P e l e c t r o v a l v e s .
F5 - Not used.
F6 15 A G e a r b o x ( e l e c t r o n i c g e a r c o n t r o l o r a u t o m a t i c ) .
F7 * 80 A Power steering electropump assembly.
F8 * 60 A Fan assembly.
F9 * 70 A/30 A P r e - h e a t u n i t ( D i e s e l ) / V a l v e t r o n i c e l e c t r i c m o t o r
( 1 . 6 l T H P 1 6 V ) .
F10 * 40 A A B S / E S P e l e c t r o p u m p a s s e m b l y .
F11 * 100 A Switching and protection unit.
F12 * 30 A E l e c t r o n i c g e a r c o n t r o l g e a r b o x e l e c t r o p u m p a s s e m b l y .
Fuse N° Rating Functions
MF1 * - Not used.
MF2 * 30 A T r a i l e r f u s e b o x .
MF3 * 50 A D a s h b o a r d f u s e b o x .
MF4 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF5 * 80 A B u i l t - i n s y s t e m s i n t e r f a c e .
MF6 * - Not used.
MF7 * 30 A Heated seats.
MF8 * 20 A Headlamp wash.
