2009.5 Citroen C4 PICASSO DAG Owner's Manual

97
VI
F I T T I N G S

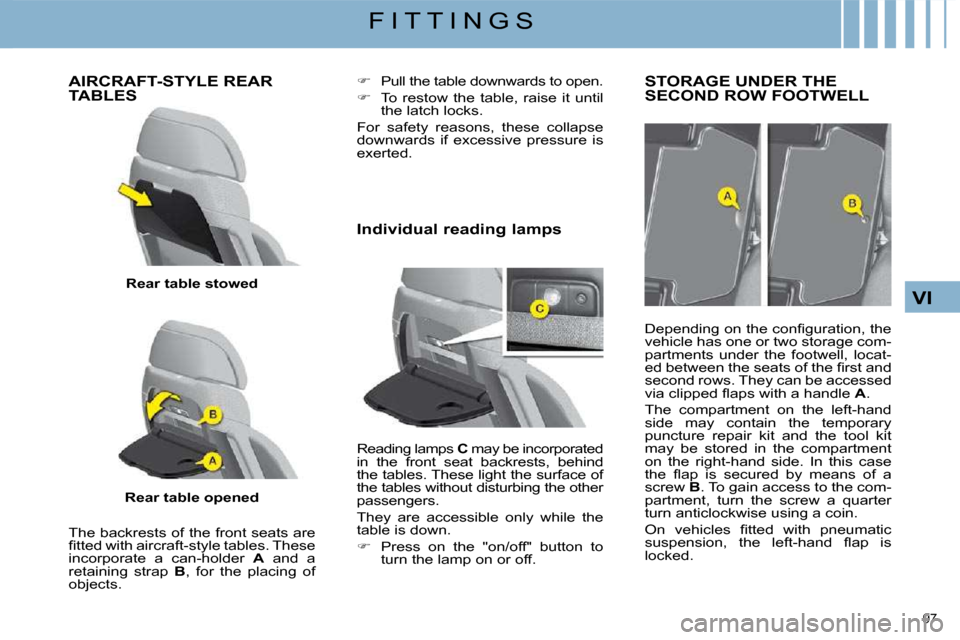

AIRCRAFT-STYLE REAR TABLES

Rear table stowed

Rear table opened
The backrests of the front seats are
fi tted with aircraft-style tables. These
incorporate a can-holder A and a
retaining strap B , for the placing of
objects.
 Pull the table downwards to open.

 To restow the table, raise it until
the latch locks.
For safety reasons, these collapse
downwards if excessive pressure is
exerted.
Reading lamps C may be incorporated
in the front seat backrests, behind
the tables. These light the surface of
the tables without disturbing the other
passengers.
They are accessible only while the
table is down.

 Press on the "on/off" button to
turn the lamp on or off.
STORAGE UNDER THE SECOND ROW FOOTWELL
Depending on the confi guration, the
vehicle has one or two storage com-
partments under the footwell, locat-
ed between the seats of the fi rst and
second rows. They can be accessed
via clipped fl aps with a handle A .
The compartment on the left-hand
side may contain the temporary
puncture repair kit and the tool kit
may be stored in the compartment
on the right-hand side. In this case
the fl ap is secured by means of a
screw B . To gain access to the com-
partment, turn the screw a quarter
turn anticlockwise using a coin.
On vehicles fi tted with pneumatic
suspension, the left-hand fl ap is
locked.
Individual reading lamps

98
VI
F I T T I N G S
SIDE BLINDS (C4 PICASSO)
Fitted on the 2nd row rear windows,
these protect young children from
the sun's rays.

 Pull on the tab A and anchor the
blind on the hook B .
SIDE BLINDS (GRAND C4 PICASSO)
Fitted on the 2nd and 3rd row rear
windows, these protect young children
from the sun's rays.
Second row

 Pull on the tab A and anchor the
blind on the hooks B .
Third-row
The blinds are incorporated in the
third-row trim panels.

 Pull on the tab and anchor the
blind on the hooks.
(GRAND C4 PICASSO)

 Pull on the tab and anchor the
blind on the hooks.
Do not attach or suspend heavy
objects in the environs of the sun
visors (blind housings and hooks...).
THIRD ROW STORAGE
Third-row passengers may have
storage pockets in the side panel
and each of them will have a cup-
holder (7 seater model).

99
VI
F I T T I N G S
LUGGAGE COVER (C4 PICASSO)
This is in two parts.
Rear shelf

Removal

 Unhook the cords.

 Push upwards, then lift on each
side of the luggage cover. Front shelf

Removal

 First remove the rear shelf.

 Push upwards, then lift on each
side.

Fitting

 Move the luggage cover to its
slots and push fi rmly down.

 So that the luggage cover will
rise with the tailgate, take the
cords and attach them on the
tailgate.
Refi tting

 Direct the fl ap downwards.

 Offer the luggage cover to its
mountings and push fi rmly
down.

100
VI
F I T T I N G S
MODUBOX (C4 PICASSO)
Equipment for use both inside the
vehicle and away from the vehicle.
It is composed of a shopping trol-
ley and a fl exible bag (isotherm on
some versions) which can be used
independently of each other depen-
ding on your needs (by detaching
the fastenings on each side at the
top and bottom).
To use

 Unhook the red strap to free the
Modubox.

 Unhook the black strap then
press on the round buttons
on either side of the Modubox
simultaneously to deploy it. Use of the Modubox outside
the vehicle
Stowage inside the vehicle

 Perform the operations in
reverse to fold and stow inside
the vehicle.

 If you have used your Modubox
away from the vehicle, take care
to reposition it correctly in the
housings provided for this pur-
pose.
BAG HOOK
LUGGAGE COVER BLIND (GRAND C4 PICASSO)
Position 1
5-seat confi guration; installed be-
hind the second-row seats, with the
third-row seats folded away.

 Press on the recess on the left
hand side of the Modubox to
raise (or lower) the handle.
Located on the left-hand interior wall
of the boot, this permits the securing
of shopping bags.
Installing the roller

 Position the left-hand end of the
blind roller in notch A .

 Compress the right-hand end of
the roller and place it in notch B .

 Unroll the blind until it reaches
the boot pillars.

 Insert the guides of the blind into
the rails on the pillars.

Removing the roller

 Carry out these operations in
reverse order.

101
VI
F I T T I N G S
The roller has a moving fl ap to
avoid interference with the second-
row passengers when the seats
are in the "reclined" position.
 Engage the lug on the left of the
roller in notch C .

 Pass the right-hand side above
the third-row armrest.

 Engage the lug in notch D .

 Pull the seat belt(s) so that they
will deploy without locking.

 Unroll the blind and engage the
guides into the rails on the pillars.

 Lock the seat(s) in position.

Installing the roller

 Roll up the blind, then remove
the roller from its initial position.

 Position the roller, with the blind
pull bar uppermost, fl ap down-
ward.

 Fold the concertina boards.
Removing the roller

 Push the fl ap towards the seat
backrest.

 Lift the concertina board by grab-
bing it at the side, then position it
vertically.

 Unlock the seat by pulling the
strap E .


Push the backrest towards the front.

 Proceed in reverse order to in-
stalling. Position 3
7-seat confi guration; stowed behind
the third row seats when these are
folded away.

Installing the roller

 Fold the concertina boards.

 Position the roller, with the blind
pull bar uppermost, fl ap down-
ward.

 Engage the lug on the left of the
roller in notch C .

 Pass the right-hand side above
the third-row armrest.

 Engage the lug in notch D .

Removing the roller

 Proceed in reverse order to in-
stalling.
Position 2
7-seat confi guration; installed be-
hind the third-row seats when these
are folded away. This position con-
ceals objects stowed in the boot
from outside view.
The blind can only be stored when
the seats are folded away.
You can position the concertina
board vertically to lodge a bulkier
object in the boot well.

102
VI
F I T T I N G S
HIGH CARGO NET (GRAND C4 PICASSO)
This enables you to maximise the
vehicle’s loadspace.
It retains objects, preventing them
from sliding towards the front of the
passenger compartment.

You insert it under the roller of the
luggage-cover blind, securing it
on the third-row side mouldings. Position 1
5-seat confi guration; installed behind
the second row.

Installing the roller

 Remove the protective covers
located under the blind roller
notches.

 Position the roller under that of
the luggage-cover blind.

 Raise the fl ap on the blind, posi-
tioning it on top of the blind.

 Deploy the net, passing it be-
tween the rollers and the seats.

 Pull the net upwards.

 Anchor it to the roof by means of
the fi xing points (after you have
removed their covers).

Removing the roller

 Perform these operations in
reverse order. Position 2
2-seat confi guration; installed behind
the fi rst row.

Removing the roller

 Carry out these operations in
reverse order.

Installing the roller

 With the second-row seats folded
away, remove the covers of the
Isofi x anchoring points located on
the seat backrests.

 Secure the roller on the Isofi x
anchoring points.

 Deploy the net and pull it upwards.

 Anchor it to the roof by means of
the fi xing points (after you have
removed their covers).

103
VI
F I T T I N G S
LUGGAGE ANCHORING RINGS (C4 PICASSO)
There are 4 anchoring rings in the
boot to enable you to secure your
luggage:
- 1, 2, 3 and 4 on the boot fl oor.
LUGGAGE ANCHORING RINGS (GRAND C4 PICASSO)
There are 4 anchoring rings in the
boot to enable you to secure your
luggage:
- 1, 2, 3 and 4 on the boot fl oor. For reasons of safety in the event of
sudden braking, it is recommended
that you place heavy objects on
the fl oor as close as possible to
the backrests of the second-row
seats.
LUGGAGE RETAINING NET (GRAND C4 PICASSO)
Attached to the luggage anchoring
rings, it allows objects to be held on
the boot fl oor.

104
VI
F I T T I N G S
TORCH
This is a removable lamp, incorpo-
rated in the boot wall, which can be
used to light the boot or as a torch.
Grand C4 Picasso

C4 Picasso Boot lighting
The boot lamp
A comes on automat-
ically when the boot is opened and
switches off automatically when the
boot is closed.
Various lighting durations are avail-
able:
-
ignition off, approximately ten minutes,
- in energy economy mode, approxi- mately thirty seconds,
- engine running, no limit.
Operation of the torch
This torch operates with NiMH re-
chargeable batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
 Extract the torch from its location
pulling it upwards, as indicated
by the arrow.

 Press the switch B , located on
the back, to switch the torch on
or off.

 Unfold the support C , located on
the back, to set down and raise
the torch; for example, when
changing a wheel.
Storing the torch

 Put the torch back in place in its
location starting with the lower
part.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
Observe the polarities when fi tting
the batteries.
Never replace the rechargeable
batteries with normal single-use
batteries.
For replacement of the batteries,
see the "Practical infor
mation -
§ Changing a bulb" section.
It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.
Using the torch
