2009.5 Citroen C4 PICASSO DAG height adjustment

14
F A M I L I A R I S A T I O N
Front seats
Head restraint

Backrest angle

Seat height adjustment

Lumbar support

Longitudinal adjustment

Armrest Electric adjustments
Manual adjustments

 58

Heated seat control (lo-
cated on the inside of the
front seats)

 57
1. Adjustment of seat height, angle
and longitudinal position

2. Adjustment of backrest angle and
lumbar support

3. Driver: memorisation of driving po-
sitions
The seats can also be adjusted on a
temporary basis:
- on opening one of the front doors,
- after switching on the ignition.
G E T T I N G S T A R T E D

15
F A M I L I A R I S A T I O N

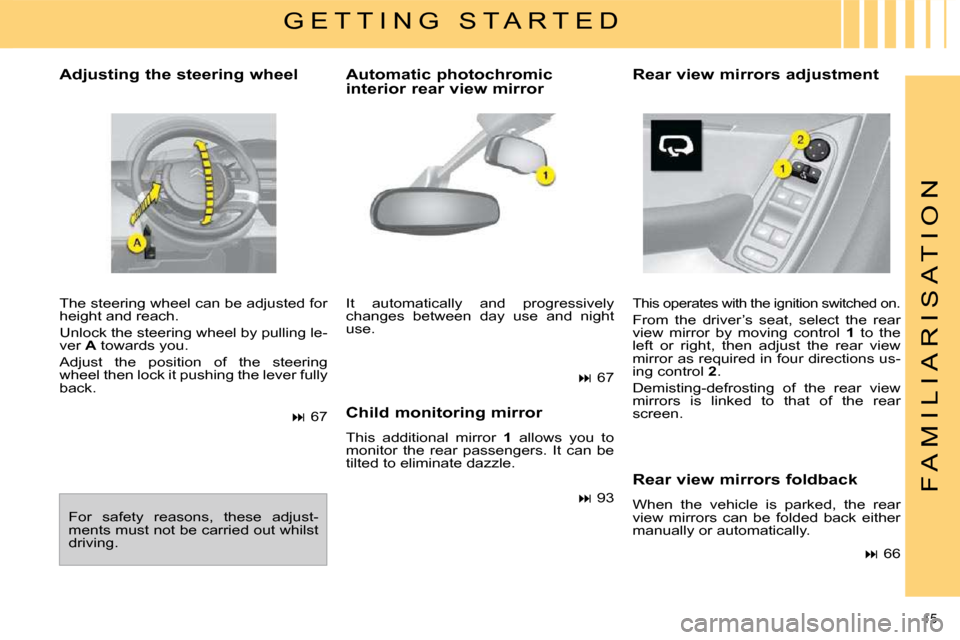

Adjusting the steering wheel
The steering wheel can be adjusted for
height and reach.
Unlock the steering wheel by pulling le-
ver A towards you.
Adjust the position of the steering
wheel then lock it pushing the lever fully
back.

 67 It automatically and progressively
changes between day use and night
use.

This operates with the ignition switched on.
From the driver’s seat, select the rear
view mirror by moving control 1 to the
left or right, then adjust the rear view
mirror as required in four directions us-
ing control 2 .
Demisting-defrosting of the rear view
mirrors is linked to that of the rear
screen.

 93

 66
For safety reasons, these adjust-
ments must not be carried out whilst
driving. Child monitoring mirror
This additional mirror
1 allows you to
monitor the rear passengers. It can be
tilted to eliminate dazzle.
Rear view mirrors foldback
When the vehicle is parked, the rear
view mirrors can be folded back either
manually or automatically.
G E T T I N G S T A R T E D
Automatic photochromic
interior rear view mirror Rear view mirrors adjustment

 67

57
III
C O M F O R T
FRONT SEATS
MANUAL ADJUSTMENTS
1. Forwards-backwards adjustment
Raise the control bar, then slide the
seat to the position desired. 2. Lumbar support
Rotate the control until you attain
the position desired. 3. Seat height adjustment
Raise or lower the the control the
number of times necessary to obtain
the position desired.
4. Backrest angle
Action the control and adjust the angle
of the backrest.
It is possible to incline the backrest
45° rearwards by tilting it until it locks;
to unlock it, lift the control.
5. Armrest
To adjust the position of the armrest,
pull it up and then fully down, and
then raise it to the desired position.
6. Head restraint
To raise it, pull it upwards. To lower
it, press on the control as well as on
the head restraint.
The adjustment is correct when the
top of the head restraint is level with
the top of the head.
It can also be adjusted for tilt (de-
pending on version).
To remove it, press on the unlocking
button and pull it upwards.
To adjust the head restraint for-
wards/backwards, move the base of
the head restraint to obtain the posi-
tion desired.
Never drive without the head re-
straints fi tted. They must be in
place and adjusted correctly.

58
III
C O M F O R T
FRONT SEATS
1. Adjustment of the
seat height and angle,
forwards-backwards 2.
Adjustment of backrest
angle and lumbar support
The seats can also be adjusted elec-
trically for a short period:
- on opening one of the front doors,
- after switching off the ignition. Heated seats control
ELECTRIC ADJUSTMENTS
Raise or lower the front of
control
1 to raise or lower
the front of the seat base
(on driver’s seat).
Raise or lower the rear of
control 1 to raise or lower
the seat.
Action control 1 forwards or
rearwards to slide the seat
forwards/backwards. Push the top of control
2
forwards or rearwards to ad-
just the backrest angle.
Raise or lower control 2 to
increase or decrease the
lumbar support.
With the engine running, the front
seats can be heated separately.

 Use the corresponding adjust-
ment wheel, placed on the inner
side of each front seat, to switch
on and select the level of heating
required:
0
: Off.
1
: Low.
2
: Medium.
3
: High.

67
III
C O M F O R T
Interior mirror
Adjustable mirror providing a central
rearward view.
Manual model
The mirror is fi tted with a night-time
anti-dazzle device.
Adjustment

 Adjust the mirror so that the
glass is directed correctly in the
"day" position.
Day/night position

 Pull the lever to change to the
"night" anti-dazzle position.

 Push the lever to change to the
normal "day" position.

In order to prevent dazzle, the inte-
rior mirror glass darkens automati-
cally in relation to the intensity of the
light from the rear.
It lightens when the light (light beam
of following vehicles, sun...) de-
creases, so guaranteeing optimum
visibility.
In order to guarantee optimum visi-
bility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.
STEERING WHEEL ADJUSTMENT
The height and reach of the steering
wheel can be adjusted to adapt the
driving position to the size of the driver.
Adjustment

 First, adjust the driver's seat to
the most suitable position.

 When stationary , pull the control
to unlock the steering wheel.

 Adjust the height and reach.

 Push the control to lock the
steering wheel.
After locking, if you press fi rmly on
the steering wheel, a slight click may
be heard.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". Automatic day/night model
System which automatically and
progressively changes between the
day and night uses.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
