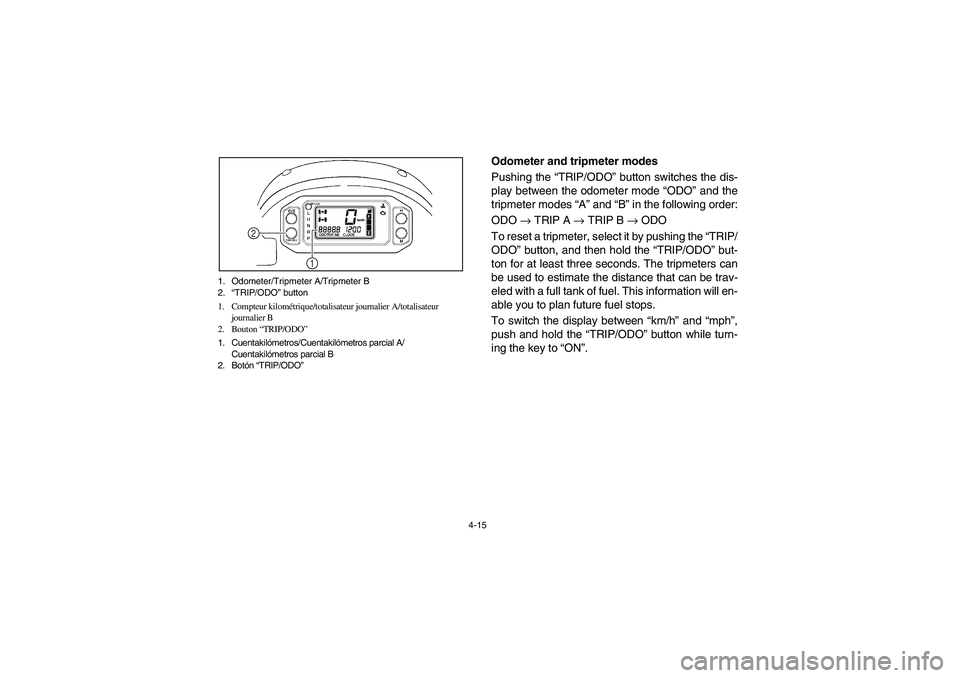

4-15 1. Odometer/Tripmeter A/Tripmeter B
2.“TRIP/ODO” button
1. Compteur kilométrique/totalisateur journalier A/totalisateur
journalier B
2. Bouton “TRIP/ODO”
1. Cuentakilómetros/Cuentakilómetros parcial A/
Cuentakilómetros parcial B
2. Botón “TRIP/ODO”
1 2
km/h
Odometer and tripmeter modes
Pushing the “TRIP/ODO” button switches the dis-
play between the odometer mode “ODO” and the
tripmeter modes “A” and “B” in the following order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the “TRIP/
ODO” button, and then hold the “TRIP/ODO” but-
ton for at least three seconds. The tripmeters can
be used to estimate the distance that can be trav-
eled with a full tank of fuel. This information will en-
able you to plan future fuel stops.
To switch the display between “km/h” and “mph”,
push and hold the “TRIP/ODO” button while turn-
ing the key to “ON”.
