2008 TOYOTA SIENNA light

08 SIENNA_U (L/O 0801)
44
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Type A (to open only)
Type B (to open and close)
Automatic operation:
Type A—Push the switch completely down
and then release it. The window will fully
open. To stop the window partway, lightly
pull the switch up and then release it.
Type B—Push the switch completely down
or pull it completely up, and then release
it. The window will fully open or close. To
stop the window partway, lightly move the
switch in the opposite direction and then
release it.
Jam protection function (type B only):
During automatic closing operation, the
window stops and opens half way if some-
thing gets caught between the window and
window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.If the battery is disconnected or run
down,
the power window may not operate
automatically and the jam protection func-
tion will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normal-
ize the power window.
To normalize the power window:
1. Push down the power window switch and lower the window halfway.
2. Pull up the switch until the window closes and hold the switch for a sec-
ond.
Make sure that the window opens and
closes automatically. If the power window
cannot be operated properly, have it
checked by your Toyota dealer.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

08 SIENNA_U (L/O 0801)
48
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

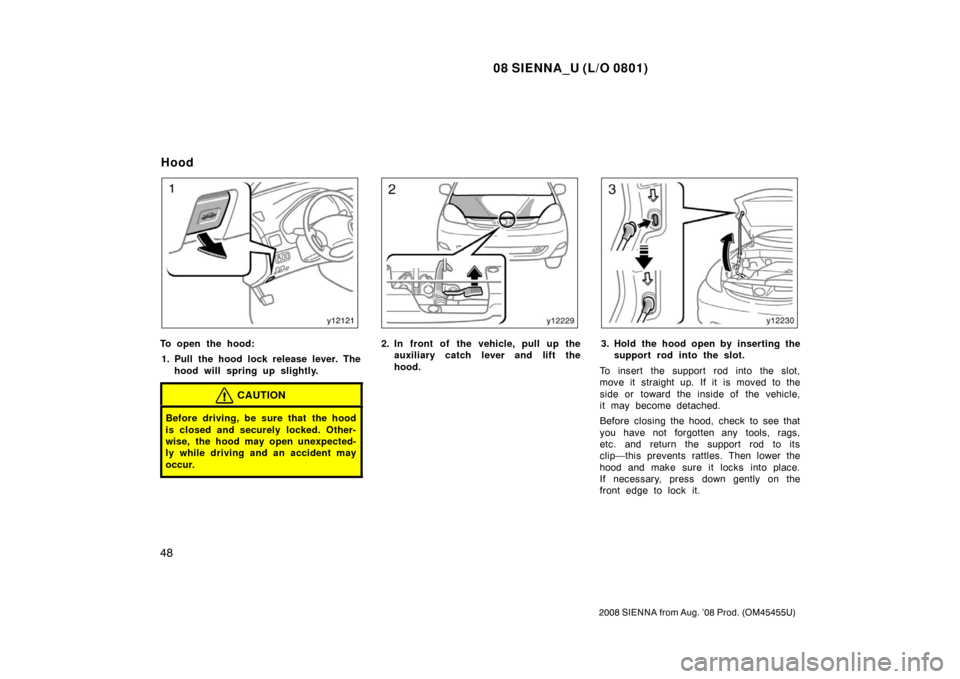

To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.3. Hold the hood open by inserting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
Hood

08 SIENNA_U (L/O 0801)
49
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.
The system sounds alarm and flashes
lights when forcible entry is detected.
The alarm is triggered if any of the
side doors, back door or hood is forci-
bly unlocked or opened or the battery
terminal is disconnected and then re-
connected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
turn signal lights, and turns on the front
personal lights.SETTING THE SYSTEM1. Turn the engine switch to the “LOCK” position and remove it.
On some models, the indicator light will
start flashing when the key is removed
from the engine switch. (See “Engine
immobilizer system” on page 13 in this
Section for details.) 2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked.
Theft deterrent system

08 SIENNA_U (L/O 0801)
50
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
CANCELING THE SYSTEM
The system can be canceled by the fol-
lowing ways:
Any of the side doors or the back door
is unlocked with the key or wireless
remote control transmitter.
Turn the engine switch to the “ON”
position.
If the parking lights and tail lights come
on for 2 seconds when the system is
canceled, the system has been alarmed.
Check to see if there is any abnormality
with your vehicle. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the side doors or back door
is unlocked or opened without the key
or wireless remote control transmitter,
or if the hood is forcibly opened.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hotwired.
The indicator light will come on when the
system is activated.
If the alarm has been activated and any
of the side doors or back door is un-
locked, all the side doors and back door
will re −lock automatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the system
Once set, the system is automatically re-
set after the alarm stopped automatically
after one minute.
The alarm will activate again under the
same circumstances described in
“Activating the system”. Stopping the alarm
The alarm will be stopped by the following
these ways:
Unlock any of the side doors or the
back door with the key or wireless re-
mote control transmitter.
Turn the engine switch from the
“LOCK” to “ON” position.
These ways cancel the system at the
same time.
If the battery becomes discharged due
to the vehicle being unused for a long
time, etc., when the battery is recharged
or replaced, the system will give the
alarm. If this happens, immediately unlock
any of the side doors or the back door
with the key or the wireless remote con-
trol transmitter, and the alarm will stop.

08 SIENNA_U (L/O 0801)
51
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
TESTING THE SYSTEM1. Open all the windows.
2. Set the system as described above. All the side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light starts flash-
ing.
3. Unlock any side door from the inside. The system should activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Fuel tank cap

08 SIENNA_U (L/O 0801)
52
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
NOTICE
Avoid opening the fuel filler door
when the left side sliding door is fully
opened. Otherwise, the fuel filler door
may be damaged.
2. To remove the fuel tank cap, turnthe cap counterclockwise. Pause
slightly before removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.3. The removed cap can be hanged on the cap hanger.

08 SIENNA_U (L/O 0801)
53
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
When installing the cap, turn it clock-
wise until one click is heard, in order
to fully close it. The cap returns slight-
ly when your hand is released from the
cap after closure, however this does
not cause any problems.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.
Sliding operation
Tilting operation
To operate the moon roof, use the
switch on the overhead console.
The moon roof works when the engine
switch is in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “SLIDE
OPEN” side.
The roof will fully open automatically. To
stop the roof partway, push the switch on
either the “SLIDE OPEN” or “TILT UP”
side quickly.
When you quickly push and release the
switch, the moon roof will open while the
switch is being pushed and stop when
released.
The sun shade will be opened together
with the roof.
When the moon roof is opened fully, the
deflector will raise to reduce the entering
of the strong wind. The angle of the de-
flector will be adjusted according to the
vehicle speed.
To close: Push the switch on the “TILT
UP” side.
Electric moon roof

08 SIENNA_U (L/O 0801)
58
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions
