2008 TOYOTA SIENNA window

08 SIENNA_U (L/O 0801)
2
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Multi−information display or garage
door opener box
6. Auxiliary boxes
7. Glove box
8. Power window switches
9. Power door lock switches
10. Seat heater dials or auxiliary box
11. Cup holder and coin holder
12. Power outlets
13. Automatic transmission selector lever
14. Tire pressure warning system reset switch
15. Power sliding door main switch (“SLIDE DOOR OFF” switch)
16. Parking brake pedal
17. Window lock switch
18. Driving position memory buttons
19. Hood lock release lever
20. Power back door main switch (“BACK DOOR OFF” switch)
Instrument panel overview

08 SIENNA_U (L/O 0801)
3
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
4. Emergency flasher switch
5. Audio system or rear view monitor system/navigation system including
audio system (For the navigation
system, see the separate “Navigation
System Owner ’s Manual”.)
6. Power outlet main switch
7. AUX adapter
8. Air conditioning controls
9. “AIR BAG ON” and “AIR BAG OFF” indicator lights
10. Toyota park assist system switch and indicator light
11. Personal light main switch
12. Engine switch
13. “TRAC OFF” switch
14. Cruise control switch or dynamic laser cruise control switch

08 SIENNA_U (L/O 0801)
9
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Front doors 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Sliding doors 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Power sliding doors 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Back door 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Power back door 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Power windows 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Manual quarter windows 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Power quarter windows 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Hood 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

08 SIENNA_U (L/O 0801)
18
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Left side power sliding door (type B only)
Push and hold the switch of the wire-
less remote control transmitter about
one second. The power sliding door
opens and closes completely.
Right side power sliding door—
To open: Push the sliding door open
switch (right side).
To close: Push the sliding door open
switch (right side) again.
Left side power sliding door—
To open: Push the sliding door open
switch (left side).
To close: Push the sliding door open
switch (left side) again.Opening operation can be performed by
the switches under the following conditions
only:
The sliding door is unlocked.
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch on the
instrument panel is pushed out.)
The key is not in the engine switch.
The sliding door is between the fully
−
closed position and half −opened posi-
tion.
The sliding door stops at the half −opened
position when the window is opened more
than about 15 cm (6 in.).
The left side power sliding door does not
operate when the fuel filler door is
opened.
Closing operation can be performed by the
wireless remote control switches under the
following conditions only:
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch on the
instrument panel is pushed out.)
The key is not in the engine switch.
The sliding door is between the fully −
opened position and half −opened posi-
tion. The sliding door operation by the wireless
remote control can be changed or dis-
abled. For details, contact your Toyota
dealer.

08 SIENNA_U (L/O 0801)
27
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
When stopping on a downward
slope, open the door fully while
passengers are getting on or off.
Do not pull the outside handle or
inside handle while the door is
open as the door could suddenly
close by itself causing injury.
NOTICE
Do not close the sliding door by ap-
plying the brakes. Doing so could
cause the door to be damaged.
When the fuel filler door is opened, the
left side sliding door will not open.
Close the fuel filler door securely and
then operate the sliding door.
NOTICE
Avoid forcibly opening the left side
sliding door fully when the fuel filler
door is opened. Otherwise, the fuel
filler door may be damaged.
When the sliding door window is
opened more than about 15 cm (6 in.),
the sliding door will stop at half
opened position for safety reasons.
Close the window and then operate the
sliding door.
CAUTION
Do not leave the sliding door at half
opened position because the door is
not latched at this position. If the
vehicle is stopped on a downward
slope, it may move and cause an un-
expected injury.

08 SIENNA_U (L/O 0801)
35
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
When the sliding door window is
opened more than about 15 cm (6 in.),
the sliding door will stop at half
opened position for safety reasons.
Close the window and then operate the
sliding door.
CAUTION
When the power sliding door is ON—
Do not leave the sliding door at half
opened position because the door will
unlock after 30 minutes. If the vehicle
is stopped on a downward slope, it
may move and cause an unexpected
injury.
When the power sliding door is
OFF—Do not leave the sliding door at
halfopened position because the
door is not latched at this position.
If the vehicle is stopped on a down-
ward slope, it may move and cause
an unexpected injury.
NOTICE
When the power sliding door is ON—
To prevent the battery from being dis-
charged, do not leave the sliding door
at halfopened position.
Open the sliding door fully and move
the lock lever to the “LOCK” position
as shown on the label. Then close the
sliding door.
When the child −protector is locked, you
cannot open the sliding door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
—Sliding door
childprotectors

08 SIENNA_U (L/O 0801)
43
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Back door closer: When the back door
has not been fully closed, it is automati-
cally closed completely even if the power
back door system is off.
CAUTION
Careful attention is needed so as
not to get your fingers trapped as
the back door automatically closes
when it has not been fully closed.
Never allow a child to operate the
back door.
NOTICE
Do not apply excessive force when
the back door closer is operating.
Otherwise, the back door closer may
be damaged.
The windows can be operated with the
switch on each front door.
The power windows work when the engine
switch is in the “ON” position.
Key off operation: If both front doors are
closed, the front door windows and sliding
door windows work for 43 seconds even
after the engine switch is turned off. It
stops working when either front door is

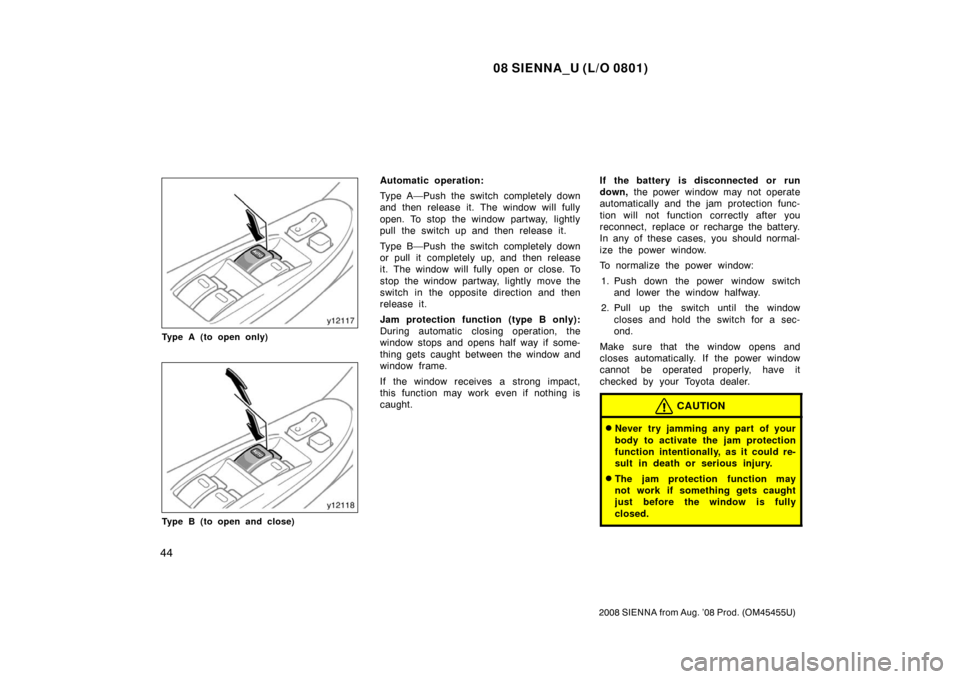

opened. OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation:
The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
Power windows

08 SIENNA_U (L/O 0801)
44
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Type A (to open only)
Type B (to open and close)
Automatic operation:
Type A—Push the switch completely down
and then release it. The window will fully
open. To stop the window partway, lightly
pull the switch up and then release it.
Type B—Push the switch completely down
or pull it completely up, and then release
it. The window will fully open or close. To
stop the window partway, lightly move the
switch in the opposite direction and then
release it.
Jam protection function (type B only):
During automatic closing operation, the
window stops and opens half way if some-
thing gets caught between the window and
window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.If the battery is disconnected or run
down,
the power window may not operate
automatically and the jam protection func-
tion will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normal-
ize the power window.
To normalize the power window:
1. Push down the power window switch and lower the window halfway.
2. Pull up the switch until the window closes and hold the switch for a sec-
ond.
Make sure that the window opens and
closes automatically. If the power window
cannot be operated properly, have it
checked by your Toyota dealer.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
