2008 TOYOTA SIENNA window

08 SIENNA_U (L/O 0801)
45
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

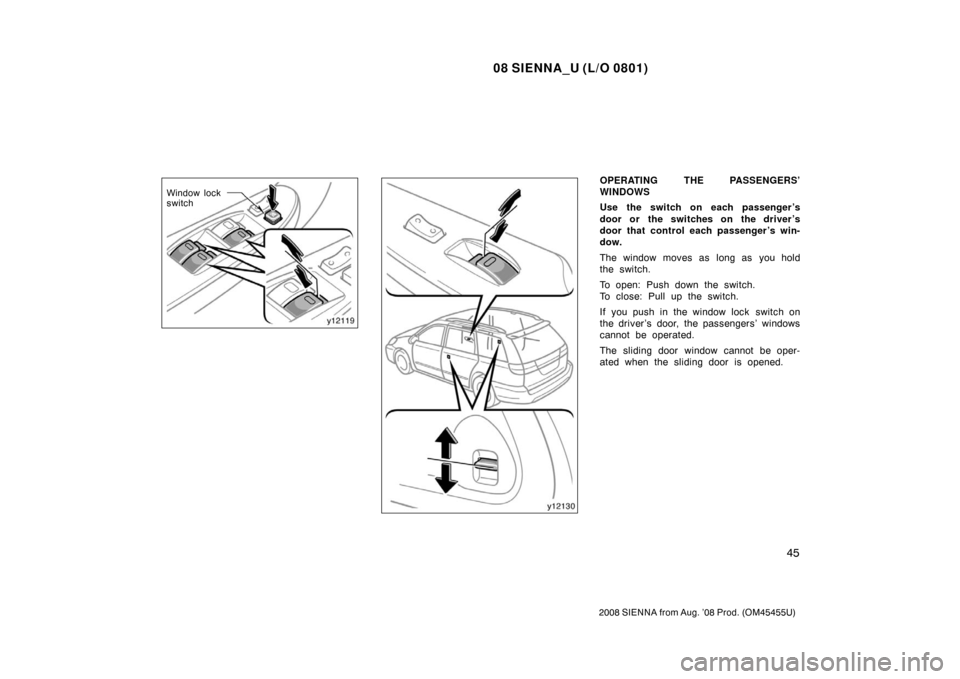

Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
The sliding door window cannot be oper-
ated when the sliding door is opened.

08 SIENNA_U (L/O 0801)
46
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
To avoid death or serious injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the key from the
engine switch when you leave your
vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still inserted
in the engine switch. Otherwise, he/
she could use the power window
switches and get trapped in a win-
dow. Unattended person (particular-
ly a small child) can be involved in
a serious accident.
To open the quarter window, pull the
latch handle toward you and swing it
fully out.
When closing the window, make sure it is
completely closed.
Manual quarter windows

08 SIENNA_U (L/O 0801)
47
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The quarter windows can be operated
with the “REAR VENT” switch on the
instrument panel.
The power quarter windows work when the
engine switch is in the “ON” position.
To open: Push the switch on the upper
side.
To close: Push the switch on the lower
side.
Both the left and right rear quarter win-
dows move as long as you hold the
switch.Key off operation:
If both front doors are
closed, they work for 43 seconds even
after the engine switch is turned off. They
stop working when either front door is
opened.
CAUTION
To avoid death or serious injury, you
must do the following.
Before you close the power quarter
windows, always make sure there is
nobody around the power quarter
windows. You must also make sure
the heads, hands and other parts of
the bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
quarter window switches without
supervision.
Be sure to remove the key from the
engine switch when you leave your
vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still inserted
in the engine switch. Otherwise, he/
she could use the power quarter
window switch and get trapped in
a window. Unattended person (par-
ticularly a small child) can be in-
volved in a serious accident.
Power quarter windows

08 SIENNA_U (L/O 0801)
51
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
TESTING THE SYSTEM1. Open all the windows.
2. Set the system as described above. All the side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light starts flash-
ing.
3. Unlock any side door from the inside. The system should activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.1. To open the fuel filler door, pull the lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Fuel tank cap

08 SIENNA_U (L/O 0801)
55
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Be sure to remove the key from the
engine switch when you leave your
vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still inserted
in the engine switch. Otherwise, he/
she could use the power window
switches and get trapped in a win-
dow. Unattended person (particular-
ly a small child) can be involved in
a serious accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a serious injury.
The jam protection function may
not work if something gets caught
just before the moon roof is fully
closed.

08 SIENNA_U (L/O 0801)
128
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The SRS side airbag on the passenger
seat will not activate if there is no pas-
senger sitting in the front passenger seat.
However, the side airbag on the passen-
ger seat may deploy if luggage is put on
the seat, or the seat belt is buckled up
regardless of the presence of the occu-
pant in the seat. (As for the front passen-
ger occupant classification system, see
“—Front passenger occupant classification
system” on page 135 in this Section.)
The SRS curtain shield airbag on the pas-
senger side are activated even with no
passenger in the front seat or all window−
side seat.
The SRS curtain shield airbags may acti-
vate even when the side airbags are not
activated.

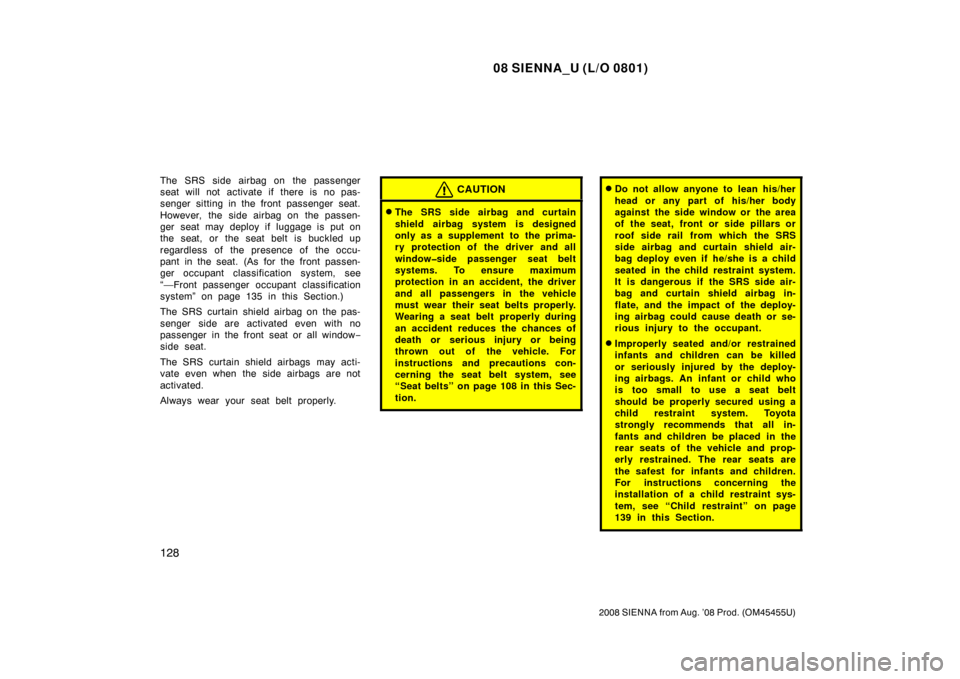

Always wear your seat belt properly.CAUTION
The SRS side airbag and curtain
shield airbag system is designed
only as a supplement to the prima-
ry protection of the driver and all
windowside passenger seat belt
systems. To ensure maximum
protection in an accident, the driver
and all passengers in the vehicle
must wear their seat belts properly.
Wearing a seat belt properly during
an accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For
instructions and precautions con-
cerning the seat belt system, see
“Seat belts” on page 108 in this Sec-
tion.
Do not allow anyone to lean his/her
head or any part of his/her body
against the side window or the area
of the seat, front or side pillars or
roof side rail from which the SRS
side airbag and curtain shield air-
bag deploy even if he/she is a child
seated in the child restraint system.
It is dangerous if the SRS side air-
bag and curtain shield airbag in-
flate, and the impact of the deploy-
ing airbag could cause death or se-
rious injury to the occupant.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all in-
fants and children be placed in the
rear seats of the vehicle and prop-
erly restrained. The rear seats are
the safest for infants and children.
For instructions concerning the
installation of a child restraint sys-
tem, see “Child restraint” on page
139 in this Section.

08 SIENNA_U (L/O 0801)
130
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
8. Front passenger ’s seat belt buckleswitch
9. Airbag sensor assembly
The SRS side airbag and curtain shield
airbag system is controlled by the airbag
sensor assembly. The airbag sensor as-
sembly consists of a safing sensor and
airbag sensor.
In a severe side impact, the side and
curtain shield airbag sensor and/or the
curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain
shield airbag inflators. At this time a
chemical reaction in the inflators quickly
fills the air bags with non −toxic gas to help
restrain the lateral motion of the occu-
pants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non −toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately. Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi
gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Front seats as well as parts of front and
side pillars, and roof side rails may be hot
for several minutes, but the airbags them-
selves will not be hot. The airbags are
designed to inflate only once.
CAUTION
SRS side airbags and curtain shield
airbags inflate with considerable
force. To reduce the possibility of
death or serious injury when they in-
flate, the driver and all windowside
passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.
Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbag and curtain
shield airbag could inflate with con-
siderable speed and force. Other-
wise, he/she may be killed or seri-
ously injured. Special care should
be taken especially when you have
a small child in the vehicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the
seats with a side airbag, and to the
front and side pillars and roof side
rail with a curtain shield airbag.

08 SIENNA_U (L/O 0801)
131
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

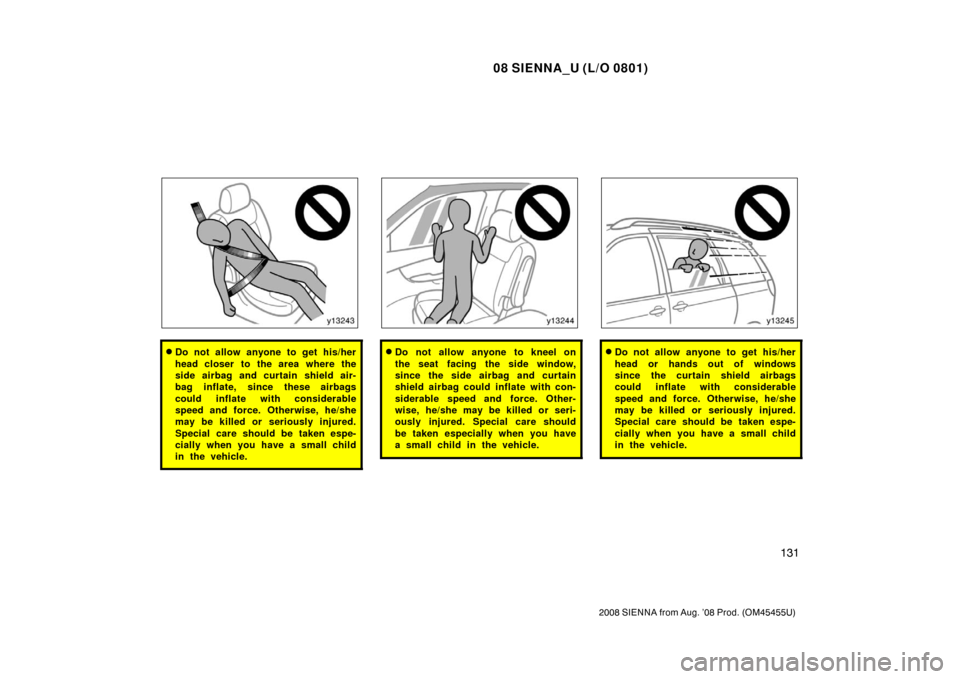

Do not allow anyone to get his/her
head closer to the area where the
side airbag and curtain shield air-
bag inflate, since these airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not allow anyone to kneel on
the seat facing the side window,
since the side airbag and curtain
shield airbag could inflate with con-
siderable speed and force. Other-
wise, he/she may be killed or seri-
ously injured. Special care should
be taken especially when you have
a small child in the vehicle.Do not allow anyone to get his/her
head or hands out of windows
since the curtain shield airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.
