08 SIENNA_U (L/O 0801)
109
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the great-
er the risk of death or serious inju-
ry.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 499
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
—Fastening front and rear
seat belts

08 SIENNA_U (L/O 0801)
213
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The vehicle stability control system
helps provide integrated control of the
systems such as an antilock brake
system, brake assist system, traction
control, engine control, etc. This sys-
tem automatically controls the brakes
and engine to help prevent the vehicle
from skidding when cornering on a slip-
pery road surface or operating steering
wheel abruptly.
The vehicle stability control system is acti-
vated when the vehicle speed is about
more than 15 km/h (9 mph).
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the system is in the self−check mode,
but does not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
flashes, an alarm sounds, special
care should be taken while driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 526 in Section 72.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the engine switch is turned
to “ON”. If the indicator light does not
come on when the engine switch is turned
on, contact your Toyota dealer.
Vehicle stability control
system

08 SIENNA_U (L/O 0801)
216
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after several minutes.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The compact spare tire is not equipped
with the tire pressure warning valve and
transmitter. If a tire goes flat, the warning
light will not turn off even though the flat
tire is replaced with the spare tire. Re-
place the spare tire with the repaired tire
and adjust the proper tire inflation pressur-
e. The tire pressure warning light will turn
off after several minutes.CAUTION

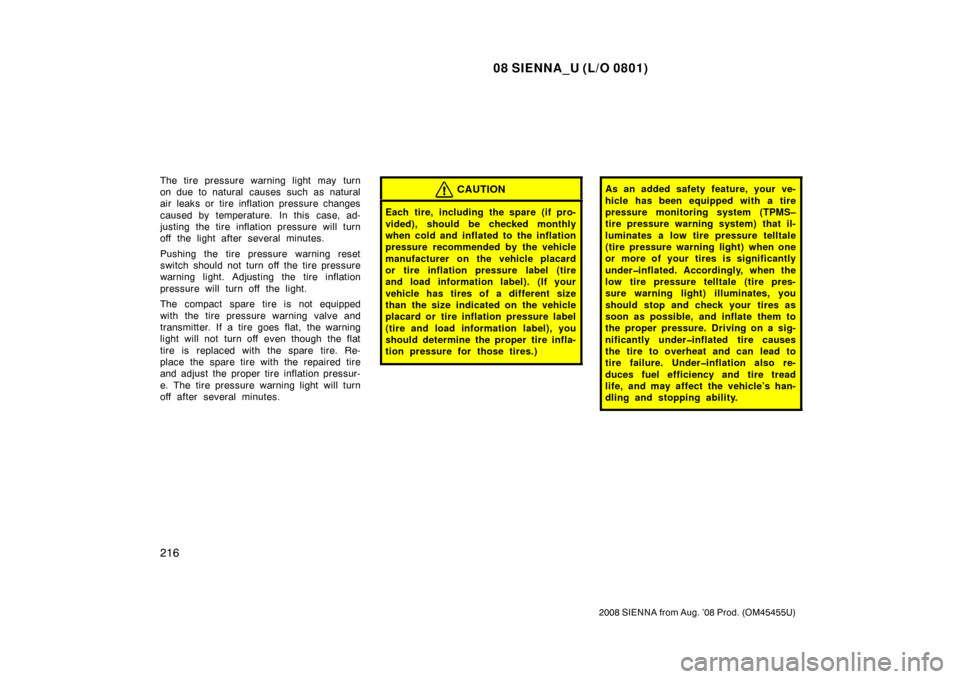

Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS–
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.

08 SIENNA_U (L/O 0801)
220
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
REPLACING TIRES AND WHEELS
When replacing the tires and wheels, be
sure to install tire pressure warning valves
and transmitters. ID codes on the tire
pressure warning valves and transmitters
are registered in the tire pressure warning
computer. When replacing a tire pressure
warning valve and transmitter, it is neces-
sary to register the ID code of tire pres-
sure warning valve and transmitter. Have
the ID code registered by your Toyota
dealer.
If the ID code is not registered, the sys-
tem will not work properly. After driving
for about 20 minutes, the tire pressure
warning light comes on after blinking for
1 minute to indicate a system malfunction.
NOTICE
When the tires or tire pressure warn-
ing valves and transmitters must be
replaced, have them replaced by your
Toyota dealer. The tire pressure warn-
ing valves and transmitters will be
affected by the installation or removal
of tires.
TIRE PRESSURE WARNING RESET
SWITCH
When initializing the system, the present
tire inflation pressure is stored as stan-
dard. The tire pressure warning system
determines decreased air pressure by
comparing the present and the standard
tire inflation pressures. When you change
the set tire inflation pressure, it is neces-
sary to initialize the tire pressure warning
system.
When changing the tire size.To initialize the system, perform the fol-
lowing:
1. Park the vehicle in a safe place and turn the engine switch off.
2. Adjust the pressure of all the installed tires to the specified cold tire inflation
pressure level. (See “Tires” on page
553 in Section 8.)
3. Turn the engine switch is in “ON” posi- tion.
4. Push and hold the tire pressure warn- ing reset switch until the tire pressure
warning light blinks slowly three times.
5. Wait for several minutes with the en- gine switch “ON”, and then turn the
engine switch to the “ACC” or “LOCK”
position.
If you push the tire pressure warning re-
set switch while the vehicle is moving,
initialization is not performed.
If you push the tire pressure warning re-
set switch accidentally and initialization is
performed, adjust the tire inflation pres-
sure to the specified level and initialize
the system again.

08 SIENNA_U (L/O 0801)
428
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
Do not overestimate the antilock
brake system: Although the antilock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tires grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
Antilock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at the moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
antilock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.
Ty p e A
Ty p e B

08 SIENNA_U (L/O 0801)
433
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

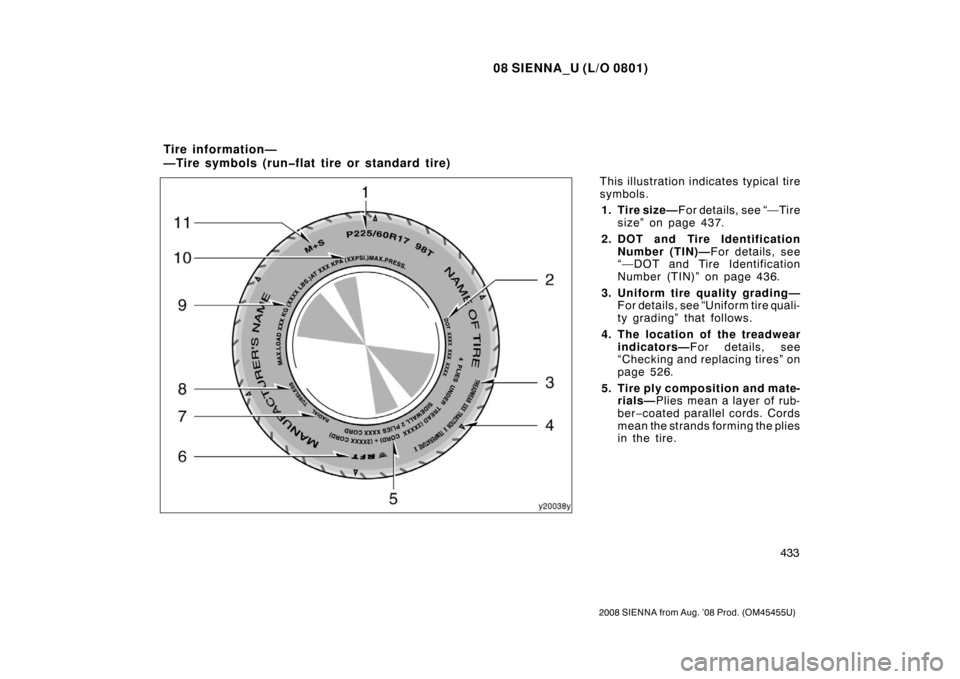

This illustration indicates typical tire
symbols.1. Tire size— F or det ails, see “— Ti re
size” on page 437.

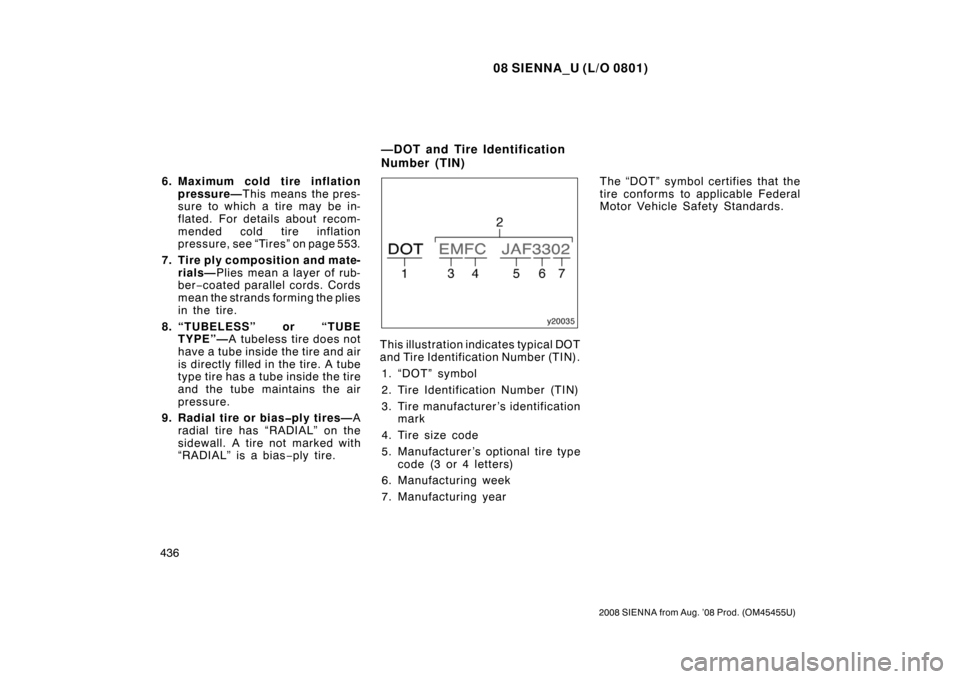

2. DOT and Tire Identification Number (TIN)— For details, see
“—DOT and Tire Identification
Number (TIN)” on page 436.
3. Uniform tire quality grading— For details, see “Uniform tire quali-
ty grading” that follows.
4. The location of the treadwear indicators— For details, see
“Checking and replacing tires” on
page 526.
5. Tire ply composition and mate- rials— Plies mean a layer of rub-
ber −coated parallel cords. Cords
mean the strands forming the plies
in the tire.
Tire information—
—Tire symbols (runflat tire or standard tire)

08 SIENNA_U (L/O 0801)
435
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

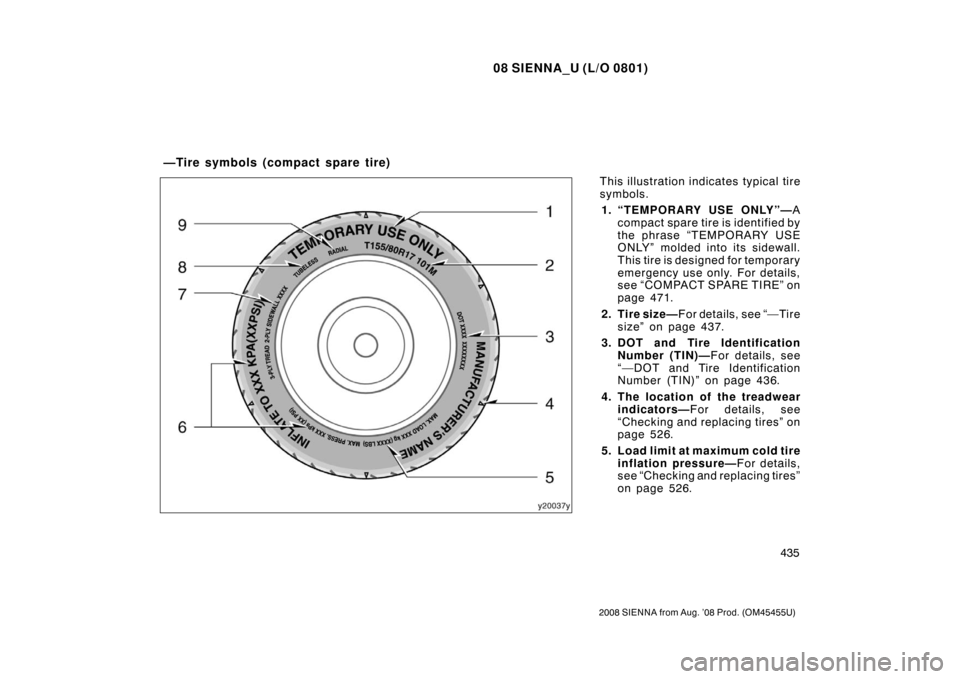

This illustration indicates typical tire
symbols.1. “TEMPORARY USE ONLY”— A
compact spare tire is identified by
the phrase “TEMPORARY USE
ONLY” molded into its sidewall.
This tire is designed for temporary
emergency use only. For details,
see “COMPACT SPARE TIRE” on
page 471.
2. Tire size— F or det ails, see “— Ti re
size” on page 437.
3. DOT and Tire Identification Number (TIN)— For details, see
“—DOT and Tire Identification
Number (TIN)” on page 436.
4. The location of the treadwear indicators— For details, see
“Checking and replacing tires” on
page 526.
5. Load limit at maximum cold tire inflation pressure— For details,
see “Checking and replacing tires”
on page 526.
—Tire symbols (compact spare tire)

08 SIENNA_U (L/O 0801)
436
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
6. Maximum cold tire inflationpressure— This means the pres-
sure to which a tire may be in-
flated. For details about recom-
mended cold tire inflation
pressure, see “Tires” on page 553.
7. Tire ply composition and mate- rials— Plies mean a layer of rub-
ber −coated parallel cords. Cords
mean the strands forming the plies
in the tire.
8. “TUBELESS” or “TUBE TYPE”— A tubeless tire does not
have a tube inside the tire and air
is directly filled in the tire. A tube
type tire has a tube inside the tire
and the tube maintains the air
pressure.
9. Radial tire or biasply tires— A
radial tire has “RADIAL” on the
sidewall. A tire not marked with
“RADIAL” is a bias −ply tir e.
This illustration indicates typical DOT
and Tire Identification Number (TIN).
1. “DOT” symbol
2. Tire Identification Number (TIN)
3. Tire manufacturer ’s identification mark
4. Tire size code
5. Manufacturer ’s optional tire type code (3 or 4 letters)
6. Manufacturing week
7. Manufacturing year The “DOT” symbol certifies that the
tire conforms to applicable Federal
Motor Vehicle Safety Standards.
—DOT and Tire Identification
Number (TIN)
