2008 TOYOTA SIENNA tire size

08 SIENNA_U (L/O 0801)
437
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

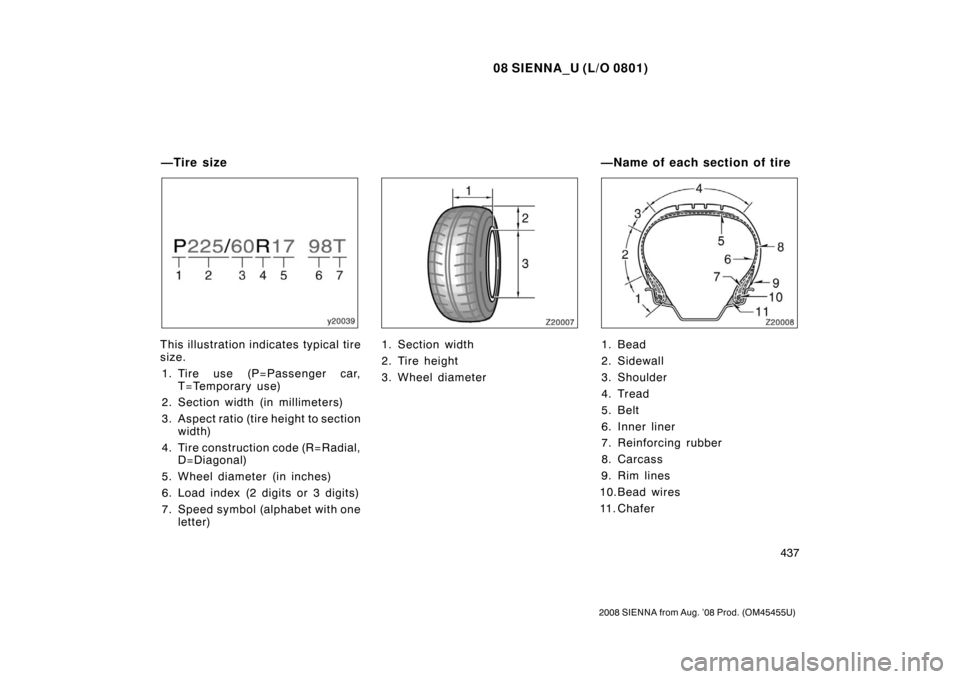

This illustration indicates typical tire
size.1. Tire use (P=Passenger car, T=Temporary use)
2. Section width (in millimeters)
3. Aspect ratio (tire height to section width)
4. Tire construction code (R=Radial, D=Diagonal)
5. Wheel diameter (in inches)
6. Load index (2 digits or 3 digits)
7. Speed symbol (alphabet with one letter)1. Section width
2. Tire height
3. Wheel diameter1. Bead
2. Sidewall
3. Shoulder
4. Tread
5. Belt
6. Inner liner
7. Reinforcing rubber
8. Carcass
9. Rim lines
10.Bead wires
11. Chafer
—Tire size —Name of each section of tire

08 SIENNA_U (L/O 0801)
441
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Ti r e relat ed ter mMeaning
Production options weight
the combined weight of those installed regular production options weighing
over 2.3 kg (5 lb.) in excess of those standard items which they replace,
not previously considered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special
trim
Rima metal support for a tire or a tire and tube assembly upon which the tire beads
are seated
Rim diameter (Wheel diameter)nominal diameter of the bead seat
Rim size designationrim diameter and width
Rim type designationthe industry of manufacturer ’s designation for a rim by style or code
Rim widt hnominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle’s desig-
nated seating capacity
Vehicle maximum load on the tirethe load on an individual tire that is determined by distributing to each axle
its share of the maximum loaded vehicle weight and dividing by two
Vehicle normal load on the tire
the load on an individual tire that is determined by distributing to each axle
its share of the curb weight, accessory weight, and normal occupant weight
(distributed in accordance with Table 1 that follows) and dividing by two
Weather sidethe surface area of the rim no t covered by the inflated tire
Beadthe part of the tire that is made of steel wires, wrapped or reinforced by ply
cords and that is shaped to fit the rim

08 SIENNA_U (L/O 0801)
446
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Vehicle load limits include total load
capacity, seating capacity, towing ca-
pacity and cargo capacity. Follow the
load limits shown below. Total load ca-
pacity and seating capacity are also
described on the tire and loading in-
formation label. For location of the tire
and loading information label, see
“Checking tire inflat ion pr es s ur e” on
page 523.
Total load capacity
Total load capacity means combined
weight of occupants, cargo and lug-
gage. Tongue load is included when
trailer towing. For the total load ca-
pacity about your vehicle, see “Total
load capacity” on page 549 in Section
8.
Seating capacity:
7−passenger models—
Total 7 (Front 2, Rear 5)
8 −passenger models—
Total 8 (Front 2, Rear 6) Seating capacity means the maximum
number of occupants whose esti-
mated average weight is 68 kg (150
lb.) per person. Depending on the
weight of each person, the seating ca-
pacity given may exceed the total
load capacity.
NOTICE
Even if the number of occupants are
within the seating capacity, do not ex-
ceed the total load capacity.
Towing capacity:
Without towing package 544 kg (1200 Ib.)
With towing package 1587 kg (3500 Ib.)
Towing capacity means the maximum
gross trailer weight (trailer weight plus
its cargo weight) that your vehicle is
able to tow. Cargo capacity
Cargo capacity may increase or de-
crease depending on the size (weight)
and the number of occupants. For de-
tails, see “Capacity and distribution”
that follows.
CAUTION
Do not apply the load more than
each load limit. That may cause
not only damage to the tires, but
also deterioration to the steering
ability and braking ability, which
may cause an accident.
Veh icle lo ad limit s

08 SIENNA_U (L/O 0801)
450
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Determine what kind of tires your
vehicle is originally equipped with.1. Summer tires
Summer tires are high −speed capabil-
ity tires best suited to highway driving
under dry conditions.
Since summer tires do not have the
same traction performance as snow
tires, summer tires are inadequate for
driving on snow −covered or icy roads.
For driving on snow −covered or icy
roads, we recommend using snow
tires. If installing snow tires, be sure
to replace all four tires.
2. All season tires
All season tires are designed to pro-
vide better traction in snow and to be
adequate for driving in most winter
conditions, as well as for use all year
round. All season tires, however, do not have
adequate traction performance
compared with snow tires in heavy or
loose snow. Also, all season tires fall
short in acceleration and handling
performance compared with summer
tires in highway driving.
The details about how to distinguish
summer tires from all season tires are
described on page 433.
CAUTION

Do not mix summer and all sea-
son tires on your vehicle as
this can cause dangerous han-
dling characteristics, resulting
in loss of control.
 Do not use tires other than the
manufacturer’s designated
tires, and never mix tires or
wheels of the sizes different
from the originally equipped
tires and wheels.
Types of tires

08 SIENNA_U (L/O 0801)
455
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
Sudden braking, acceleration and
steering when driving on a slippery
road surface may cause tire slip-
page and reduce your ability to
control the vehicle, resulting in an
accident.
Sudden changes in engine speed,
such as sudden engine braking,
may cause the vehicle to skid, re-
sulting in an accident.
After driving through a puddle,
lightly depress the brake pedal to
make sure that the brakes are func-
tioning properly. Wet brake pads
may prevent the brakes from func-
tioning properly. If the brakes on
only one side are wet and not func-
tioning properly, steering control
may be affected, resulting in an ac-
cident.
When encountering flooded roads
Do not drive on a road that has flooded
after heavy rain etc. Doing so may cause
serious damage to the vehicle.
NOTICE
Driving on a flooded road may cause
the engine to stall as well as cause
serious vehicle malfunctions such as
shorts in electrical components and
engine damage from water immersion.
In the event that you drive on a
flooded road and the vehicle is
flooded, be sure to have your Toyota
dealer check brake function, changes
in quantity and quality of oil and fluid
used for the engine, transaxle, trans-
fer (AWD vehicles), differential, etc.
and lubricant condition for the propel-
ler shaft (AWD vehicles), bearings and
suspension joints (where possible)
and the function of all joints and bea-
rings.
If you need greater traction while driv-
ing on sand, mud or snow covered
roadways, use tire chains on the front
wheels.
Always check your brakes for effective-
ness immediately after driving across
sand, mud, or water.
If operating in adverse conditions
frequently, vehicle maintenance should
be increased. (See the separate
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.)
CAUTION
Observe the following tire instruc-
tions. Otherwise, an accident may oc-
cur resulting in death or serious inju-
ries.
Keep your tire inflation pressure at
the proper level. (See “Checking
tire inflation pressure” on page 523
in Section 72.)
Do not use tires (including snow
tires) of different brands, sizes,
construction or tread patterns. (See
“Checking and replacing tires” on
page 526 and “Installing snow tires
and chains” on page 530 in Section
72.)
Allwheel driving tips
(AWD models)

08 SIENNA_U (L/O 0801)
456
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Do not use tires with different tread
wear. To equalize the tire wear, ro-
tate tires at the appropriate interval.
(See “Rotating tires” on page 528
in Section 72.)
Use the manufacturer ’s recom-
mended wheels. Do not use wheels
of different sizes and types. (See
“Replacing wheels” on page 532 in
Section 72.)
NOTICE
Do not attempt to go offroad in your
Toyota. It is not designed for offroad
use.
Make sure your coolant is properly pro-
tected against freezing.
Only use “Toyota Super Long Life Coolant”
or similar high quality ethylene glycol
based non−silicate, non −amine, non −nitrite,
and non− borate coolant with long −life
hybrid organic acid technology. (Coolant
with long −life hybrid organic acid
technology is a combination of low
phosphates and organic acids.)
See “Checking the engine coolant level”
on page 520 in Section 7 −2 for details of
coolant type selection.
For the U.S.A.—“Toyota Super Long Life
Coolant” is a mixture of 50% coolant and
50% deionized water. This coolant pro-
vides protection down to about −35 C
( − 31 F).
For Canada—“Toyota Super Long Life
Coolant” is a mixture of 55% coolant and
45% deionized water. This coolant pro-
vides protection down to about −42 C
( − 44 F).
NOTICE
Do not use plain water alone.
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape
to provide enough power for winter start-
ing. Section 7− 3 tells you how to visually
inspect the battery. Your Toyota dealer
and most service stations will be pleased
to check the level of charge.
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 518 in Section 7 −2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealer—they will be pleased
to help.
Keep the door locks from freezing.
Squirt lock de −icer or glycerine into the
locks to keep them from freezing.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
Winter driving tips

08 SIENNA_U (L/O 0801)
523
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Clean all dirt from the outside of the res-
ervoir tank and look at the fluid level. If
the fluid is cold, the level should be in the
“COLD” range. Similarly, if it is hot, the
fluid level should be in the “HOT” range.
If the level is at the low side of either
range, add automatic transmission fluid
DEXRONII or III to bring the level within
the range.
To remove the reservoir cap, turn it coun-
terclockwise and lift up. To reinstall it,
turn it clockwise. After replacing the reser-
voir cap, visually check the steering box
case, vane pump and hose connections
for leaks or damage.
CAUTION
The reservoir tank may be hot so be
careful not to burn yourself.
NOTICE
Avoid overfilling, or the power steer-
ing could be damaged.
Keep your tire inflation pressures
at the proper level.
The recommended cold tire inflation
pressures, tire sizes and the com-
bined weight of occupants and cargo
(vehicle capacity weight) are de-
scribed on page 549 and 553. They
are also on the tire and loading infor-
mation label.
You should check the tire inflation
pressure every two weeks, or at least
once a month. And do not forget the
spare!
Checking tire inflation
pressure

08 SIENNA_U (L/O 0801)
524
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The following instructions for
checking tire inflation pressure
should be observed: The pressure s hould be
checked only when the tires are
cold. If your vehicle has been
parked for at least 3 hours and has
not been driven for more than 1.5
km or 1 mile since, you will get
an accurate cold tire inflation pres-
sure reading.
 Always use a tire pressure
gauge. The appearance of a tire
can be misleading. Besides, tire
inflation pressures that are even
just a few pounds off can degrade
ride and handling.
 Take special care when adding
air to the compact spare tire.
The smaller tire size can gain
pressure very qu ickly. Add com-
pressed air in small quantities and
check the pressure often until it
reaches the specified pressure.
Do not bleed or reduce tire
inflation pressure after driving.
It is normal for the tire inflation
pressure to be higher after driving.
 Never exceed the vehicle capac-
ity weight. Passenger and lug-
gage weight should be located so
that the vehicle is balanced.Tire pressure gauge
INSPECTION AND ADJUSTMENT
PROCEDURE 1. Remove the tire valve cap.
2. Press the tip of the tire pressure gauge to the tire valve.
3. Read the pressure using the grad- uations of the gauge.
4. In case the tire inflation pressure
is not within the prescribed range,
insert the compressed air from the
valve. In case of applying too
much air, press the center of the
valve and release the air to adjust.
