2008 TOYOTA SIENNA light

08 SIENNA_U (L/O 0801)
60
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught and

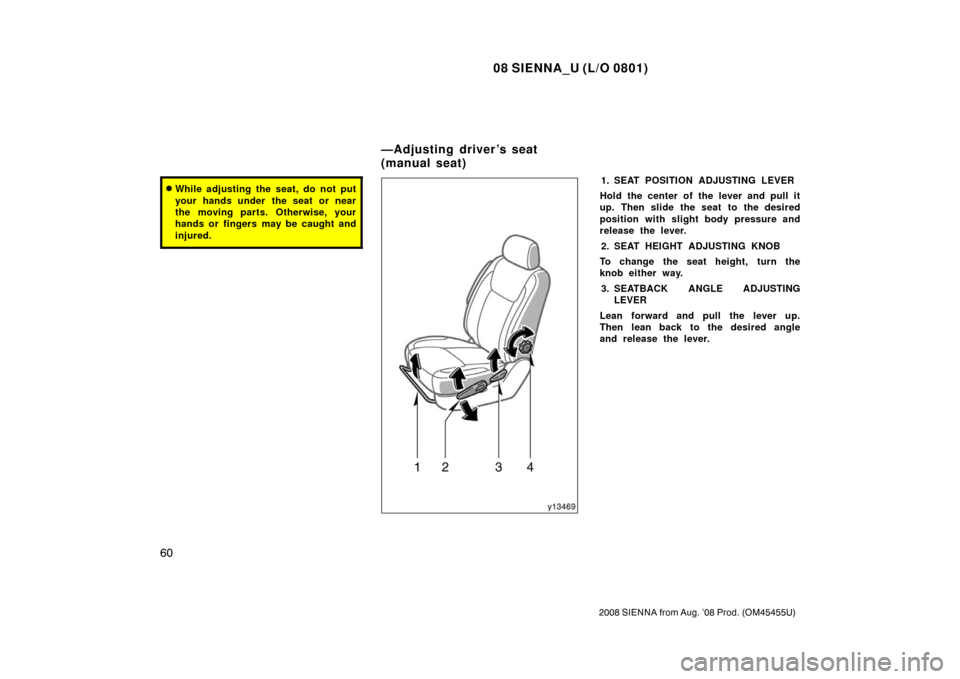

injured.1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT HEIGHT ADJUSTING KNOB
To change the seat height, turn the
knob either way.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
—Adjusting driver’s seat
(manual seat)

08 SIENNA_U (L/O 0801)
62
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.

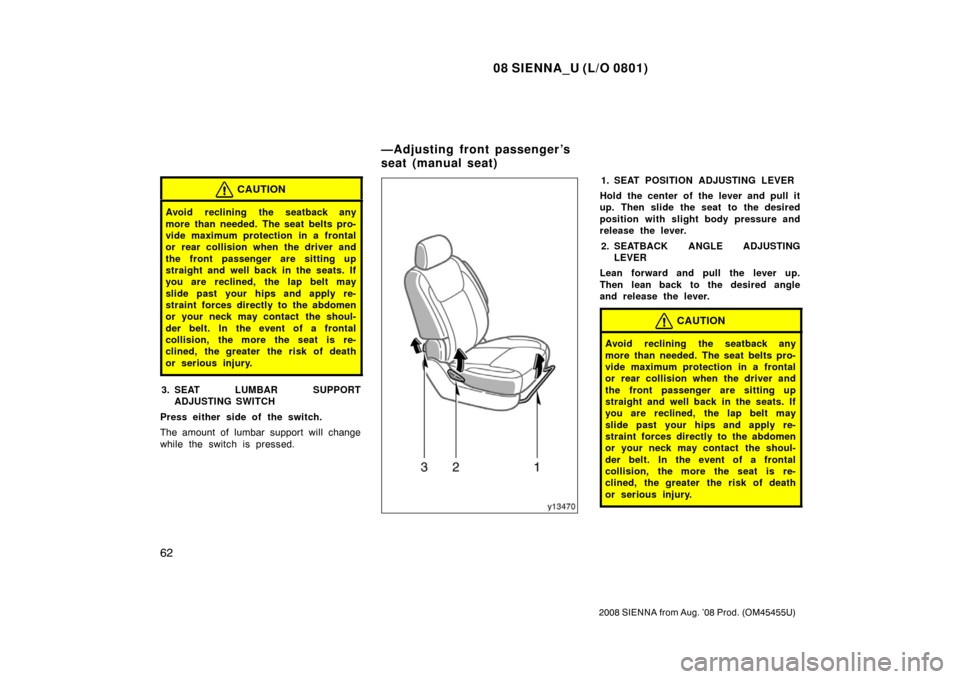

3. SEAT LUMBAR SUPPORTADJUSTING SWITCH
Press either side of the switch.
The amount of lumbar support will change
while the switch is pressed.
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
—Adjusting front passenger ’s
seat (manual seat)

08 SIENNA_U (L/O 0801)
66
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
SETTING THE DRIVING POSITION
The engine switch must be in the “ON”
position and the selector lever is in the
“P” position.1. Adjust the driver ’s seat and outside rear view mirrors to the desired
position.
2. While pushing the “SET” button, push button “1” or “2” until a beep
is heard.
The system can memorize up to 2 posi-
tions by repeating the above steps. If step
2 is performed when both buttons “1” and
“2” are memorized, the previous position
will be erased and a new position will be
set. To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The engine switch is in the “ON posi-
tion and the selector lever is in the “P”
position.
The key is not in the engine switch
and less than 30 seconds have passed
since opening the driver ’s door.

08 SIENNA_U (L/O 0801)
68
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

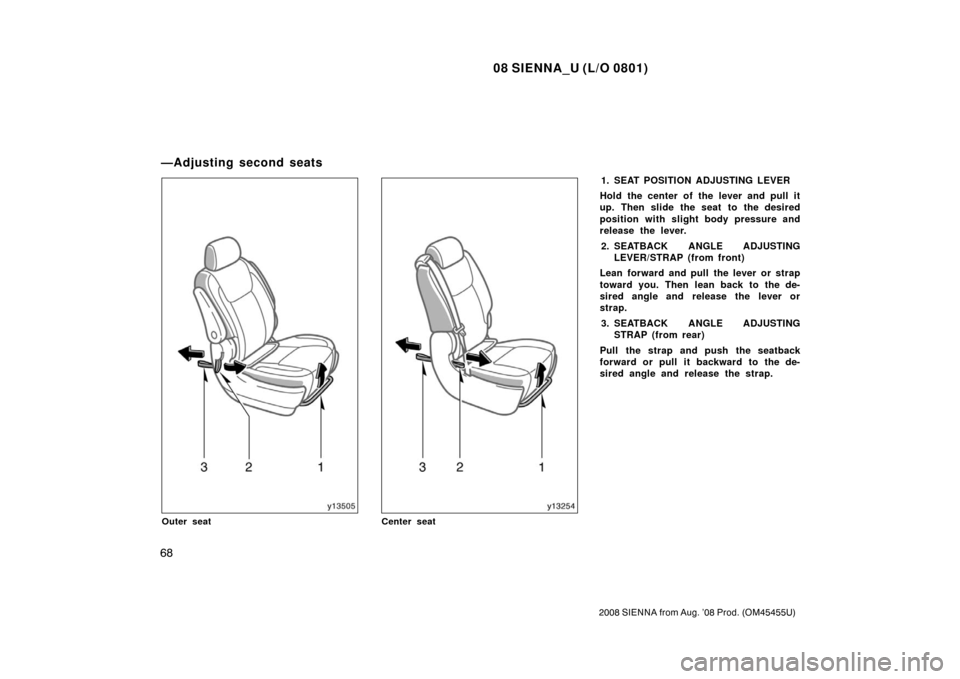

Outer seatCenter seat
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVER/STRAP (from front)
Lean forward and pull the lever or strap
toward you. Then lean back to the de-
sired angle and release the lever or
strap.
3. SEATBACK ANGLE ADJUSTING STRAP (from rear)
Pull the strap and push the seatback
forward or pull it backward to the de-
sired angle and release the strap.
—Adjusting second seats

08 SIENNA_U (L/O 0801)
99
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
FOLDING THIRD SEATS
Push the folding/returning switch. The
seatback will fold down.
If the indicator light above the switches
flashes three times when the folding/re-
turning switch is pushed, the folding op-
eration will not start.
To continue the operation, do the follow-
ing:1. Open the back door when the engine switch is in “LOCK” or “ACC” and/or
the automatic transmission selector le-
ver is in “P”.
2. Push the folding/returning switch.
Seat operation will stop if any one of
the switches shown in the illustrations
is pushed. At this time the indicator
light above the switches comes on and
a beep sounds for about 10 seconds.
If the engine is started during operating,
the seat operation may also be stopped.
To continue the folding operation, the seat-
back must be back to its original position
first. If an object is caught between the seat-
back and seat cushion, the indicator
light above the switches flashes and a
beep sounds for about 10 seconds. Re-
move the object before operating the
seat again.
If the indicator light above the switches
flashes even though there is no object
between the seatback and seat cushion,
contact your Toyota dealer.

08 SIENNA_U (L/O 0801)
100
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Operation from outside
Operation from inside
RETURNING THIRD SEATS
Push one of the switches shown in the
illustrations. The seatback returns to its
original position.
If the indicator light above the switches
flashes three times when the switch is
pushed, the returning operation will not
start.
To continue the operation, do the follow-
ing:1. Operation from outside only—Open the back door when the engine switch is in
“LOCK” or “ACC” and/or the automatic
transmission selector lever is in “P”. 2. Lock the seat legs and push any
switch other than the stowing switch.
Seat operation will stop if any one of
the switches shown in the illustrations
is pushed. At this time the indicator
light above the switches comes on and
a beep sounds for about 10 seconds.
If the engine is started during operating,
the seat operation may also be stopped.
To continue the returning operation, the
seatback must be back to the folded posi-
tion first.

08 SIENNA_U (L/O 0801)
101
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
When folding or returning the seats,
observe the following precautions in
order to prevent personal injury:
Make sure that the seat path is
clear before moving the seat. Other-
wise, injury may result from contact
with the seat.
Be careful not to allow hands or
feet to get caught or pinched in the
seat.
When returning the seats to their
original position, make sure the seat
belts are not twisted or caught in the
seatback. It could result in serious
injuries in a sudden braking or a col-
lision.
Do not shift the automatic transmis-
sion selector lever out of “P” with
the engine switch in “ON” during the
operation. Doing so may cause the
vehicle to move and result in serious
personal injury.
This “3RD SEAT” warning light warns the
third seat operation is not yet complete
when the engine switch is turned to the
“ON” position. The third seats can be stowed by push-
ing and holding the stowing switch that
is inside the back door opening on the
outer edge of the ceiling.
Before stowing the third seats:
Stow the seat belt buckles and center
seat belt. (See “—Stowing seat belt
buckles of the second and third seats”
on page 114 and “—Stowing the center
seat belt of the third seats” on page 114
in this Section.)
Lower the head restraint to the lowest
position. (See “Head restraints” on
page 106 in this Section.)
Make sure that there is no object on
the seat cushion, floor around the
seats and floor of the luggage compart-
ment. If an object is caught during the
operation, seat operation will stop.
—Stowing third seat
(power seat)

08 SIENNA_U (L/O 0801)
103
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
STOWING THIRD SEATS
Push and hold the stowing switch. A
beep sounds twice to indicate the start
of the operation. The beep sounds
again twice when the operation is com-
pleted.
If the indicator light above the switches
flashes while the stowing switch is being
pushed, the stowing operation will not
start.To continue the operation, do the follow-
ing:
1. Open the back door when the engine switch is in “LOCK” or “ACC” and/or
the automatic transmission selector le-
ver is in “P”.
2. Push and hold the stowing switch.
To operation stops, the indicator light
above the switches comes on and a beep
sounds for about 10 seconds if any of the
following condition occur during the opera-
tion:When the stowing switch is released.
When the folding/returning switch, re-
turning switch or seatback adjusting
switch is pushed while the stowing
switch is being pushed.
When the engine switch is turned to
the “ON” position and the automatic
transmission selector lever is moved
from the “P” position.
When the automatic transmission selec-
tor lever is in the “N” position and the
engine switch is turned to the “ON”
position.
If the engine is started during operating,
the seat operation may also be stopped. If an object is caught between the seat-
back and seat cushion, the indicator
light above the switches flashes and a
beep sounds for about 10 seconds. Re-
move the object before operating the
seat again.
If the indicator light above the switches
flashes even though there is no object
between the seatback and seat cushion,
contact your Toyota dealer.
If an object is caught between the seat
and floor, the object prevents the seat
from moving. Do not continue the op-
eration. Remove the object before oper-
ating the seat again.
When the seat is already folded, the seat
can be stowed using the same procedure.
If an object is caught between the seat-
back and seat cushion, the stowing opera-
tion will not start.
