2008 TOYOTA SIENNA light

08 SIENNA_U (L/O 0801)
139
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

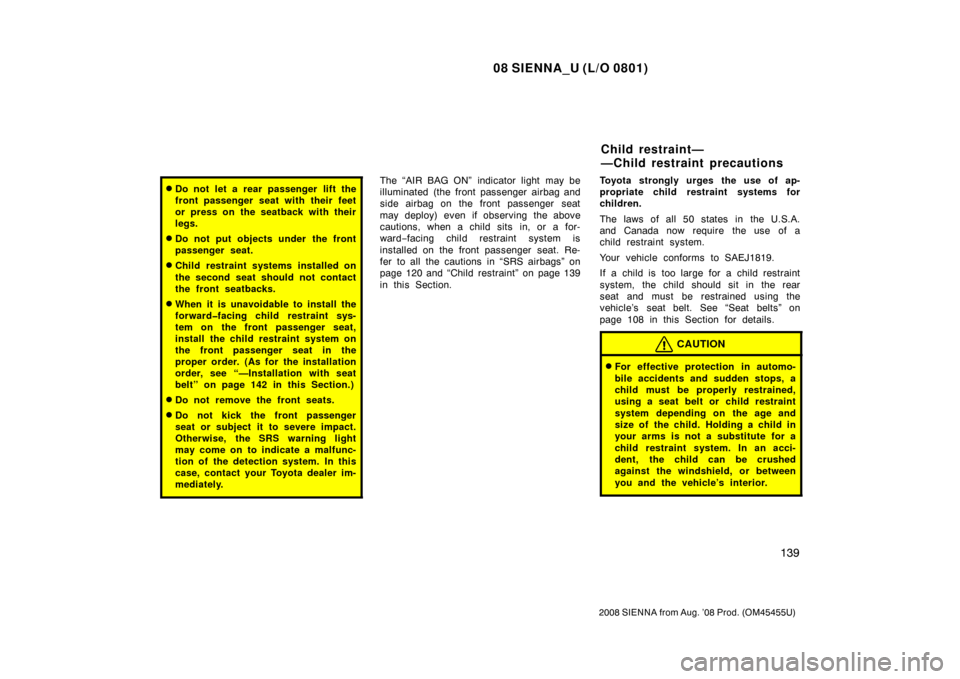

Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.
Do not put objects under the front
passenger seat.
Child restraint systems installed on
the second seat should not contact
the front seatbacks.
When it is unavoidable to install the
forwardfacing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see “—Installation with seat
belt” on page 142 in this Section.)
Do not remove the front seats.
Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The “AIR BAG ON” indicator light may be
illuminated (the front passenger airbag and
side airbag on the front passenger seat
may deploy) even if observing the above
cautions, when a child sits in, or a for-
ward−facing child restraint system is
installed on the front passenger seat. Re-
fer to all the cautions in “SRS airbags” on
page 120 and “Child restraint” on page 139
in this Section. Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child s
hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. See “Seat belts” on
page 108 in this Section for details.
CAUTION
For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle’s interior.
Child restraint—
—Child restraint precautions

08 SIENNA_U (L/O 0801)
140
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

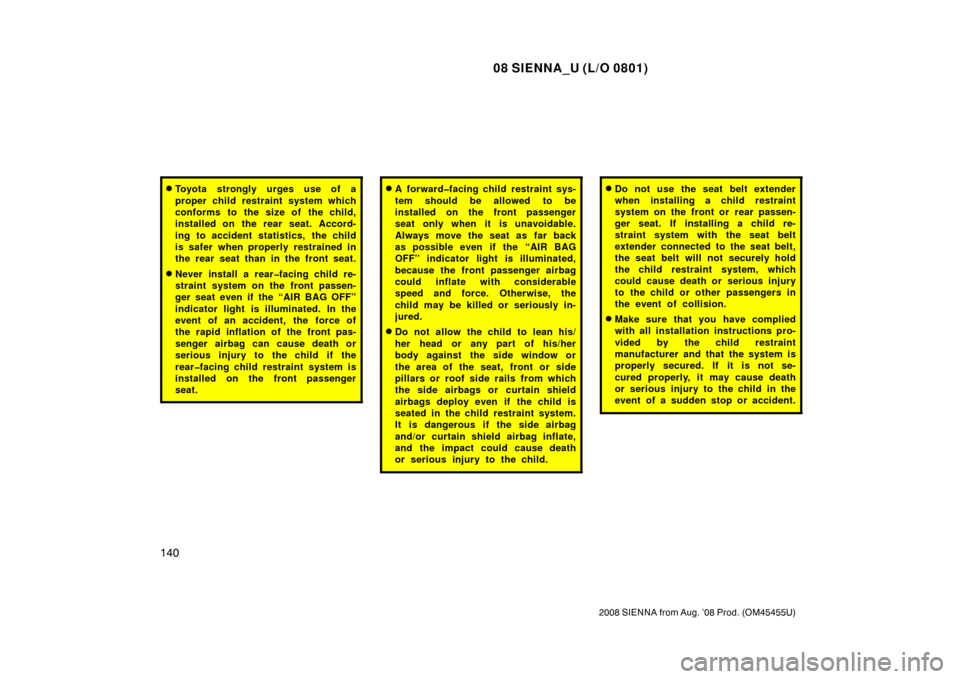

Toyota strongly urges use of a
proper child restraint system which
conforms to the size of the child,
installed on the rear seat. Accord-
ing to accident statistics, the child
is safer when properly restrained in
the rear seat than in the front seat.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIR BAG OFF”
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag can cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIR BAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
Do not allow the child to lean his/
her head or any part of his/her
body against the side window or
the area of the seat, front or side
pillars or roof side rails from which
the side airbags or curtain shield
airbags deploy even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
and/or curtain shield airbag inflate,
and the impact could cause death
or serious injury to the child.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
Make sure that you have complied
with all installation instructions pro-
vided by the child restraint
manufacturer and that the system is
properly secured. If it is not se-
cured properly, it may cause death
or serious injury to the child in the
event of a sudden stop or accident.

08 SIENNA_U (L/O 0801)
142
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

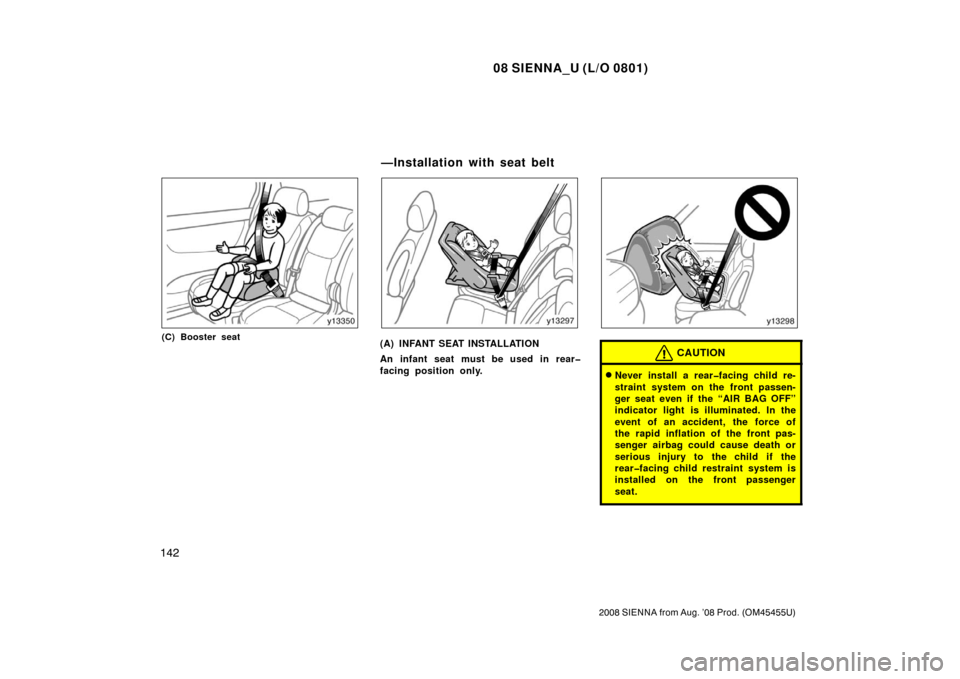

(C) Booster seat(A) INFANT SEAT INSTALLATION
An infant seat must be used in rear
facing position only.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIR BAG OFF”
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag could cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
—Installation with seat belt

08 SIENNA_U (L/O 0801)
144
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

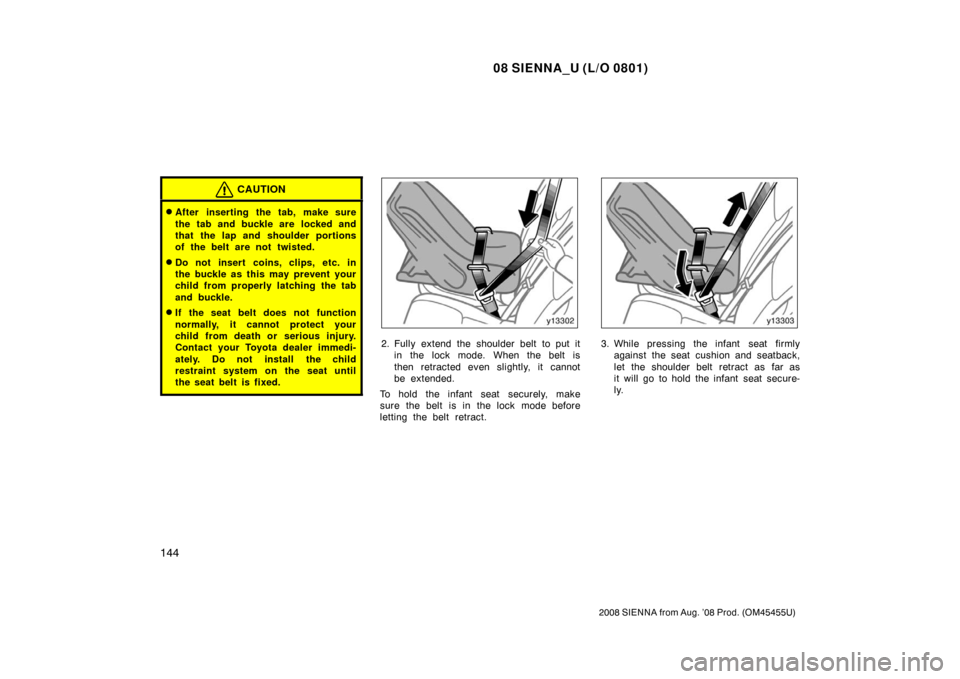

CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.

08 SIENNA_U (L/O 0801)
146
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occupant
classification system correctly, install the
forward−facing child restraint system on
the front passenger seat in the following
order:
1. Turn the engine switch to the “ON” position.
2. Move the front passenger seat to the rearward position.
3. Put the child restraint system on the front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract. 6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer. The “AIR BAG OFF” indicator light should
be illuminated when the engine switch is
“ON” and the child is in the child restraint
system after following these proc
edures.
The “AIR BAG OFF” indicator light indi-
cates the SRS front passenger airbag and
side airbag on the passenger side will not
deploy. If the “AIR BAG ON” indicator light
is illuminated, remove the child restraint
system and reinstall it with the engine
switch in the “ACC” or “LOCK” position.
If the “AIR BAG ON” indicator light is
illuminated when the engine switch is
turned to the “ON” position, then the SRS
front passenger airbag and side airbag on
the passenger side may deploy in an acci-
dent. Do not drive the vehicle in this con-
dition. Remove the child restraint system
and contact your Toyota dealer.

08 SIENNA_U (L/O 0801)
147
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

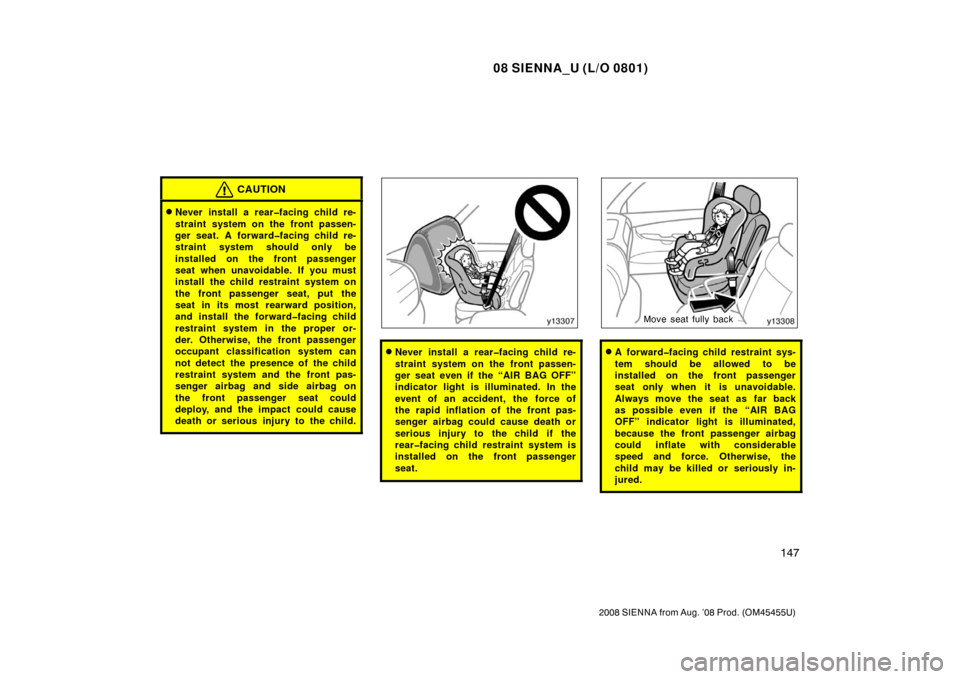

CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat. A forwardfacing child re-
straint system should only be
installed on the front passenger
seat when unavoidable. If you must
install the child restraint system on
the front passenger seat, put the
seat in its most rearward position,
and install the forwardfacing child
restraint system in the proper or-
der. Otherwise, the front passenger
occupant classification system can
not detect the presence of the child
restraint system and the front pas-
senger airbag and side airbag on
the front passenger seat could
deploy, and the impact could cause
death or serious injury to the child.
Never install a rearfacing child re-
straint system on the front passen-
ger seat even if the “AIR BAG OFF”
indicator light is illuminated. In the
event of an accident, the force of
the rapid inflation of the front pas-
senger airbag could cause death or
serious injury to the child if the
rearfacing child restraint system is
installed on the front passenger
seat.
Move seat fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIR BAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.

08 SIENNA_U (L/O 0801)
149
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

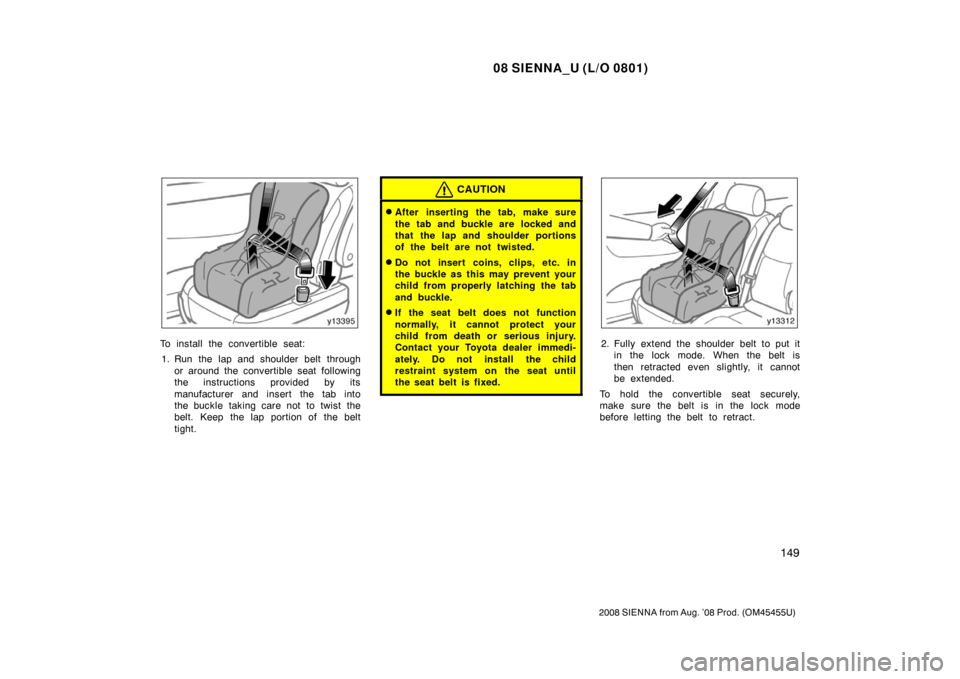

To install the convertible seat:1. Run the lap and shoulder belt through or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt to retract.

08 SIENNA_U (L/O 0801)
151
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

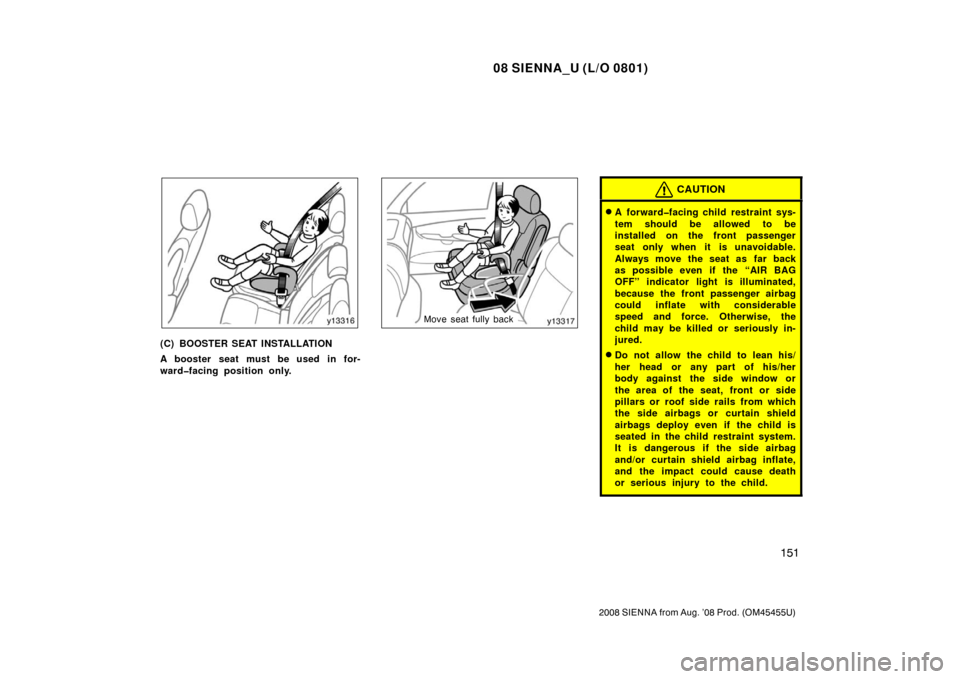

(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.
Move seat fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIR BAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
Do not allow the child to lean his/
her head or any part of his/her
body against the side window or
the area of the seat, front or side
pillars or roof side rails from which
the side airbags or curtain shield
airbags deploy even if the child is
seated in the child restraint system.
It is dangerous if the side airbag
and/or curtain shield airbag inflate,
and the impact could cause death
or serious injury to the child.
