2008 TOYOTA CAMRY HYBRID Owners Manual

5
When trouble arises
393
5-2. Steps to take in an emergency
NOTICE
■
To avoid damaging the transmission and other components
●Avoid spinning the wheels.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.

394 5-2. Steps to take in an emergency

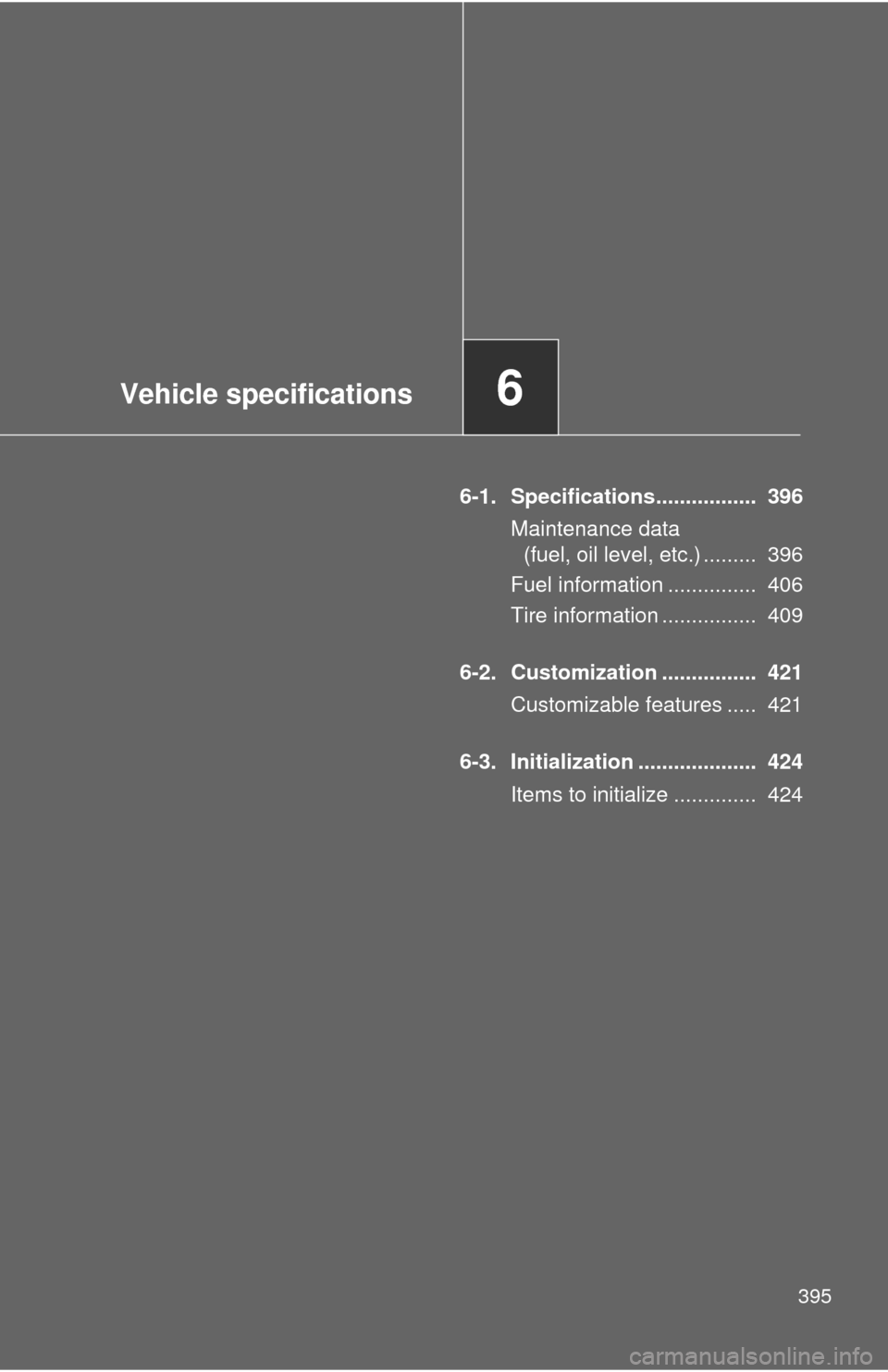

Vehicle specifications6
395
6-1. Specifications................. 396Maintenance data (fuel, oil level, etc.) ......... 396
Fuel information ............... 406
Tire information ................ 409
6-2. Customization ................ 421 Customizable features ..... 421
6-3. Initialization .................... 424 Items to initialize .............. 424

396
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*: Unladen vehicles
Vehicle identification■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Overall length 189.2 in. (4805 mm)
Overall width71.7 in. (1820 mm)
Overall height*57.9 in. (1470 mm)
Wheelbase109.3 in. (2775 mm)
TreadFront 62.0 in. (1575 mm)
Rear 61.6 in. (1565 mm)
Vehicle capacity weight
(Occupants + luggage) 900 lb. (410 kg)

397
6-1. Specifications
6
Vehicle specifications
This number is also on the Certi-
fication label on the driver’s side
center pillar.
■ Gasoline engine number and el ectric motor (traction motor)
number
The gasoline engine number and el ectric motor (traction motor) num-
ber are stamped as shown.
Gasoline engine number
Electric motor (traction motor)
number

398 6-1. Specifications
Engine
Fuel
Electric motor (traction motor)
Model2AZ-FXE engine
Type 4 cylinder in-line, 4 cycle, gasoline
Bore and stroke 3.48  3.78 in. (88.5  96.0 mm)
Displacement 144.1 cu.in. (2362 cm3)
Drive belt tension Automatic adjustment
Valve clearance
(engine cold)
Intake
Exhaust 0.007 
0.011 in. (0.19  0.29 mm)
0.015  0.019 in. (0.38 0.48 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity 17.2 gal. (65 L, 14.3 lmp.gal.)
Type Permanent magnet synchronous motor
Maximum output 105 kW
Maximum torque 199 ft•lbf (270 N•m, 27.5 kgf•m)

399
6-1. Specifications
6
Vehicle specifications
Hybrid battery (traction battery)
Type
Nickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity 34 modules
Overall voltage 244.8 V

400 6-1. Specifications
Lubrication system
*: 0W-20 is the oil that provides the optimal level of fuel efficiency.
Oil viscosity
●The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil viscosity when the oil is at its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
ditions.
Oil capacity
(drain and refill) With filter
Without filter 4.5 qt. (4.3 L, 3.8 Imp.qt.)
4.3 qt. (4.1 L, 3.6 Imp.qt.)
Oil grade
ILSAC multi-grade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and vis-
cosity shown below.
Outside temperature
*
