2008 SUBARU TRIBECA flat tire

13-8
Consumer information and Reporting safety defects
tires every 7,500 miles (12,000 km).
Rotating the tires involves switch-
ing the front and rear tires on the
right-hand side of the vehicle and
similarly switching the front and
rear tires on the left-hand side of
the vehicle. (Each tire must be kept
on its original side of the vehicle.)
Replace any damaged or unevenly
worn tire at the time of rotation.
After tire rotation, adjust the tire
pressures and make sure the wheel
nuts are correctly tightened. A
tightening torque specification and
a tightening sequence specification
for the wheel nuts can be found
“Flat tires”in chapter 9.& Vehicle load limit –how to
determineThe load capacity of your vehicle is
determined by weight, not by avail-
able cargo space. The load limit of
your vehicle is shown on the
vehicle placard attached to the
driver ’s side B-pillar. Locate the
statement “The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs
”
on your vehicle ’s placard.
Thevehicleplacardalsoshows
seating capacity of your vehicle.
The total load capacity includes the
total weight of driver and all pas-
sengers and their belongings, any
cargo, any optional equipment such
as a trailer hitch, roof rack or bike
carrier, etc., and the tongue load of
a trailer. Therefore cargo capacity
can be calculated by the following
method.
Cargo capacity = Load limit −(total
weight of occupants + total weight
of optional equipment + tongue
load of a trailer (if applicable))
For towing capacity information and
weight limits, refer to “
Trailer towing”
section in chapter 8.
! Calculating total and load ca-
pacities varying seating con-
figurations
Calculate the available load capa-
city as shown in the following examples:
Example 1AVehicle capacity weight of the
vehicle is 1,157 lbs (525 kg), which
is indicated on the vehicle placard
with the statement
“The combined
weight of occupants and cargo
should never exceed 525 kg or
1,157 lbs ”.
For example, if the vehicle has one
occupant weighing 154 lbs (70 kg)
plus cargo weighing 882 lbs (400
kg).1.
Calculate the total weight.
ProCarManuals.com

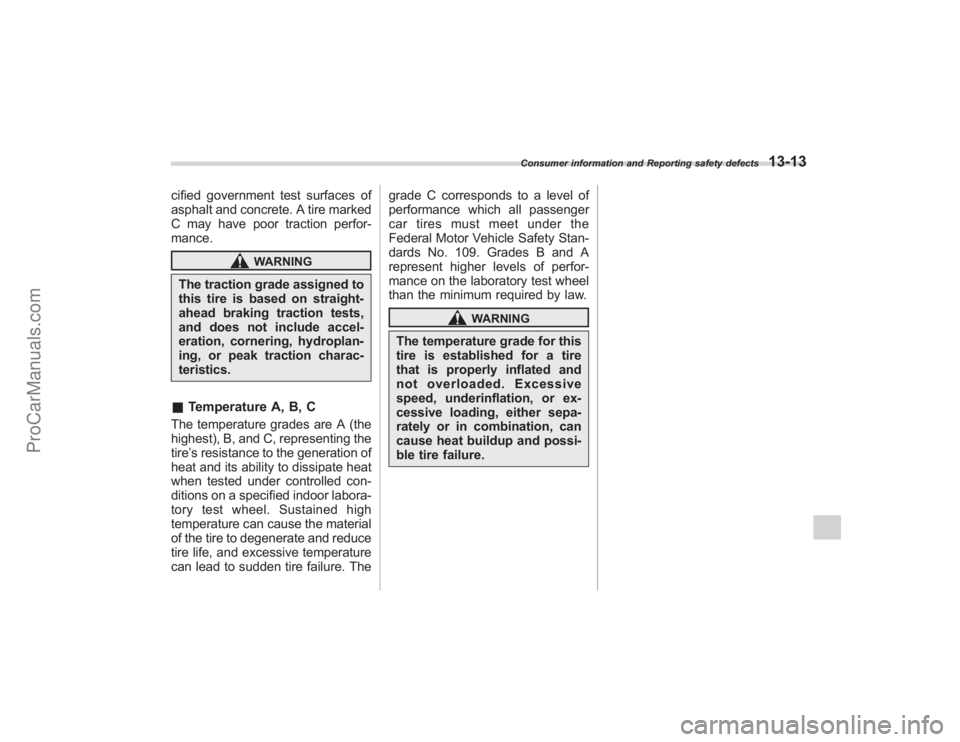

cified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction perfor-
mance.
WARNING
The traction grade assigned to
this tire is based on straight-
ahead braking traction tests,
and does not include accel-
eration, cornering, hydroplan-
ing, or peak traction charac-
teristics.&Temperature A, B, CThe temperature grades are A (the
highest), B, and C, representing the
tire ’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled con-
ditions on a specified indoor labora-
tory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The grade C corresponds to a level of
performance which all passenger
car tires must meet under the
Federal Motor Vehicle Safety Stan-
dards No. 109. Grades B and A
represent higher levels of perfor-
mance on the laboratory test wheel
than the minimum required by law.
WARNING
The temperature grade for this
tire is established for a tire
that is properly inflated and
not overloaded. Excessive
speed, underinflation, or ex-
cessive loading, either sepa-
rately or in combination, can
cause heat buildup and possi-
ble tire failure.
Consumer information and Reporting safety defects
13-13
ProCarManuals.com

Light...................................................................... 6-2
Tie-down hooks ..................................................... 6-15
Catalytic converter ...................................................... 8-3
Center Console ................................................................. 6-6
Ventilators .............................................................. 4-4
Changing Flat tire .................................................................. 9-6
Oil and oil filter ...................................................... 11-8
Charge warning light .................................................. 3-13
CHECK ENGINE warning light/Malfunction indicator lamp ......................................................... 3-12
Checking Brake pedal free play ........................................... 11-21
Brake pedal reserve distance ................................ 11-22
Engine oil level ...................................................... 11-7
Fluid level ........................................ 11-15, 11-19, 11-20
Gear oil level ....................................................... 11-18
Child restraint systems ............................................... 1-30
Installation with A/ELR seatbelt ................................ 1-33
Lower and tether anchorages .................................. 1-37
Child safety ................................................................... 5
Locks ................................................................... 2-19
Chime Key ....................................................................... 3-4
Seatbelt ........................................................ 1-17, 3-10
Chrome plated wheels .............................................. 11-31
Cleaning Aluminum wheels ................................................... 10-3
Interior .................................................................. 10-5
Ventilation grille ..................................................... 4-10 Climate control system
Automatic ............................................................... 4-5
Clock ....................................................................... 3-21
Coolant ................................................................... 11-11
Cooling system ........................................................ 11-11
Corrosion protection ........................................... 8-10, 10-4
Cruise control ........................................................... 7-30
Set indicator light ................................................... 3-21
Cruise control indicator light ........................................ 3-20
Cup holder ................................................................. 6-7
Front passenger ’s.................................................... 6-8
D
Daytime running light system ...................................... 3-27
Differential gear oil Front ................................................................... 11-17
Rear ................................................................... 11-18
Dimensions ............................................................... 12-2
Disarming the system ................................................ 2-17
Disc brake pad wear warning indicators ....................... 7-19
Dome light ........................................................ 6-2, 11-48
Door Locks ..................................................................... 2-4
Open warning light. ................................................ 3-17
Drive belts ............................................................... 11-15
Driving All-Wheel Drive vehicle .......................................... 3-18
Car

phone/cell phone .................................................. 7
Drinking. .................................................................... 6
Drugs ........................................................................\
6
Foreign countries ..................................................... 8-4
Index
14-3
ProCarManuals.com

14-4
Index
Pets........................................................................\
. 7
Snowy and icy roads ............................................... 8-9
Tips....................................................................... 8-4
Tired or sleepy. .......................................................... 7
E
Electrical system ........................................................ 12-3
Electronic Brake Force Distribution (EBD) system ................................................. 3-17, 7-22
Emergency Locking Retractor (ELR) ............................. 1-17
Engine
Compartment overview ........................................... 11-6
Coolant ............................................................... 11-11
Exhaust gas (Carbon monoxide) ............................ 5, 8-2
Hood .................................................................... 11-4
Oil........................................................................\
11-7
Overheating .......................................................... 9-14
Starting .................................................................. 7-7
Stopping ................................................................ 7-8
Exterior care .............................................................. 10-2
F
Flat tires .................................................................... 9-6
Floor mat .................................................................. 6-12
Fluid level Automatic transmission ........................................ 11-15
Brake ................................................................. 11-20
Power steering .................................................... 11-19
Fog light switch .......................................................... 3-32
Folding mirror switch .................................................. 3-41 Front
Differential gear oil ................................................ 11-17
Fog light .............................................................. 11-45
Seatbelt pretensioners ........................................... 1-27
Seats ..................................................................... 1-2
Turn signal light .................................................... 11-45
Front seats Fore and aft adjustment ........................................... 1-3
Reclining ................................................................ 1-3
Fuel ........................................................................\
... 7-2
Economy hints ........................................................ 8-2
Filler lid and cap ...................................................... 7-3
Gauge .................................................................... 3-8
Requirements ......................................................... 7-2
Fuses ..................................................................... 11-38
Fuses and circuits ..................................................... 12-5
G
GAWR (Gross Axle Weight Rating) .............................. 8-12
Glove box ................................................................... 6-5
GVWR (Gross Vehicle Weight Rating) ... ....................... 8-12
H
Hazard warning flasher .......................................... 3-5, 9-2
Head restraint adjustment ............................................. 1-5
Rear .................................................................... 1-11
Headlight Beam leveler. ........................................................ 3-29
Flasher ................................................................. 3-27
Indicator light ........................................................ 3-21
Headlights ....................................................... 3-26, 11-42
ProCarManuals.com

14-8
Index
SRSCurtain airbag ........................................................ 1-58
Frontal airbag ........................................................ 1-48
Side airbag ........................................................... 1-58
SRS airbag (Supplemental Restraint System airbag) ............................................................... 4, 1-44
SRS airbag system Monitors. ............................................................... 1-68
Servicing ............................................................... 1-69
Warning light ......................................................... 3-11
Starting the engine ...................................................... 7-7
State emission testing (U.S. only) ................................. 7-5
Steering wheel Power ................................................................... 7-18
Tilt ....................................................................... 3-41
Stopping the engine .................................................... 7-8
Storage compartment .................................................. 6-5
Sun shade ................................................................ 2-25
Sun visors .................................................................. 6-4
Supplemental Restraint System airbag (SRS) ................ 1-44
Synthetic leather upholstery ........................................ 10-5
T
Tachometer ................................................................ 3-7
Temperature gauge ..................................................... 3-9
Temperature warning light (AT OIL TEMP) ..................... 3-13
Temporary spare tire ................................................... 9-5
Tie-down hooks ......................................................... 9-15
Tilt steering wheel ...................................................... 3-41
Tire
Chains .................................................................. 8-11 Inspection
............................................................ 11-25
Pressures and wear .............................................. 11-25
Replacement. ....................................................... 11-29
Rotation .............................................................. 11-28
Types .................................................................. 11-23
Tire pressure monitoring system (TPMS) .... 7-27, 9-10, 11-24
Tires ........................................................................\
12-3
Tires and wheels ...................................................... 11-23
Top tether anchorages ............................................... 1-40
Towing ..................................................................... 9-15
All wheels on the ground ........................................ 9-18
Flat-bed truck ........................................................ 9-17
Tie-down hooks ..................................................... 9-15
Weight ................................................................. 8-20
Traction Control system OFF switch ........................................................... 7-26
Trailer Connecting ........................................................... 8-18
Hitch .................................................................... 8-18
Hitches ................................................................. 8-23
Towing ................................................................. 8-20
Towing tips ........................................................... 8-26
Trip meter ................................................................... 3-7
Turn signal Indicator lights ....................................................... 3-20
Lever ................................................................... 3-28
U
Under-floor
storage compartment ................................. 6-15
ProCarManuals.com
