2008 SUBARU LEGACY Navigation Manual

16
Menu Screen Keys and FunctionsThe table below shows the keys displayed on the navigation menu (NAV. MENU) screen, the functions
accessible by selecting these keys, and the pages of this manual that describe the instructions you should
follow when using these functions.
Press button or select
to display the menu screen.Select to return to the
current map screen.

17
Menu Screen Keys and Functions
Menu screen key Function Reference
page
Destination EntryAddress page 26
Point of Interest page 32Select from Map page 35Emergency page 38Memory Point page 29Previous Destination page 34Intersection page 42Freeway Ent/Exit page 36Phone Number page 44Coordinates page 40
Stored LocationsMemory Points page 89
Avoid Area page 97Dest. & Way Pt. page 57Home page 100Previous Dest. page 102Preset Dests. page 104
VolumeVolume page 12
Navigation Set UpUser Settings page 71
Quick POI Selection page 74Language Selection page 76Navigation Information page 77Calibration page 79Set Clock page 82Restore System Defaults page 84
Route OptionsSearch Condition page 54
Detour page 55Route Pref. page 56Dest. & Way Pt. page 57Display Route page 65
Route Preview page 66

18
Map OperationsYou can select either “heading up” or “north up” display on the current map screen by using the following
procedure.
1
Select or .If you select (“heading up” display), the system rotates the map so that the
direction in which you are heading is always directly upwards on the screen (the red
arrow points to the north).
If you select (“north up” display), the system rotates the map so that north is
always directly upwards on the screen.
Selecting Map Orientation
<“North up” display> <“Heading up” display>

19
You can increase or decrease the scale of the map using the following procedure:
1
Select or to change the map scale. Selecting or changes the scale as shown to the left.
Changing Map Scale
Map Operations

20

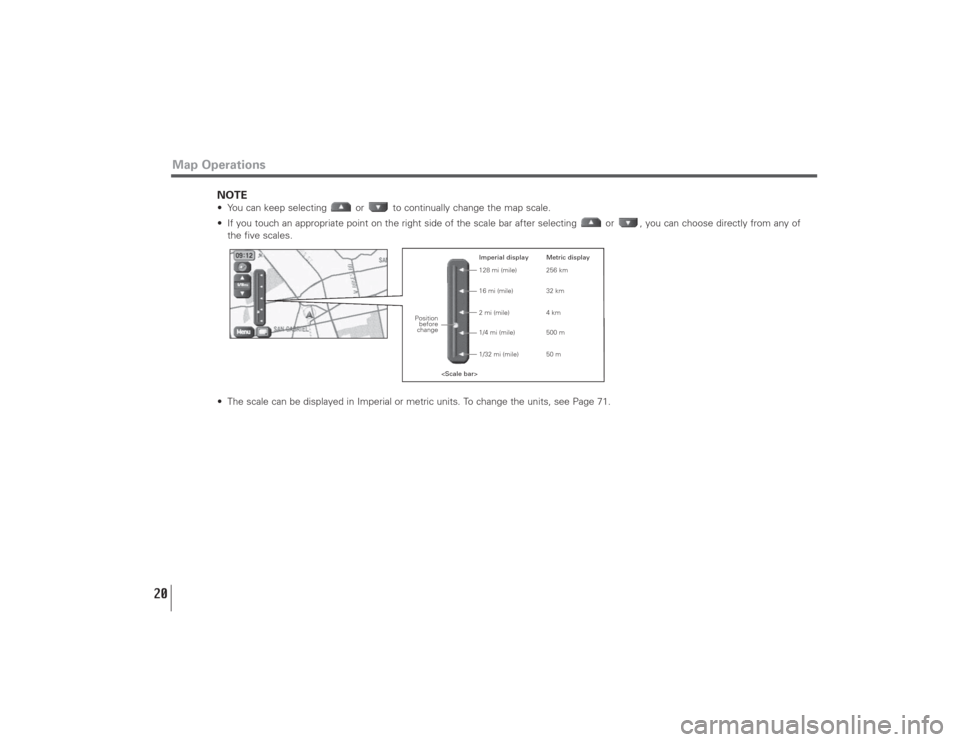

Map Operations
NOTE• You can keep selecting or to continually change the map scale.
• If you touch an appropriate point on the right side of the scale bar after selecting or , you can choose directly from any of
the five scales.
• The scale can be displayed in Imperial or metric units. To change the units, see Page 71.
Imperial display
128 mi (mile)
16 mi (mile)
2 mi (mile)
1/4 mi (mile)
1/32 mi (mile)Metric display
256 km
32 km
4 km
500 m
50 m
Position
before
change

21
Setting destination/waypoints by scrolling the mapEven if you do not know the exact address of your destination or a waypoint on your route to the destination,
you can set it by scrolling the map as follows:
1
Touch the screen and scroll the map until the crosshair reaches the
destination or a waypoint.
2
Select the (destination or waypoint) key.The key will separate into the destination key and the waypoint key.
Setting DestinationSetting Route

22
Setting Route
3
Select for setting the destination. The system will calculate the route and display the entire route to the destination on
the map.
Select for a waypoint. The system will program the address of the waypoint
on your route (see Page 86). You can set up to 5 waypoints per trip.
4
Select (start). Route guidance will begin along the displayed route.
NOTE• If the system cannot find your desired route, select (change route). This will allow you
to access the ROUTE OPTIONS screen, from which you can prompt the system to calculate a
new route. (See Page 52.)
• Selecting for more than ten seconds will start the demonstration mode operation. Press
the button or select to cancel the demonstration mode.

23
■Selecting routeUpon setting the destination, the system prepares to calculate three types of routes to the destination (Quick, Alt.,
and Short). You can select from any of the three options as follows:1
Select (3 routes).The system will be ready for calculation of any route you select from the three
options, namely, Quick (the fastest route), Alt. (alternative route), and Short (the
shortest route).
2
Select (information).The screen will display details (required time, total distance, roads used, etc.)
regarding each option.
3
Select , , or as you desire, and then select to
confirm your selection.
Setting Route
