2008 Seat Leon 5D technical data

Technical Data
278Engine oil filling capacityDiesel engine 2.0l 103 kW (140 bhp). AutomaticGeneral engine data
Performance figures
Weights Approximate engine oil capacity with oil filter change
4.3 litres
Power output in kW (bhp) rpm 103 (140)/ 4000
Maximum torque in Nm at 1/min 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min. 51 CZ
Maximum speed in km/h 205
Acceleration from 0-80 km/h in sec. 6,3
Acceleration from 0-100 km/h in sec. 9,3
Gross vehicle weight in kg 1925
Weight in working order (with driver) in kg 1430
Front gross axle weight in kg 1077
Rear gross axle weight in kg 890
Permitted roof load in kg 75
leon_ingles Seite 278 Montag, 26. Januar 2009 4:29 16

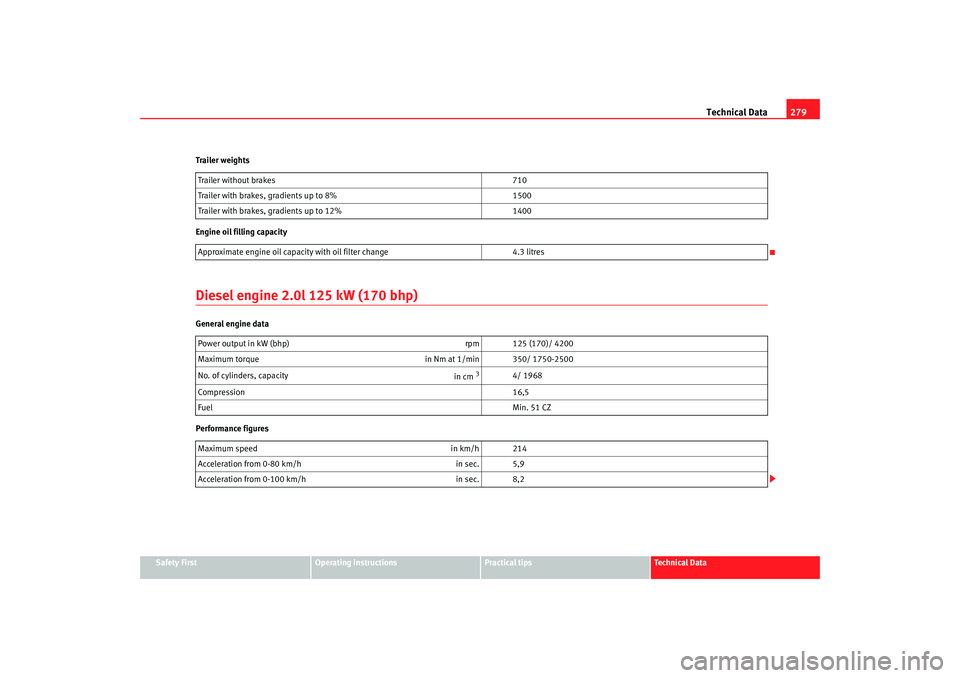

Technical Data279
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Trailer weights
Engine oil filling capacity
Diesel engine 2.0l 125 kW (170 bhp)General engine data
Performance figures
Trailer without brakes
710
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 125 (170)/ 4200
Maximum torque in Nm at 1/min 350/ 1750-2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 16,5
Fuel Min. 51 CZ
Maximum speed in km/h 214
Acceleration from 0-80 km/h in sec. 5,9
Acceleration from 0-100 km/h in sec. 8,2
leon_ingles Seite 279 Montag, 26. Januar 2009 4:29 16

Technical Data
280Weights
Trailer weights
Engine oil filling capacity Gross vehicle weight
in kg 1890
Weight in working order (with driver) in kg 1395
Front gross axle weight in kg 1048
Rear gross axle weight in kg 894
Permitted roof load in kg 75
Trailer without brakes 690
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.8 litres
leon_ingles Seite 280 Montag, 26. Januar 2009 4:29 16

Technical Data281
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Dimensions and capacitiesDimensions
Capacities
Tyre pressure Dimensions
Length, width 4,315 mm/ 1,768 mm
Height at kerb weight 1,459 mm
Front and rear projection 949 mm/ 788mm
Wheelbase 2,578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,525 mm 1,509 mm
1,533mm 1,517 mm
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
