2008 Seat Ibiza 5D Owner's manual

If and when215
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Fuses below steering wheel in relay holderPTC fuses45
Rear window heater 20
46 Radio/telephone VDA/Bluetooth/Steering column controls 20
47 Climatronic/autoclimate 5
48 Locking unit 15
49 Front electric window 30
50 Rear electric windows 30
51 Mirror heater 5
52 Alarm/Volume sensor 15
53 Fuel control unit TF3 15
54 Reverse light for automatic gearbox 15
55 Transformer on 15
56 Bi-turbo fuel control unit 15
57 Dipped headlight (right side) 15
58 Dipped headlight (left side) 15
Number Consumer Amperes
1 Supplementary electrical heating using air 40
2 Supplementary electrical heating using air 40
3 Supplementary electrical heating using air 40
Number
Consumer Amperes
Ibiza250_angles Seite 215 Dienstag, 5. August 2008 1:11 13

If and when
216AUX 1 Fuses
AUX 2 FusesFuses in engine compartment above battery
Number Consumer Amperes
1 Dipped headlight (left side) 15
2 Dipped headlight (right side) 15
3 Automatic gearbox lever
Number Consumer Amperes
1 Panoramic roof 20
2 Rain sensor 5
3 Headlight washer pump 20
Fig. 142 Battery
Fig. 143 Additional fuse
Ibiza250_angles Seite 216 Dienstag, 5. August 2008 1:11 13

If and when217
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Metal fuses
12)
Non-metal fuses
Some of the electrical items listed in
the table are only fitted on certain
models or are optional extras.
If a metal fuse breaks, use the spare space, place an additional fuse in the
spare space ⇒page 216, fig. 143
Please note that the above list contains all data at the time of going to press,
so it is subject to modifications.12)These fuses can only be changed at an authorised Service Centre
Number Consumer Amperes
1A lt e rn ato r 150
2 Compartment interior supply 110
3 Power-steering pump 50
4A BS u nit 40
5 Electro fan heater/Clima heater/ fan 40
6 Glow plugs pre-heating (diesel) / Gearbox control unit 50
Number Consumer Amperes
1A BS u nit 25
2 Electroblower clima heater/fan 30
3 Climate fan 5
4A BS u nit 10
5 Electronic control unit 5
6 Injection module 5
Ibiza250_angles Seite 217 Dienstag, 5. August 2008 1:11 13

If and when

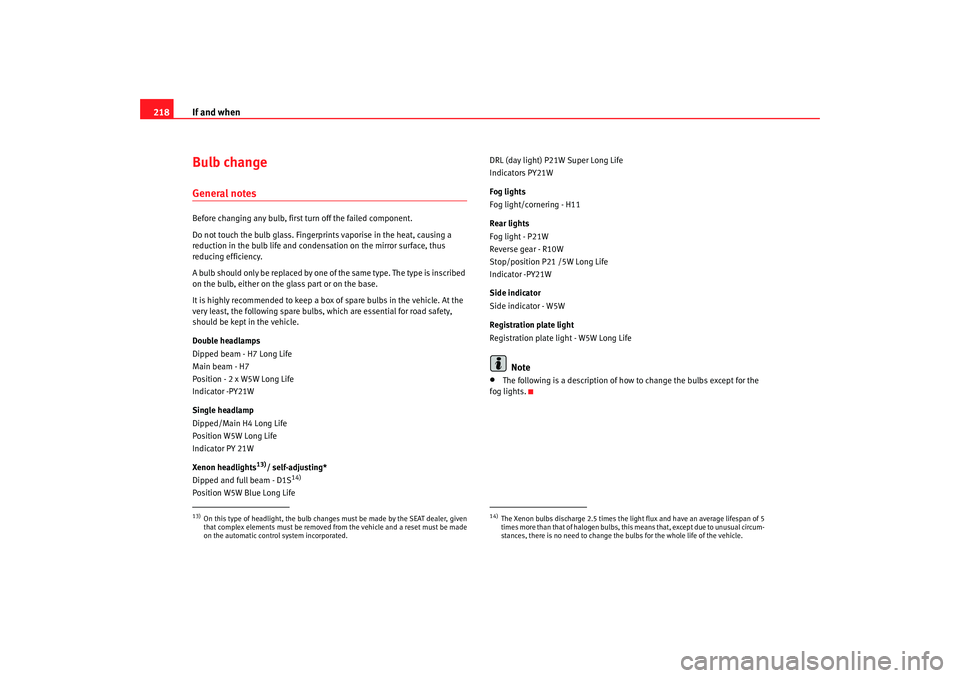

218Bulb changeGeneral notesBefore changing any bulb, first turn off the failed component.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and conden sation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the following spare bulbs, which are essential for road safety,
should be kept in the vehicle.
Double headlamps
Dipped beam - H7 Long Life
Main beam - H7
Position - 2 x W5W Long Life
Indicator -PY21W
Single headlamp
Dipped/Main H4 Long Life
Position W5W Long Life
Indicator PY 21W
Xenon headlights
13)/ self-adjusting*
Dipped and full beam - D1S
14)
Position W5W Blue Long Life DRL (day light) P21W Super Long Life
Indicators PY21W
Fog lights
Fog light/cornering - H11
Rear lights
Fog light - P21W
Reverse gear - R10W
Stop/position P21 /5W Long Life
Indicator -PY21W
Side indicator
Side indicator - W5W
Registration plate light
Registration plate light - W5W Long Life
Note
•
The following is a description of how to change the bulbs except for the
fog lights.
13)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.
14)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halogen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.
Ibiza250_angles Seite 218 Dienstag, 5. August 2008 1:11 13

If and when219
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

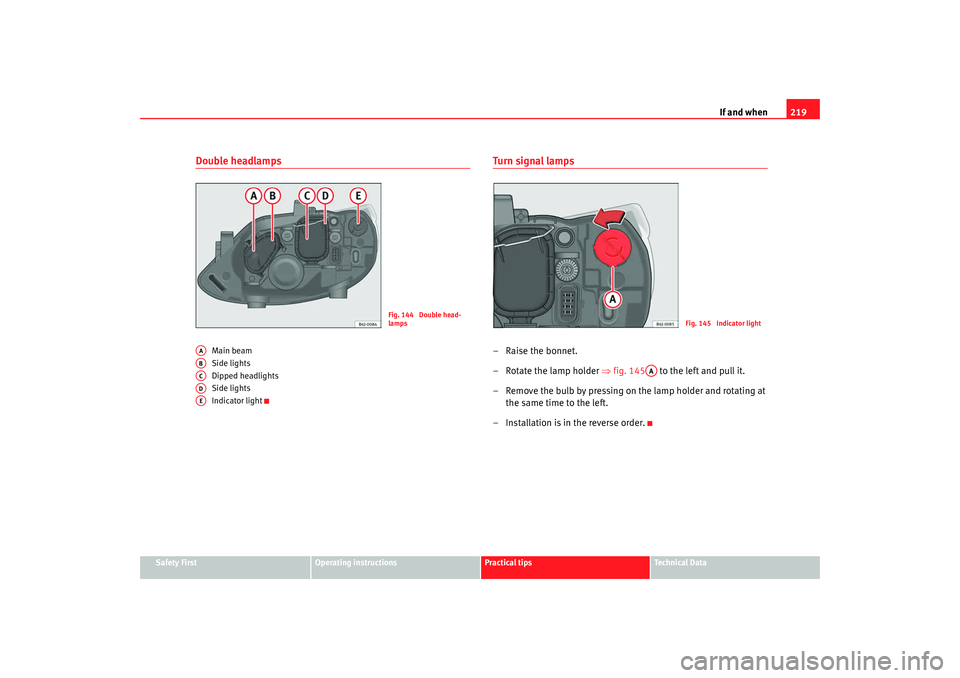

Double headlamps
Main beam
Side lights
Dipped headlights
Side lights
Indicator light
Tu r n si g nal la m ps– Raise the bonnet.
– Rotate the lamp holder ⇒ fig. 145 to the left and pull it.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is in the reverse order.
Fig. 144 Double head-
lamps
AAABACADAE
Fig. 145 Indicator light
AA
Ibiza250_angles Seite 219 Dienstag, 5. August 2008 1:11 13

If and when

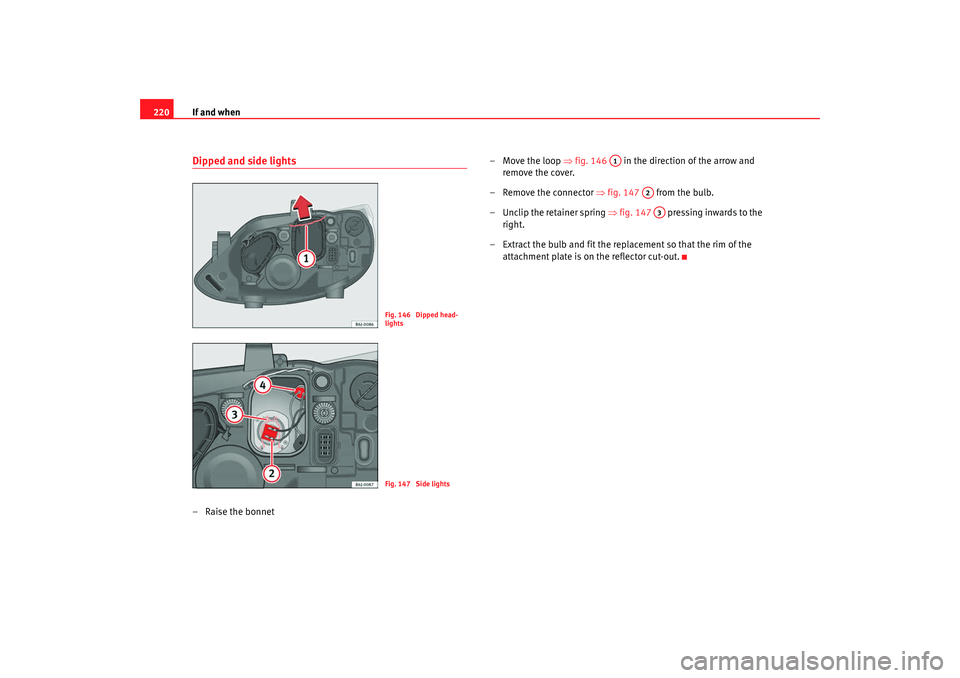

220Dipped and side lights– Raise the bonnet – Move the loop
⇒fig. 146 in the direction of the arrow and
remove the cover.
– Remove the connector ⇒fig. 147 from the bulb.
– Unclip the retainer spring ⇒fig. 147 pressing inwards to the
right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.
Fig. 146 Dipped head-
lightsFig. 147 Side lights
A1
A2A3
Ibiza250_angles Seite 220 Dienstag, 5. August 2008 1:11 13

If and when221
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Main beam and side lights–Raise the bonnet. – Remove the loop in the direction of the arrow and remove the
cover ⇒fig. 148.
– Remove the connector by pulling outward.
– Extract the bulb and fit the replacement so that it sits correctly in the cut-out on the reflector.
– Installation is in the reverse order.
Single headlamps
Side lights - Dipped beam/main beam
Indicator
Fig. 148 Main beam
headlightsFig. 149 Side lights
A2
Fig. 150 Single head-
lamp
AAAB
Ibiza250_angles Seite 221 Dienstag, 5. August 2008 1:11 13

If and when

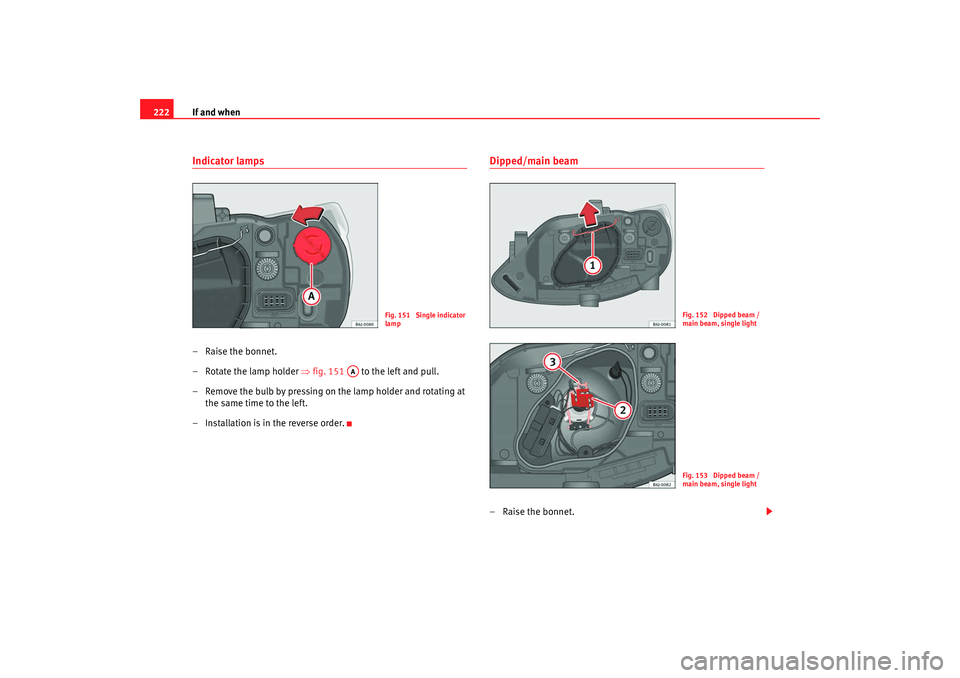

222Indicator lamps– Raise the bonnet.
– Rotate the lamp holder ⇒fig. 151 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is in the reverse order.
Dipped/main beam–Raise the bonnet.
Fig. 151 Single indicator
lamp
AA
Fig. 152 Dipped beam /
main beam, single lightFig. 153 Dipped beam /
main beam, single light
Ibiza250_angles Seite 222 Dienstag, 5. August 2008 1:11 13
