2008 Seat Ibiza 5D Owner's manual

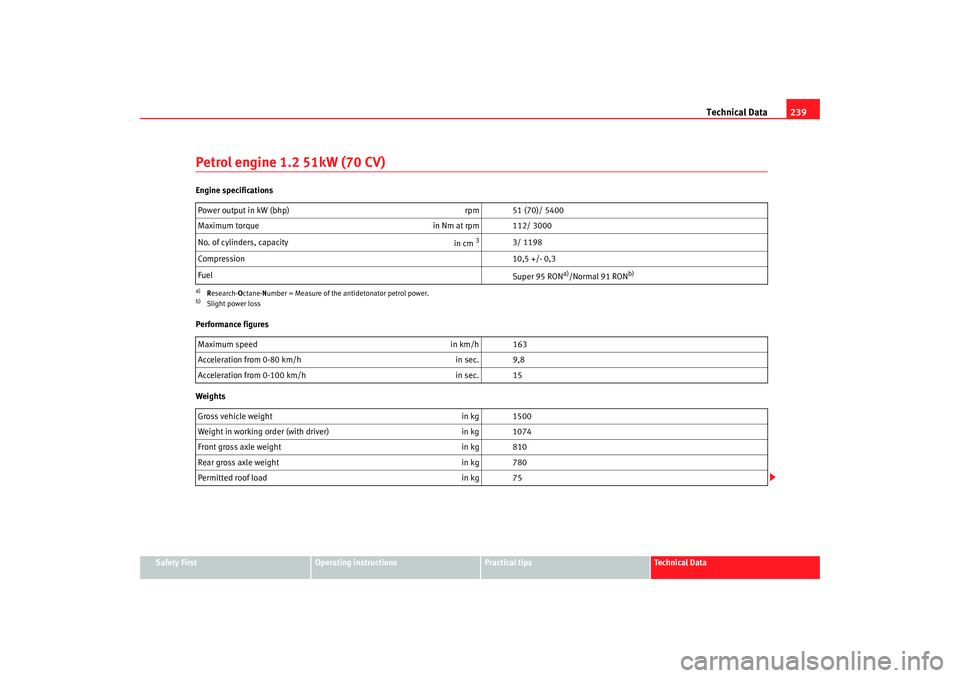

Technical Data239
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Petrol engine 1.2 51kW (70 CV)Engine specifications
Performance figures
WeightsPower output in kW (bhp)
rpm 51 (70)/ 5400
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders, capacity in cm
3
3/ 1198
Compression 10,5 +/- 0,3
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the antidetonator petrol power.b)Slight power lossMaximum speed in km/h 163
Acceleration from 0-80 km/h in sec. 9,8
Acceleration from 0-100 km/h in sec. 15
Gross vehicle weight in kg 1500
Weight in working order (with driver) in kg 1074
Front gross axle weight in kg 810
Rear gross axle weight in kg 780
Permitted roof load in kg 75
Ibiza250_angles Seite 239 Dienstag, 5. August 2008 1:11 13

Technical Data
240Trailer weights
Engine oil capacityPetrol engine 1.4l 63 kW (85 bhp)Engine specifications
Performance figures Trailer without brakes
530
Trailer with brakes, gradients up to 8% 1000
Trailer with brakes, gradients up to 12% 800
Approximate engine oil capacity with oil filter change 2.75 litres
Power output in kW (bhp) rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5 +/- 0,5
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the antidetonator petrol power.b)Slight power lossMaximum speed in km/h 175
Acceleration from 0-80 km/h in sec. 8
Acceleration from 0-100 km/h in sec. 12,2
Ibiza250_angles Seite 240 Dienstag, 5. August 2008 1:11 13

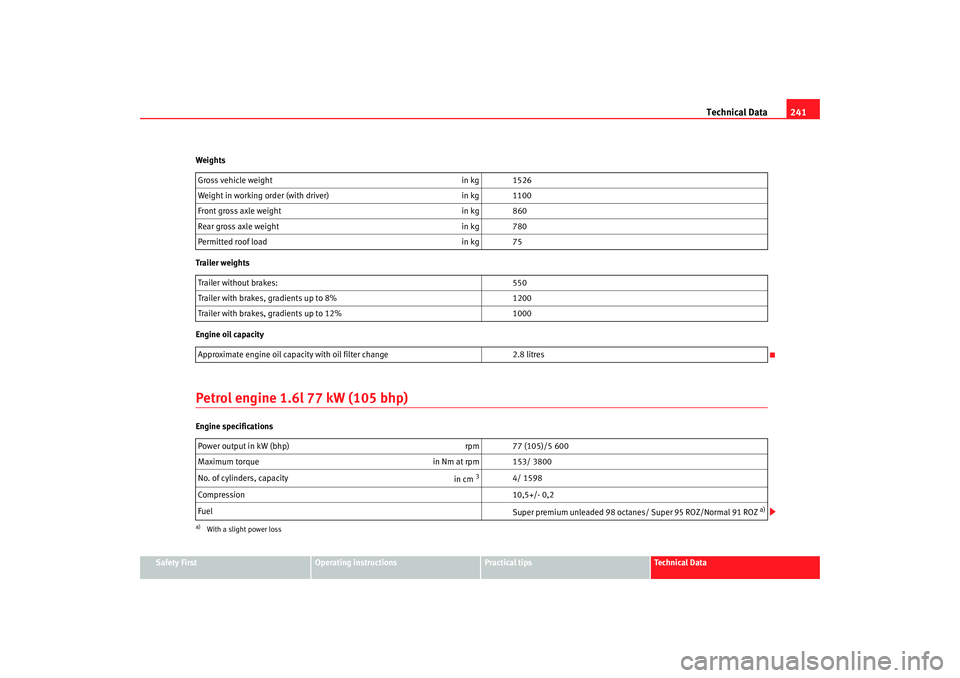

Technical Data241
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Petrol engine 1.6l 77 kW (105 bhp)Engine specifications
Gross vehicle weight
in kg 1526
Weight in working order (with driver) in kg 1100
Front gross axle weight in kg 860
Rear gross axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes: 550
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 2.8 litres
Power output in kW (bhp) rpm 77 (105)/5 600
Maximum torque in Nm at rpm 153/ 3800
No. of cylinders, capacity in cm
3
4/ 1598
Compression 10,5+/- 0,2
Fuel Super premium unleaded 98 octanes/ Super 95 ROZ/Normal 91 ROZ
a)
a)With a slight power loss
Ibiza250_angles Seite 241 Dienstag, 5. August 2008 1:11 13

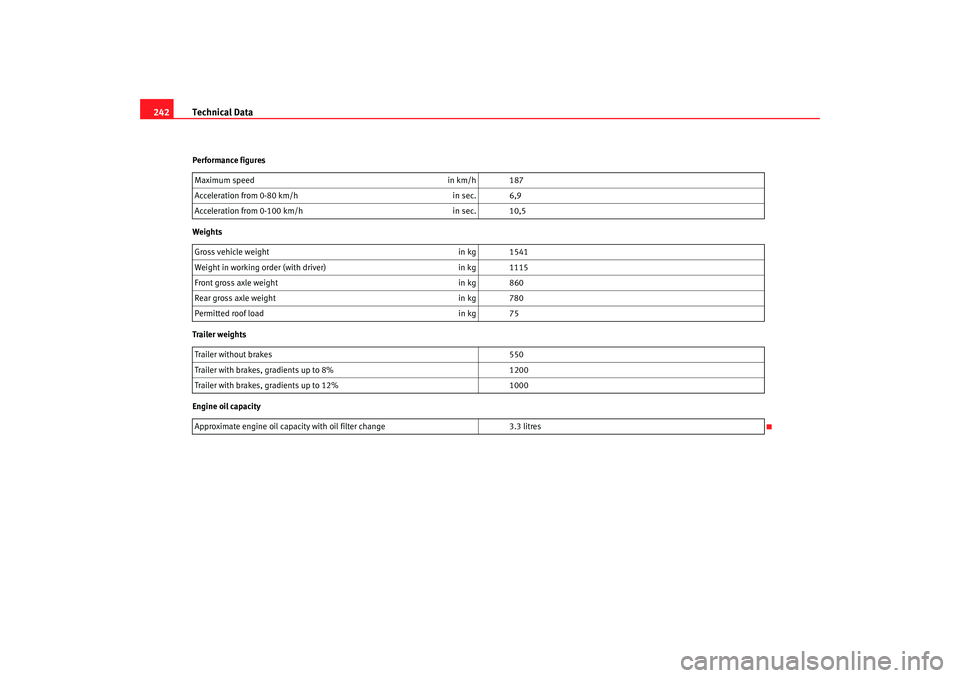

Technical Data
242Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 187
Acceleration from 0-80 km/h in sec. 6,9
Acceleration from 0-100 km/h in sec. 10,5
Gross vehicle weight in kg 1541
Weight in working order (with driver) in kg 1115
Front gross axle weight in kg 860
Rear gross axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 550
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 3.3 litres
Ibiza250_angles Seite 242 Dienstag, 5. August 2008 1:11 13

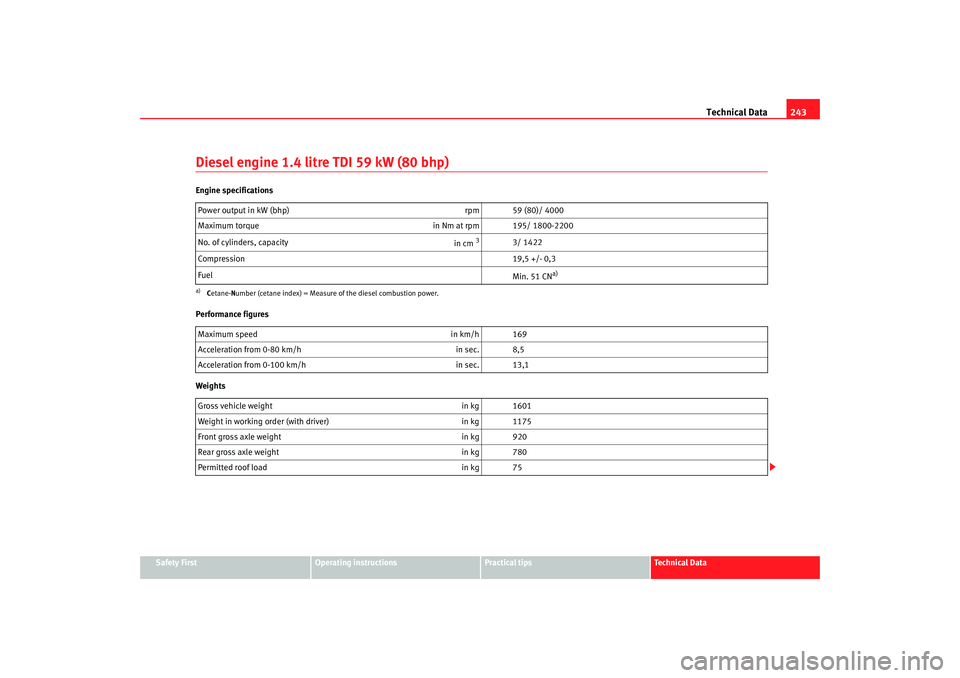

Technical Data243
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Diesel engine 1.4 litre TDI 59 kW (80 bhp)Engine specifications
Performance figures
WeightsPower output in kW (bhp)
rpm 59 (80)/ 4000
Maximum torque in Nm at rpm 195/ 1800-2200
No. of cylinders, capacity in cm
3
3/ 1422
Compression 19,5 +/- 0,3
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 169
Acceleration from 0-80 km/h in sec. 8,5
Acceleration from 0-100 km/h in sec. 13,1
Gross vehicle weight in kg 1601
Weight in working order (with driver) in kg 1175
Front gross axle weight in kg 920
Rear gross axle weight in kg 780
Permitted roof load in kg 75
Ibiza250_angles Seite 243 Dienstag, 5. August 2008 1:11 13

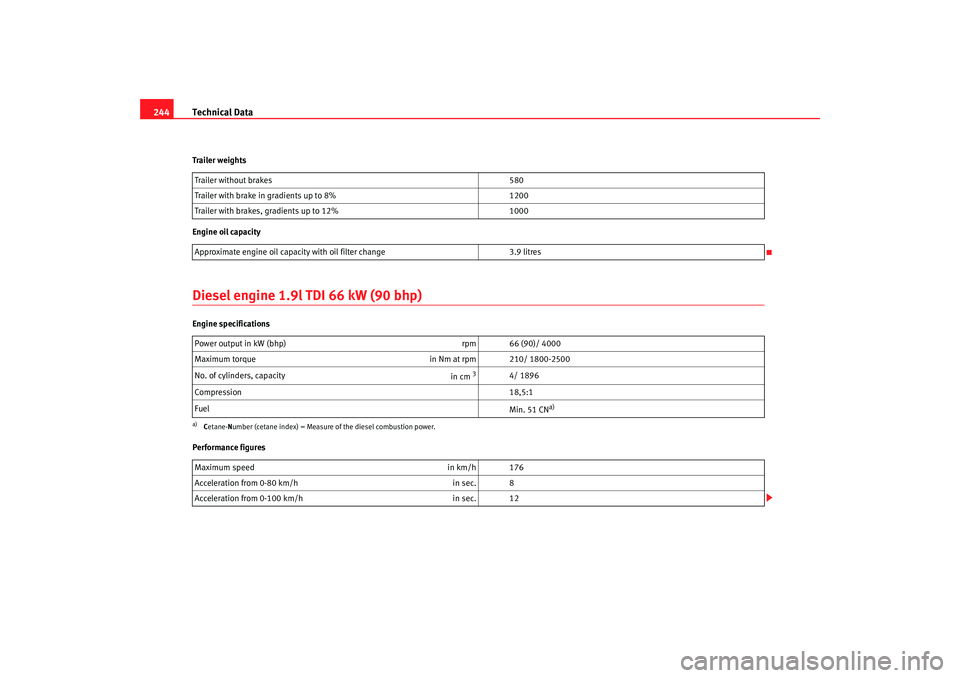

Technical Data
244Trailer weights
Engine oil capacityDiesel engine 1.9l TDI 66 kW (90 bhp)Engine specifications
Performance figures Trailer without brakes
580
Trailer with brake in gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 3.9 litres
Power output in kW (bhp) rpm 66 (90)/ 4000
Maximum torque in Nm at rpm 210/ 1800-2500
No. of cylinders, capacity in cm
3
4/ 1896
Compression 18,5:1
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.Maximum speed in km/h 176
Acceleration from 0-80 km/h in sec. 8
Acceleration from 0-100 km/h in sec. 12
Ibiza250_angles Seite 244 Dienstag, 5. August 2008 1:11 13

Technical Data245
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Diesel engine 1.9l TDI 77 kW (105 bhp)Engine specifications
Gross vehicle weight
in kg 1626
Weight in working order (with driver) in kg 1200
Front gross axle weight in kg 940
Rear gross axle weight in kg 780
Permitted roof load in kg 75
Trailer without brakes 600
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4 litres
Power output in kW (bhp) rpm 77 (105)/ 4000
Maximum torque in Nm at rpm 240/ 1900
No. of cylinders, capacity in cm
3
4/ 1896
Compression 18,5
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the diesel combustion power.
Ibiza250_angles Seite 245 Dienstag, 5. August 2008 1:11 13

Technical Data
246Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 186
Acceleration from 0-80 km/h in sec. 7,2
Acceleration from 0-100 km/h in sec. 10,6
Gross vehicle weight in kg 1626
Weight in working order (with driver) in kg 1200
Front gross axle weight in kg 940
Rear gross axle weight in kg 780
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4 litres
Ibiza250_angles Seite 246 Dienstag, 5. August 2008 1:11 13
