2008 Seat Exeo technical data

Technical Data

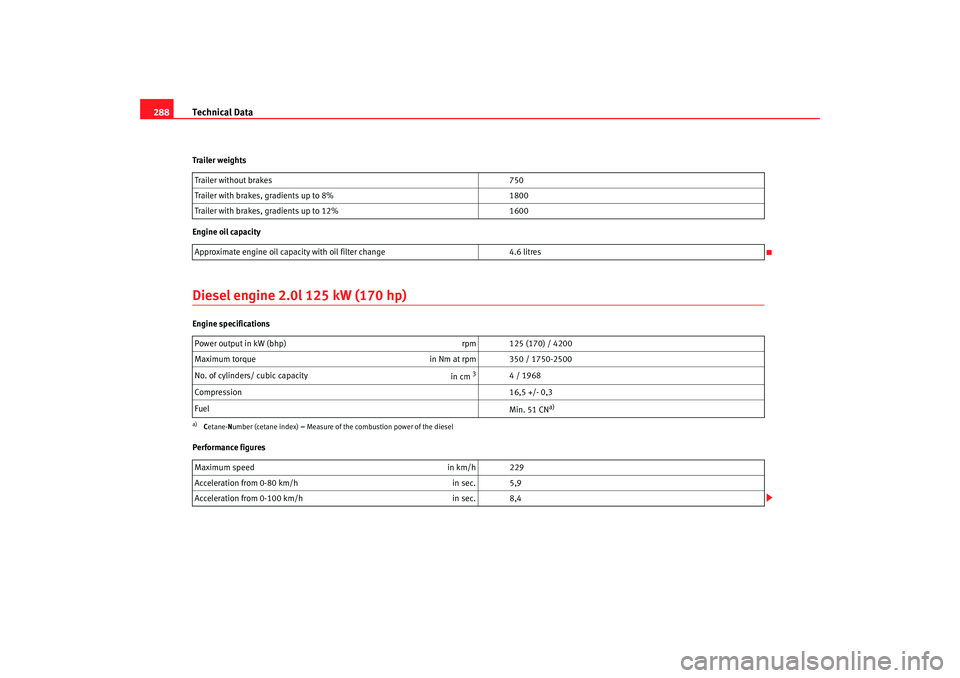

288Trailer weights
Engine oil capacityDiesel engine 2.0l 125 kW (170 hp)Engine specifications
Performance figures Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1600
Approximate engine oil capacity with oil filter change 4.6 litres
Power output in kW (bhp) rpm 125 (170) / 4200
Maximum torque in Nm at rpm 350 / 1750-2500
No. of cylinders/ cubic capacity in cm
3
4 / 1968
Compression 16,5 +/- 0,3
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the dieselMaximum speed in km/h 229
Acceleration from 0-80 km/h in sec. 5,9
Acceleration from 0-100 km/h in sec. 8,4
Exeo_EN.book Seite 288 Freitag, 17. Oktober 2008 11:24 11

Technical Data289
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Vehicle maximum gross weight
in kg 2015
Weight in working order (with driver) in kg 1530
Front gross axle weight in kg 1115
Rear gross axle weight in kg 1030
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1600
Approximate engine oil capacity with oil filter change 4.6 litres
Exeo_EN.book Seite 289 Freitag, 17. Oktober 2008 11:24 11

Technical Data
290Dimensions and capacities
Dimensions
Length, width 4,661 mm/ 1,772 mm
Height at kerb weight 1,430 mm
Front and rear projection 976 mm/ 1,043 mm
Wheelbase 2,642 mm
Turning circle 11.2 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,522 mm 1,523 mm
Capacities
Fuel tank 70 l. Reserve 10 l.
Windscreen washer fluid contai ner with headlight washer 4.8 l.
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
Exeo_EN.book Seite 290 Freitag, 17. Oktober 2008 11:24 11

Index
298Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Tow starting
Comments . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186, 274 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 188
Notes on towing . . . . . . . . . . . . . . . . . 186, 187
Removable towing bracket . . . . . . . . . . . . . 189
Technical requirements . . . . . . . . . . . . . . . 186
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 280
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 195
Towing eye . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Towing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Traction control system How the system works . . . . . . . . . . . . . . . . 178
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Trip recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Type plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Tyre Mobility System . . . . . . . . . . . . . . . . . . . . . 243
Tyre mobility system . . . . . . . . . . . . . . . . . . . . . 237
Tyre pressure . . . . . . . . . . . . . . . . . . . . 66, 89, 227 Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Tyre pressure monitoring . . . . . . . . . . . . . . . . . 228
Tyre pressure monitoring system . . . . . . . . . . . . 88
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Tyre repair kit Tyre Mobility System . . . . . . . . . . . . . . . . . . 243
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 233
Tyres service life . . . . . . . . . . . . . . . . . . . . . . . . 230 Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 231
Tyres with directional tread pattern . . . . . . . . . 227
UUnderbody maintenance . . . . . . . . . . . . . . . . . 202VVehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Vehicle identification data . . . . . . . . . . . . . . . . 278
Vehicle identification number . . . . . . . . . . . . . 278
Vehicle Maintenance
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Vehicle modifications . . . . . . . . . . . . . . . . . . . . 206
Vehicle paintwork Products for vehicle maintenance . . . . . . . 197
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Vehicle washing . . . . . . . . . . . . . . . . . . . . . . . . 198
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . . 17WWarning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Warning lamps Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Anti-lock brake system . . . . . . . . . . . . . . . . . 67
Electronic differential lock . . . . . . . . . . . . . . 67
Electronic stabilisation programme . . . . . . . 68
Engine management (EPC) . . . . . . . . . . . . . . 69
Exhaust emission control system . . . . . . . . 66 Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Red symbols in central display . . . . . . . . . . 76
Seat belt warning lamp . . . . . . . . . . . . . . . . . 68
Yellow symbols in central display . . . . . . . . 78
Warning lamps - overview . . . . . . . . . . . . . . . . . 65
Washer fluid level . . . . . . . . . . . . . . . . . . . . . . . . 80
Washing by hand . . . . . . . . . . . . . . . . . . . . . . . 198
Washing with high pressure cleaners . . . . . . . 199
Wear indicators . . . . . . . . . . . . . . . . . . . . . . . . . 231
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281 Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227, 280 Changing a wheel . . . . . . . . . . . . . . . . . . . . 238
Why assume the correct sitting position? . . . . . 28
Why should head restraints be correctly adjusted? 13
Why wear seat belts? . . . . . . . . . . . . . . . . . . 19, 28
Why wear seatbelts? . . . . . . . . . . . . . . . . . . . . . . 18
Windows Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Windscreen washer system . . . . . . . . . . . . . . . 220
Windscreen wiper blades Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Windscreen wipers . . . . . . . . . . . . . . . . . . . . . . 125 Changing blades . . . . . . . . . . . . . . . . . . . . . 221
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . 125
Washer jets . . . . . . . . . . . . . . . . . . . . . . . . . 125
Winter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Winter conditions Defrost function . . . . . . . . . . . . . . . . . . . . . 156
Exeo_EN.book Seite 298 Freitag, 17. Oktober 2008 11:24 11
