2008 RENAULT SCENIC sensor

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 15V4 MR-372-J84-87F000$462_eng.mif
Vdiag No: 04-08
DF003
PRESENT
OR
STOREDLEFT-HAND INNER SENSOR
CC.1 : Short circuit to + 12 V
CO.0 : Open circuit or short circuit to earth
1.DEF : Internal electronic fault
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present following selection of reverse gear if the parking distance
control function is ACTIVE (READY): the parking distance control warning light is not
lit, see the interpretation of status ET003 Parking distance control function.
Special notes:
This fault is indicated by the buzzer (a 5 second warning sound) and the system shuts
down.
When dealing with a combination of faults on the sensors:
Check the connection and the status of the intermediate connectors (the sensors up to the computer). Repair if
necessary.
Check for + 12 V, after ignition, between Tracks 1 and 3 of all the sensors.
Computer with 1 connector:
Check the insulation, continuity and the absence of interference resistance of the supply for each sensor
(between Tracks 1 and 3) and for the computer (between tracks 9 and 10).
Computer with 2 connectors:
Check the insulation, continuity and absence of interference resistance of the supply between tracks 1 and 3
for each sensor and between tracks 8 and 11 of the computer 12-track connector.
In the case where only one sensor is faulty:
Swap the defective sensor with a non-defective sensor.
Check for faults:
If the sensor is no longer faulty, replace the defective sensor.
If the fault is still present, with the ignition off, disconnect the parking distance control computer connector to
check the insulation, continuity and the absence of interference resistance on the following connections:
1 connector:
Parking distance control computer Left-hand inner sensor
Track 9 Track 1
Track 14 Track 2
Track 10 Track 3
Repair if necessary (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any faults.
AAP_V04_DF003/AAP_V08_DF003

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 16V4 MR-372-J84-87F000$462_eng.mif
Vdiag No: 04-08PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
DF003
(CONTINUED)
2 connectors:
12-track parking distance control computer
connectorLeft-hand inner sensor
Track 11 Track 1
Track 3 Track 2
Track 8 Track 3
Repair if necessary (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any faults.

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 17V4 MR-372-J84-87F000$462_eng.mif
Vdiag No: 04-08
Fault finding - Interpretation of faults
DF004
PRESENT
OR
STOREDRIGHT-HAND OUTER SENSOR
CC.1 : Short circuit to + 12 V
CO.0 : Open circuit or short circuit to earth
1.DEF : Internal electronic fault
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present following selection of reverse gear if the parking distance
control function is ACTIVE (ready): the parking distance control warning light is not lit,
see the interpretation of status ET003 Parking distance control function.
Special notes:
This fault is indicated by the buzzer (a 5 second warning sound) and the system shuts
down.
When dealing with a combination of faults on the sensors:
Check the connection and the status of the intermediate connectors (the sensors up to the computer). Repair if
necessary.
Check for + 12 V, after ignition, between tracks 1 and 3 of all the sensors.
Computer with 1 connector:
Check the insulation, continuity and the absence of interference resistance of the supply for each sensor
(between tracks 1 and 3) and for the computer (between tracks 9 and 10).
Computer with 2 connectors:
Check the insulation, continuity and absence of interference resistance of the supply between tracks 1 and 3
for each sensor and between tracks 8 and 11 of the computer 12-track connector.
In the case where only one sensor is faulty:
Swap the defective sensor with a non-defective sensor.
Check for faults:
If the sensor is no longer faulty, replace the defective sensor.
If the fault is still present, with the ignition off, disconnect the parking distance control computer connector to
check the insulation, continuity and the absence of interference resistance on the following connections:
1 connector:
Parking distance control computer Right-hand outer sensor
Track 9 Track 1
Track 16 Track 2
Track 10 Track 3
Repair if necessary (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any faults.
AAP_V04_DF004/AAP_V08_DF004

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 18V4 MR-372-J84-87F000$462_eng.mif
Vdiag No: 04-08PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults

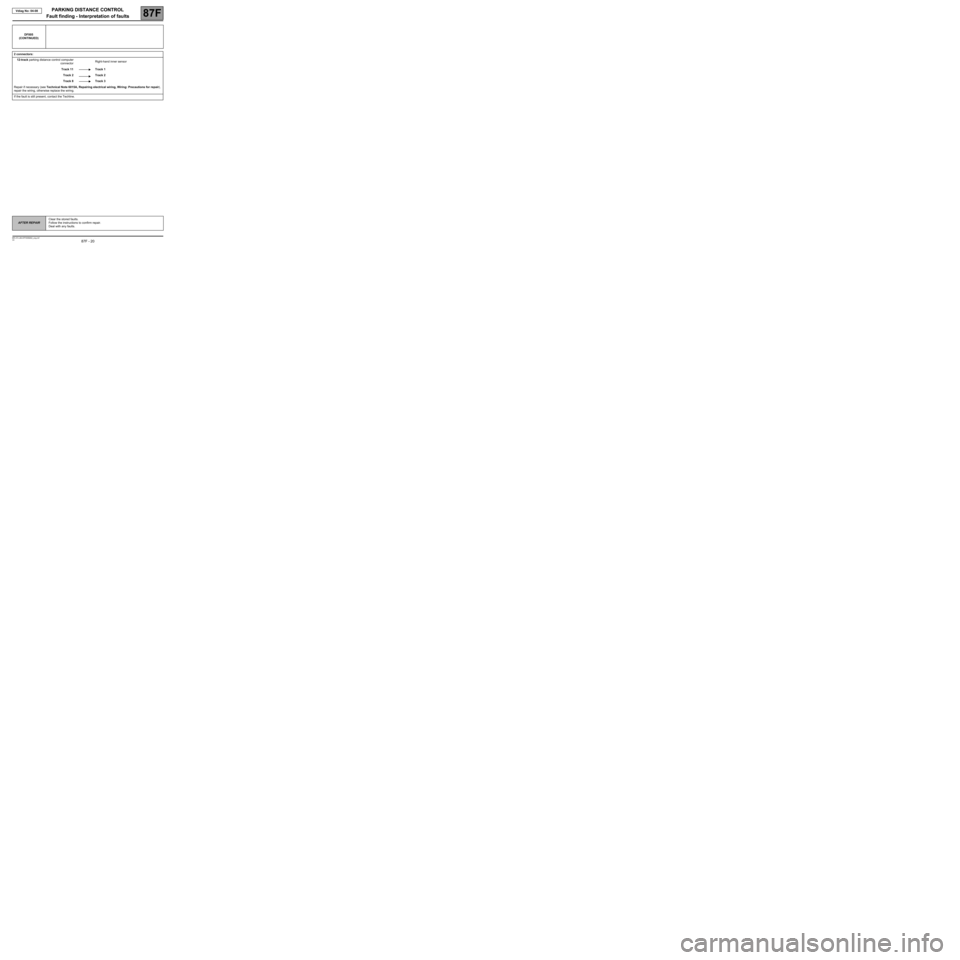

DF004
(CONTINUED)
2 connectors:
12-track parking distance control computer
connectorRight-hand outer sensor
Track 11 Track 1
Track 4 Track 2
Track 8 Track 3
Repair if necessary (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any faults.

PARKING DISTANCE CONTROL
87F
87F - 19V4 MR-372-J84-87F000$462_eng.mif
Vdiag No: 04-08
Fault finding - Interpretation of faults
DF005
PRESENT
OR
STOREDRIGHT-HAND INNER SENSOR
CC.1 : Short circuit to + 12 V
CO.0 : Open circuit or short circuit to earth
1.DEF : Internal electronic fault
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present following selection of reverse gear if the parking distance
control function is ACTIVE (READY): the parking distance control warning light is not
lit, see the interpretation of status ET003 Parking distance control function.
Special notes:
This fault is indicated by the buzzer (a 5 second warning sound) and the system shuts
down.
If a combination of faults are present on the sensors:
Check the connection and condition of the intermediate connectors (the sensors up to the computer). Repair if
necessary.
Check for + 12 V, after ignition, between tracks 1 and 3 of all the sensors.
Computer with 1 connector:
Check the insulation, continuity and the absence of interference resistance of the supply for each sensor
(between tracks 1 and 3) and for the computer (between tracks 9 and 10).
Computer with 2 connectors:
Check the insulation, continuity and absence of interference resistance of the supply between tracks 1 and 3
for each sensor and between tracks 8 and 11 of the computer 12-track connector.
In the case where only one sensor is faulty:
Swap the defective sensor with a non-defective sensor.
Check for faults:
If the sensor is no longer faulty, replace the defective sensor.
If the fault is still present, with the ignition off, disconnect the parking distance control computer connector to
check the insulation, continuity and the absence of interference resistance on the following connections:
1 connector:
Parking distance control computer Right-hand inner sensor
Track 9 Track 1
Track 13 Track 2
Track 10 Track 3
Repair if necessary (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any faults.
AAP_V04_DF005/AAP_V08_DF005

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 20V4 MR-372-J84-87F000$462_eng.mif
Vdiag No: 04-08PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
DF005
(CONTINUED)
2 connectors:
12-track parking distance control computer
connectorRight-hand inner sensor
Track 11 Track 1
Track 2 Track 2
Track 8 Track 3
Repair if necessary (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any faults.

PARKING DISTANCE CONTROL
87F
87F - 23V4 MR-372-J84-87F000$462_eng.mif
Vdiag No: 04-08
Fault finding - Interpretation of faults
DF007
PRESENT
OR
STOREDSENSOR SUPPLY VOLTAGE
CO.0 : Open circuit
NOTESConditions for applying the fault finding procedure to stored faults:
The fault reappears present or stored after its has been cleared, the ignition is switched
on and off again and reverse gear is selected.
Special notes:
The sensors are directly supplied with + 12 V by the computer.
Computer with 1 connector:
With the parking distance control computer 16-track connector connected and with the ignition on, measure the
sensor power supply coming from the computer. The voltage should be equal to the battery voltage (± 0.5 V)
when measured across track 9 (+ 12 V) and track 10 (earth).
If there is not a + 12 V power supply between the tracks specified above, remove the rear bumper to access the
sensors.
Computer with 2 connectors:
With the parking distance control computer 12-track connector connected and with the ignition on, measure the
sensor power supply from the computer outlet. The voltage should be equal to the battery voltage (± 0.5 V) when
measured across track 11 (+ 12 V) and track 8 (earth).
If there is not a + 12 V power supply between the tracks specified above, remove the rear bumper to access the
sensors.
Switch off the ignition, and disconnect the parking distance control computer connector to check the insulation
and continuity and the absence of interference resistance on the following connections:
1 connector:
Parking proximity sensor computer connector Sensors
Track 9 Track 1 of the four sensors
Track 10 Track 3 of the four sensors
Repair if necessary (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any faults.
AAP_V04_DF007/AAP_V08_DF007

PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
87F
87F - 24V4 MR-372-J84-87F000$462_eng.mif
Vdiag No: 04-08PARKING DISTANCE CONTROL
Fault finding - Interpretation of faults
DF007
(CONTINUED)
2 connectors:
12-track parking distance control computer
connectorRight-hand inner sensor
Track 11 Track 1
Track 8 Track 3
Repair if necessary (see Technical Note 6015A, Repairing electrical wiring, Wiring: Precautions for repair),
repair the wiring, otherwise replace the wiring.
If the sensor power supply is correct (no short circuit), reconnect the computer connector and four sensor
connectors.
Turn on the ignition and disconnect the sensors, one at a time, to see if any of the sensors causes the power supply
to drop. Replace the defective sensor.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the stored faults.
Follow the instructions to confirm repair.
Deal with any faults.
