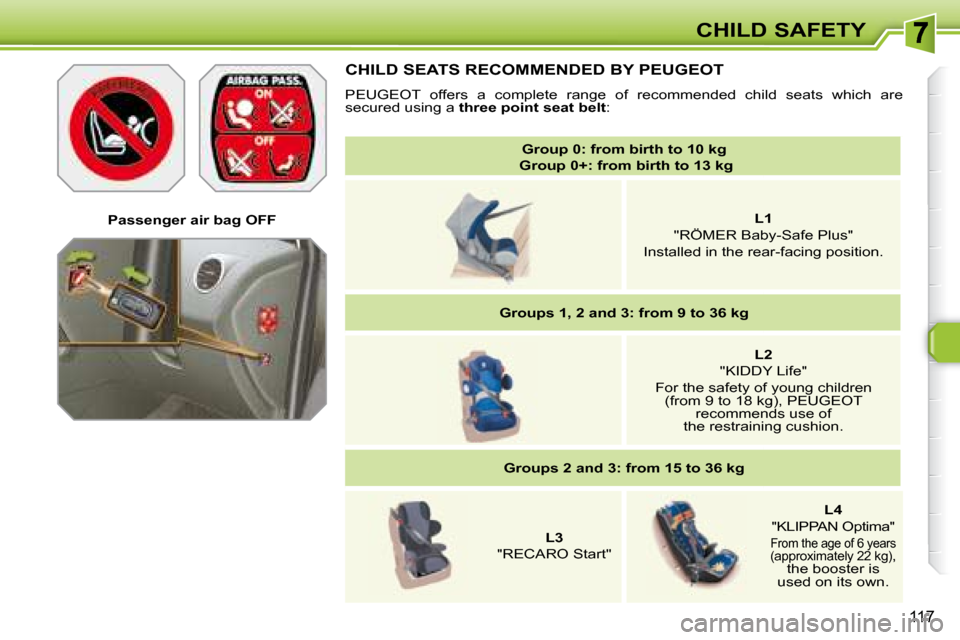

117
CHILD SAFETY
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of
the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years ( a p p r o x i m a t e l y 2 2 k g ),
the booster is
used on its own.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which
are
secured using a three point seat belt :
Page 111 of 260
117
CHILD SAFETY
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of
the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years ( a p p r o x i m a t e l y 2 2 k g ),
the booster is
used on its own.
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which
are
secured using a three point seat belt :
Page 112 of 260

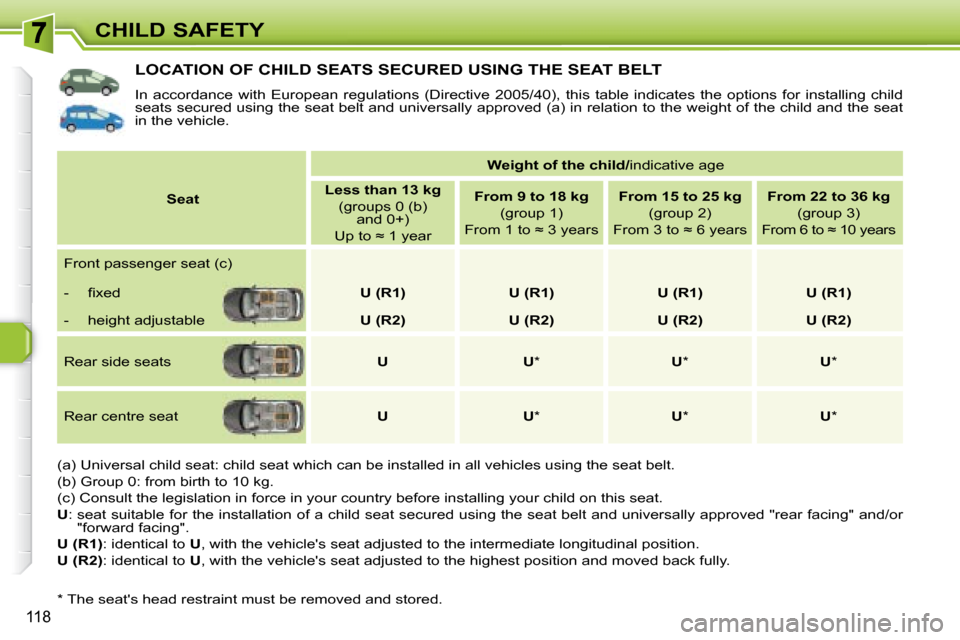

118
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2005/40), this table indicates the options for installing child
seats secured using the seat belt and universally approved (a) in relation to the weight of the child and the seat
in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before inst alling your child on this seat.
U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".
U (R1) : identical to U , with the vehicle's seat adjusted to the intermediate lo ngitudinal position.
U (R2) : identical to U , with the vehicle's seat adjusted to the highest positio n and moved back fully.
* The seat's head restraint must be removed and stored.
Seat
Weight of the child/ indicative age
Less than 13 kg
(groups 0 (b) and 0+)
U p t o ≈ 1 y e a r
From 9 to 18 kg
(group 1)
F r o m 1 t o ≈ 3 y e a r s
From 15 to 25 kg
(group 2)
F r o m 3 t o ≈ 6 y e a r s
From 22 to 36 kg
(group 3)
F r o m 6 t o ≈ 1 0 y e a r s
Front passenger seat (c)
- fi x e d
U (R1) U (R1) U (R1) U (R1)
- height adjustable U (R2) U (R2) U (R2) U (R2)
Rear side seats U U * U * U *
Rear centre seat U U * U * U *
Page 113 of 260

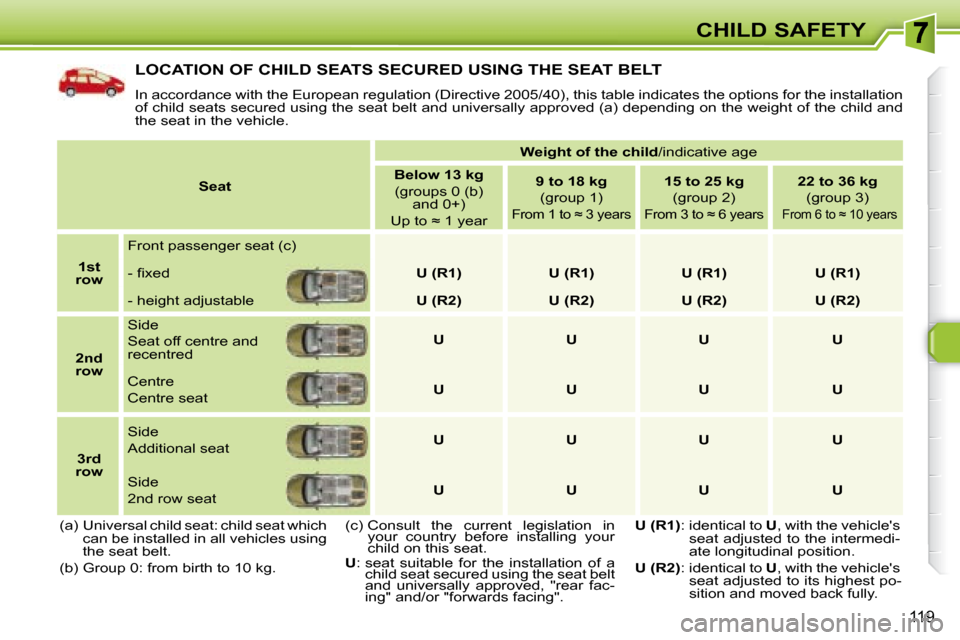

119
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with the European regulation (Directive 2005/40), this table indicates the options for the installation
of child seats secured using the seat belt and universally appro ved (a) depending on the weight of the child and
the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using
the seat belt.
(b) Group 0: from birth to 10 kg.
Seat
Weight of the child /indicative age
Below 13 kg
(groups 0 (b) and 0+)
U p t o ≈ 1 y e a r
9 to 18 kg
(group 1)
F r o m 1 t o ≈ 3 y e a r s
15 to 25 kg
(group 2)
F r o m 3 t o ≈ 6 y e a r s
22 to 36 kg
(group 3)
F r o m 6 t o ≈ 1 0 y e a r s
1st
row Front passenger seat (c)
- fi x e d
U (R1) U (R1) U (R1) U (R1)
- height adjustable U (R2) U (R2) U (R2) U (R2)
2nd
row Side
Seat off centre and
recentred
U U U U
Centre
Centre seat
U U U U
3rd
row Side
Additional seat
U U U U
Side
2nd row seat
U U U U
(c) Consult the current legislation in your country before installing your
child on this seat.
U : seat suitable for the installation of a
child seat secured using the seat belt
and universally approved, "rear fac-
ing" and/or "forwards facing".
U (R1) : identical to U , with the vehicle's
seat adjusted to the intermedi-
ate longitudinal position.
U (R2) : identical to U , with the vehicle's
seat adjusted to its highest po-
sition and moved back fully.
Page 114 of 260
!

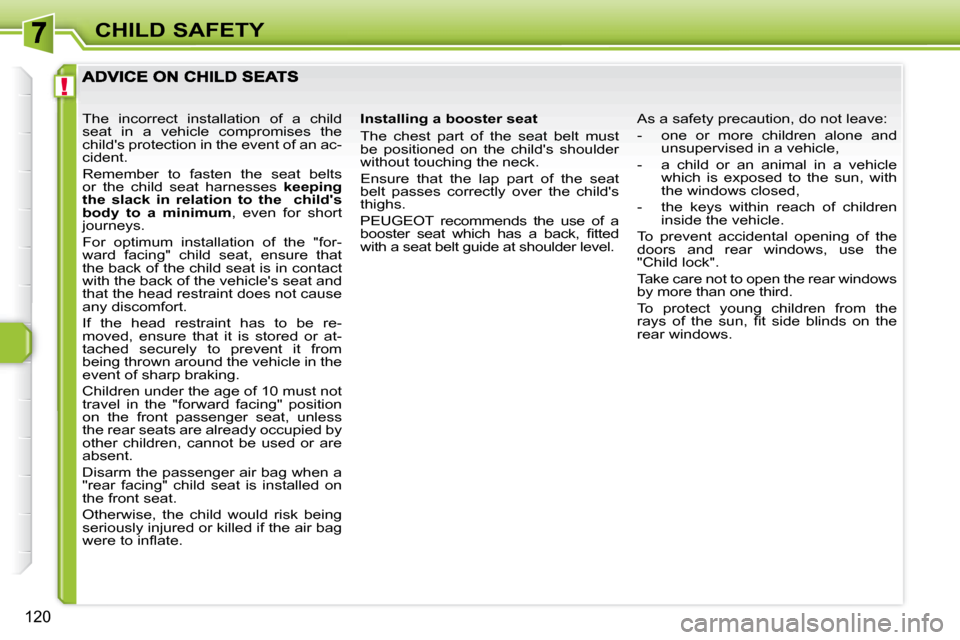

120
CHILD SAFETY
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle w h i c h i s e x p o s e d t o t h e s u n , w i t h
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors and rear windows, use the
"Child lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
Remember to fasten the seat belts
or the child seat harnesses
keeping
the slack in relation to the child's
body to a minimum , even for short
journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or at-
tached securely to prevent it from
being thrown around the vehicle in the
event of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when a
"rear facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag
w e r e t o i n fl a t e .
Page 116 of 260
i

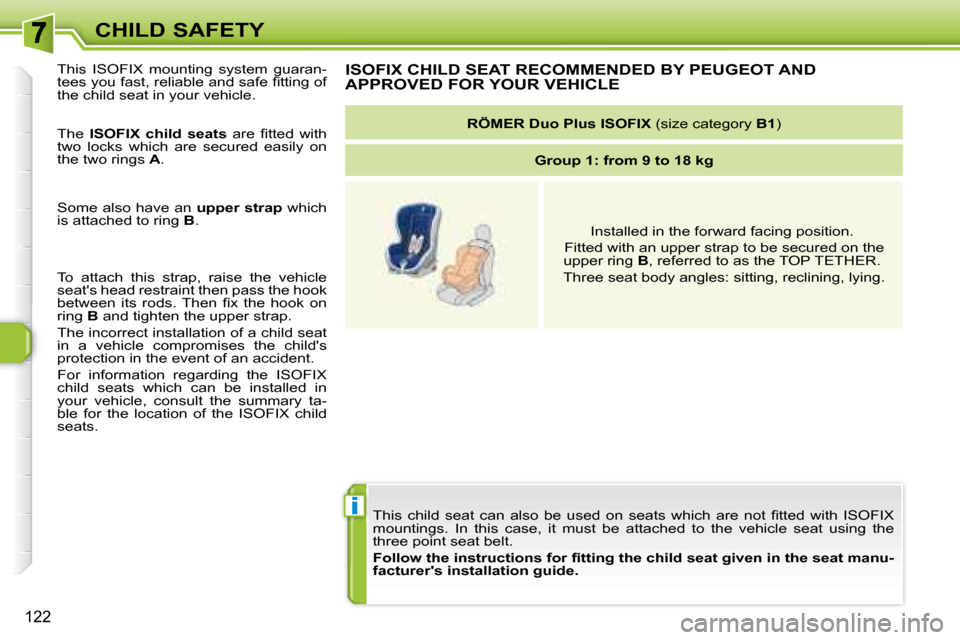

122
CHILD SAFETY T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u -
facturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary ta-
ble for the location of the ISOFIX child
seats.
Page 117 of 260
i
122
CHILD SAFETY T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings. In this case, it must be attached to the vehicle se at using the
three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u -
facturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary ta-
ble for the location of the ISOFIX child
seats.
Page 125 of 260
130
SAFETY Height adjustment
Seat belt not fastened/unfastened
warning light
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
To lower the attachment point,
squeeze the control A and slide it
downwards.
To raise the attachment point, slide
the control A upwards.
When the ignition is switched
on, this warning light comes on,
either on the instrument panel
or on the seat belt and passen-
ger's front air bag warning lights display,
if the driver and/or the front passenger
has not fastened his seat belt.
F r o m a p p r o x i m a t e l y 1 2 m p h ( 2 0 k m / h )
t h i s w a r n i n g l i g h t fl a s h e s f o r t w o m i n -
utes accompanied by an audible signal
of increasing volume. Once these two
minutes have elapsed, this warning light
remains on until the driver and/or the
front passenger fastens his seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it rolls up.
SEAT BELTS
On the 3-door versions, lower the sup-
port incorporated in the control to rest
the seat belt on it. This enables you to
retrieve the seat belt more easily when
you have to put it back on.
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front impact. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so increasing his protection.
