2008 Peugeot 308 SW BL Dag belt

26
Deactivation warning lights
If one of the following warning lights
comes on, this confi rms that the corres-
ponding system has been switched off
intentionally. Passenger's air bag system
deactivation.
The passenger's air bag system
is put into service automatically
when the vehicle is started.
A specifi c control, located on
the passenger's side of the fascia, per-
mits deactivation of the system. This is
confi rmed by continuous lighting of this
warning light on the instrument panel or
on the seat belt and passenger's front
air bag warning lights display. Dynamic stability control
(ESP/ASR) deactivation.
The ESP/ASR system is put
into service automatically when
the vehicle is started.
A specifi c button, located in the centre
of the fascia, permits deactivation of the
system. This is confi rmed by continuous
lighting of this warning light and of the
indicator light on the button.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
Common deactivation warning
lights Specifi c deactivation warning lights
Automatic locking.
If this is displayed, it indicates
that you have deactivated the
automatic locking of the doors
and boot while driving. Automatic wiping.
If this is displayed, it indicates
that you have deactivated the
automatic windscreen wiping.
The other warning lights appear on the
large display, located in the centre of
the instrument panel. Speed limiter.
If this is displayed, it indicates
that you have deactivated the
speed limiter.
Cruise control.
If this is displayed, it indicates
that you have deactivated the
cruise control.
Automatic lighting.
If this is displayed, it indicates
that you have deactivated the
automatic switching on of the
headlamps.
INSTRUMENTS and CONTROLS

28
Engine autodiagnostics
system.
If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.
If it fl ashes, it indicates the occurrence
of a fault in the emission control sys-
tem.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximate-
ly 60 litres. Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle im-
mediately and as safely as possible. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag or seat belt preten-
sioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
Water in diesel.
If this comes on, it indicates the
presence of water in the diesel
fi lter.
There is a risk of damage to the
injection system on Diesel engines.
Door open.
A door, the boot, the rear screen
or the bonnet * is open:
-
if the speed is below 6 mph (10 km/h),
this warning light comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning light comes
on continuously, accompanied by
an audible signal. Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt, ...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle immediately and as safely as
possible.
Specifi c warning lights
* Only with alarm.
INSTRUMENTS and CONTROLS

i
!
29
INSTRUMENTS and CONTROLS
The displaying of certain warning
lights may be accompanied by an
audible signal and a message on
the multifunction display.
Specifi c warning lights
The other warning lights appear on the
large display, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red.
Certain warning lights may be
linked with those of the instrument
panel.
If they are linked with the
STOP
warning light, stop the vehicle imme-
diately and as safely as possible.
Directional headlamps.
If this fl ashes, it indicates the
occurrence of a fault in the di-
rectional headlamps system. Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication circuit. Stop
the vehicle immediately and as safely
as possible.
Service.
If this is displayed, it indicates
the occurrence of a fault in one
of the following: Engine autodiagnostics
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system. Engine oil level.
If this is displayed, it indicates an
insuffi cient level of oil in the en-
gine. Stop the vehicle immedi-
ately and as safely as possible.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the
cooling system is too high. Stop
the vehicle immediately and as
safely as possible.
Coolant level.
If this is displayed, it indicates
an insuffi cient level of coolant
in the circuit. Stop the vehicle
immediately and as safely as
possible.
Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut al-
ternator belt, ...).
- the engine management system,
- the emission control system,
- the lane departure warning system.

30
Air bags.
If this is displayed, it indicates
the occurrence of a fault in one
of the air bag or pretensioning
seat belt systems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the level in the circuit,
- electronic brake force distribution (EBFD) faulty (simultaneous
lighting of the ABS warning light).
Stop the vehicle immediately and as
safely as possible.
If the vehicle is moving, check that the
handbrake is released fully.
Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent opera-
tion of the vehicle's assisted braking. Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivated,
if this warning light and the indicator light
on the button come on, this indicates the
occurrence of a fault in the ESP/ASR
system or in the hill start assistance.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
immediately and as safely as possible.
Door open.
A door, the boot, the rear screen
or the bonnet * is open:
- if the speed is below 6 mph (10 km/h), this warning light is
displayed in orange,
- if the speed is higher than 6 mph (10 km/h), this warning light is
displayed in red. Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully.
Handbrake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the handbrake has not been re-
leased fully.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at.
* Only with alarm. Fuel level.
If this is displayed, it indicates
that there is only enough fuel re-
maining to drive approximately
30 miles (50 km).
The capacity of the tank is approximate-
ly 60 litres. Screenwash fl uid level.
If this is displayed, following an
action on the wipers stalk, it in-
dicates an insuffi cient level of
fl uid.
Fill the screenwash/headlamp wash fl u-
id reservoir when you stop. INSTRUMENTS and CONTROLS

!
!

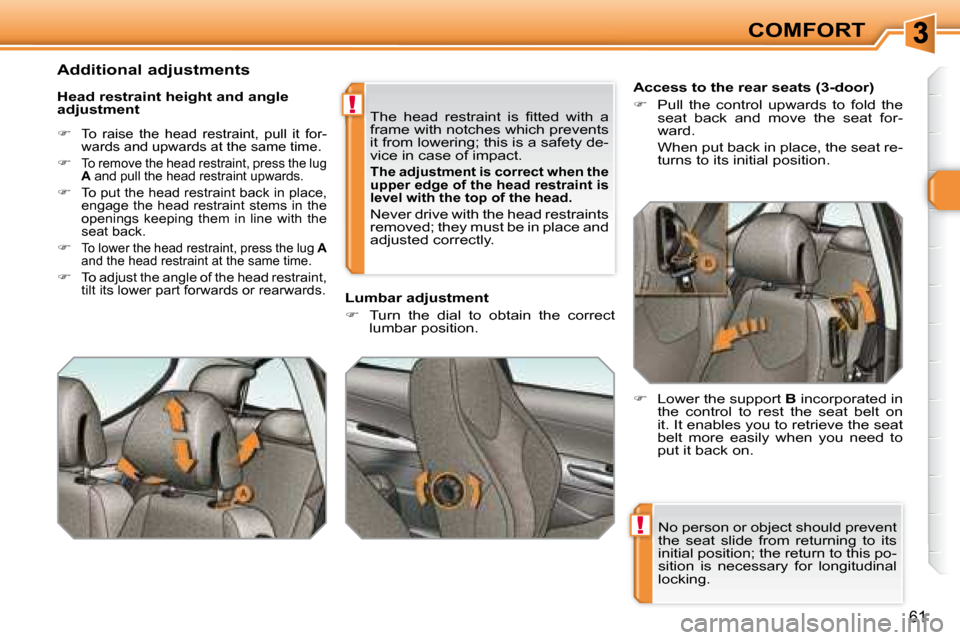

61
COMFORT
No person or object should prevent
the seat slide from returning to its
initial position; the return to this po-
sition is necessary for longitudinal
locking.


Access to the rear seats (3-door)

 Pull the control upwards to fold the
seat back and move the seat for-
ward.
When put back in place, the seat re- turns to its initial position.
Head restraint height and angle
adjustment


To raise the head restraint, pull it for-
wards and upwards at the same time.


To remove the head restraint, press the lug

A and pull the head restraint upwards.

 To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the
seat back.

 To lower the head restraint, press the lug A
and the head restraint at the same time.


To adjust the angle of the head restraint,
tilt its lower part forwards or rearwards.
The head restraint is fi tted with a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Lumbar adjustment

 Turn the dial to obtain the correct
lumbar position.
Additional adjustments

 Lower the support B incorporated in
the control to rest the seat belt on
it. It enables you to retrieve the seat
belt more easily when you need to
put it back on.

!
i

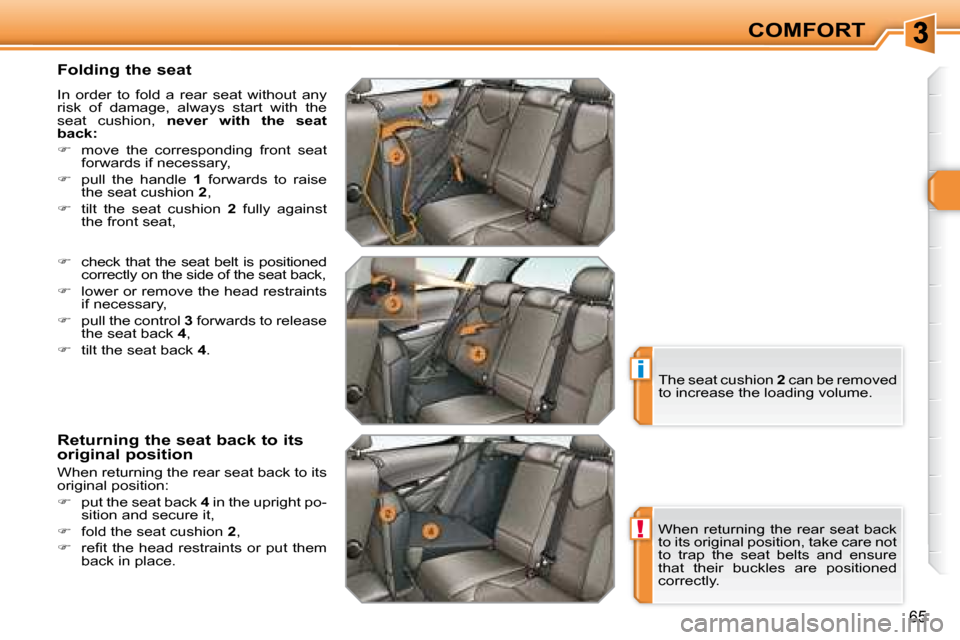

65
COMFORT
Folding the seat
In order to fold a rear seat without any
risk of damage, always start with the
seat cushion, never with the seat
back:

 move the corresponding front seat
forwards if necessary,

 pull the handle 1 forwards to raise
the seat cushion 2 ,

 tilt the seat cushion 2 fully against
the front seat,
Returning the seat back to its
original position
When returning the rear seat back to its
original position:

 put the seat back 4 in the upright po-
sition and secure it,

 fold the seat cushion 2 ,

 refi t the head restraints or put them
back in place.

 check that the seat belt is positioned
correctly on the side of the seat back,

 lower or remove the head restraints
if necessary,

 pull the control 3 forwards to release
the seat back 4 ,

 tilt the seat back 4 .
When returning the rear seat back
to its original position, take care not
to trap the seat belts and ensure
that their buckles are positioned
correctly. The seat cushion
2 can be removed
to increase the loading volume.

i

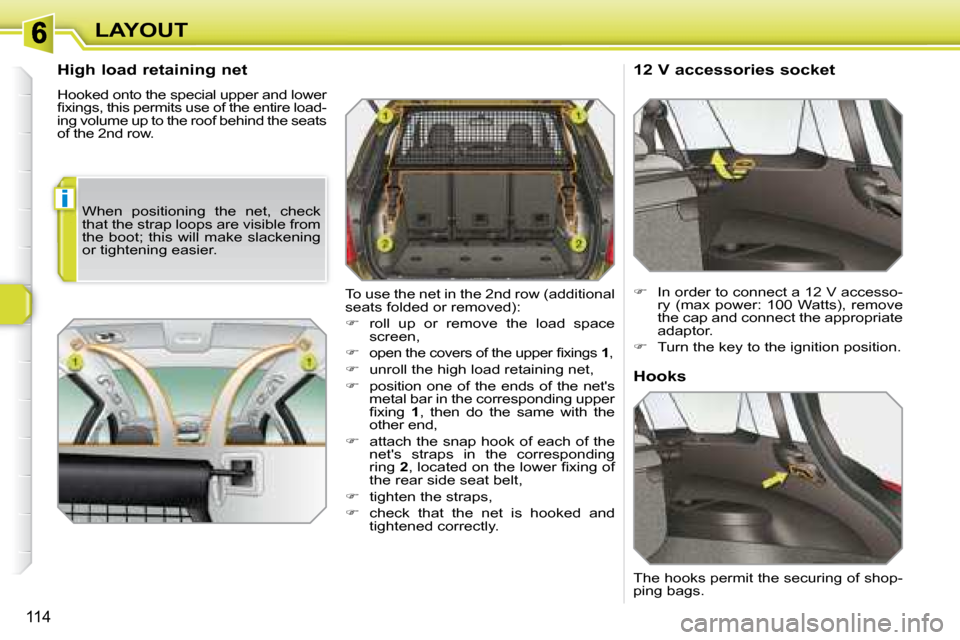

114
LAYOUT
High load retaining net
Hooked onto the special upper and lower
fi xings, this permits use of the entire load-
ing volume up to the roof behind the seats
of the 2nd row. 12 V accessories socket

 In order to connect a 12 V accesso-
ry (max power: 100 Watts), remove
the cap and connect the appropriate
adaptor.

 Turn the key to the ignition position.
To use the net in the 2nd row (additional
seats folded or removed):

 roll up or remove the load space
screen,


open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 attach the snap hook of each of the
net's straps in the corresponding
ring 2 , located on the lower fi xing of
the rear side seat belt,

 tighten the straps,

 check that the net is hooked and
tightened correctly. Hooks
The hooks permit the securing of shop-
ping bags.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

i
116

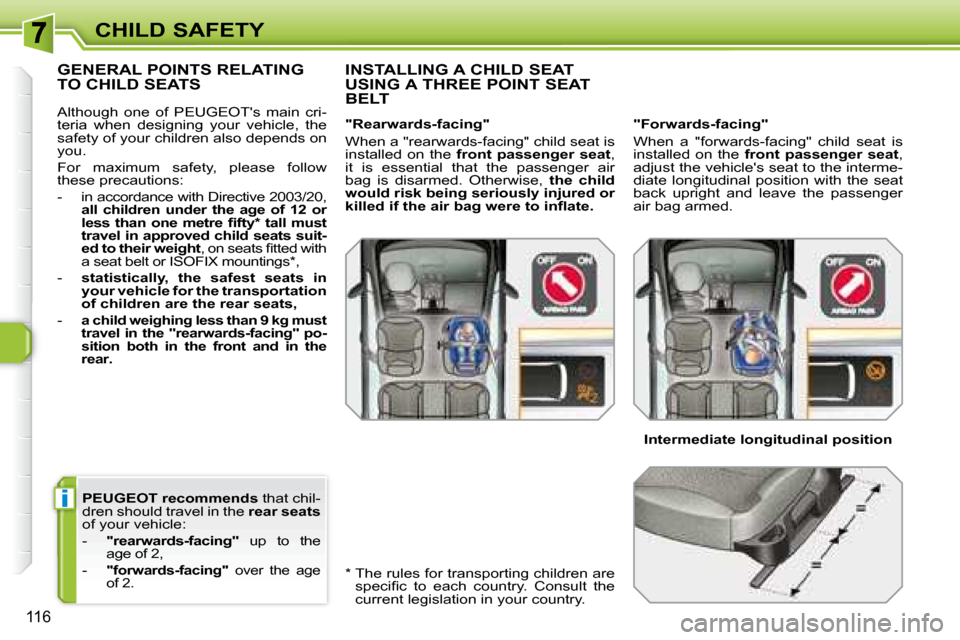

CHILD SAFETY

PEUGEOT
recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
-

"forwards-facing" over the age
of 2.
GENERAL POINTS RELATING TO CHILD SEATS INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
air bag armed.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger air
bag is disarmed. Otherwise, the child
would risk being seriously injured or
killed if the air bag were to infl ate.
Intermediate longitudinal position

* The rules for transporting children are specifi c to each country. Consult the
current legislation in your country.
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- in accordance with Directive 2003/20,

all children under the age of 12 or
less than one metre fi fty * tall must
travel in approved child seats suit-
ed to their weight , on seats fi tted with
a seat belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
-

a child weighing less than 9 kg must
travel in the "rearwards-facing" po-
sition both in the front and in the
rear
.
