52
COMFORT
VENTILATION
System which creates and maintains
comfortable conditions in the vehicle's
passenger compartment. Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).
The temperature control enables you to
obtain the level of comfort required by
m i x i n g t h e a i r o f t h e v a r i o u s c i r c u i t s . The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o i n -
crease or reduce the speed of the ven-
tilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- the level of comfort required,
- t h e a i r fl o w ,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air condi- tioning controls.
Air diffusion
1. Windscreen de-icing or demisting
vents.
2. Front side window de-icing or de-
misting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing
vents.
5. Air outlets to the front footwells.
6. Adjustable and closing vents for the
rear passengers.
7. Air outlets to the rear footwells.
Page 39 of 260
!
i
i
58
COMFORT As a safety precaution, do not car-
ry out any action on the cartridge
while driving.
Do not dismantle the cartridges.
D o n o t a t t e m p t t o r e fi l l t h e f r a g r a n c e
diffuser or the cartridges. Use origi-
nal PEUGEOT cartridges only.
Avoid all contact with the skin and
eyes.
Keep out of reach of children and
animals.
Leave the central vents open.
The intensity of diffusion of the fra-
grance may depend on the ventila-
tion or air conditioning settings.

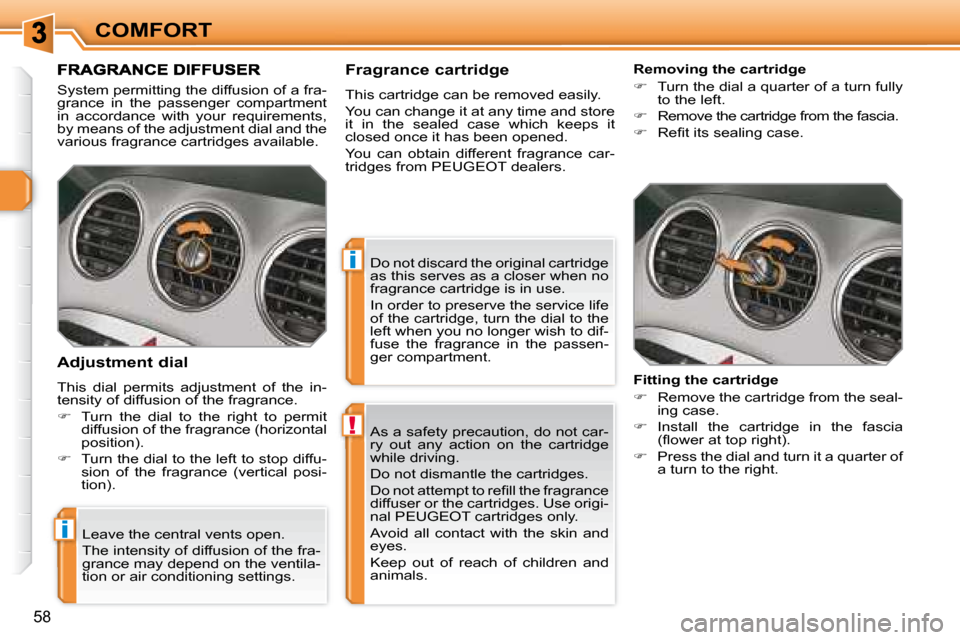

System permitting the diffusion of a fra-
grance in the passenger compartment
in accordance with your requirements,
by means of the adjustment dial and the
various fragrance cartridges available.
Fitting the cartridge
Remove the cartridge from the seal-
ing case.
Install the cartridge in the fascia
( fl o w e r a t t o p r i g h t ) .
Press the dial and turn it a quarter of
a turn to the right.
Adjustment dial
This dial permits adjustment of the in-
tensity of diffusion of the fragrance.
Turn the dial to the right to permit
diffusion of the fragrance (horizontal
position).
Turn the dial to the left to stop diffu-
sion of the fragrance (vertical posi-
tion). Fragrance cartridge
This cartridge can be removed easily.
You can change it at any time and store
it in the sealed case which keeps it
closed once it has been opened.
You can obtain different fragrance car-
tridges from PEUGEOT dealers.
Removing the cartridge
Turn the dial a quarter of a turn fully
to the left.
Remove the cartridge from the fascia.
R e fi t i t s s e a l i n g c a s e .
Do not discard the original cartridge
as this serves as a closer when no
fragrance cartridge is in use.
In order to preserve the service life
of the cartridge, turn the dial to the
left when you no longer wish to dif-
fuse the fragrance in the passen-
ger compartment.
Page 170 of 260
11
!
i
175
PRACTICAL INFORMATION PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.

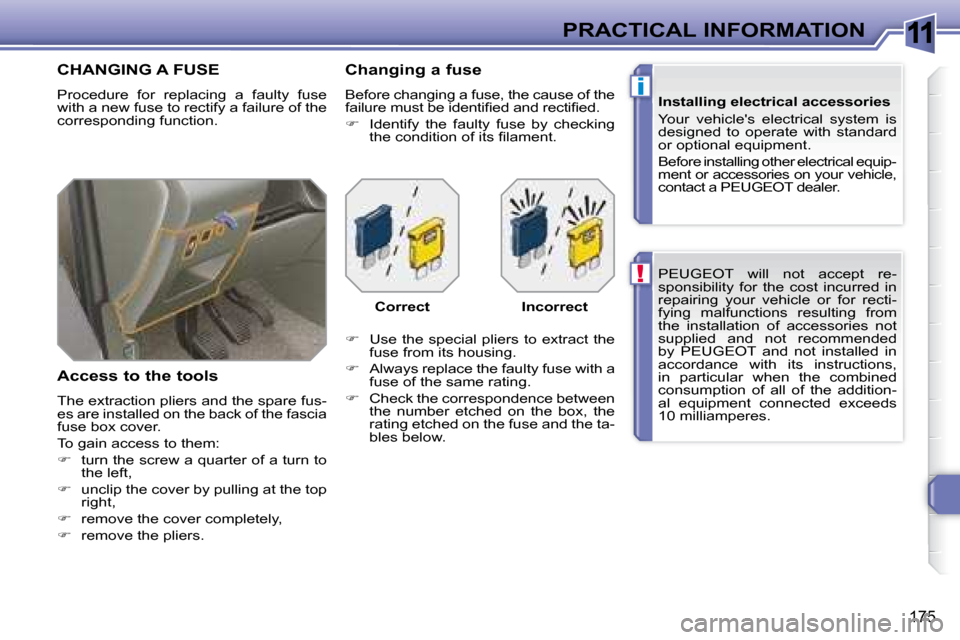

CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
T h e e x t r a c t i o n p l i e r s a n d t h e s p a r e f u s -
es are installed on the back of the fascia
f u s e b o x c o v e r .
To gain access to them:
turn the screw a quarter of a turn to
the left,
unclip the cover by pulling at the top
right,
remove the cover completely,
remove the pliers. Changing a fuse
Before changing a fuse, the cause of the
f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the fuse and the ta-
bles below.
Correct Incorrect
Page 171 of 260
11
176
PRACTICAL INFORMATION
Fascia fuses
T h e f u s e b o x i s p l a c e d i n t h e l o w e r s e c -
tion of the fascia (left-hand side).
Access to the fuses
refer to the paragraph "Access to
the tools". Fuse tables
Fuse N° Rating Functions
G36 30 A Driver and passenger heated seats.
G37 5 A T r a i l e r f u s e b o x .
G38 30 A Driver's seat memory unit.
G39 30 A T r a i l e r f u s e b o x s u p p l y .
G40 30 A H i - F i a m p l i fi e r .
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Air bags and pretensioners control unit.
F4 10 A Clutch pedal and dual-function brake switches,
electrochromatic interior mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , a u t o m a t i c g e a r b o x ,
switching and protection unit.
F5 30 A Front one-touch electric windows, folding mirrors
supply, glass panoramic roof shutter.
F6 30 A Rear one-touch electric windows.
F7 5 A Front and rear courtesy lights, map reading lights,
r e a r r e a d i n g l i g h t s , s u n v i s o r l i g h t i n g , g l o v e b o x
lighting, torch.
Page 172 of 260
11
177
PRACTICAL INFORMATION
Fuse N° Rating Functions
F8 20 A Audio equipment, audio/telephone, CD changer,
m u l t i f u n c t i o n d i s p l a y , t y r e u n d e r - i n fl a t i o n d e t e c t i o n .
F9 30 A Front 12 V socket, lighter.
F10 15 A Steering wheel controls, alarm siren, alarm control
unit.
F11 15 A Low current ignition switch.
F12 15 A Instrument panel, seat belt and passenger's front
air bag warning lights display, air conditioning,
driver's seat memory unit, 2nd row rear seat
switches, driving school module.
F13 5 A E n g i n e f u s e b o x , a i r b a g s , p i l o t e d m a n u a l g e a r b o x
gear lever.
F14 15 A M u l t i f u n c t i o n d i s p l a y , a m p l i fi e r , h a n d s - f r e e k i t , r a i n /
brightness sensor, parking assistance control unit,
t r a i l e r f u s e b o x , l a n e d e p a r t u r e w a r n i n g s y s t e m .
F15 30 A Locking and deadlocking.
F17 40 A R e a r s c r e e n a n d e x t e r i o r m i r r o r s d e - i c i n g .
SH - PARC shunt.
Page 173 of 260
11
178
PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e c o m -
partment near the battery (left-hand side).
Access to the fuses
Unclip the cover.
Change the fuse (see correspond-
ing paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to guarantee the
s e a l i n g o f t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, injection pump and EGR
solenoid valves (2 l HDI 16V), injectors (2 l HDI 1 6V).
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Purge canister, turbine discharge and Turbo
pressure regulation solenoid valves (1.6 l THP
16V), oil vapour heater (1.6 l THP 16V), diesel
heater (1.6 l HDI 16V).
F6 10 A Vehicle speed sensor, ABS/ESP control unit.
F7 10 A P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
engine coolant level detector.
F8 25 A Starter control.
F9 10 A Diagnostic socket, directional headlamps, air
fl o w s e n s o r ( D i e s e l ) , p a r t i c l e e m i s s i o n fi l t e r p u m p
(Diesel)
F10 30 A Engine control unit actuators (petrol: ignition
c o i l s , s o l e n o i d v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s ,
heaters, fuel pump, controlled thermostat) (Diesel:
solenoid valves, heaters).
F11 40 A Air conditioning blower.
Page 174 of 260
11
179
PRACTICAL INFORMATION
Fuse N° Rating Functions
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A Built-in systems interface supply (ignition positive).
F14 30 A Air pump.
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped headlamp.
F18 15 A Right-hand dipped headlamp.
F19 15 A Oil vapour heater (1.4 l 16V and 1,6 l VTi 16V),
purge canister solenoid valve (1.4 l 16V and 1.6 l
V T i 1 6 V ) , o x y g e n s e n s o r s ( p e t r o l ) , a i r c o o l i n g
solenoid valves (Diesel).
F20 10 A Controlled thermostat, variable timing solenoid
valves, Turbo pressure regulation solenoid valve
(Diesel), engine coolant level detector (Diesel).
F21 5 A Fan assembly relay supply, Valvetronic relay
control (1.4 l 16V and 1.6 l VTi 16V), Turbo cooling
( 1 . 6 l T H P 1 6 V ) , a i r fl o w s e n s o r ( 1 . 6 l H D I 1 6 V ) .
Page 175 of 260
11
180

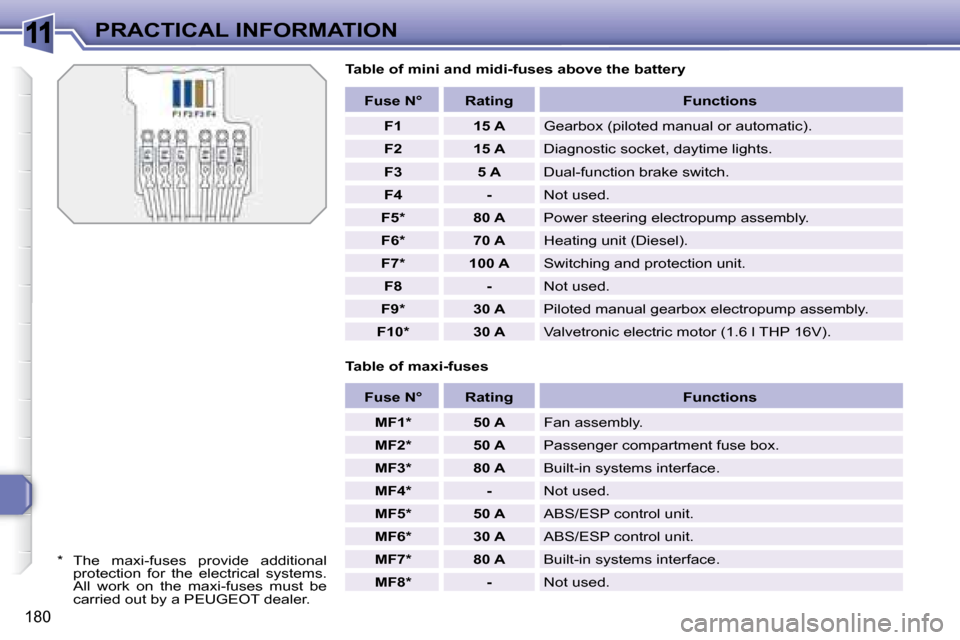

PRACTICAL INFORMATION Table of mini and midi-fuses above the battery
Table of maxi-fuses
Fuse N° Rating Functions
F1 15 A G e a r b o x ( p i l o t e d m a n u a l o r a u t o m a t i c ) .
F2 15 A Diagnostic socket, daytime lights.
F3 5 A Dual-function brake switch.
F4 - Not used.
F5 * 80 A Power steering electropump assembly.
F6 * 70 A Heating unit (Diesel).
F7 * 100 A Switching and protection unit.
F8 - Not used.
F9 * 30 A P i l o t e d m a n u a l g e a r b o x e l e c t r o p u m p a s s e m b l y .
F10 * 30 A Valvetronic electric motor (1.6 l THP 16V).
Fuse N° Rating Functions
MF1 * 50 A Fan assembly.
MF2 * 50 A P a s s e n g e r c o m p a r t m e n t f u s e b o x .
MF3 * 80 A Built-in systems interface.
MF4 * - Not used.
MF5 * 50 A ABS/ESP control unit.
MF6 * 30 A ABS/ESP control unit.
MF7 * 80 A Built-in systems interface.
MF8 * - Not used.
* T h e m a x i - f u s e s p r o v i d e a d d i t i o n a l protection for the electrical systems. A l l w o r k o n t h e m a x i - f u s e s m u s t b e carried out by a PEUGEOT dealer.
