2008 NISSAN QUEST Quick Reference Guide

FUEL-FILLER CAP
To tighten, turn the fuel-filler cap clockwise until ratcheting
clicks are heard. If the cap is not fully tightened, the service
engine soon light may illuminate.
 If
light illuminates becausefuelcap isloose or
missing, tighten or install the cap. The
should turn
off after a few driving trips.
MOONROOF CONTROLS (if so equipped)
The ignition switch must be in the ON position to operate the
moonroof controls.
TILTING THE MOONROOF
 To tiltthe moonroof up,push thetiltswitch tothe
UP
position. If the roof is open, it will automatically
close and then tilt up.
 To tiltthe moonroof down,pushthetiltswitch tothe
DOWN
position.
SLIDING THE MOONROOF
 Push the switch toward the OPENpositionto fully open the moonroof.
 Push the switch toward the CLOSEposition
to fully close the moonroof.
 Push the switch in any direction while the moonroof is sliding open or closed to stop the
moonroof in the desired position.
POWER SLIDING DOORS AND POWER LIFT GATE (if so equipped)
POWER SLIDING DOORS
The power sliding doorscanbeacti-
vated bythe buttons onthe keyfob, the
overhead console, and the door pillars.
 Toopen, closeorreverse asliding
door, the ignition switch must be off or the automatic transmission selector lever must be
in P (Park) .
 To open, close or reverse a sliding door with the keyfob, press and hold the keyfob button
for longer than 0.5 seconds.
 To activate a sliding door with the button on the door pillar, the main ON/OFFswitch
must be on, the door must be unlocked, and the child safety door lock must be in the
unlock position.
15

To activate the power assist feature, manually move a sliding door toward the open or
close position using the inside or outside handle. The power assist feature will automati-
cally complete the motion.
POWER LIFT GATE
The power lift gate can be activated by the buttons on the keyfob, the overhead console, and
the rear door pillar.
 Toopen, closeorreverse theliftgate, theautomatic transmission levermust beinP
(Park) .
 To open, close or reverse the lift gate with the keyfob, press and hold the keyfob button
for longer than 0.5 seconds.
 To close the lift gate with the rear door pillar button, the main ON/OFFswitch must be
on.
The power sliding doors and the power lift gate have an anti-pinch safety feature. Please refer
to your Owner’s Manual for more information regarding this feature.

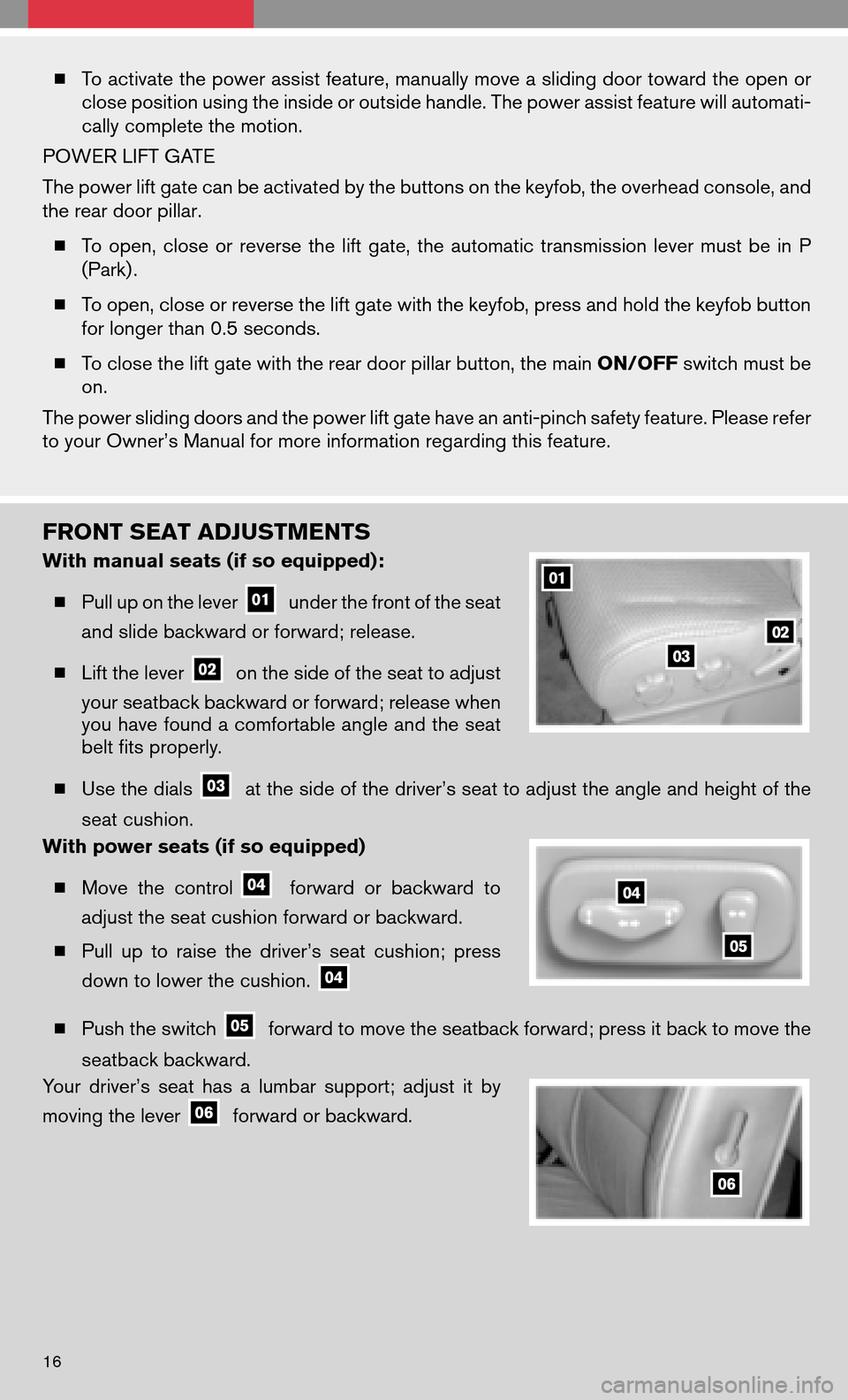

FRONT SEAT ADJUSTMENTS
With manual seats (if so equipped):
 Pull up on the lever
under the front of the seat
and slide backward or forward; release.
 Lift the lever
on the side of the seat to adjust
your seatback backward or forward; release when
you have found a comfortable angle and the seat
belt fits properly.
 Use the dials
at the side of the driver’s seat to adjust the angle and height of the
seat cushion.
With power seats (if so equipped)
 Move thecontrol
forward orbackward to
adjust the seat cushion forward or backward.
 Pull uptoraise thedriver’s seatcushion; press
down to lower the cushion.
 Push the switchforward to move the seatback forward; press it back to move the
seatback backward.
Your driver’s seathasalumbar support; adjustitby
moving the lever
forward or backward.
16

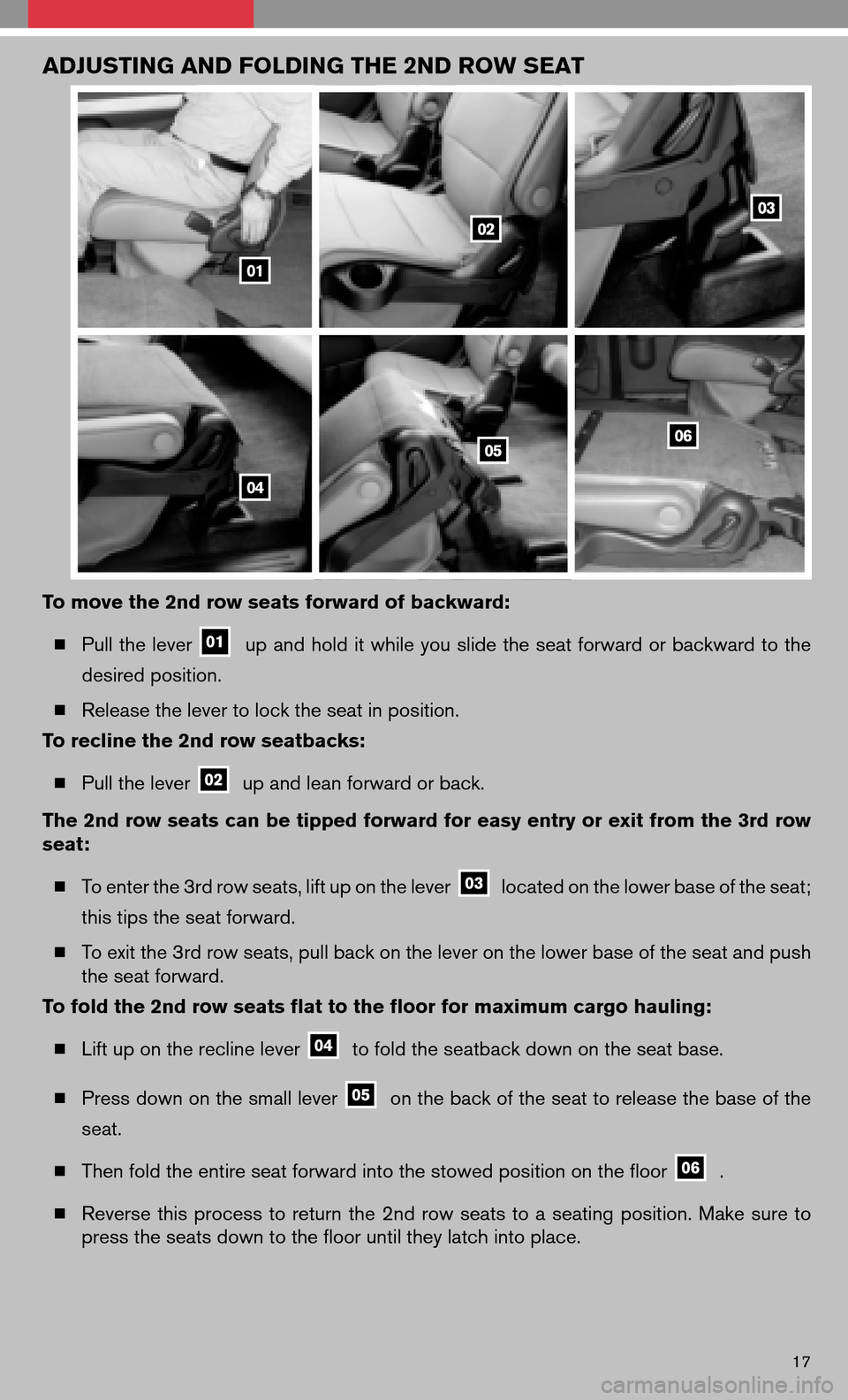

ADJUSTING AND FOLDING THE 2ND ROW SEAT
To move the 2nd row seats forward of backward:  Pull thelever
upand hold itwhile youslide theseat forward orbackward tothe
desired position.
 Release the lever to lock the seat in position.
To recline the 2nd row seatbacks:
 Pull the lever
up and lean forward or back.
The 2nd row seats can be tipped forward for easy entry or exit from the 3rd row
seat:
 To enter the 3rd row seats, lift up on the lever
located on the lower base of the seat;
this tips the seat forward.
 To exit the 3rd row seats, pull back on the lever on the lower base of the seat and push
the seat forward.
To fold the 2nd row seats flat to the floor for maximum cargo hauling:
 Lift up on the recline lever
to fold the seatback down on the seat base.
 Press down on the small lever
on the back of the seat to release the base of the
seat.
 Then fold the entire seat forward into the stowed position on the floor
.
 Reverse thisprocess toreturn the2nd rowseats toaseating position. Makesureto
press the seats down to the floor until they latch into place.
17

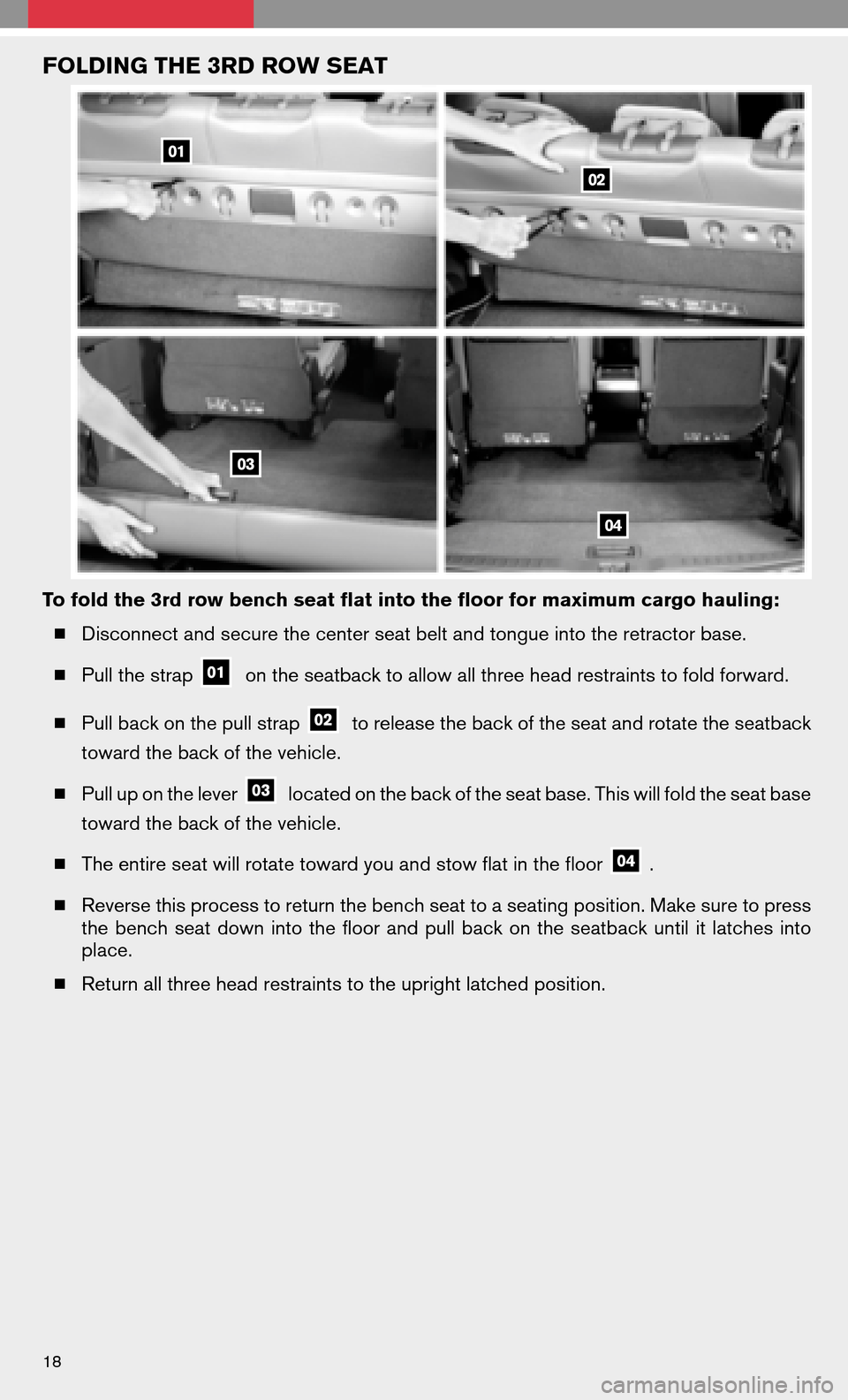

FOLDING THE 3RD ROW SEAT
To fold the 3rd row bench seat flat into the floor for maximum cargo hauling:  Disconnect and secure the center seat belt and tongue into the retractor base.
 Pull the strap
on the seatback to allow all three head restraints to fold forward.
 Pull back on the pull strap
to release the back of the seat and rotate the seatback
toward the back of the vehicle.
 Pull up on the lever
located on the back of the seat base. This will fold the seat base
toward the back of the vehicle.
 The entire seat will rotate toward you and stow flat in the floor
.
 Reverse this process to return the bench seat to a seating position. Make sure to press
the bench seatdown intothefloor andpullback onthe seatback untilitlatches into
place.
 Return all three head restraints to the upright latched position.
18

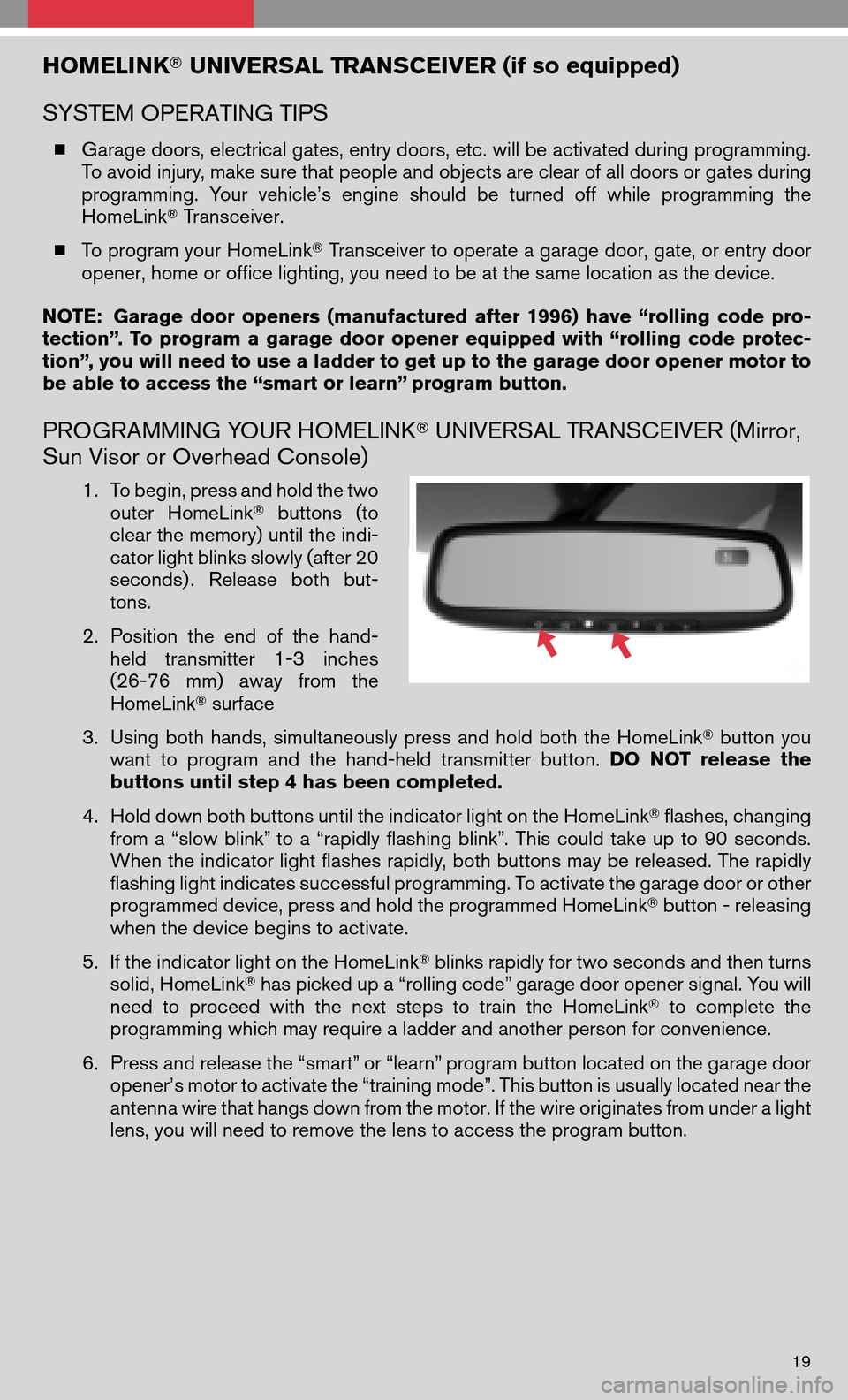

HOMELINKUNIVERSAL TRANSCEIVER (if so equipped)
SYSTEM OPERATING TIPS
 Garage doors, electrical gates, entry doors, etc. will be activated during programming.
To avoid injury, make sure that people and objects are clear of all doors or gates during
programming. Yourvehicle’s engineshouldbeturned offwhile programming the
HomeLink Transceiver.
 To program your HomeLink Transceiver to operate a garage door, gate, or entry door
opener, home or office lighting, you need to be at the same location as the device.
NOTE: Garage dooropeners (manufactured after1996) have“rolling codepro-
tection”. Toprogram agarage dooropener equipped with“rolling codeprotec-
tion”, you will need to use a ladder to get up to the garage door opener motor to
be able to access the “smart or learn” program button.
PROGRAMMING YOUR HOMELINK  UNIVERSAL TRANSCEIVER (Mirror,
Sun Visor or Overhead Console)
1. To begin, press and hold the two
outer HomeLink buttons (to
clear the memory) until the indi-
cator light blinks slowly (after 20
seconds) . Releasebothbut-
tons.
2. Position theend ofthe hand-
held transmitter 1-3inches
(26-76 mm)away fromthe
HomeLink surface
3. Using bothhands, simultaneously pressandhold both theHomeLink button you
want toprogram andthehand-held transmitter button. DONOT release the
buttons until step 4 has been completed.
4. Hold down both buttons until the indicator light on the HomeLink flashes, changing
from a“slow blink” to a“rapidly flashing blink”.Thiscould takeupto90 seconds.
When the indicator light flashes rapidly, both buttons may be released. The rapidly
flashing light indicates successful programming. To activate the garage door or other
programmed device, press and hold the programmed HomeLink button - releasing
when the device begins to activate.
5. If the indicator light on the HomeLink blinks rapidly for two seconds and then turns
solid, HomeLink has picked up a “rolling code” garage door opener signal. You will
need toproceed withthenext steps totrain theHomeLink to complete the
programming which may require a ladder and another person for convenience.
6. Press and release the “smart” or “learn” program button located on the garage door
opener’s motor to activate the “training mode”. This button is usually located near the
antenna wire that hangs down from the motor. If the wire originates from under a light
lens, you will need to remove the lens to access the program button.
19

NOTE:Onceyouhave pressed andreleased theprogram buttononthe garage
door opener’s motor and the “training light” is lit, you have 30 seconds in which to
perform step 7. Use the help of a second person for convenience to assist when
performing this step.
7.Quickly within30seconds ofpressing andreleasing thegarage dooropener
program button,firmlypress andrelease theHomeLink button you’vejustpro-
grammed. Press and release the HomeLink button up to three times to complete the
training.
8. Your HomeLink button should nowbeprogrammed. (Toprogram theremaining
HomeLink buttons for additional door or gate openers, follow steps 2-8 only) .
BLUETOOTH HANDS-FREE PHONE SYSTEM (if so equipped)
Withanoverhead microphone andsound
transmitted throughtheaudio system
speaker, theBluetooth Hands-Free Phone
System utilizes Bluetooth wireless technol-
ogy and voice recognition to provide hands-
free cellular phone communication.
SYSTEM OPERATING TIPS
 Close allwindows. Surrounding noises
may interfere with system operation and
performance.
 Press the
button on the steering wheel to activate voice recognition.
 Wait for the tone before speaking.
 Begin speaking a command within 5 seconds of the tone.
 To go back to the previous command, say “Go back” or “Correction.”
 To cancel a voice recognition session, simply wait 5 seconds, say “Cancel” or “Quit,” or
press the
button.
 To increase or decrease the volume of the voice prompts, push the VOL (volume) control
switch up or down on the steering wheel or turn the volume knob on the audio system
while the system is responding.
 Speak in a clear and natural voice without pausing between words.
 Ifthe Voice Recognition systemdoesnotrecognize yourvoice commands, trainthe
system using the Speaker Adaptation Mode.
 Some commands are not available while the vehicle is in motion.
 The “Help” command can be used in any menu to hear a list of available commands.
 For recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth.
PAIRING YOUR PHONE
To use thehands-free feature,youneed toset-up, orpair, thesystem torecognize your
cellular phone(s) . 5Bluetooth -enabled phonescanbepaired. Afterset-up, thesystem
automatically connects with a paired phone when the ignition is in the ACC or ON position,
as long as the phone is on and in the vehicle.
20

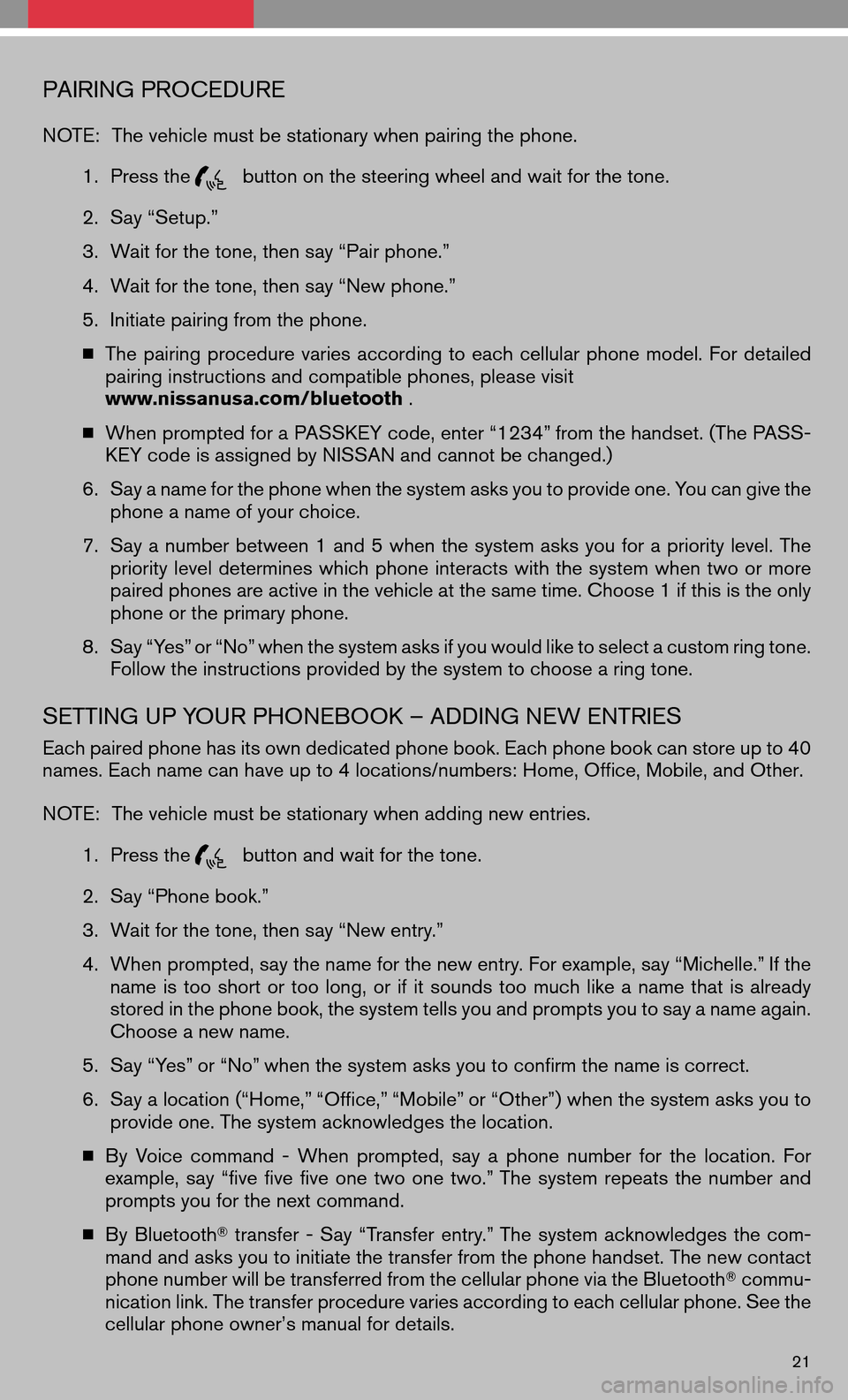

PAIRING PROCEDURE
NOTE:The vehicle must be stationary when pairing the phone.
1. Press the
button on the steering wheel and wait for the tone.
2. Say “Setup.”
3. Wait for the tone, then say “Pair phone.”
4. Wait for the tone, then say “New phone.”
5. Initiate pairing from the phone.
 The pairing procedure variesaccording toeach cellular phonemodel. Fordetailed
pairing instructions and compatible phones, please visit
www.nissanusa.com/bluetooth .
 When prompted for a PASSKEY code, enter “1234” from the handset. (The PASS-
KEY code is assigned by NISSAN and cannot be changed.)
6. Say a name for the phone when the system asks you to provide one. You can give the
phone a name of your choice.
7. Say anumber between 1and 5when thesystem asksyouforapriority level.The
priority leveldetermines whichphone interacts withthesystem whentwoormore
paired phones are active in the vehicle at the same time. Choose 1 if this is the only
phone or the primary phone.
8. Say “Yes” or “No” when the system asks if you would like to select a custom ring tone.
Follow the instructions provided by the system to choose a ring tone.
SETTING UP YOUR PHONEBOOK – ADDING NEW ENTRIES
Each paired phone has its own dedicated phone book. Each phone book can store up to 40
names. Each name can have up to 4 locations/numbers: Home, Office, Mobile, and Other.
NOTE: The vehicle must be stationary when adding new entries.
1. Press the
button and wait for the tone.
2. Say “Phone book.”
3. Wait for the tone, then say “New entry.”
4. When prompted, say the name for the new entry. For example, say “Michelle.” If the
name istoo short ortoo long, orifit sounds toomuch likeaname thatisalready
stored in the phone book, the system tells you and prompts you to say a name again.
Choose a new name.
5. Say “Yes” or “No” when the system asks you to confirm the name is correct.
6. Say a location (“Home,” “Office,” “Mobile” or “Other”) when the system asks you to
provide one. The system acknowledges the location.
 By Voice command -When prompted, sayaphone number forthe location. For
example, say“five fivefiveone twoone two.” The systemrepeats thenumber and
prompts you for the next command.
 By Bluetooth transfer -Say “Transfer entry.” The systemacknowledges thecom-
mand and asks you to initiate the transfer from the phone handset. The new contact
phone number will be transferred from the cellular phone via the Bluetooth commu-
nication link. The transfer procedure varies according to each cellular phone. See the
cellular phone owner’s manual for details.
21

7.Say “Store” when you are finished entering numbers. The system confirms the name,
location, and number.
8. Say “Yes” or “No” when the system asks if you would like to store another location for
the same name. If you do not respond to the system prompt, the system ends the New
Entry session.
MAKING A PHONE CALL
1. Press thebutton.
2. After the tone, do one of the following:
 Say “Call [name] [location].” For example, say “Call Michelle Home.”
 Say “Call [number].” For example, say “Call 123-456-7891.”
 Say “Redial” to redial the previous phone number called by the system.
RECEIVING/ENDING A PHONE CALL
When you receive a phone call, a ring tone sounds through the audio system.
 To accept the call, press the
button. To reject the call, press thebutton.
 To hang up the phone at the end of a call or to disconnect during call placement, press
the
button.
HOW TO SAY NUMBER
NISSAN voice recognition permits numbers to be spoken in a variety of ways.
 Say “zero” or “oh” for “0.” Example: 1-800-662-6200 – Say “one eight zero zero six six
two six two oh oh.”
 Say “pound” for “#”. Say “star” for “*”. Example: 1-555-1212*123 – Say “one five five five
one two one two star one two three.”
NISSAN MOBILE ENTERTAINMENT SYSTEM (if so equipped)
DVD PLAYER CONTROLS
EJECT BUTTON – Press once to eject a DVD from the player.
DVD SLOT– Insert the DVD here.
POWER ON/OFF BUTTON – With the ignition in the ACC or ON position, press
this button to turn the DVD player on or off.
22
