TABLE OF CONTENTS
Remote Keyless Entry System..........................2
Windshield Wiper/Washer Switch .......................3
Headlight and Turn Signal Control .......................3
Lights on Demand (if so equipped) .......................4
Steering Wheel Switches for Audio Control/Bluetooth
(if so equipped) .................................5
Cruise Control ...................................5
Auto Climate Control (if so equipped) .....................6
Rear Climate Control Dials ............................8
FM/AM/XM * Radio with CD Changer (if so equipped) ...........8
Control Panel Display with Navigation System (if so equipped) ......10
RearView Monitor (if so equipped) ......................10
Clock Set/Adjustment ..............................11
Rear Sonar System Off Switch (if so equipped) ...............11
Vehicle Dynamic Control (VDC) Off Switch (if so equipped) .......11
Automatic Driver Positioner (if so equipped) .................12
Outside Mirror Control Switch .........................13
Pedal Position Adjustment Switch .......................13
Front-Passenger Air Bag Status Light ....................13
Tire Pressure Monitoring System (TPMS) ..................14
Seat Belt Warning Light and Chime ......................14
Child Safety Rear Door Lock ..........................14
Fuel-Filler Door Release .............................14
Fuel-Filler Cap ..................................15
Moonroof Controls (if so equipped) ......................15
Power Sliding Doors and Power Lift Gate (if so equipped) ........15
Front Seat Adjustments .............................16
Adjusting and Folding the 2nd Row Seat ...................17
Folding the 3rd Row Seat ............................18
Homelink Universal Transceiver (if so equipped) ..............19
Bluetooth Hands-Free Phone System (if so equipped) ..........20
NISSAN Mobile Entertainment System (if so equipped) ..........22
Navigation System (if so equipped) ......................26
This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand the
important safety warnings, features, operation, and maintenance of your
vehicle.
CLOCK SET/ADJUSTMENT
Press theSETTING button, then select SYSTEM
SETTINGS withthejoystick andpress theEN-
TER button. Nextselect CLOCK andpress the
ENTER button to access the following clock set-
tings:
Hours –Adjust thetime byincreasing or
decreasing by hour.
Minutes –Adjust thetime byincreasing or
decreasing by minute.
Auto Adjust –The time willbereset tothe
GPS time.
Daylight Saving Time – Turn this item on for daylight savings time application.
Select Time Zone – Choose the time zone.
REAR SONAR SYSTEM OFF SWITCH (if so equipped)
When backing up, this system will beep to alert you to obstacles within 6
ft (1.8 m) of the rear bumper. The system beeps faster as the vehicle gets
closer to the obstacle. A continuous tone sounds when an obstacle is less
than 10 in (25 cm) away from the bumper. Turn the system off by pushing
the rear sonar system OFFswitch. Push the switch again to enable the
system. Thesystem willautomatically resetthenext time theignition
switch is turned on.
VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCH (if so equipped)
The Vehicle Dynamic Control (VDC) system is designed to help improve
driving stability. VDC detects wheel spin and controls braking and engine
output. VDC may need to be temporarily shut off if you are trying to free a
vehicle stuck in snow or mud.
Push the Vehicle Dynamic Control (VDC) off switch to deactivate the
VDC system. The
lightwillilluminate inthe instrument panel
gauge area.
Push the Vehicle Dynamic Control (VDC) off switch again to activate the VDC system.
The
light in the instrument panel gauge area will turn off.
The VDC system is active while the vehicle is running until the switch is pressed to turn
it off.
11

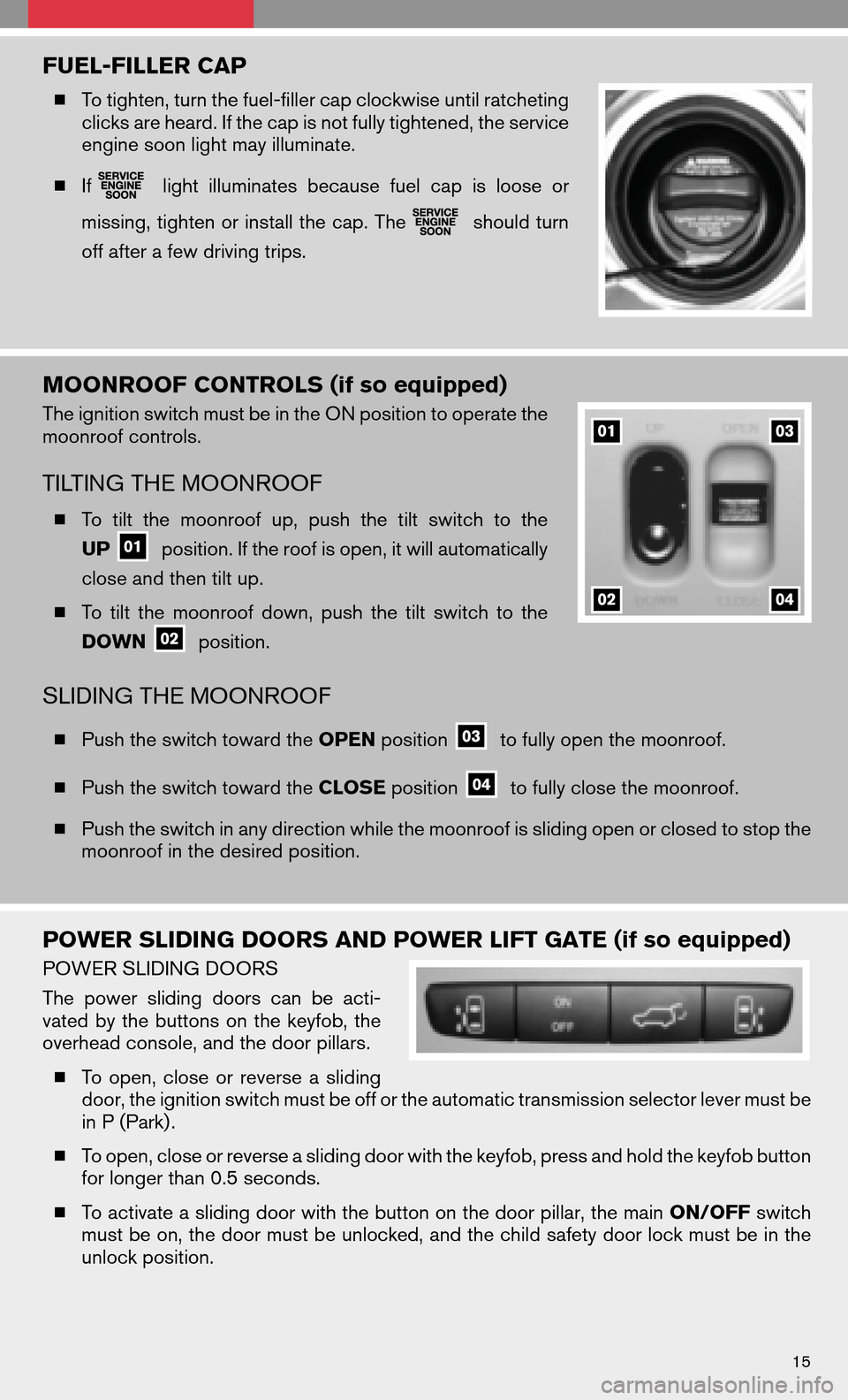

FUEL-FILLER CAP
To tighten, turn the fuel-filler cap clockwise until ratcheting
clicks are heard. If the cap is not fully tightened, the service
engine soon light may illuminate.
If
light illuminates becausefuelcap isloose or
missing, tighten or install the cap. The
should turn
off after a few driving trips.
MOONROOF CONTROLS (if so equipped)
The ignition switch must be in the ON position to operate the
moonroof controls.
TILTING THE MOONROOF
To tiltthe moonroof up,push thetiltswitch tothe
UP
position. If the roof is open, it will automatically
close and then tilt up.
To tiltthe moonroof down,pushthetiltswitch tothe
DOWN
position.
SLIDING THE MOONROOF
Push the switch toward the OPENpositionto fully open the moonroof.
Push the switch toward the CLOSEposition
to fully close the moonroof.
Push the switch in any direction while the moonroof is sliding open or closed to stop the
moonroof in the desired position.
POWER SLIDING DOORS AND POWER LIFT GATE (if so equipped)
POWER SLIDING DOORS
The power sliding doorscanbeacti-
vated bythe buttons onthe keyfob, the
overhead console, and the door pillars.
Toopen, closeorreverse asliding
door, the ignition switch must be off or the automatic transmission selector lever must be
in P (Park) .
To open, close or reverse a sliding door with the keyfob, press and hold the keyfob button
for longer than 0.5 seconds.
To activate a sliding door with the button on the door pillar, the main ON/OFFswitch
must be on, the door must be unlocked, and the child safety door lock must be in the
unlock position.
15
