2008 NISSAN QUEST Quick Reference Guide

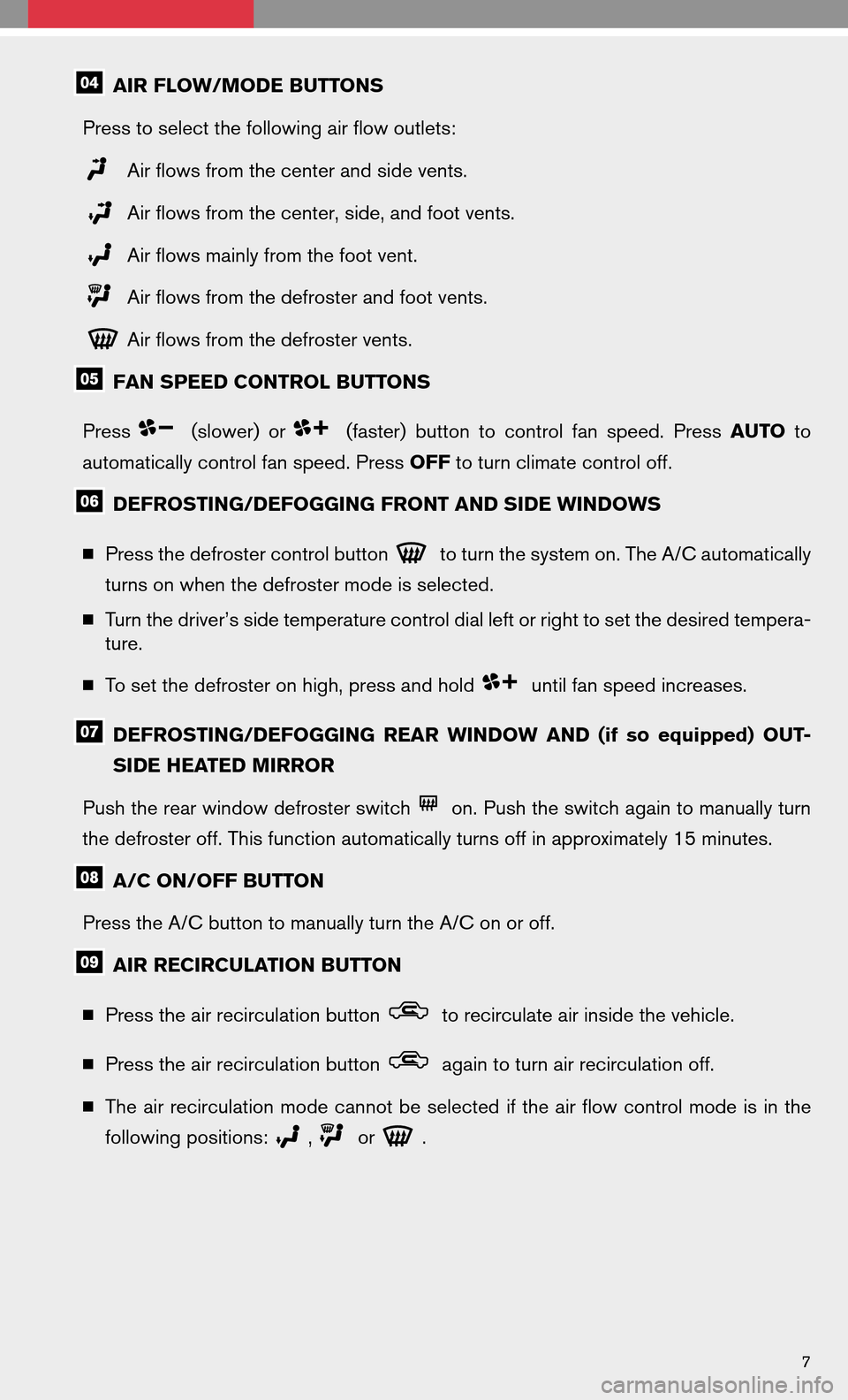

AIR FLOW/MODE BUTTONS
Press to select the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vent.
Air flows from the defroster and foot vents.
Air flows from the defroster vents.
FAN SPEED CONTROL BUTTONS
Press
(slower) or(faster)buttontocontrol fanspeed. Press AUTO to
automatically control fan speed. Press OFFto turn climate control off.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
 Press the defroster control button
to turn the system on. The A/C automatically
turns on when the defroster mode is selected.
 Turn the driver’s side temperature control dial left or right to set the desired tempera-
ture.
 To set the defroster on high, press and hold
until fan speed increases.
DEFROSTING/DEFOGGING REARWINDOW AND(ifso equipped) OUT-
SIDE HEATED MIRROR
Push the rear window defroster switch
on. Push the switch again to manually turn
the defroster off. This function automatically turns off in approximately 15 minutes.
A/C ON/OFF BUTTON
Press the A/C button to manually turn the A/C on or off.
AIR RECIRCULATION BUTTON
 Press the air recirculation button
to recirculate air inside the vehicle.
 Press the air recirculation button
again to turn air recirculation off.
 The airrecirculation modecannot beselected ifthe airflow control modeisin the
following positions:
,or.
7

REAR CLIMATE CONTROL DIALS
Press theREAR CTRL button to transfer rear climate func-
tions to the rear passengers.
To adjust theclimate controlsystem forrear seat passen-
gers, use the dials on the overhead console.
REAR FAN SPEED CONTROL DIAL
REAR TEMPERATURE CONTROL
DIAL/REAR CTRL BUTTON
Press the REAR CTRL button to transfer rear climate functions to the rear passengers.
*Rear A/C is only available when the front climate control A/C is on.
FM/AM/XM * RADIO WITH CD CHANGER (if so equipped)
SEEK/TRACK BUTTON
 To scan quickly through each broadcasting station, press the SEEK/TRACKbutton.
 To skip from one track to another on a CD, press the SEEK/TRACKbutton. Press
and hold the SEEK/TRACK buttonforlonger than1.5seconds tofast forward or
rewind a track. The disc will play at an altered speed until the button is released.
PRESET A·B·C BUTTON
Press the PRESET A·B·Cbutton untilyoureach thedesired setting.Theradio is
equipped with three separate banks, each with six station presets. You may store any
combination of FM, AM or XM radio presets on each bank.
STATION AND CD SELECT BUTTONS
 To store a station in a preset you must first select A, B, or C memory bank by pressing
the PRESET A·B·Cbutton andtune tothe desired FM,AMorXM station. Then
press andhold thedesired stationselectbutton foratleast 2seconds. Whenthe
preset indicator illuminates, a beep will sound, indicating memorization is complete.
To retrieve a previously set station, select the memory bank where the preset was set,
then press the corresponding station select button.
 While playing a CD, to select a different CD loaded into the CD changer; press one
of the CD select buttons ( 1-6 ).
8

REAR CTRL BUTTON
Press the REAR CTRL button to turn the rear audio controls on. Press again to turn the
rear controller off.
TUNE/FLDR·CAT BUTTON
 Press the TUNE/FLDR·CAT button to manually tune the radio.
 Press the TUNE/FLDR·CAT button if playing a CD that is formatted with MP3 folders
to skip to the next folder.
AUDIO BUTTON
Press the AUDIO buttontochange theaudio settings. AdjusttheBass, Mid,Treble,
Fade, Balance and Speed Sensitive Volume (SSV) by pressing the AUDIObutton until
the desired modeappears inthe display. Pressthe TUNE/FLDR·CAT buttonupor
down to adjust to the desired level.
SPEAKER CONTROL BUTTON
Press the speaker control
button to activate the rear headphones and turn off the
rear speakers. Press the
button again to deactivate the rear headphones and turn
on the rear speakers.
SCAN BUTTON
Press the SCAN buttontostop ateach broadcasting station(FM,AMorXM )for 5
seconds. Pressing the button again during this 5-second period will stop scan tuning
and the radio will remain tuned to that station.
FM·AM/SAT BUTTON
Pressing the FM·AM/SAT radio select button will change the band to either FM, AM or
XM  radio stations.
CD/DVD BUTTON
 Press the CD/DVD button to begin CD play.
 Press the CD/DVD button again to begin DVD play.
LOAD BUTTON
 LOAD ASINGLE DISC-Press
the
button for less than 1.5 sec-
onds. Select theloading slotby
pressing one of the CD insert select
button ( 1-6 ) , then insert the CD.
 LOAD UP TO 6 DISCS - Press and hold the
button for more than 1.5 seconds.
The slot numbers (1-6) will illuminate on the display when CDs are loaded into the
changer.
AUX JACK
Press the AUXbutton on the radio to play a compatible device such as an MP3 player
when it is plugged into the AUXjack (cable not included) .
9

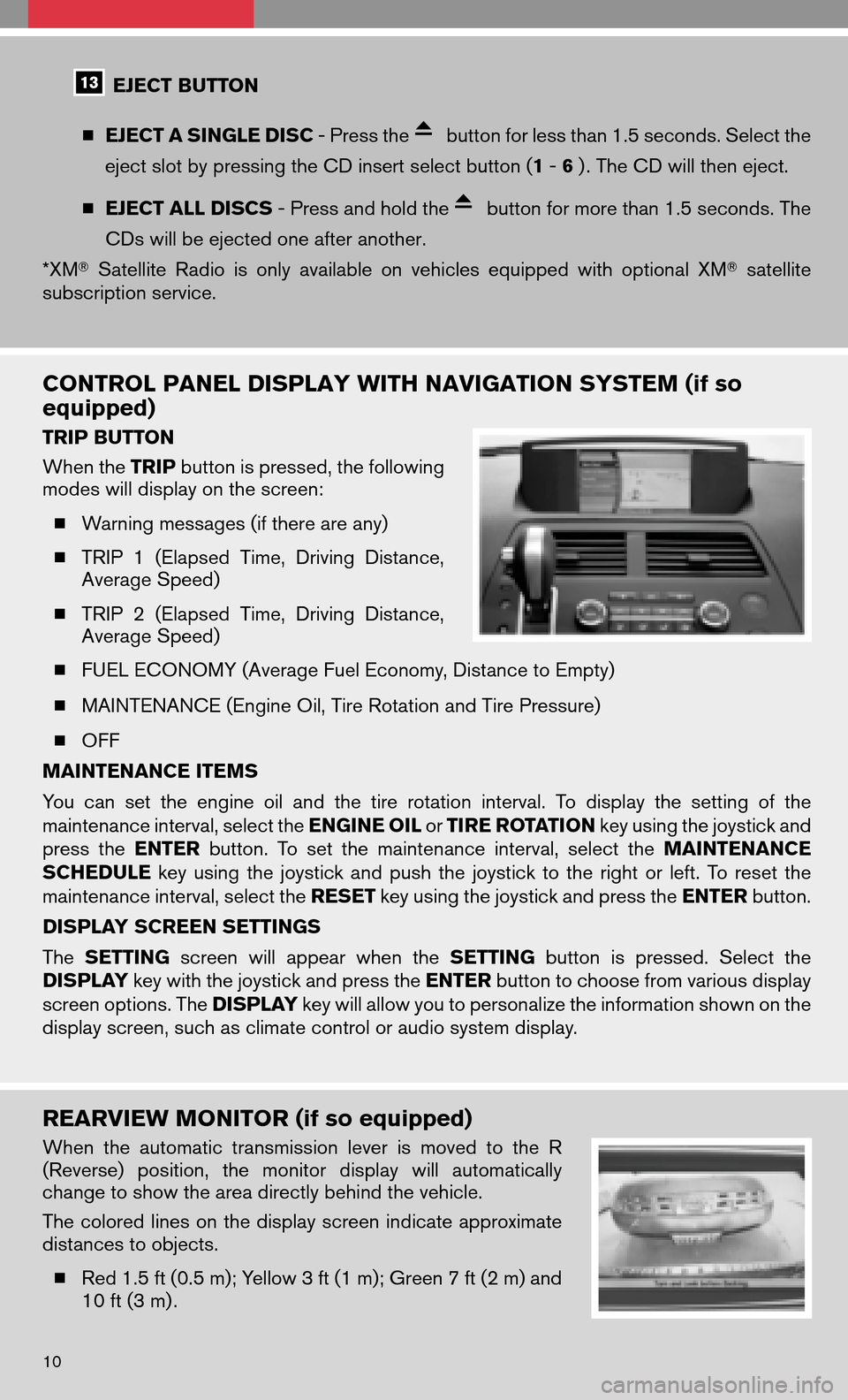

EJECT BUTTON
 EJECT A SINGLE DISC - Press the
button for less than 1.5 seconds. Select the
eject slot by pressing the CD insert select button ( 1-6 ) . The CD will then eject.
 EJECT ALL DISCS - Press and hold the
button for more than 1.5 seconds. The
CDs will be ejected one after another.
*XM  Satellite Radioisonly available onvehicles equipped withoptional XMsatellite
subscription service.
CONTROL PANEL DISPLAY WITH NAVIGATION SYSTEM (if so
equipped)
TRIP BUTTON
When the TRIPbutton is pressed, the following
modes will display on the screen:
 Warning messages (if there are any)
 TRIP 1(Elapsed Time,Driving Distance,
Average Speed)
 TRIP 2(Elapsed Time,Driving Distance,
Average Speed)
 FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
 MAINTENANCE (Engine Oil, Tire Rotation and Tire Pressure)
 OFF
MAINTENANCE ITEMS
You cansetthe engine oiland thetirerotation interval. Todisplay thesetting ofthe
maintenance interval, select the ENGINE OILorTIRE ROTATION key using the joystick and
press the ENTER button.Toset the maintenance interval,selecttheMAINTENANCE
SCHEDULE keyusing thejoystick andpush thejoystick tothe right orleft. Toreset the
maintenance interval, select the RESETkey using the joystick and press the ENTERbutton.
DISPLAY SCREEN SETTINGS
The SETTING screenwillappear whentheSETTING buttonispressed. Selectthe
DISPLAY key with the joystick and press the ENTERbutton to choose from various display
screen options. The DISPLAYkey will allow you to personalize the information shown on the
display screen, such as climate control or audio system display.
REARVIEW MONITOR (if so equipped)
When theautomatic transmission leverismoved tothe R
(Reverse) position,themonitor displaywillautomatically
change to show the area directly behind the vehicle.
The colored linesonthe display screenindicate approximate
distances to objects.
 Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and
10 ft (3 m) .
10

CLOCK SET/ADJUSTMENT
Press theSETTING button, then select SYSTEM
SETTINGS withthejoystick andpress theEN-
TER button. Nextselect CLOCK andpress the
ENTER button to access the following clock set-
tings:
 Hours –Adjust thetime byincreasing or
decreasing by hour.
 Minutes –Adjust thetime byincreasing or
decreasing by minute.
 Auto Adjust –The time willbereset tothe
GPS time.
 Daylight Saving Time – Turn this item on for daylight savings time application.
 Select Time Zone – Choose the time zone.
REAR SONAR SYSTEM OFF SWITCH (if so equipped)
When backing up, this system will beep to alert you to obstacles within 6
ft (1.8 m) of the rear bumper. The system beeps faster as the vehicle gets
closer to the obstacle. A continuous tone sounds when an obstacle is less
than 10 in (25 cm) away from the bumper. Turn the system off by pushing
the rear sonar system OFFswitch. Push the switch again to enable the
system. Thesystem willautomatically resetthenext time theignition
switch is turned on.
VEHICLE DYNAMIC CONTROL (VDC) OFF SWITCH (if so equipped)
The Vehicle Dynamic Control (VDC) system is designed to help improve
driving stability. VDC detects wheel spin and controls braking and engine
output. VDC may need to be temporarily shut off if you are trying to free a
vehicle stuck in snow or mud.
 Push the Vehicle Dynamic Control (VDC) off switch to deactivate the
VDC system. The
lightwillilluminate inthe instrument panel
gauge area.
 Push the Vehicle Dynamic Control (VDC) off switch again to activate the VDC system.
The
light in the instrument panel gauge area will turn off.
 The VDC system is active while the vehicle is running until the switch is pressed to turn
it off.
11

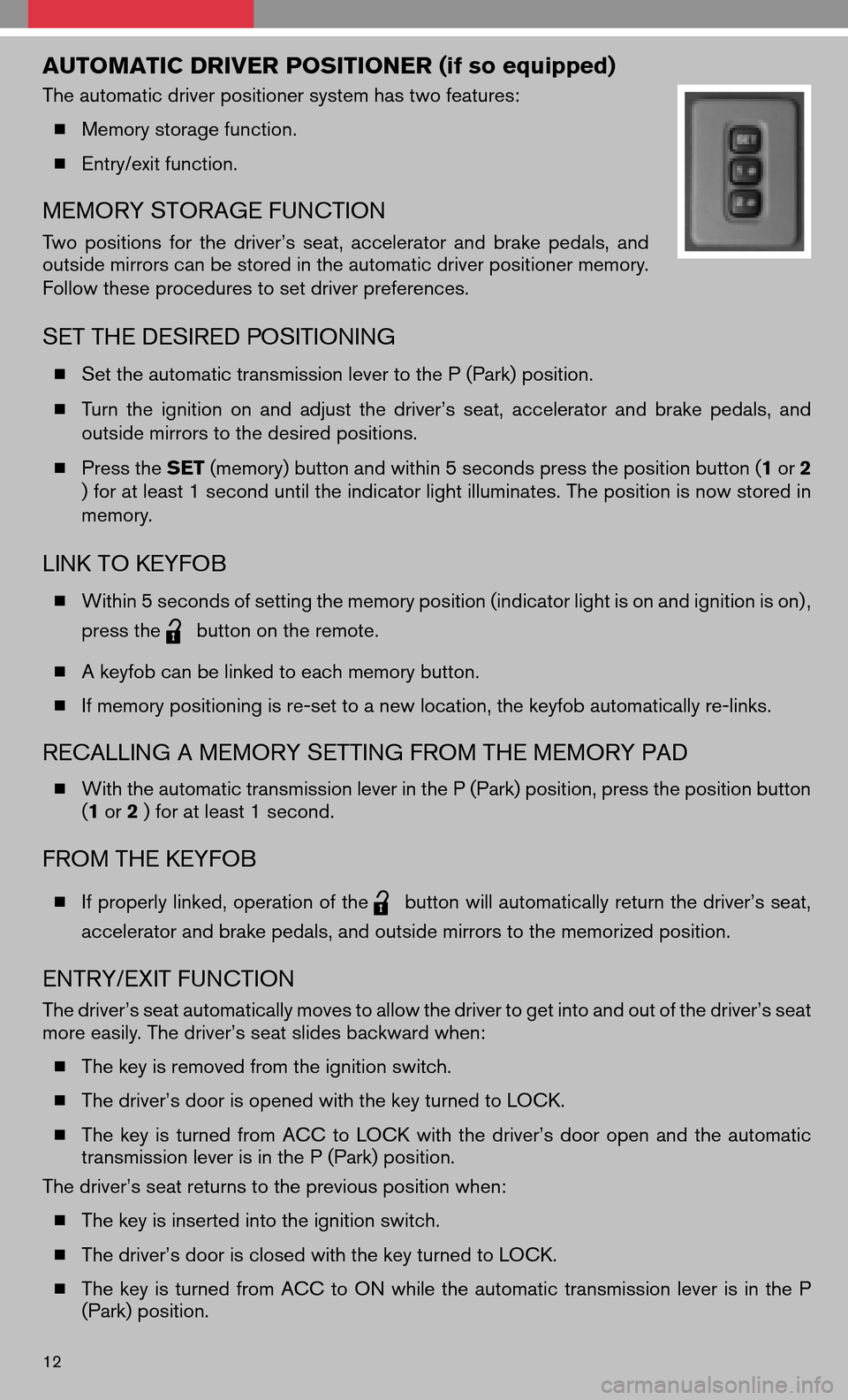

AUTOMATIC DRIVER POSITIONER (if so equipped)
The automatic driver positioner system has two features:  Memory storage function.
 Entry/exit function.
MEMORY STORAGE FUNCTION
Two positions forthe driver’s seat,accelerator andbrake pedals, and
outside mirrors can be stored in the automatic driver positioner memory.
Follow these procedures to set driver preferences.
SET THE DESIRED POSITIONING
 Set the automatic transmission lever to the P (Park) position.
 Turn theignition onand adjust thedriver’s seat,accelerator andbrake pedals, and
outside mirrors to the desired positions.
 Press the SET(memory) button and within 5 seconds press the position button (1 or2
) for at least 1 second until the indicator light illuminates. The position is now stored in
memory.
LINK TO KEYFOB
 Within 5 seconds of setting the memory position (indicator light is on and ignition is on) ,
press the
button on the remote.
 A keyfob can be linked to each memory button.
 If memory positioning is re-set to a new location, the keyfob automatically re-links.
RECALLING A MEMORY SETTING FROM THE MEMORY PAD
With the automatic transmission lever in the P (Park) position, press the position button
( 1 or2) for at least 1 second.
FROM THE KEYFOB
 If properly linked, operation of thebutton will automatically return the driver’s seat,
accelerator and brake pedals, and outside mirrors to the memorized position.
ENTRY/EXIT FUNCTION
The driver’s seat automatically moves to allow the driver to get into and out of the driver’s seat
more easily. The driver’s seat slides backward when:
 The key is removed from the ignition switch.
 The driver’s door is opened with the key turned to LOCK.
 The keyisturned fromACC toLOCK withthedriver’s dooropen andtheautomatic
transmission lever is in the P (Park) position.
The driver’s seat returns to the previous position when:
 The key is inserted into the ignition switch.
 The driver’s door is closed with the key turned to LOCK.
 The keyisturned fromACC toON while theautomatic transmission leverisin the P
(Park) position.
12

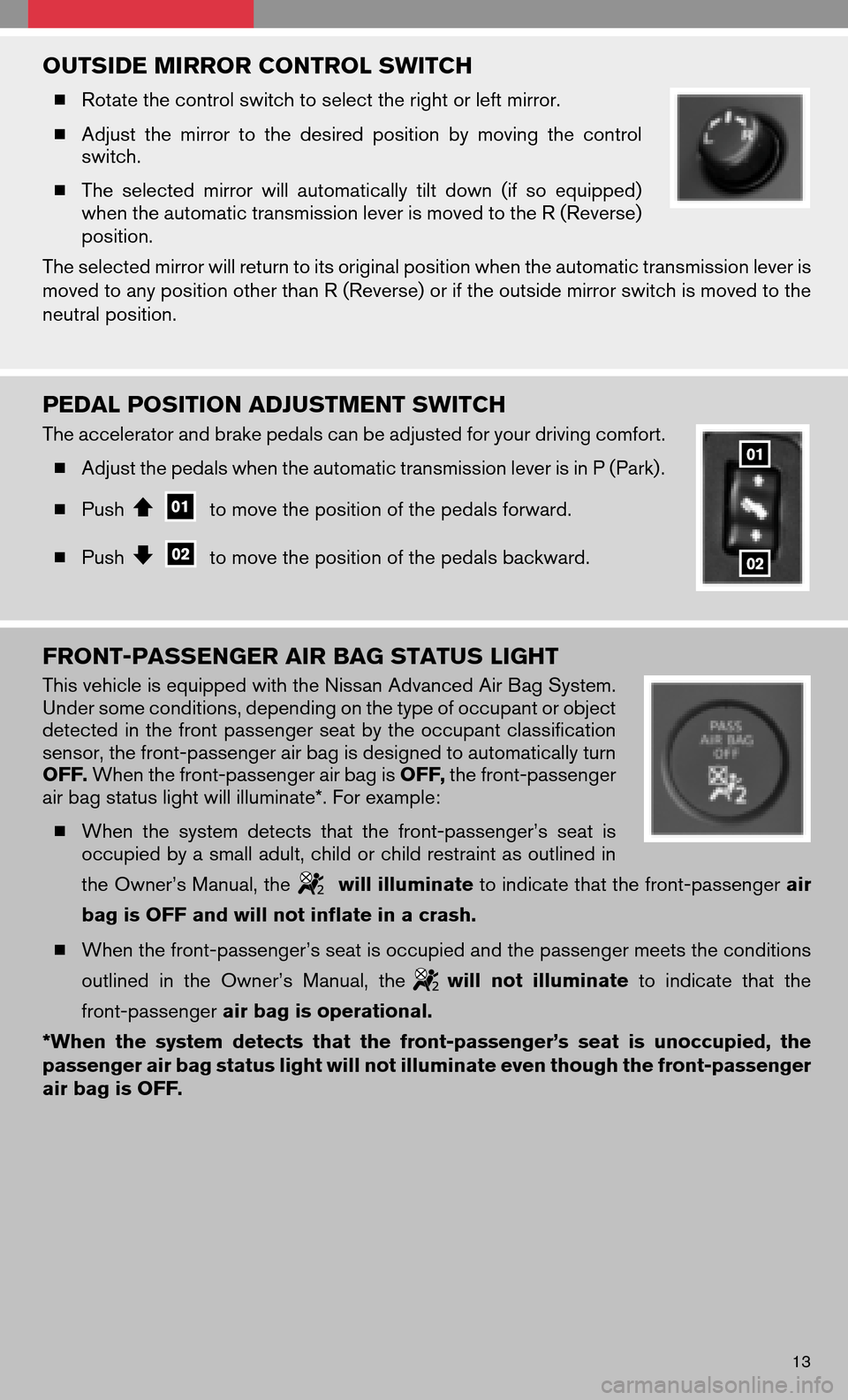

OUTSIDE MIRROR CONTROL SWITCH
Rotate the control switch to select the right or left mirror.
 Adjust themirror tothe desired position bymoving thecontrol
switch.
 The selected mirrorwillautomatically tiltdown (ifso equipped)
when the automatic transmission lever is moved to the R (Reverse)
position.
The selected mirror will return to its original position when the automatic transmission lever is
moved to any position other than R (Reverse) or if the outside mirror switch is moved to the
neutral position.
PEDAL POSITION ADJUSTMENT SWITCH
The accelerator and brake pedals can be adjusted for your driving comfort.
 Adjust the pedals when the automatic transmission lever is in P (Park) .
 Push
to move the position of the pedals forward.
 Push
to move the position of the pedals backward.
FRONT-PASSENGER AIR BAG STATUS LIGHT
This vehicle is equipped with the Nissan Advanced Air Bag System.
Under some conditions, depending on the type of occupant or object
detected inthe front passenger seatbythe occupant classification
sensor, the front-passenger air bag is designed to automatically turn
OFF. When the front-passenger air bag is OFF,the front-passenger
air bag status light will illuminate*. For example:
 When thesystem detects thatthefront-passenger’s seatis
occupied by a small adult, child or child restraint as outlined in
the Owner’s Manual, the
will illuminate to indicate that the front-passenger air
bag is OFF and will not inflate in a crash.
 When the front-passenger’s seat is occupied and the passenger meets the conditions
outlined inthe Owner’s Manual,the
willnotilluminate toindicate thatthe
front-passenger air bag is operational.
*When thesystem detects thatthefront-passenger’s seatisunoccupied, the
passenger air bag status light will not illuminate even though the front-passenger
air bag is OFF.
13

TIRE PRESSURE MONITORING SYSTEM (TPMS)
Thissystem monitors tirepressure. Ifthe low tirepressure warning
light illuminates, check the tire pressure in all four tires.
Adjust the low tire pressure to the recommended COLD tire pressure
shown on the Tire and Loading Information label located in the driver’s
door opening. After tire pressures are adjusted, the vehicle will need
to be driven at speeds above 16 MPH (25 km/h) to activate the TPMS
and turn off the low tire pressure warning light.
SEAT BELT WARNING LIGHT AND CHIME
 The light and chime remind you to fasten your seat belts. The light
illuminates whenevertheignition keyisturned tothe ON or
START position andremains illuminated untilthedriver’s seat
belt is fastened. At the same time, the chime sounds for approxi-
mately 6seconds unlessthedriver’s seatbeltissecurely fas-
tened.
 The seat beltwarning lightmayalso illuminate ifthe front pas-
senger’s seatbeltisnot fastened whenthefront passenger’s
seat is occupied. For 7 seconds after the ignition switch is in the ON position, the system
does not activate the warning light for the front passenger.
CHILD SAFETY REAR DOOR LOCK
Child safety lockshelpprevent therear doors frombeing
opened accidentally, especiallywhensmallchildren arein
the vehicle. The child safety lock levers are located on the
edge ofthe rear doors. Whenthelever isin the LOCK
position, the door can only be opened from the outside.
FUEL-FILLER DOOR RELEASE
 Press theswitch located onthe driver’s doortoopen the
fuel-filler door.
 Close the fuel-filler door securely to lock it.
 The driver’s sidepower sliding doorisdisabled whenthe
fuel-filler door is open. The sliding door can be partially opened
manually.
14
