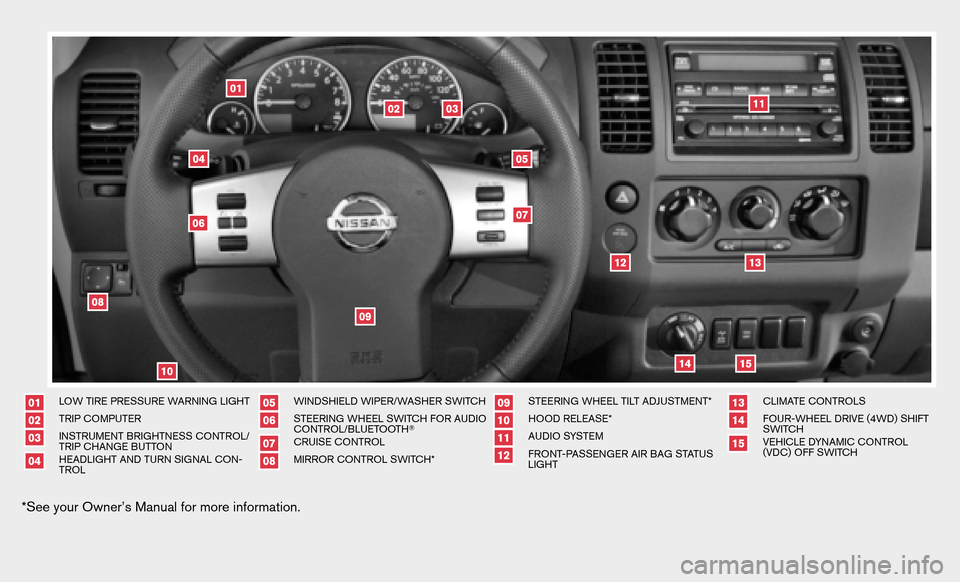

2008 NISSAN FRONTIER audio

LOW TIRE PRESSURE WARNING LIGHTTRIP COMPUTERINSTRUMENT BRIGHTNESS CONTROL/
TRIP CHANGE BUTTONHEADLIGHT AND TURN SIGNAL CON-
TROL
WINDSHIELD WIPER/WASHER SWITCHSTEERING WHEEL SWITCH FOR AUDIO
CONTROL/BLUETOOTH CRUISE CONTROLMIRROR CONTROL SWITCH*
STEERING WHEEL TILT ADJUSTMENT*HOOD RELEASE*AUDIO SYSTEMFRONT-PASSENGER AIR BAG STATUS
LIGHT
CLIMATE CONTROLSFOUR-WHEEL DRIVE (4WD) SHIFT
SWITCHVEHICLE DYNAMIC CONTROL
(VDC) OFF SWITCH
*See your Owner’s Manual for more information.

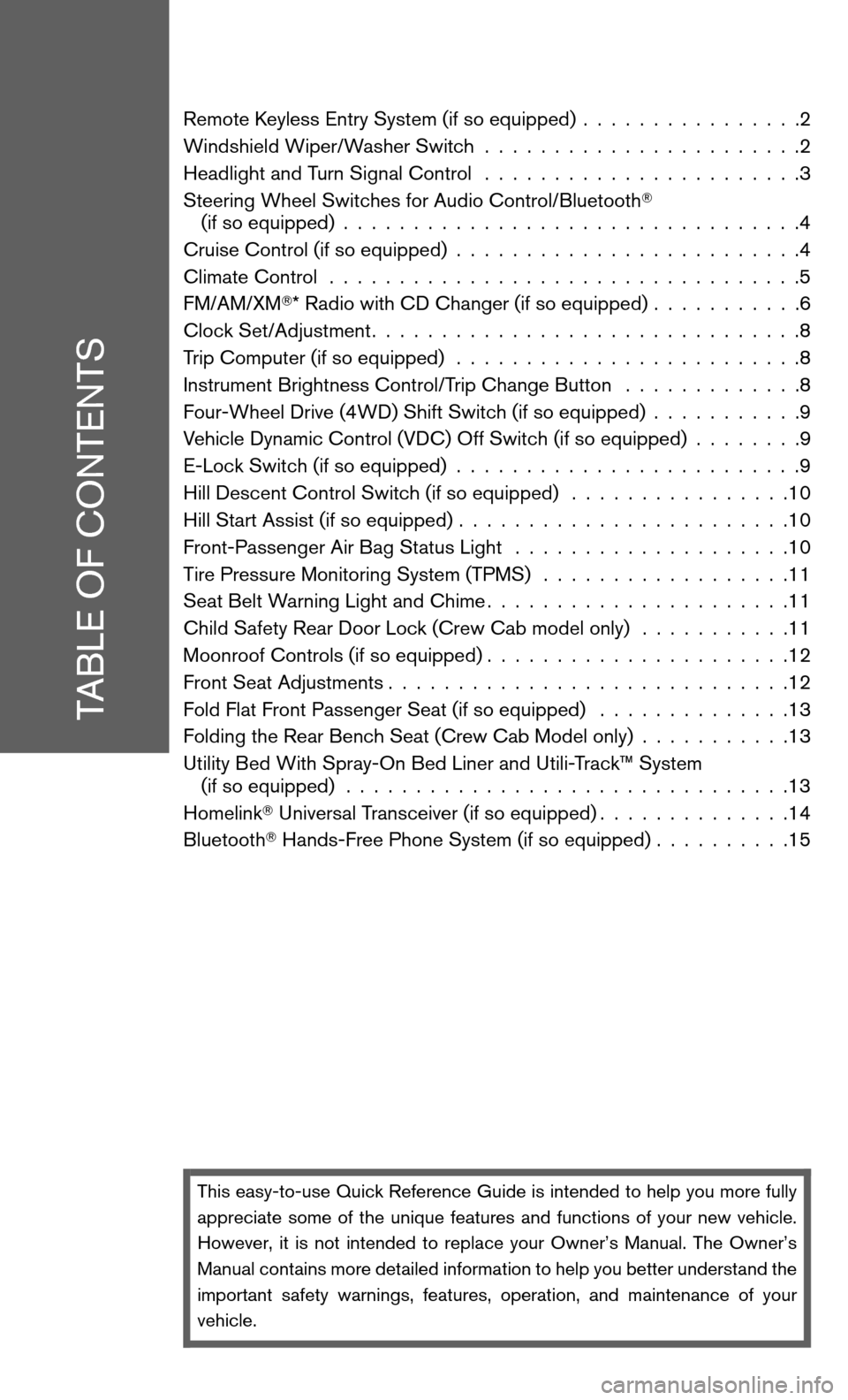

TABLE OF CONTENTS
Remote Keyless Entry System (if so equipped)................2
Windshield Wiper/Washer Switch .......................2
Headlight and Turn Signal Control .......................3
Steering Wheel Switches for Audio Control/Bluetooth
(if so equipped) .................................4
Cruise Control (if so equipped) .........................4
Climate Control ..................................5
FM/AM/XM * Radio with CD Changer (if so equipped) ...........6
Clock Set/Adjustment ...............................8
Trip Computer (if so equipped) .........................8
Instrument Brightness Control/Trip Change Button .............8
Four-Wheel Drive (4WD) Shift Switch (if so equipped) ...........9
Vehicle Dynamic Control (VDC) Off Switch (if so equipped) ........9
E-Lock Switch (if so equipped) .........................9
Hill Descent Control Switch (if so equipped) ................10
Hill Start Assist (if so equipped) ........................10
Front-Passenger Air Bag Status Light ....................10
Tire Pressure Monitoring System (TPMS) ..................11
Seat Belt Warning Light and Chime ......................11
Child Safety Rear Door Lock (Crew Cab model only) ...........11
Moonroof Controls (if so equipped) ......................12
Front Seat Adjustments .............................12
Fold Flat Front Passenger Seat (if so equipped) ..............13
Folding the Rear Bench Seat (Crew Cab Model only) ...........13
Utility Bed With Spray-On Bed Liner and Utili-Track™ System (if so equipped) ................................13
Homelink Universal Transceiver (if so equipped) ..............14
Bluetooth Hands-Free Phone System (if so equipped) ..........15
This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand the
important safety warnings, features, operation, and maintenance of your
vehicle.

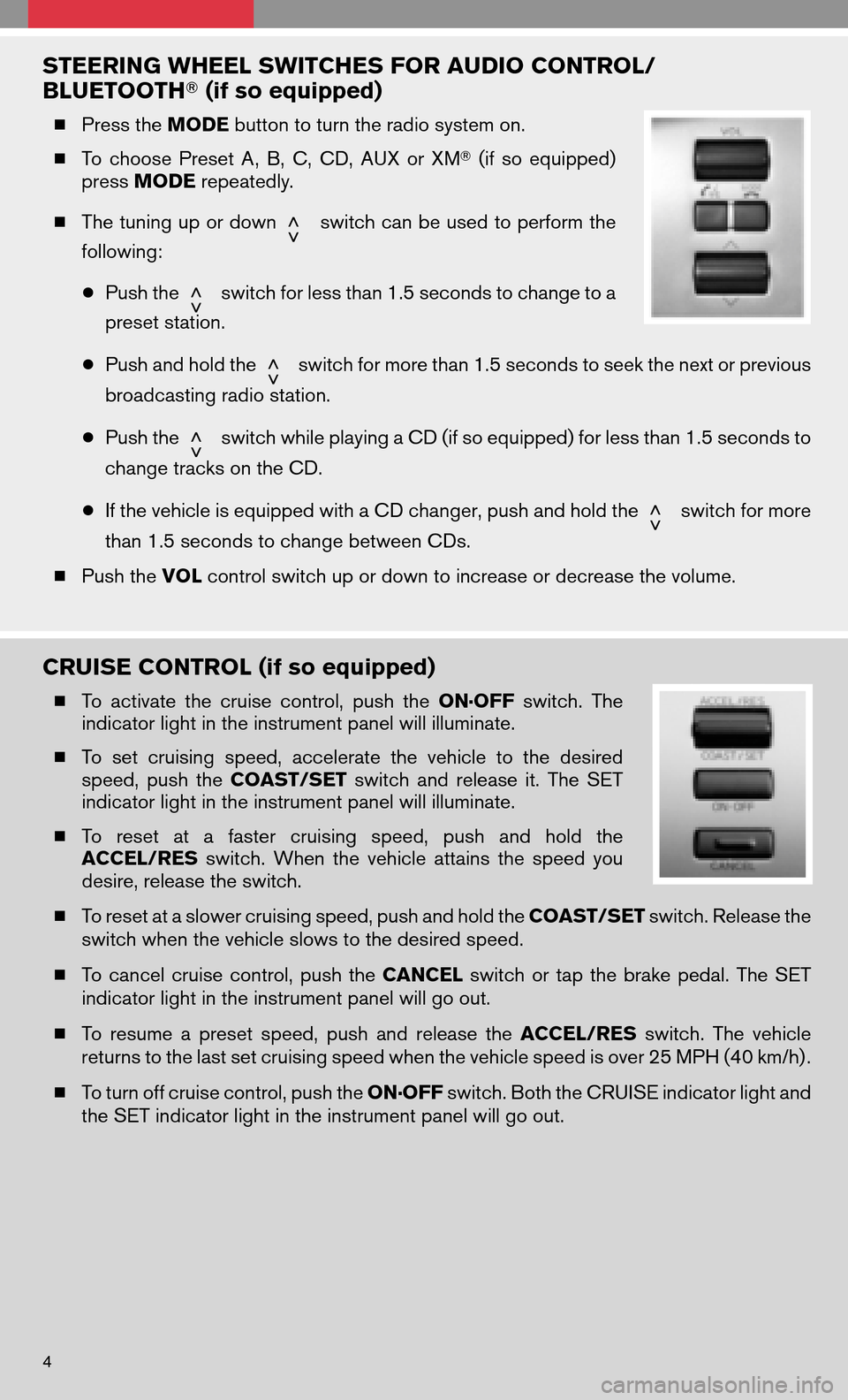

STEERING WHEEL SWITCHES FOR AUDIO CONTROL/
BLUETOOTH (if so equipped)
Press the MODEbutton to turn the radio system on.
 To choose PresetA,B, C, CD, AUX orXM (if so equipped)
press MODE repeatedly.
 The tuning up or down
switch can be used to perform the
following:
● Push the
switch for less than 1.5 seconds to change to a
preset station.
● Push and hold the
switch for more than 1.5 seconds to seek the next or previous
broadcasting radio station.
● Push the
switch while playing a CD (if so equipped) for less than 1.5 seconds to
change tracks on the CD.
● If the vehicle is equipped with a CD changer, push and hold the
switch for more
than 1.5 seconds to change between CDs.
 Push the VOLcontrol switch up or down to increase or decrease the volume.
CRUISE CONTROL (if so equipped)
To activate thecruise control, pushtheON·OFF switch.The
indicator light in the instrument panel will illuminate.
 To set cruising speed,accelerate thevehicle tothe desired
speed, pushthe COAST/SET switchandrelease it.The SET
indicator light in the instrument panel will illuminate.
 To reset atafaster cruising speed,pushandhold the
ACCEL/RES switch.Whenthevehicle attainsthespeed you
desire, release the switch.
 To reset at a slower cruising speed, push and hold the COAST/SETswitch. Release the
switch when the vehicle slows to the desired speed.
 Tocancel cruisecontrol, pushtheCANCEL switchortap thebrake pedal. TheSET
indicator light in the instrument panel will go out.
 To resume apreset speed, pushandrelease theACCEL/RES switch.Thevehicle
returns to the last set cruising speed when the vehicle speed is over 25 MPH (40 km/h) .
 To turn off cruise control, push the ON·OFFswitch. Both the CRUISE indicator light and
the SET indicator light in the instrument panel will go out.
4

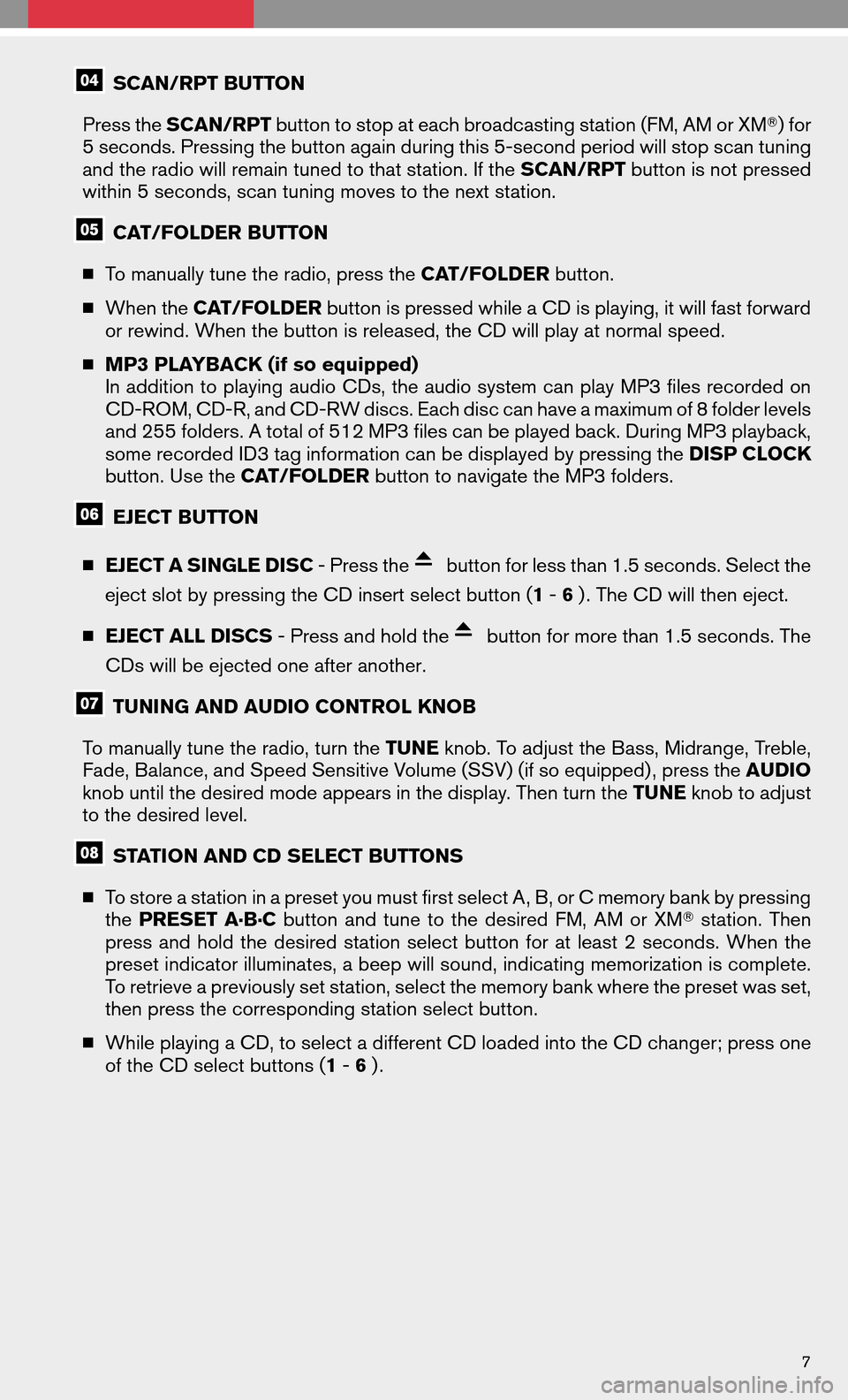

SCAN/RPT BUTTON
Press the SCAN/RPT button to stop at each broadcasting station (FM, AM or XM ) for
5 seconds. Pressing the button again during this 5-second period will stop scan tuning
and the radio will remain tuned to that station. If the SCAN/RPTbutton is not pressed
within 5 seconds, scan tuning moves to the next station.
CAT/FOLDER BUTTON
 To manually tune the radio, press the CAT/FOLDERbutton.
 When the CAT/FOLDER button is pressed while a CD is playing, it will fast forward
or rewind. When the button is released, the CD will play at normal speed.
 MP3 PLAYBACK (if so equipped)
In addition to playing audio CDs, the audio system can play MP3 files recorded on
CD-ROM, CD-R, and CD-RW discs. Each disc can have a maximum of 8 folder levels
and 255 folders. A total of 512 MP3 files can be played back. During MP3 playback,
some recorded ID3 tag information can be displayed by pressing the DISP CLOCK
button. Use the CAT/FOLDERbutton to navigate the MP3 folders.
EJECT BUTTON
 EJECT A SINGLE DISC - Press the
button for less than 1.5 seconds. Select the
eject slot by pressing the CD insert select button ( 1-6 ) . The CD will then eject.
 EJECT ALL DISCS - Press and hold the
button for more than 1.5 seconds. The
CDs will be ejected one after another.
TUNING AND AUDIO CONTROL KNOB
To manually tune the radio, turn the TUNEknob. To adjust the Bass, Midrange, Treble,
Fade, Balance, and Speed Sensitive Volume (SSV) (if so equipped) , press the AUDIO
knob until the desired mode appears in the display. Then turn the TUNEknob to adjust
to the desired level.
STATION AND CD SELECT BUTTONS
 To store a station in a preset you must first select A, B, or C memory bank by pressing
the PRESET A·B·Cbutton andtune tothe desired FM,AMorXM station. Then
press andhold thedesired stationselectbutton foratleast 2seconds. Whenthe
preset indicator illuminates, a beep will sound, indicating memorization is complete.
To retrieve a previously set station, select the memory bank where the preset was set,
then press the corresponding station select button.
 While playing a CD, to select a different CD loaded into the CD changer; press one
of the CD select buttons ( 1-6 ).
7

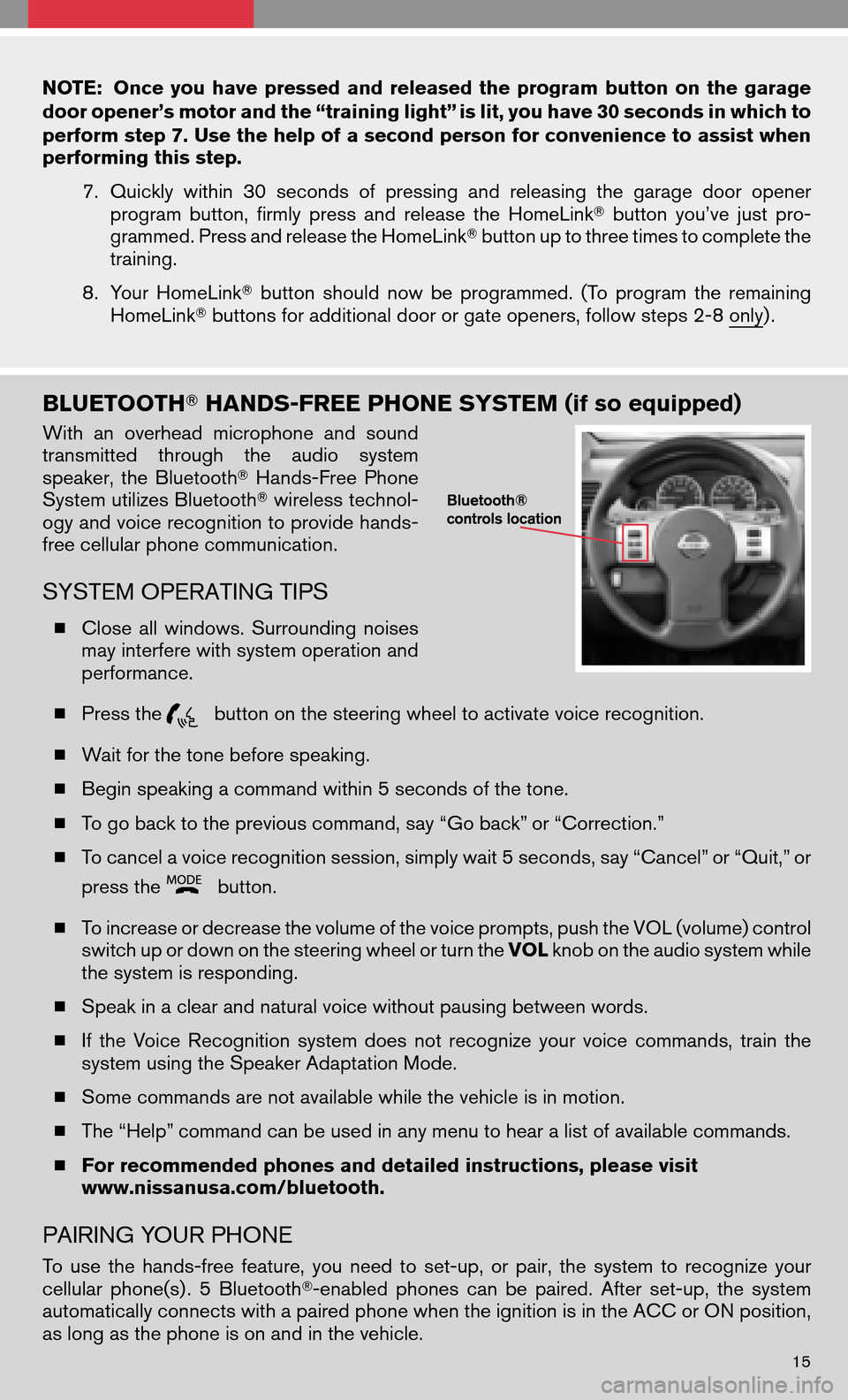

NOTE:Onceyouhave pressed andreleased theprogram buttononthe garage
door opener’s motor and the “training light” is lit, you have 30 seconds in which to
perform step 7. Use the help of a second person for convenience to assist when
performing this step.
7.Quickly within30seconds ofpressing andreleasing thegarage dooropener
program button,firmlypress andrelease theHomeLink button you’vejustpro-
grammed. Press and release the HomeLink button up to three times to complete the
training.
8. Your HomeLink button should nowbeprogrammed. (Toprogram theremaining
HomeLink buttons for additional door or gate openers, follow steps 2-8 only) .
BLUETOOTH HANDS-FREE PHONE SYSTEM (if so equipped)
Withanoverhead microphone andsound
transmitted throughtheaudio system
speaker, theBluetooth Hands-Free Phone
System utilizes Bluetooth wireless technol-
ogy and voice recognition to provide hands-
free cellular phone communication.
SYSTEM OPERATING TIPS
 Close allwindows. Surrounding noises
may interfere with system operation and
performance.
 Press the
button on the steering wheel to activate voice recognition.
 Wait for the tone before speaking.
 Begin speaking a command within 5 seconds of the tone.
 To go back to the previous command, say “Go back” or “Correction.”
 To cancel a voice recognition session, simply wait 5 seconds, say “Cancel” or “Quit,” or
press the
button.
 To increase or decrease the volume of the voice prompts, push the VOL (volume) control
switch up or down on the steering wheel or turn the VOLknob on the audio system while
the system is responding.
 Speak in a clear and natural voice without pausing between words.
 Ifthe Voice Recognition systemdoesnotrecognize yourvoice commands, trainthe
system using the Speaker Adaptation Mode.
 Some commands are not available while the vehicle is in motion.
 The “Help” command can be used in any menu to hear a list of available commands.
 For recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth.
PAIRING YOUR PHONE
To use thehands-free feature,youneed toset-up, orpair, thesystem torecognize your
cellular phone(s) . 5Bluetooth -enabled phonescanbepaired. Afterset-up, thesystem
automatically connects with a paired phone when the ignition is in the ACC or ON position,
as long as the phone is on and in the vehicle.
15

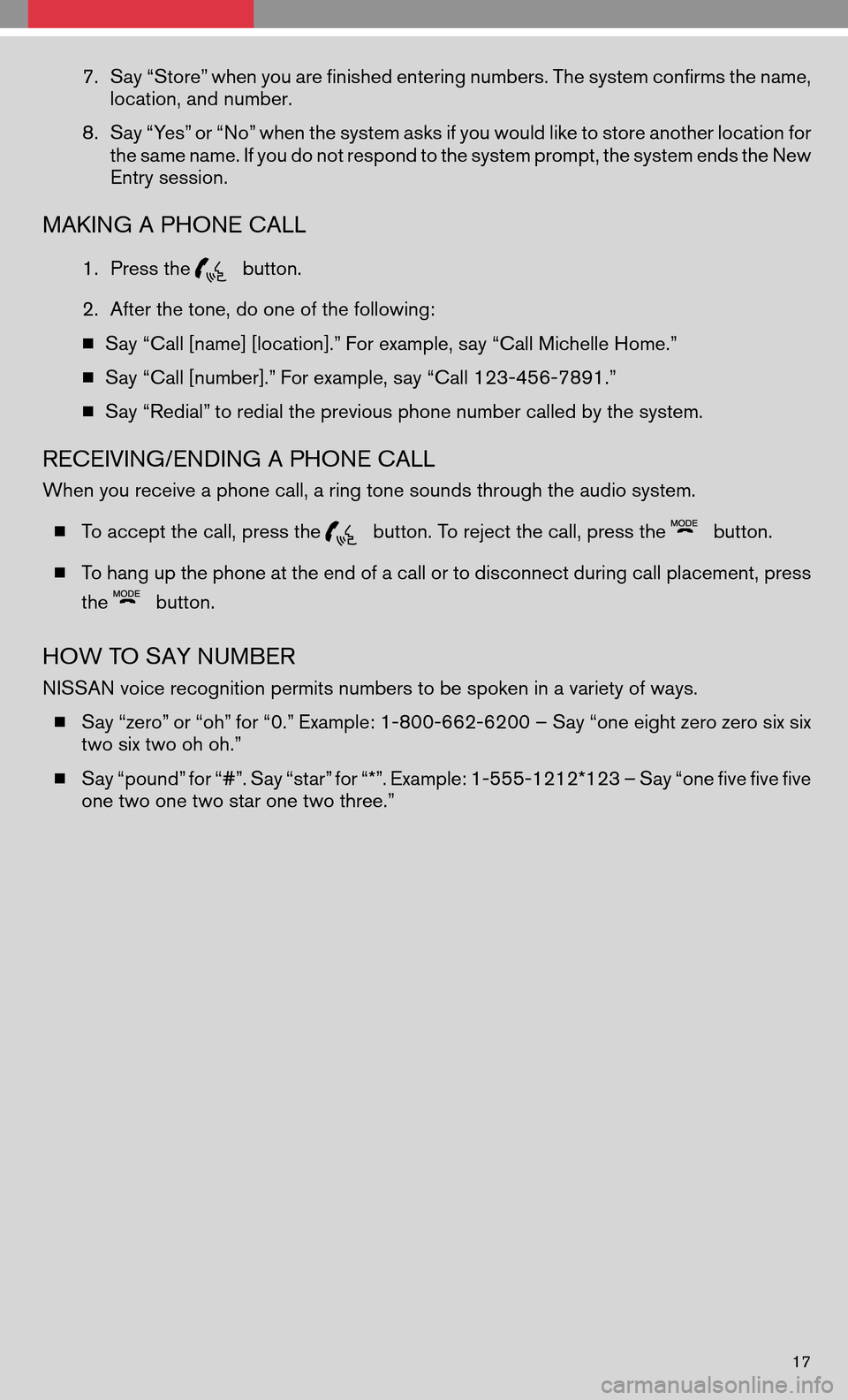

7.Say “Store” when you are finished entering numbers. The system confirms the name,
location, and number.
8. Say “Yes” or “No” when the system asks if you would like to store another location for
the same name. If you do not respond to the system prompt, the system ends the New
Entry session.
MAKING A PHONE CALL
1. Press thebutton.
2. After the tone, do one of the following:
 Say “Call [name] [location].” For example, say “Call Michelle Home.”
 Say “Call [number].” For example, say “Call 123-456-7891.”
 Say “Redial” to redial the previous phone number called by the system.
RECEIVING/ENDING A PHONE CALL
When you receive a phone call, a ring tone sounds through the audio system.
 To accept the call, press the
button. To reject the call, press thebutton.
 To hang up the phone at the end of a call or to disconnect during call placement, press
the
button.
HOW TO SAY NUMBER
NISSAN voice recognition permits numbers to be spoken in a variety of ways.
 Say “zero” or “oh” for “0.” Example: 1-800-662-6200 – Say “one eight zero zero six six
two six two oh oh.”
 Say “pound” for “#”. Say “star” for “*”. Example: 1-555-1212*123 – Say “one five five five
one two one two star one two three.”
17
