TABLE OF CONTENTS
Remote Keyless Entry System (if so equipped)................2
Windshield Wiper/Washer Switch .......................2
Headlight and Turn Signal Control .......................3
Steering Wheel Switches for Audio Control/Bluetooth
(if so equipped) .................................4
Cruise Control (if so equipped) .........................4
Climate Control ..................................5
FM/AM/XM * Radio with CD Changer (if so equipped) ...........6
Clock Set/Adjustment ...............................8
Trip Computer (if so equipped) .........................8
Instrument Brightness Control/Trip Change Button .............8
Four-Wheel Drive (4WD) Shift Switch (if so equipped) ...........9
Vehicle Dynamic Control (VDC) Off Switch (if so equipped) ........9
E-Lock Switch (if so equipped) .........................9
Hill Descent Control Switch (if so equipped) ................10
Hill Start Assist (if so equipped) ........................10
Front-Passenger Air Bag Status Light ....................10
Tire Pressure Monitoring System (TPMS) ..................11
Seat Belt Warning Light and Chime ......................11
Child Safety Rear Door Lock (Crew Cab model only) ...........11
Moonroof Controls (if so equipped) ......................12
Front Seat Adjustments .............................12
Fold Flat Front Passenger Seat (if so equipped) ..............13
Folding the Rear Bench Seat (Crew Cab Model only) ...........13
Utility Bed With Spray-On Bed Liner and Utili-Track™ System (if so equipped) ................................13
Homelink Universal Transceiver (if so equipped) ..............14
Bluetooth Hands-Free Phone System (if so equipped) ..........15
This easy-to-use Quick Reference Guide is intended to help you more fully
appreciate some of the unique features and functions of your new vehicle.
However, it is not intended to replace your Owner’s Manual. The Owner’s
Manual contains more detailed information to help you better understand the
important safety warnings, features, operation, and maintenance of your
vehicle.

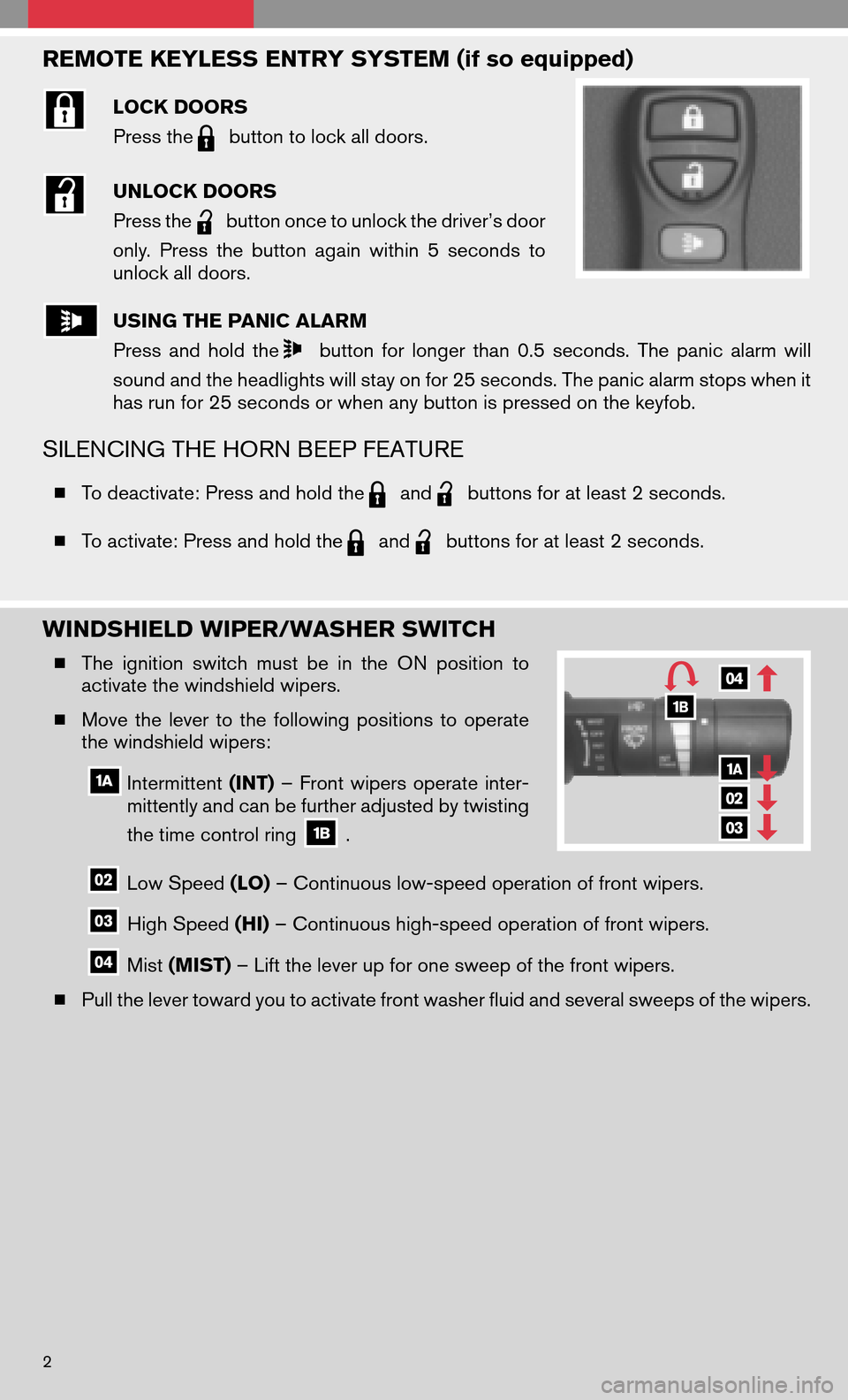

REMOTE KEYLESS ENTRY SYSTEM (if so equipped)
LOCK DOORS
Press the
button to lock all doors.
UNLOCK DOORS
Press the
button once to unlock the driver’s door
only. Press thebutton againwithin 5seconds to
unlock all doors.
USING THE PANIC ALARM
Press andhold the
button forlonger than0.5seconds. Thepanic alarmwill
sound and the headlights will stay on for 25 seconds. The panic alarm stops when it
has run for 25 seconds or when any button is pressed on the keyfob.
SILENCING THE HORN BEEP FEATURE
To deactivate: Press and hold theandbuttons for at least 2 seconds.
To activate: Press and hold the
andbuttons for at least 2 seconds.
WINDSHIELD WIPER/WASHER SWITCH
The ignition switchmustbeinthe ON position to
activate the windshield wipers.
Move thelever tothe following positions tooperate
the windshield wipers:
Intermittent (INT)–Front wipers operate inter-
mittently and can be further adjusted by twisting
the time control ring
.
Low Speed (LO)– Continuous low-speed operation of front wipers.
High Speed (HI)– Continuous high-speed operation of front wipers.
Mist (MIST) – Lift the lever up for one sweep of the front wipers.
Pull the lever toward you to activate front washer fluid and several sweeps of the wipers.
2
