2008 MITSUBISHI SHOGUN headlamp

Instruments and controls
3-61
3
Dipper (High/Low beam change)
E00506200055
When the lamp switch is in the “ ” position, the beam changes from high to low (or low
to high) each time the lever is
pulled fully (1). While the high b
eam is on, the high beam indi-
cation lamp in the instrument cluster will also illuminate.
Headlamp flasher
E00506300128
The high beams flash when the lever is pulled slightly to (2), and will go off when it is released. When the high beam is on, th
e high beam indication lamp in
the instrument cluster will illuminate.NOTE●
The high beams can also flash when the lamp switch is OFF.
●
If you turn the lamps off with the headlamps set to high beam, the headlamps are automa
tically returned to their
low-beam setting when the lamp
switch is next turned to
the “ ” position.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
61 Wednesday, January 9, 2008 4:32 PM

3-62 Instruments and controls
3

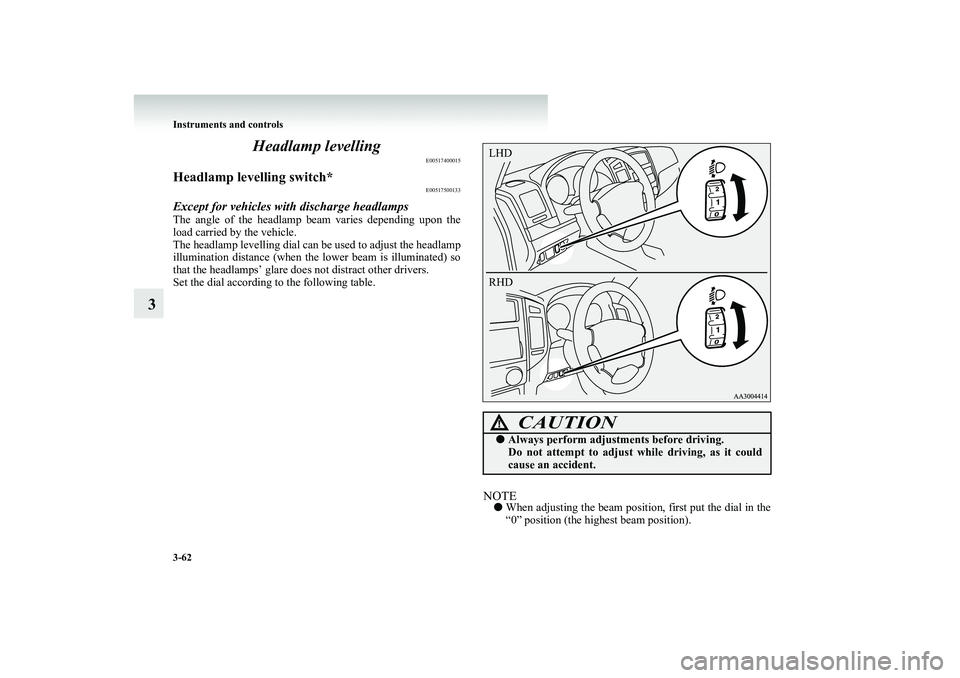

Headlamp levelling
E00517400015
Headlamp levelling switch*
E00517500133
Except for vehicles with discharge headlampsThe angle of the headlamp beam varies depending upon the load carried by the vehicle. The headlamp levelling dial can
be used to adjust the headlamp
illumination distance (when the lower beam is illuminated) sothat the headlamps’ glare does
not distract other drivers.
Set the dial according to
the following table.
NOTE●
When adjusting the beam position, first put the dial in the “0” position (the highest beam position).
CAUTION
!●
Always perform adjustments before driving. Do not attempt to adjust while driving, as it could cause an accident.
LHD RHD
BK-BK2008E1ENUK.en-uk-Section6.fm Page
62 Wednesday, January 9, 2008 4:32 PM

3-64 Instruments and controls
3
Automatic headlamp levelling*
E00517600017
Vehicles with discharge headlampsThis function automatically adjusts the illumination distance of the headlamps according to the nu
mber of people and the load
in the vehicle.When the ignition switch is in the “ON” position and the lamp switch is in the “ ” position, the illumination distance of the headlamps is automatically adjusted when the vehicle is stopped.Automatic headlamp levelling warning lampThe automatic headlamp levelling warning lamp should illumi- nate when the ignition switch
is turned “ON”, and should go
off in a few seconds.
CAUTION
!●
If the warning lamp
stays on or does not illuminate
when the ignition switch is
turned “ON”,
it indicates
that the automatic headlamp
levelling device is not
functioning. We recommend you to have your vehicle inspected.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
64 Wednesday, January 9, 2008 4:32 PM

3-66 Instruments and controls
3
Hazard warning flasher switch
E00506600440
Use the hazard warning flasher switch when the vehicle has to be parked on the road for any emergency. The hazard warning flashers can always be operated, regard-less of the position of the ignition key. Push the switch to turn on the
hazard warning flashers, all turn-
signal lamps flash continuously. To turn them off, push the switch again.NOTE●
It is possible for a buzzer to
sound with flashing of the
turn-signal lamps. For furt
her information, we recom-
mend you to consult a MITSUBISHI MOTORS Author-ized Service Point.
Fog lamp switch
E00506700047
Front fog lamp switch*
E00508300281
The front fog lamps illuminate only when the headlamps or taillamps are on. Push the switch to turn on the front fog lamps,and push the switch again to turn them off. The indication lamp in the instrument cluster will illuminate while the front fog lamps are on.LHD RHD
BK-BK2008E1ENUK.en-uk-Section6.fm Page
66 Wednesday, January 9, 2008 4:32 PM

Instruments and controls
3-67
3
NOTE●
The front fog lamps are automa
tically turned off when the
headlamps or tail lamps turn off. To turn on the front fog lamps again, push the switch
again when the headlamps or
tail lamps turn on.
●
In case of vehicles with Da
ytime Running Lamp, the front
fog lamp can be operated even if the lamp switch is set to the “OFF” position.
Rear fog lamp switch
E00508400123
The rear fog lamp illuminates only when the headlamps orfront fog lamps (if so equipped) are on. Push the switch to turn on the rear fog lamp, and push the switch again to turn it off.The indication lamp in the instrument cluster will illuminate while the rear fog lamp is on.Type 1LHD RHD
BK-BK2008E1ENUK.en-uk-Section6.fm Page
67 Wednesday, January 9, 2008 4:32 PM

3-68 Instruments and controls
3
Type 2NOTE●
The rear fog lamp is automa
tically turned off when the
headlamps or front fog lamps (if so equipped) turned off.To turn on the rear fog lamp
again, push the switch again
when the headlamps or front fog lamps (if so equipped) turn on.
●
In case of vehicles with Da
ytime Running Lamp, the rear
fog lamp can be operated even if the lamp switch is set to the “OFF” position.
Wiper and washer switch
E00507101191
LHD RHD
CAUTION
!●
If the washer is used in cold weather, the washer fluid sprayed against the
glass may freeze, which
may hinder visibility. Wa
rm the glass with the
defroster or rear window demister before using thewasher.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
68 Wednesday, January 9, 2008 4:32 PM

3-74 Instruments and controls
3
The wipers will operate once if
the lever is moved to the
“AUTO” position and knob (A) is turned in the “+” directionwhen the ignition switch is “ON” position.
Windscreen washer
E00507200528
The washer fluid will be sprayed onto the windscreen by pull-ing the lever toward you. The wipers operate automatically several times while the washer fluid is being sprayed. On a vehicle equipped with th
e headlamp washer, the head-
lamp washer operates together
with the windscreen washer the
first time the windscreen washer
is used if the headlamps are
on.
CAUTION
!●
If the washer is used in cold weather, the washer fluid sprayed against the
glass may freeze resulting
in poor visibility. Heat th
e glass with the defroster or
demister before using the washer.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
74 Wednesday, January 9, 2008 4:32 PM

3-76 Instruments and controls
3
Headlamp washer switch*
E00510100231
The headlamp washer can be ope
rated when the ignition switch
is in the “ON” or “ACC” posi
tion and the headlamps are on.
Push the button once and the washer fluid will be sprayed on to the headlamps.NOTE●
If the ignition switch is in the “ON” or “ACC” position and the headlamps are on, th
e headlamp washer operates
together with the windscreen washer the first time thewindscreen washer lever is pulled.
Precautions to observe
when using wipers and
washers
E00507600027
●
If the moving wipers become blocked by ice or other deposits on the glass, the motor may burn out even if thewiper switch is turned to OFF. If obstruction occurs, park your vehicle in a safe place, turn off the ignition, and clean the deposits from the gla
ss so that the wipers operate
smoothly.
●
Do not use the wipers when the glass is dry. They may scratch the glass surface and the blades wear out prema-turely.
●
Before using the wipers in co
ld weather, check that the
wiper blades are not frozen onto the glass. The motor mayburn out if the wipers are used
with the blades frozen onto
the glass.
●
Avoid using the washer continuously for more than 20 seconds. Do not operate the wa
sher when the fluid reser-
voir is empty. Otherwise, the motor may burn out.
●
Periodically check the level of washer fluid in the reser- voir and refill if required. During cold weather, add a
recommended washer solution
that will not freeze in the wash
er reservoir. Failure to do
so could result in loss of washer function and frost dam- age to the system components.
BK-BK2008E1ENUK.en-uk-Section6.fm Page
76 Wednesday, January 9, 2008 4:32 PM
