2008 MERCEDES-BENZ SLK ROADSTER air conditioning

31, 2, 3 ...
7G–TRONIC . . . . . . . . . . . . . . . . . . . . . .86 A
ABS (Anti-lock Braking System ). . . . .50
Display message . . . . . . . . . . . . . .176
Warning lamp . . . . . . . . . . . . . . . . .193
Acceleratio n
Technical data . . . . . . . . . . . . . . . .245
Accident
Notes . . . . . . . . . . . . . . . . . . . . . . .199
Active Service Syste m
see ASSYST PLUS
Airbag
Activation . . . . . . . . . . . . . . . . . . . . .39
Control unit . . . . . . . . . . . . . . . . . . .39
Driver's . . . . . . . . . . . . . . . . . . . . . . .42
Front . . . . . . . . . . . . . . . . . . . . . . . .42
Front passenger . . . . . . . . . . . . . . . .42
Head/thorax airbags . . . . . . . . . . . .43
PASSENGER AIRBAG OFF warning
lamp . . . . . . . . . . . . . . . . . . . . . . .191
System . . . . . . . . . . . . . . . . . . . . . . .41
Air conditioning
2-zone Thermatic . . . . . . . . . . . . . .122
Activating/deactivating air-recir-
culation mode . . . . . . . . . . . . . . . .131
Activating/deactivating auxiliary
heating/ventilatio n.. . . . . . . . . ..132 Air-recirculation mode with con-
venience opening/closing feature
.131
Controlling automatically . . . . . . . .127
Cooling with air dehumidification . .126
Demisting the windscreen . . . . . . .130
Heatmatic . . . . . . . . . . . . . . . . . . .120
Malfunction indicator lamp . . . . . .191
Misted up windows . . . . . . . . . . . .130
Rear window heating . . . . . . . . . . .130
Setting the air distribution . . . . . . .129
Setting the airflow . . . . . . . . . . . . .129
Setting the air vents . . . . . . . . . . . .128
Setting the temperature . . . . . . . . .127
Thermotronic . . . . . . . . . . . . . . . . .124
see Climate control
Air-conditionin g
Activating/deactivating . . . . . . . . .126
AIRSCARF neck-level heatin g. . . . . . .62
Antifreeze concentratio n. . . . . . . . .260
Anti-lock braking syste m
see ABS
Anti-theft alarm system
see ATA
Anti-theft systems . . . . . . . . . . . . . . ..52
Ashtra y. . . . . . . . . . . . . . . . . . . . . . . .140
ASSYST PLU S. . . . . . . . . . . . . . . . . . .165
ATA (anti-theft alarm system) . . . . ..52
Switching off the alarm . . . . . . . . . .53
Audible warning signa l. . . . . . . . . . .197 AUTO lights
Display message . . . . . . . . . . . . . .183
Automatic car wash . . . . . . . . . . . ..166
Automatic transmission Changing gear yoursel f.. . . . . . . . .86
Display in the speedomete r.. . . . ..85
Display message . . . . . . . . . . . . . .177
Driving tips . . . . . . . . . . . . . . . . . . . .87
Emergency running mod e.. . . . . .203
Malfunction . . . . . . . . . . . . . . . . . .203
One-touch gearshifting . . . . . . . . . . .86
Program selector button . . . . . . . . .87
Releasing the parking lock man -
ually . . . . . . . . . . . . . . . . . . . . . . . .212
Selector lever positions . . . . . . . . . .85
Shift ranges . . . . . . . . . . . . . . . . . . .86
Axle load, maximum permissibl e
. . . . . . . . . . . . . . . . . . . . . . . . . .253, 254 B
BAS (Brake Assist) . . . . . . . . . . . . . . ..50
Battery Changing (key) . . . . . . . . . . . . . . . .212
Charging . . . . . . . . . . . . . . . . . . . . .232
Checking (key ).. . . . . . . . . . . . . . .212
Check lamp (key ).. . . . . . . . . . . . .212
Disconnecting . . . . . . . . . . . . . . . .231
Display message . . . . . . . . . . . . . .180
Maintenance (vehicle ).. . . . . . . ..230
Reconnecting . . . . . . . . . . . . . . . . .232 Index
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite
3

7
Frequencies . . . . . . . . . . . . . . . . .
.262
Programming the remote control . .144
Gear indicator (on-board computer) .96
Gearshift program Manua l.. . . . . . . . . . . . . . . . . . . . . .88
Genuine Mercedes-Benz parts . . . ..240
Glove compartment . . . . . . . . . . . . ..138
Golf bag Storage location . . . . . . . . . . . . . . .138
Gross vehicle weight, maximum
permissible . . . . . . . . . . . . . . . . . . . . .253 H
Handbrake Display message . . . . . . . . . . . . . .181
Head/thorax airbags . . . . . . . . . . . . ..43
Headlamp Misting up . . . . . . . . . . . . . . . . . . .205
Headlamp mode (automatic ). . . . . . .74
Headlamps Cleaning . . . . . . . . . . . . . . . . . . . . .168
Cleaning system . . . . . . . . . . . . . . . .76
Headlamps delayed switch-off
see Exterior lighting delayed switch-off
Head restraint
Adjusting (front) . . . . . . . . . . . . .60, 61
Heatin g
see Air conditioning
High-pressure cleaners . . . . . . . . . ..167 HomeLink
®
see Garage door opener I
Immobiliser . . . . . . . . . . . . . . . . . . . . .52
Indicator and warning lam p
Brakes (red) . . . . . . . . . . . . . . . . . .194
Engine diagnostic . . . . . . . . . . . . . .195
ESP ®
. . . . . . . . . . . . . . . . . . . .51, 194
PASSENGER AIRBAG OFF . . . .46, 191
Reserve fuel . . . . . . . . . . . . . . . . . .197
Seat belt . . . . . . . . . . . . . . . . . . . . .195
SRS . . . . . . . . . . . . . . . . . . . . .39, 194
Indicator and warning lamps . . . . ..193
Indicator lamp see Indicator and warning lamp
Instrument cluster . . . . . . . . . . . . . ..90
Overview . . . . . . . . . . . . . . . . . . . . .24
Selecting the language (on-board
computer) . . . . . . . . . . . . . . . . . . .102
Instrument lighting . . . . . . . . . . . . . ..90
Interior lightin g. . . . . . . . . . . . . . . . . .77
Automatic contro l.. . . . . . . . . . . . .77
Delayed switch-off (on-boar d
computer) . . . . . . . . . . . . . . . . . . .105
Emergency lighting . . . . . . . . . . . . . .77
Manual control . . . . . . . . . . . . . . . . .78
Reading lamp . . . . . . . . . . . . . . . . . .78
Interior motion sensor . . . . . . . . . . ..54 Intermittent wipe
Windscreen wiper s.. . . . . . . . . . . . .79 J
Jack Operation . . . . . . . . . . . . . . . . . . . .225
Storage location . . . . . . . . . . . . . . .172
Jump-starting . . . . . . . . . . . . . . . . . . .233
Jump leads . . . . . . . . . . . . . . . . . . .233 K
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Changing the battery . . . . . . . . . . .212
Checking the battery . . . . . . . . . . .212
Closing the roof . . . . . . . . . . . . . . .134
Display message . . . . . . . . . .184, 187
Factory setting . . . . . . . . . . . . . .56, 57
Loss . . . . . . . . . . . . . . . . . . . . . . . .207
Malfunction . . . . . . . . . . . . . . . . . .207
Modifying the programming . . . . . . .56
Opening the roof . . . . . . . . . . . . . .134
Key position s
Key . . . . . . . . . . . . . . . . . . . . . . . . . .59
Kickdown . . . . . . . . . . . . . . . . . . . .87, 89 Index
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite
7

55
Opening and closing
...........................56
Key positions ...................................... .59
Seats .................................................... 59
Steering wheel .................................... 63
Mirrors ................................................. 65
Memory functions* .............................68
Seat belts ............................................ .69
Lights ................................................... 73
Windscreen wipers .............................78
Side windows ...................................... 79Driving and parking
............................81
Transmission ....................................... 84
Instrument cluster ..............................90
On-board computer .............................91
Driving systems ................................ 109
Air conditioning ................................. 118
Opening/closing the roof .................132
Loading and stowing ........................136
Features ............................................. 140 Controls
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 55

Air conditionin
g118 Air conditioning
Overview of air-conditioning systems
The vehicle is equipped with one of the following air-conditioning systems: Heatmatic
2-zone Thermatic* Thermotronic
* Heatmatic is a heating and ventilation system
without a cooling system.
i
The design of the control panel and the
functions of Heatmatic are identical to that
of 2-zone Thermatic.
Exception: 2-zone Thermatic has the addi-
tional "A/C" function 9. 2-zone Thermatic combines a heating and
ventilation system with a cooling system.
i
The design of the control and the func-
tions of 2-zone Thermatic are identical to
that of Heatmatic.
Exception: 2-zone Thermatic has the addi-
tional "A/C" function 9. The Thermotronic automatic air-conditioning
system combines an automatic heating and
ventilation system with a cooling system. You
can control the air conditioning separately for
the driver's and front-passenger sides.Controls
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 118

Air conditionin

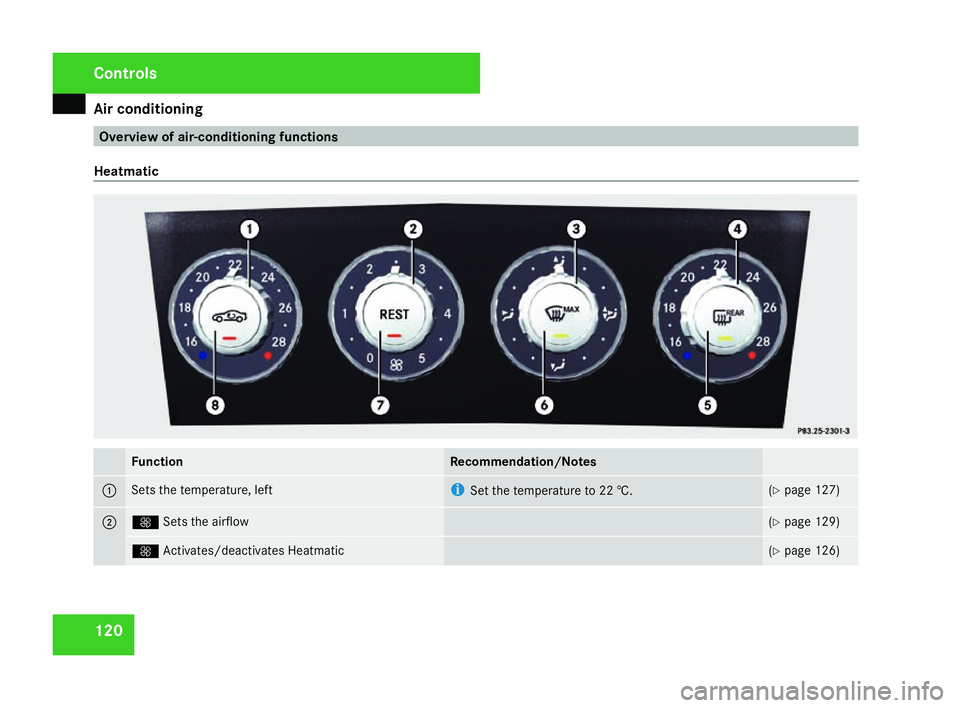

g120 Overview of air-conditioning functions
Heatmatic Function Recommendation/Notes
1 Sets the temperature, left i
Set the temperature to 22 †. (
Y page 127 ) 2 Q
Sets the airflow (
Y page 129 ) Q
Activates/deactivates Heatmatic (
Y page 126 ) Cont
rols
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 120

Air conditionin
g 123Function Recommendation/Notes
5 ¯
Switches the rear window heating on/of f i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warme d
up. (
Y page 130 ) 6 y
Activates/deactivates the demisting function for
the windscree n i
Only use the "demisting" function until the wind-
screen is clear again. (
Y page 130 ) 7 9
Activates/deactivates cooling with air dehumidifi -
cation i
Switch on the air conditioning with air dehumidifica-
tion function. The indicator lamp in the 9button
lights up. (
Y page 126 ) 9
Activates/deactivates the auxiliary heating/venti-
latio n i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (
Y page 132 ) 8 ,
Activates/deactivates air-recirculation mod e i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows can mist up due to
lack of fresh air. (
Y page 131 ) Cont
rols
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 123

Air conditionin
g124

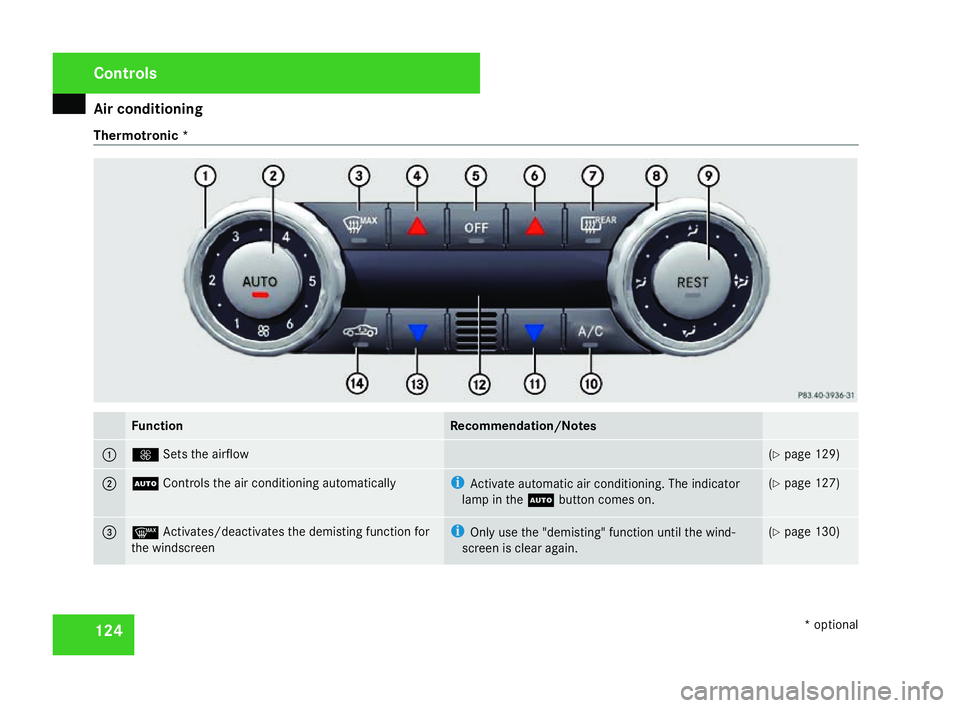

Thermotronic
* Function Recommendation/Notes
1 Q
Sets the airflow (
Y page 129 ) 2 U
Controls the air conditioning automatically i
Activate automatic air conditioning. The indicator
lamp in the Ubutton comes on. (
Y page 127 ) 3 y
Activates/deactivates the demisting function for
the windscree n i
Only use the "demisting" function until the wind-
screen is clear again. (
Y page 130 ) Cont
rols
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 124

Air conditionin
g 125Function Recommendation/Notes
4 $
Increases the temperature, left-hand side i
Set the temperature to 22 †. (
Y page 127 ) 5 ´
Activates/deactivates Thermotroni c i
Activate Thermotronic. The indicator lamp in the
´ button goes out. (
Y page 126 ) 6 $
Increases the temperature, right-hand side i
Set the temperature to 22 †. (
Y page 127 ) 7 ¯
Switches the rear window heating on/of f i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warme d
up. (
Y page 130 ) 8 Sets the air distribution (
Y page 129 ) 9 T
Activates/deactivates the auxiliary heating/venti-
latio n i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (
Y page 132 ) a œ
Switches air-conditioning with air dehumidification
on/of f i
Switch on the air conditioning with air dehumidifica-
tion function. The indicator lamp in the œbutton
comes on. (
Y page 126 ) b %
Reduces the temperature, right-hand side i
Set the temperature to 22 †. (
Y page 127 ) c Display Controls
171_AKB; 3; 4, en-G
B
vpfaff7, 2007-11-13T10:50:25+01:00 - Seite 125 Z
