2008 MERCEDES-BENZ SLK ROADSTER Owners Manual

Air conditionin
g118 Air conditioning

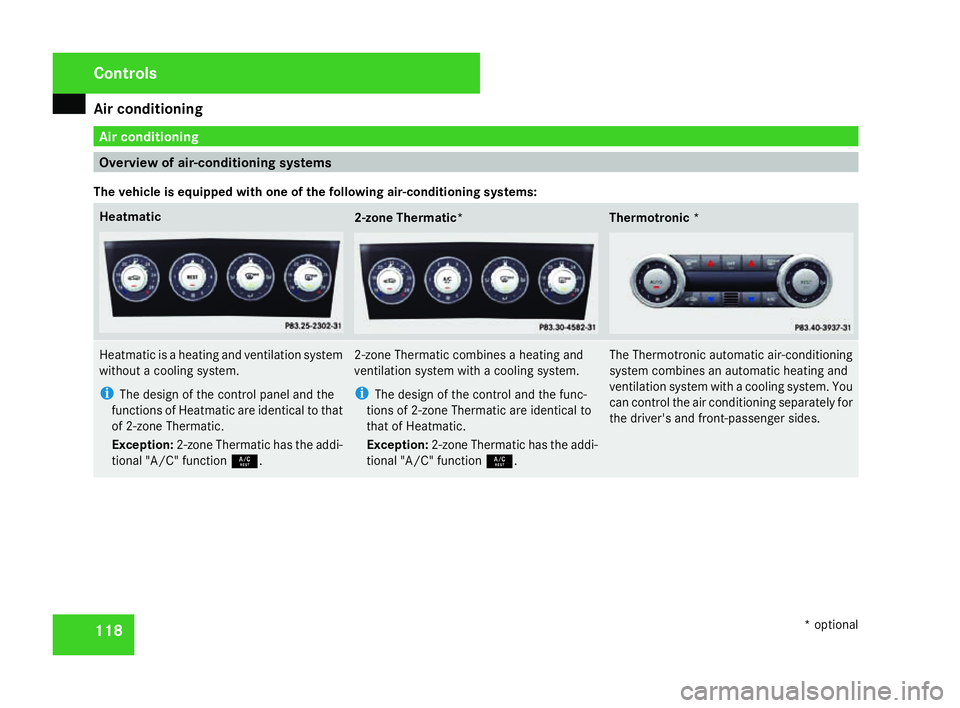

Overview of air-conditioning systems
The vehicle is equipped with one of the following air-conditioning systems: Heatmatic
2-zone Thermatic* Thermotronic
* Heatmatic is a heating and ventilation system
without a cooling system.
i
The design of the control panel and the
functions of Heatmatic are identical to that
of 2-zone Thermatic.
Exception: 2-zone Thermatic has the addi-
tional "A/C" function 9. 2-zone Thermatic combines a heating and
ventilation system with a cooling system.
i
The design of the control and the func-
tions of 2-zone Thermatic are identical to
that of Heatmatic.
Exception: 2-zone Thermatic has the addi-
tional "A/C" function 9. The Thermotronic automatic air-conditioning
system combines an automatic heating and
ventilation system with a cooling system. You
can control the air conditioning separately for
the driver's and front-passenger sides.Controls
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 118

Air conditionin
g 119General notes
2-zone Thermatic*/Thermotronic* controls
the temperature and the humidity of the vehi-
cle interior and filters out undesirable sub-
stances from the air.
Heatmatic/2-zone Thermatic*/
Thermotronic* is only operational when the
engine is running. Optimum operation is only
achieved when you drive with the side win-
dows closed. i
Ventilate the vehicle for a brief period
during warm weather. This will speed up the
cooling process and the desired interior
temperature will be reached more quickly.
i The integrated filter filters out most par-
ticles of dust and completely filters out
pollen. A clogged filter reduces the amount
of air supplied to the vehicle interior. For
this reason, you should always observe the
interval for replacing the filter, which is specified in the Service Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Service Booklet
. G
Risk of accident
Observe the settings recommended on the
following pages. The windows could other-
wise mist up. This may obstruct your vie w
of the traffic situation, thereby causing an
accident . Cont
rols
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 119

Air conditionin
g120 Overview of air-conditioning functions
Heatmatic Function Recommendation/Notes
1 Sets the temperature, left i
Set the temperature to 22 †. (
Y page 127 ) 2 Q
Sets the airflow (
Y page 129 ) Q
Activates/deactivates Heatmatic (
Y page 126 ) Cont
rols
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 120

Air conditionin
g 121Function Recommendation/Notes
3 Sets the air distribution (
Y page 129 ) 4 Sets the temperature, right i
Set the temperature to 22 †. (
Y page 127 ) 5 ¯
Switches the rear window heating on/of f i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warme d
up. (
Y page 130 ) 6 y
Activates/deactivates the demisting function for
the windscree n i
Only use the "demisting" function until the wind-
screen is clear again. (
Y page 130 ) 7 T
Activates/deactivates the auxiliary heating/venti-
latio n i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (
Y page 132 ) 8 ,
Activates/deactivates air-recirculation mod e i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows can mist up due to
lack of fresh air. (
Y page 131 ) Cont
rols
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 121

Air conditionin
g122

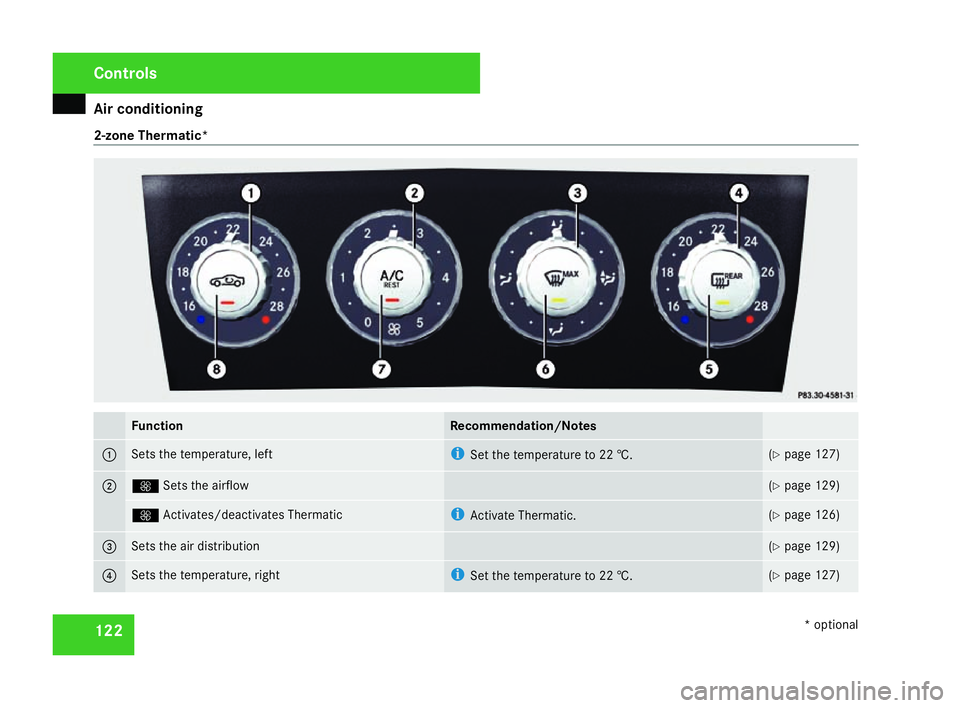

2-zone Thermatic*
Function Recommendation/Notes
1 Sets the temperature, left i
Set the temperature to 22 †. (
Y page 127 ) 2 Q
Sets the airflow (
Y page 129 ) Q
Activates/deactivates Thermatic i
Activate Thermatic. (
Y page 126 ) 3 Sets the air distribution (
Y page 129 ) 4 Sets the temperature, right i
Set the temperature to 22 †. (
Y page 127 ) Cont
rols
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 122

Air conditionin

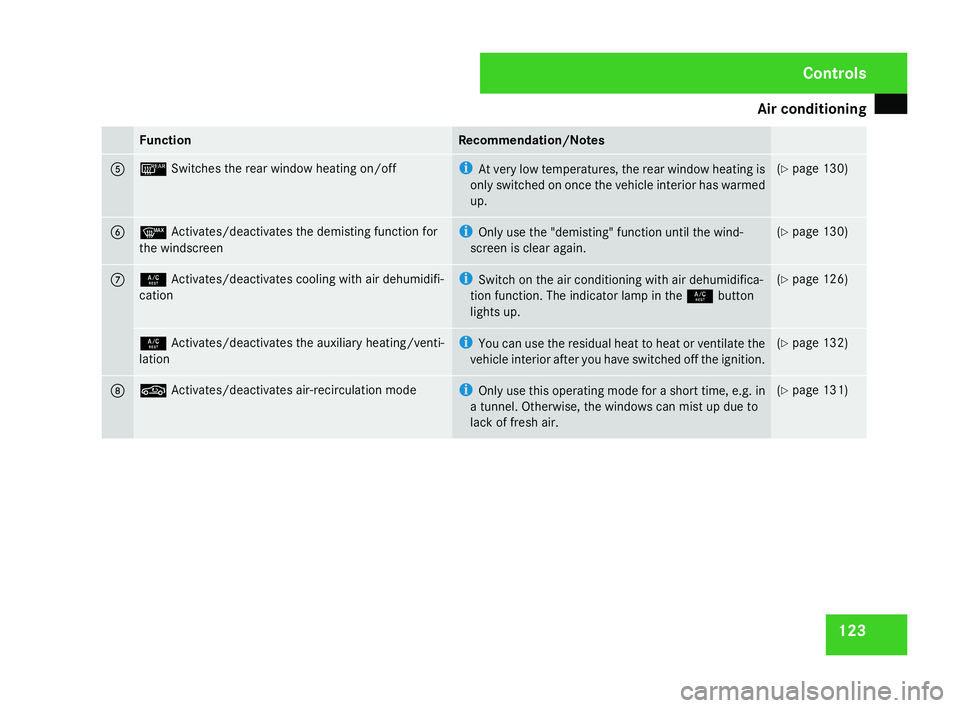

g 123Function Recommendation/Notes
5 ¯
Switches the rear window heating on/of f i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warme d
up. (
Y page 130 ) 6 y
Activates/deactivates the demisting function for
the windscree n i
Only use the "demisting" function until the wind-
screen is clear again. (
Y page 130 ) 7 9
Activates/deactivates cooling with air dehumidifi -
cation i
Switch on the air conditioning with air dehumidifica-
tion function. The indicator lamp in the 9button
lights up. (
Y page 126 ) 9
Activates/deactivates the auxiliary heating/venti-
latio n i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (
Y page 132 ) 8 ,
Activates/deactivates air-recirculation mod e i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows can mist up due to
lack of fresh air. (
Y page 131 ) Cont
rols
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 123

Air conditionin
g124
Thermotronic
* Function Recommendation/Notes
1 Q
Sets the airflow (
Y page 129 ) 2 U
Controls the air conditioning automatically i
Activate automatic air conditioning. The indicator
lamp in the Ubutton comes on. (
Y page 127 ) 3 y
Activates/deactivates the demisting function for
the windscree n i
Only use the "demisting" function until the wind-
screen is clear again. (
Y page 130 ) Cont
rols
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 124

Air conditionin
g 125Function Recommendation/Notes
4 $
Increases the temperature, left-hand side i
Set the temperature to 22 †. (
Y page 127 ) 5 ´
Activates/deactivates Thermotroni c i
Activate Thermotronic. The indicator lamp in the
´ button goes out. (
Y page 126 ) 6 $
Increases the temperature, right-hand side i
Set the temperature to 22 †. (
Y page 127 ) 7 ¯
Switches the rear window heating on/of f i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warme d
up. (
Y page 130 ) 8 Sets the air distribution (
Y page 129 ) 9 T
Activates/deactivates the auxiliary heating/venti-
latio n i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (
Y page 132 ) a œ
Switches air-conditioning with air dehumidification
on/of f i
Switch on the air conditioning with air dehumidifica-
tion function. The indicator lamp in the œbutton
comes on. (
Y page 126 ) b %
Reduces the temperature, right-hand side i
Set the temperature to 22 †. (
Y page 127 ) c Display Controls
171_AKB; 3; 4, en-G
B
vpfaff7, 2007-11-13T10:50:25+01:00 - Seite 125 Z
